Week 9 - Attachment Feature Creation - Challenge 2

Challenge: Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm.

Inputs:

1.Class-A Surface

2.Thickness of the component

Class-A Surface

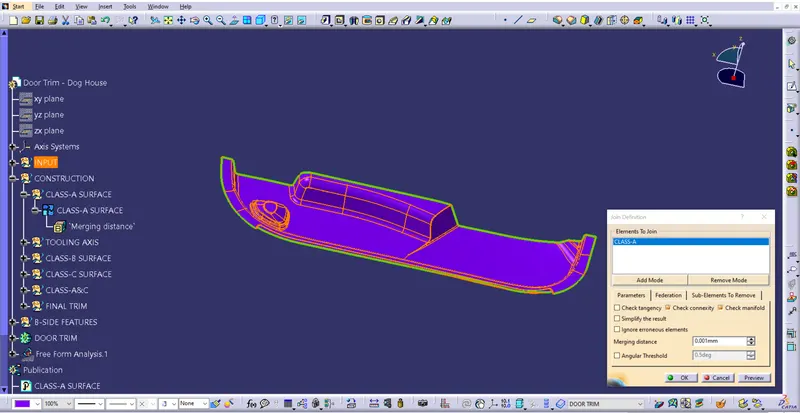

To ensure the connectivity between the surfaces, all surfaces joined using join command.

With this it is concluded that all surfaces are joined properly & there are no gaps between the surfaces.

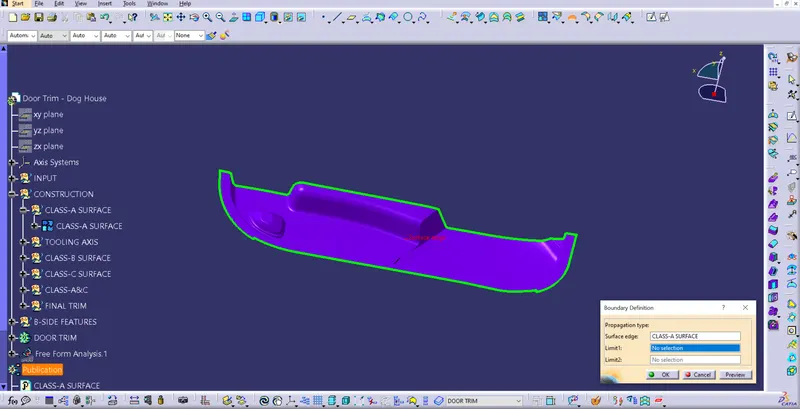

Using boundary command Class-A surface checked for unnecessary open profiles between the surfaces.

Tooling Axis

To create a tooling axis few steps need to be followed

Step 1:

a. Create a point at Centre of Gravity (CG) of the surface

b. Follow the instructions to create a point at CG

Go to Measure tool bar

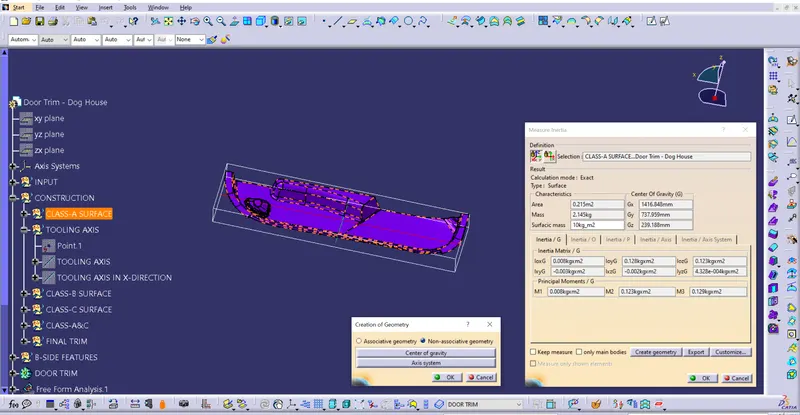

Measure --> Measure inertia --> Create Geometry --> Non-associative geometry --> Centre of Gravity --> Ok --> OK.

CG point created for the given Class-A surface.

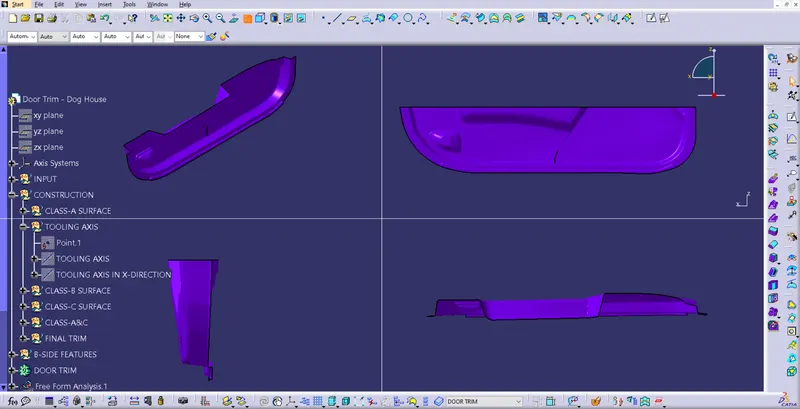

Tooling direction checked for X,Y&Z axis. Tooling can clear all the surfaces in Y-direction.

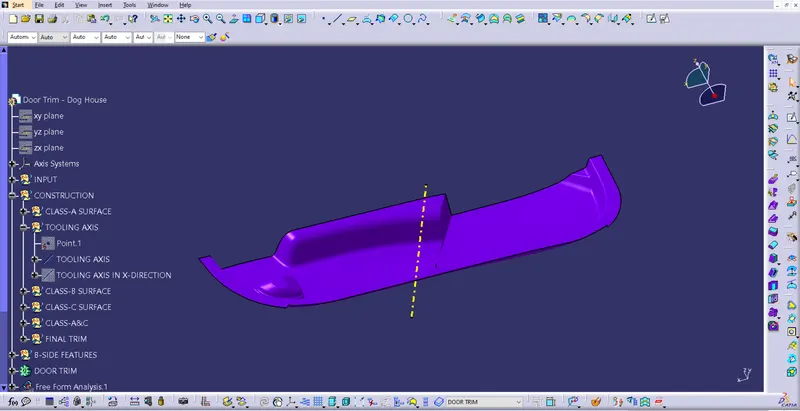

Tooling Axis created along Y-axis using the CG point.

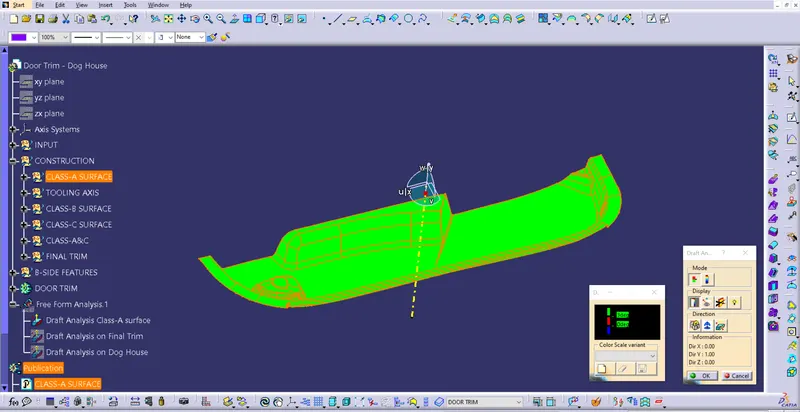

Draft Analysis on Class-A surface

Few steps need to be followed to perform draft analysis.

a. View --> Customise view parameters --> Mesh --> Material --> Ok.

b. The go to Insert --> Analysis --> Feature Draft Analysis

c. Click on compass from the direction, drag & drop compass on the tooling axis in such a way that Z axis to be along the tooling axis.

d. Lock the compass using lock command from direction.

e. Click on the surface to see the results.

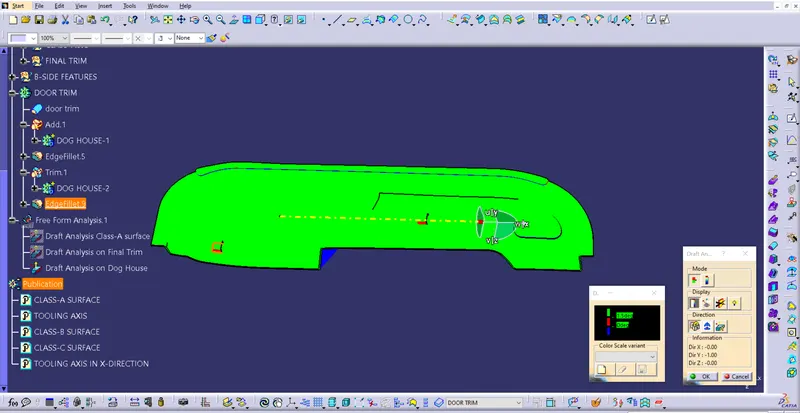

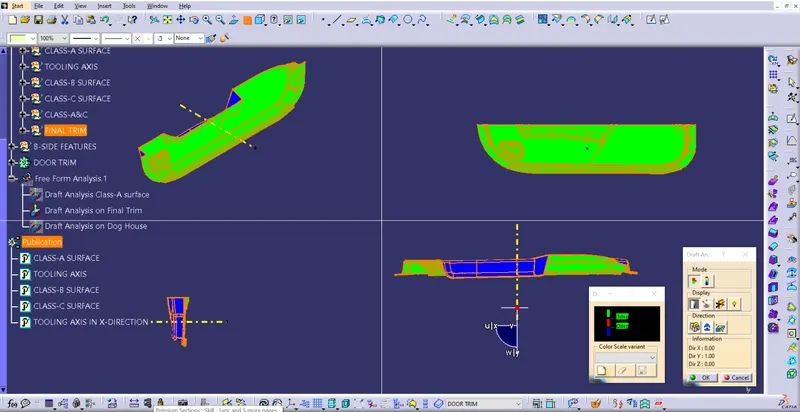

Draft Analysis on Class-A surface.

Draft Analysis on Final Trim.

Draft Analysis on Dog House in Tooling in X-direction.

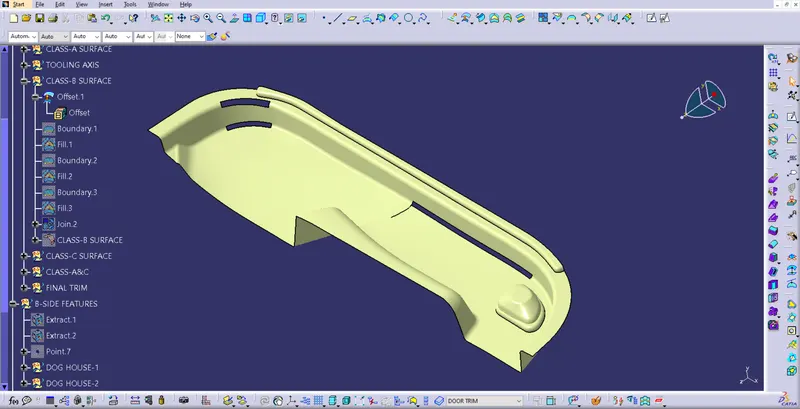

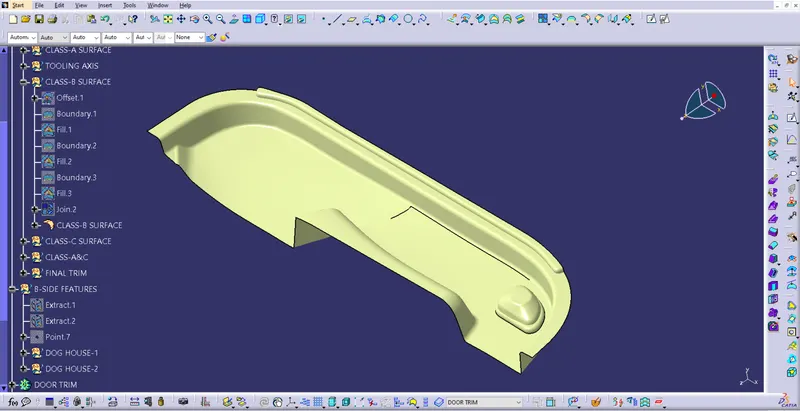

Class-B surface creation

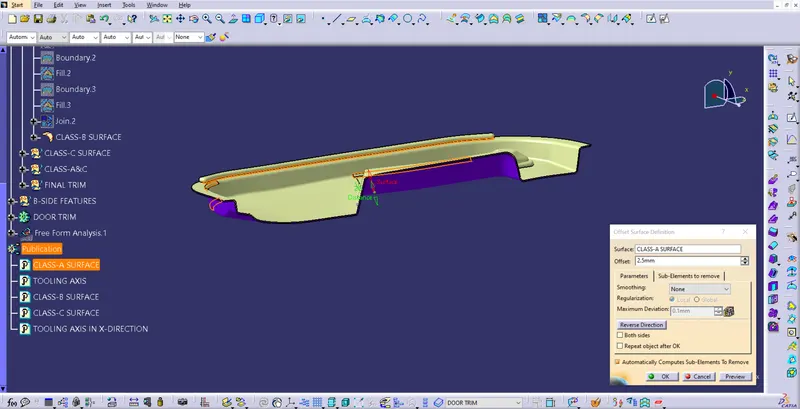

Class-A surface is off-set by thickness.

Gaps were filled using Fill command.

Claa-B surface.

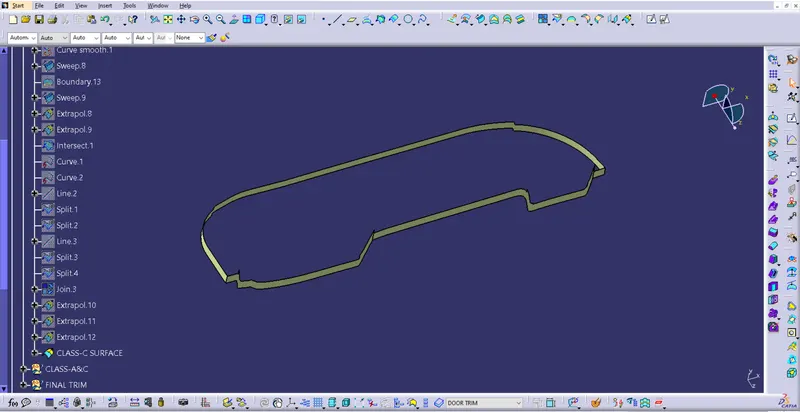

Class-C surface Creation

Class-C surfaces created using the boundary of Class-A surface.

Boundaries created & using sweep command drafted in Tooling direction.

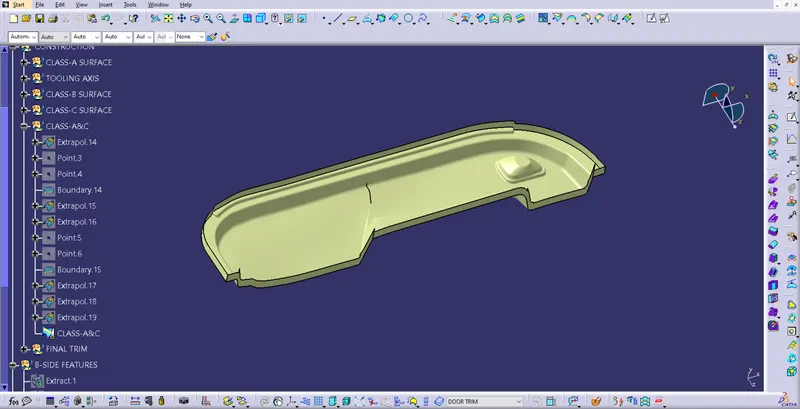

Class-A&C were joined to perform final trim with Class-B surface.

Final Trim

Obtained final out put by trimming Class-A,B&C.

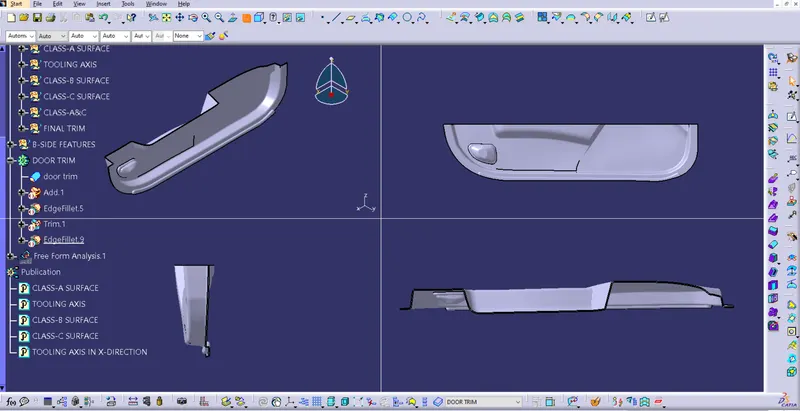

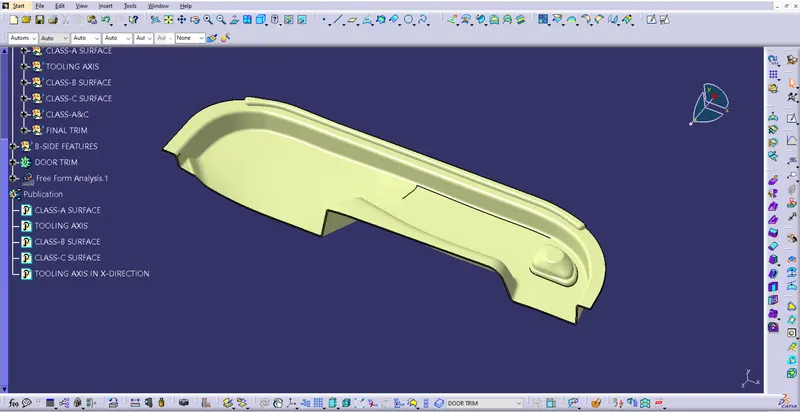

All views of Solid Body.

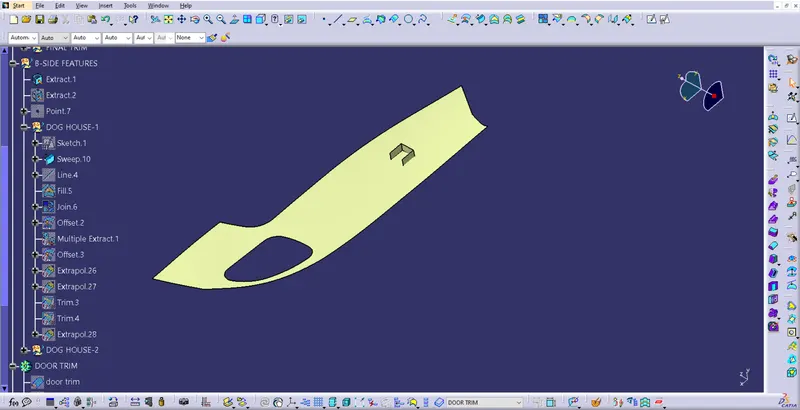

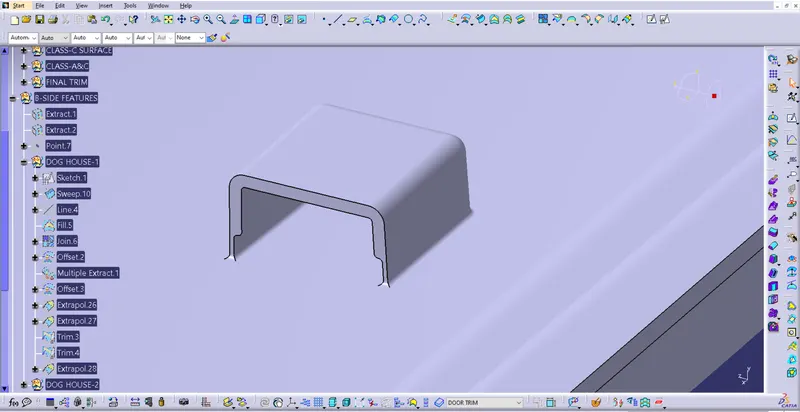

Dog House Creation

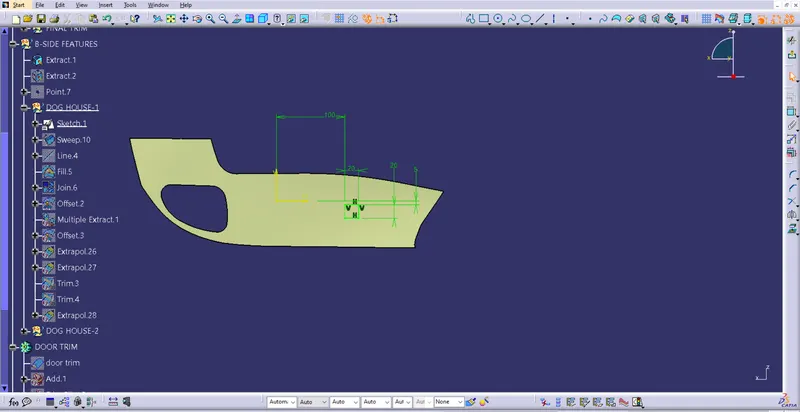

Dog House created by using the given data.

"C" is where the doghouse contacts the backside of the surface

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• The height of ( B ) should be between 3.0 – 6.0 mm

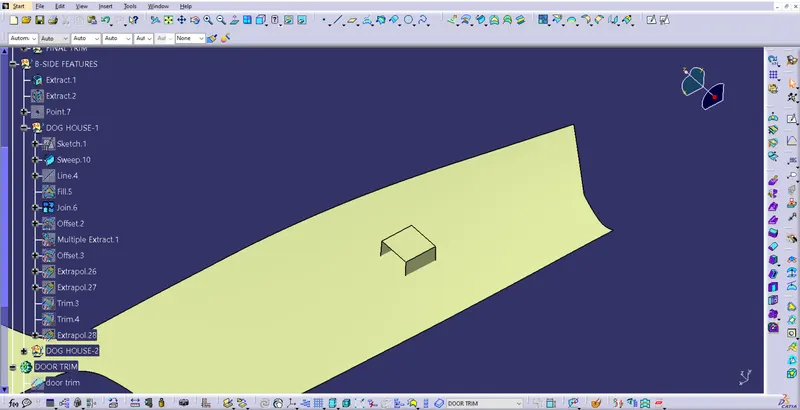

Dog House bodies were created & added to main body using Boolean Operations.

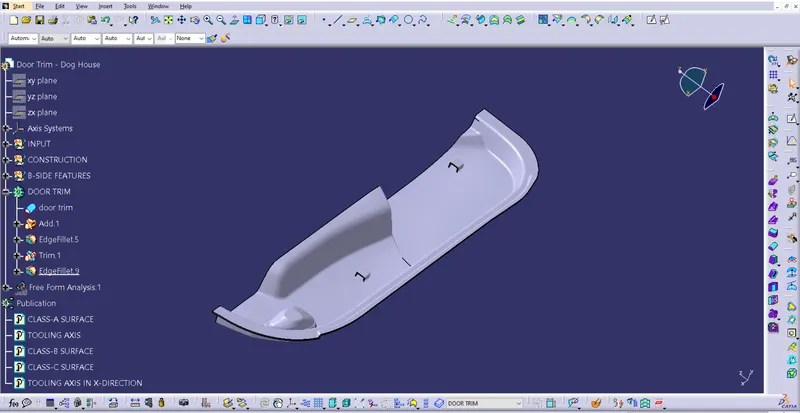

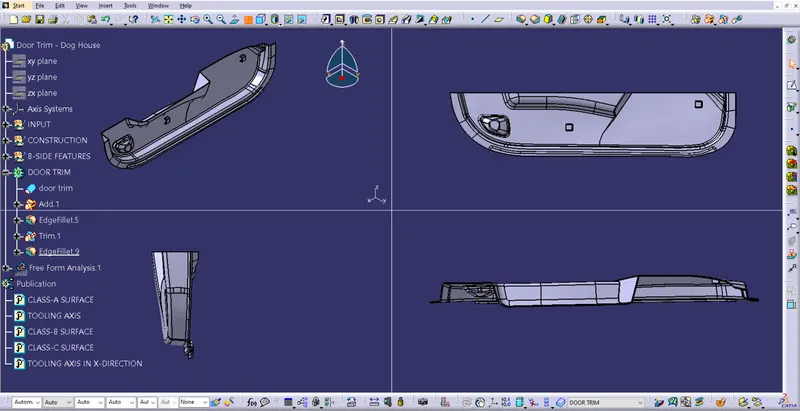

All views of Door Trim with Dog houses.
