Week 9 - Attachment Feature Creation - Challenge 2

Design Of DOOR TRIM - Dog house From given CLASS A

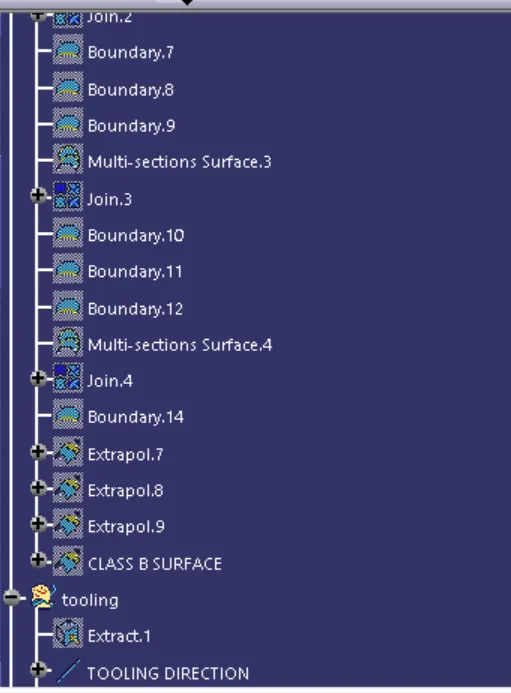

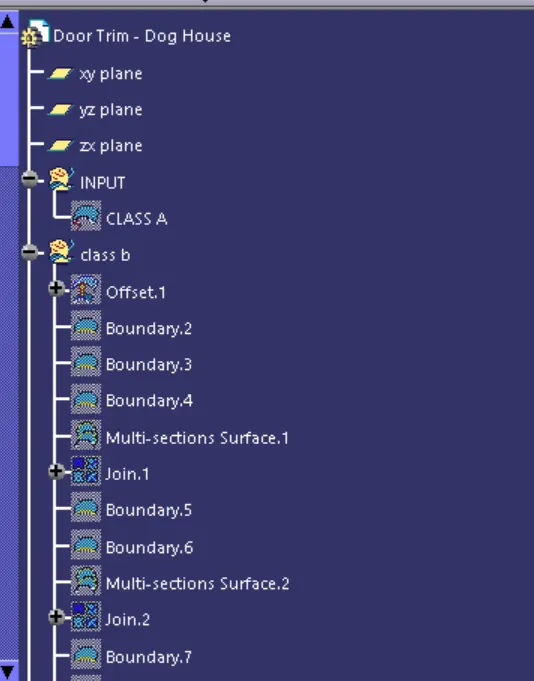

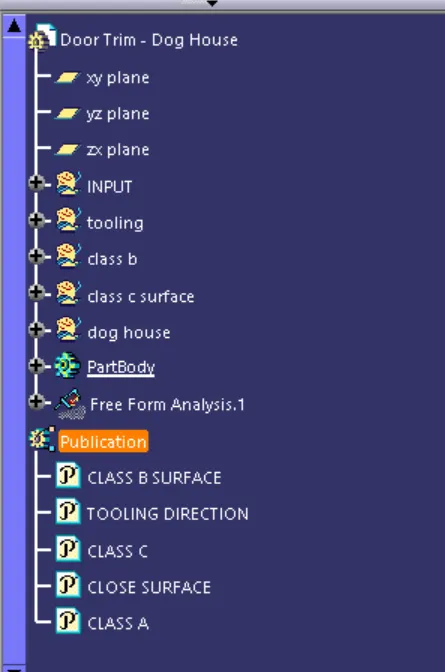

TREE STRUCTURE

At, first we will create the closed body .

CLASS A

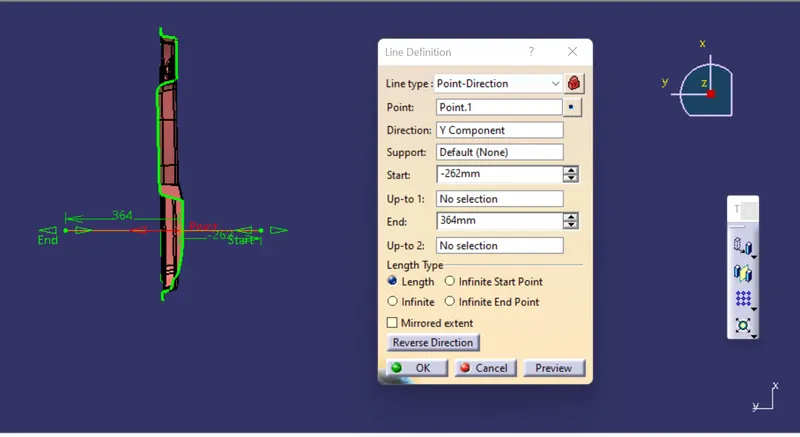

TOOLING AXIS : It is the direction along which core and cavity moves, here in door trim , we can able to see the component from Y AXIS, so we will make the tooling axing along y direction.

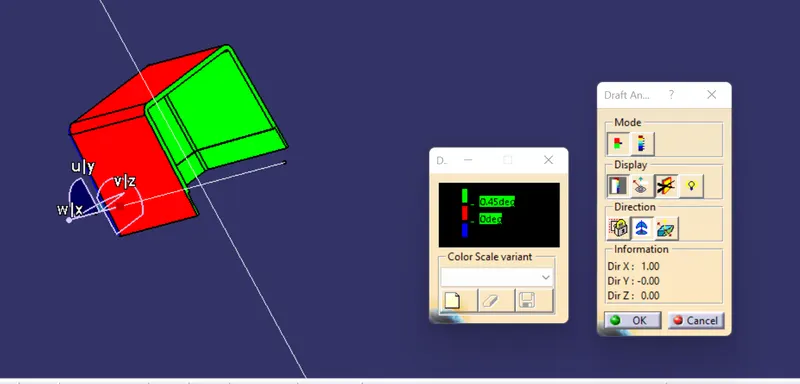

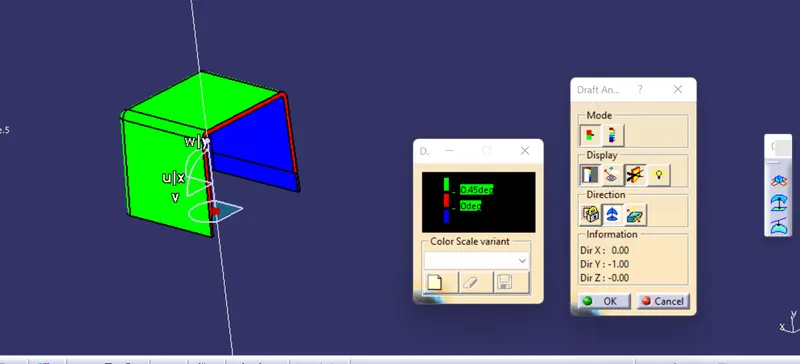

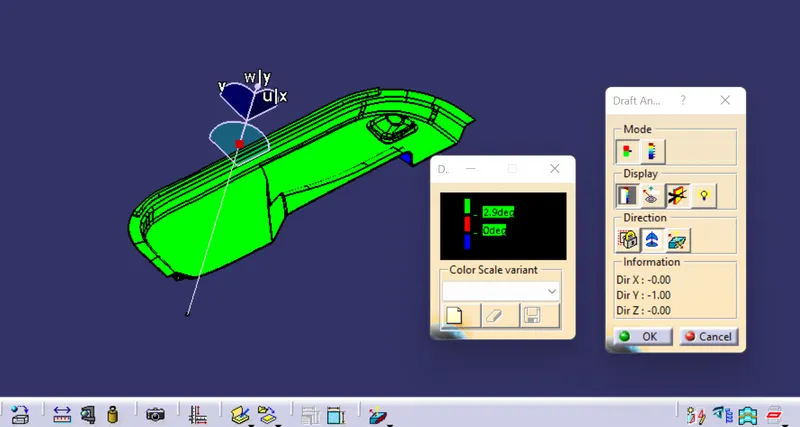

DRAFT analysis

hence , our class A is clearing our component with 3 degree draft

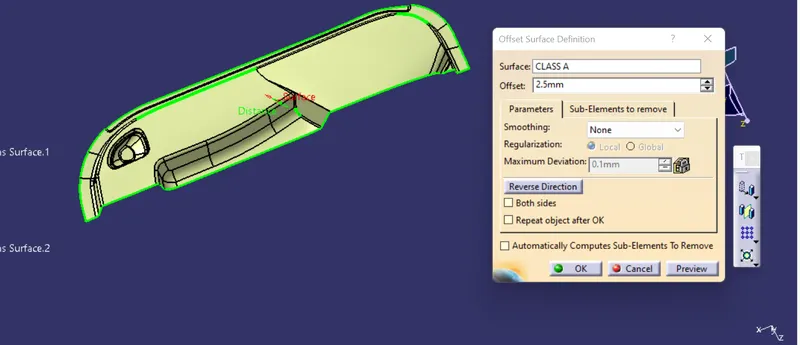

class b : It is 2.5 mm offset from the given class A

AFTER offset, some fillets are not properly offsetted below, therfore, we will repair the class b , using multisection solid

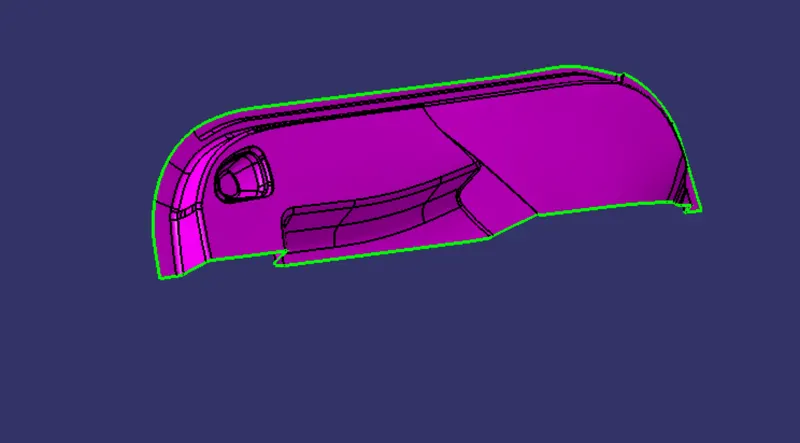

repaired class b

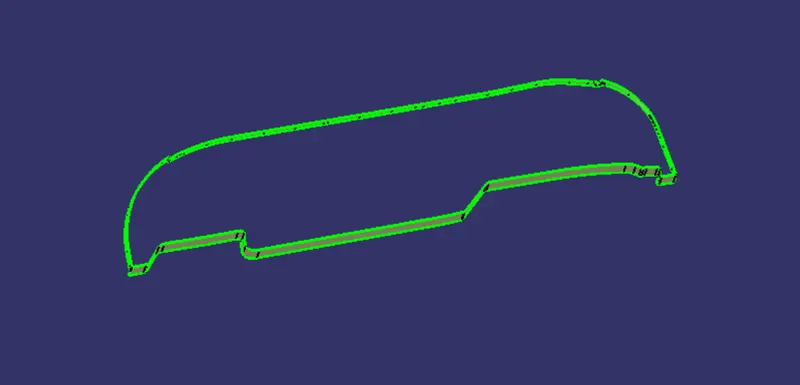

CLASS C : It is used to join the class A and class B . It is done on class A SURFACE.

It is done by sweep method with 3 degree draft.

join class A and CLASS C

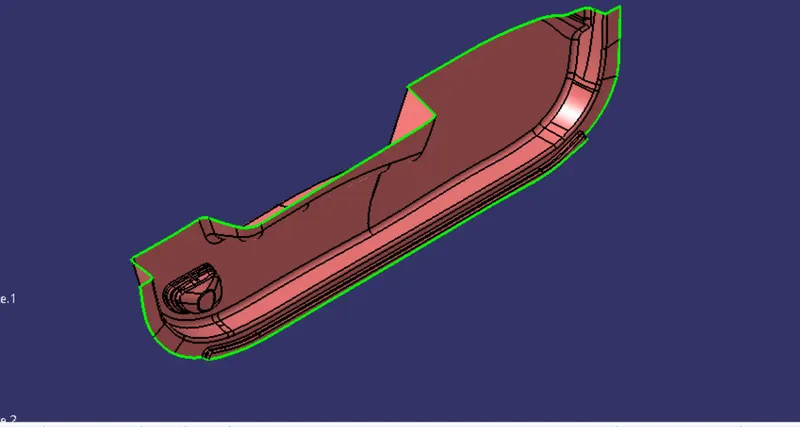

Final trim

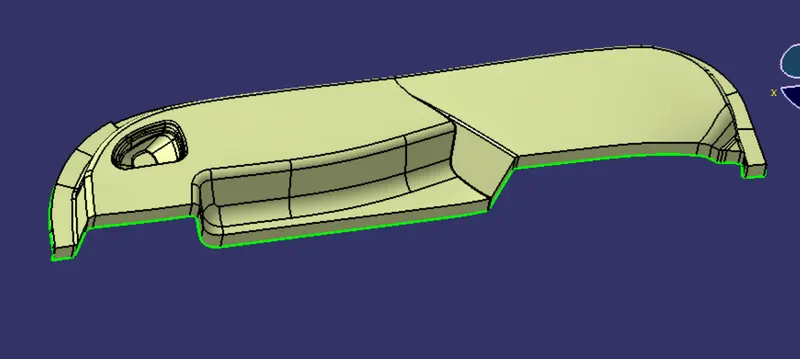

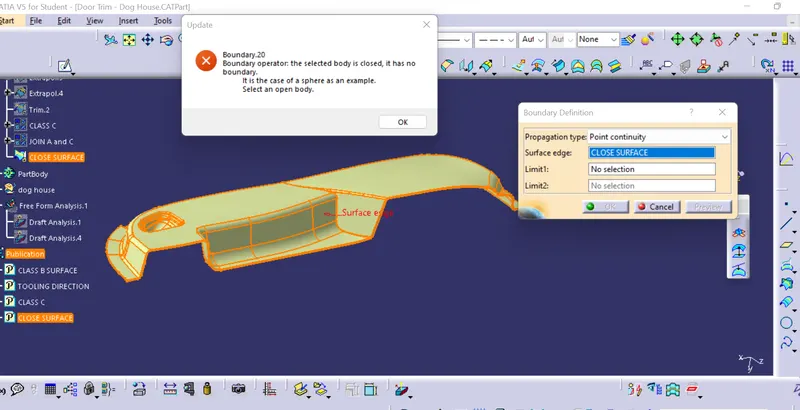

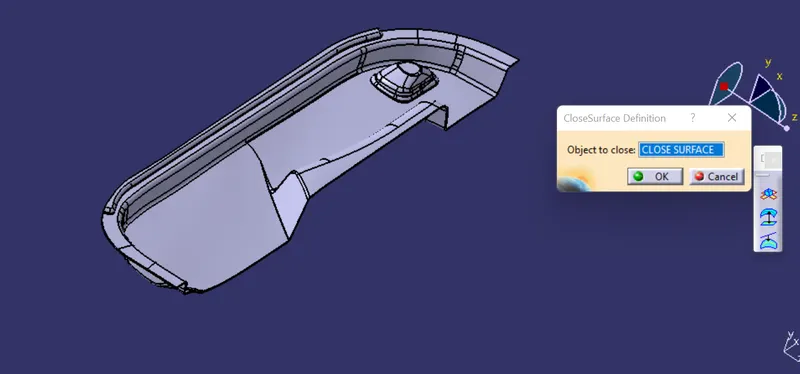

solid body by close surface method

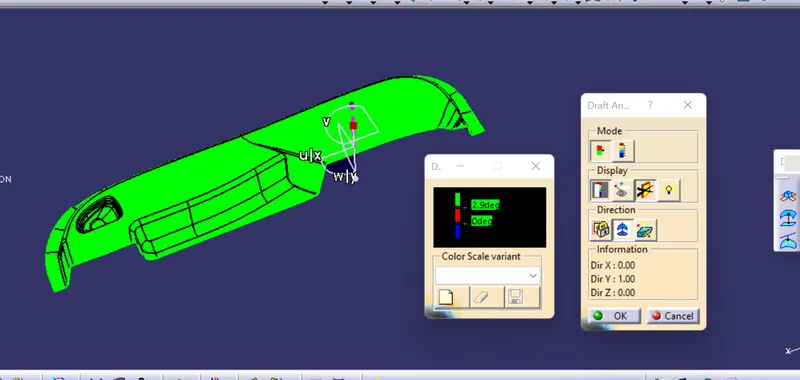

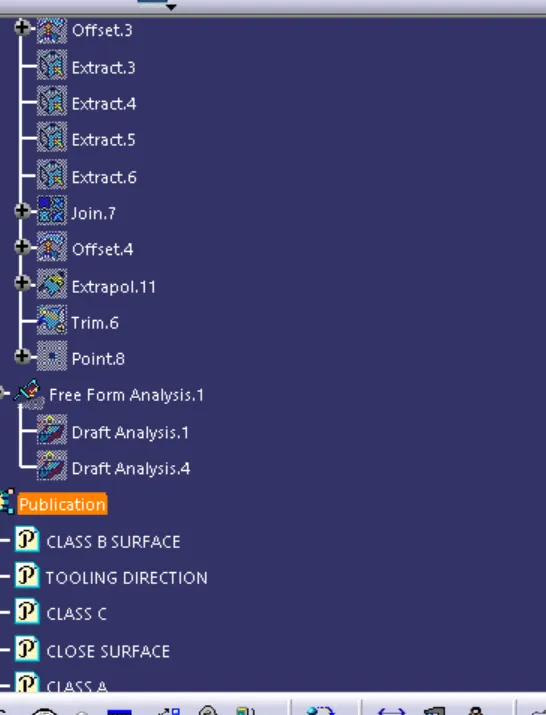

draft analysis of solid body

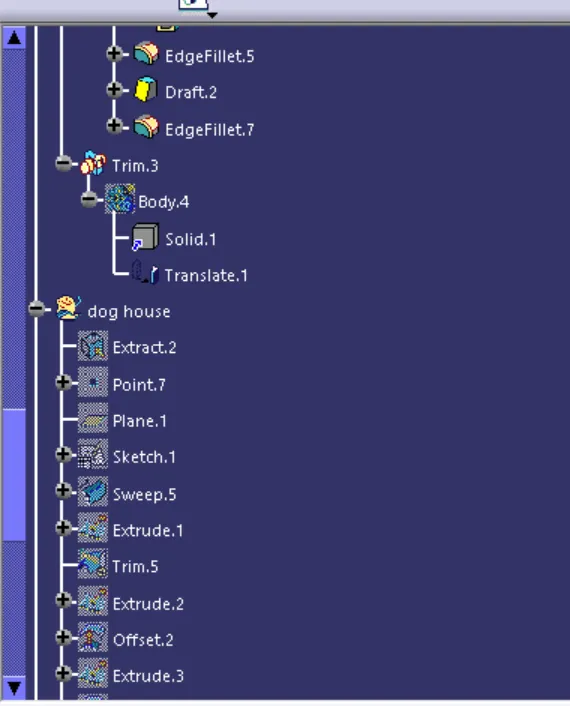

creation of B Features

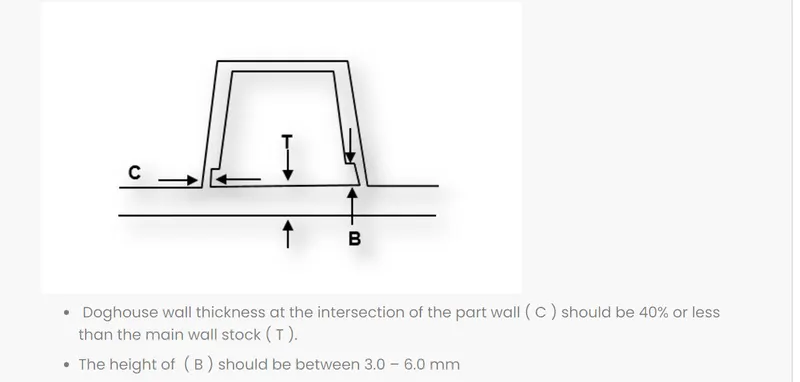

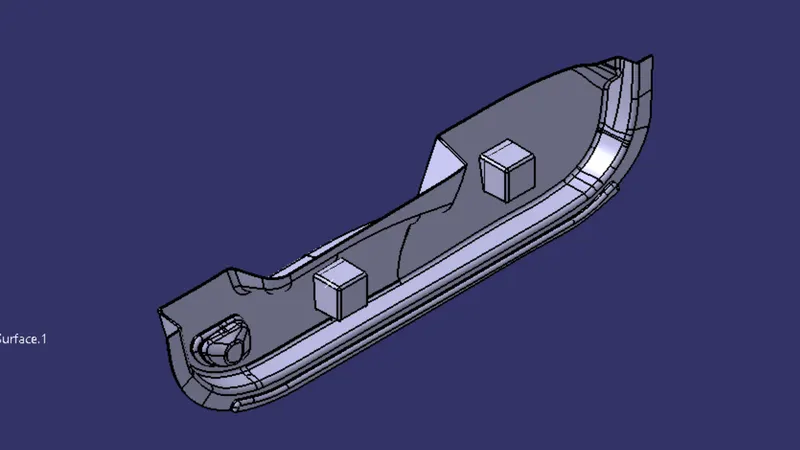

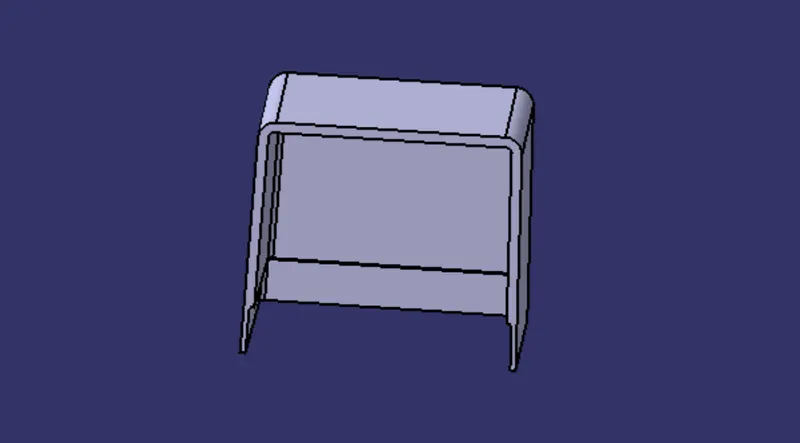

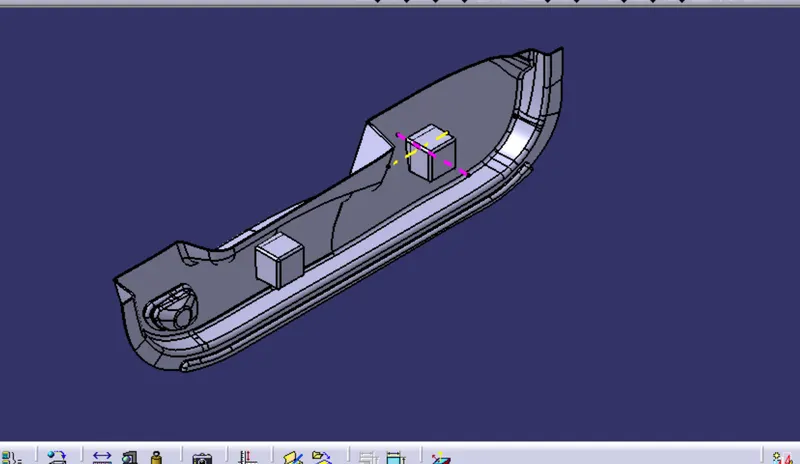

DOG HOUSE : It is a feature which supports the other featureslike heat stakes, screw boss and locators to locate them at a certain height , where we cannot violate the design for the feature creation.

design principal need to follow

draft analysis for the dog house

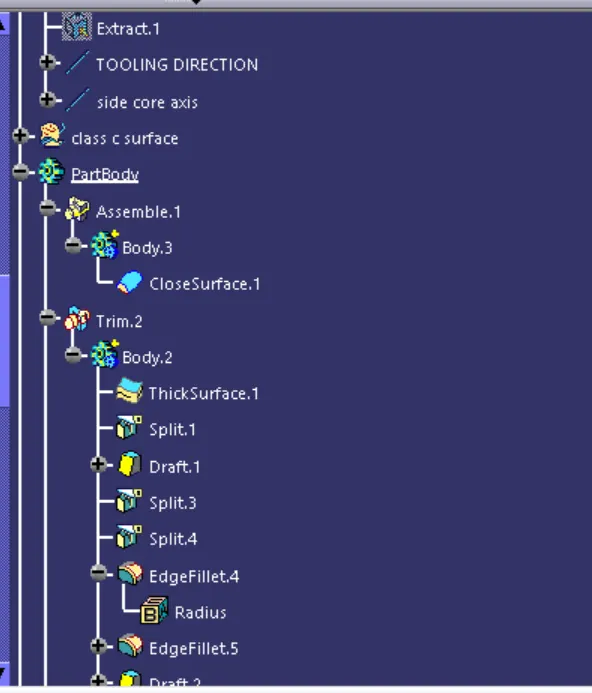

for side core clear, we need side core axis :

In this we have provided coring ( to remove material from the solid parts ) which is 6 mm from the b surface , in order avoid sink marks ( this defect sin marks is created due to thick surface as a result depression formed )

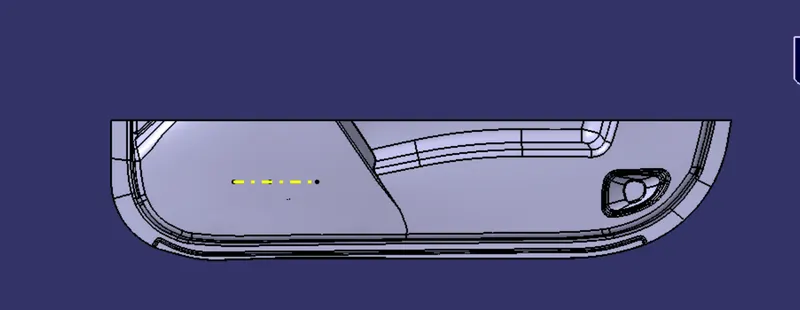

views

isometric views

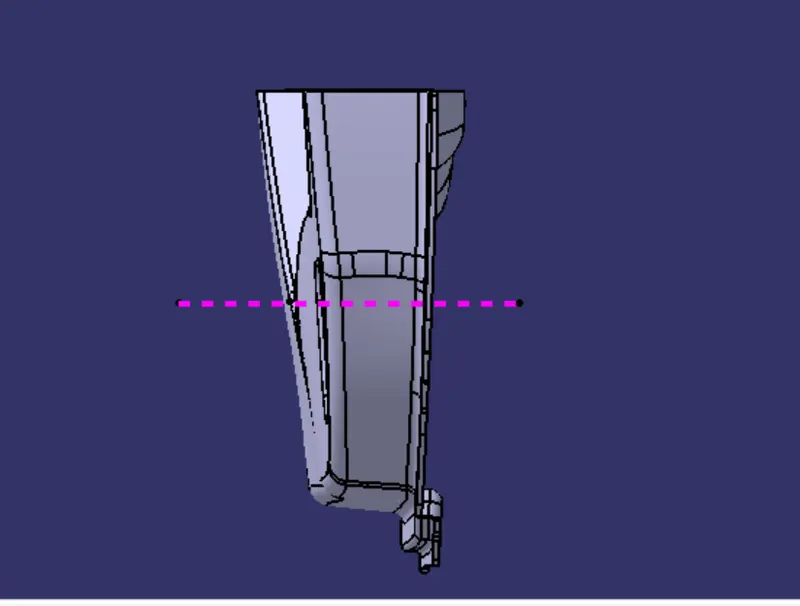

front view

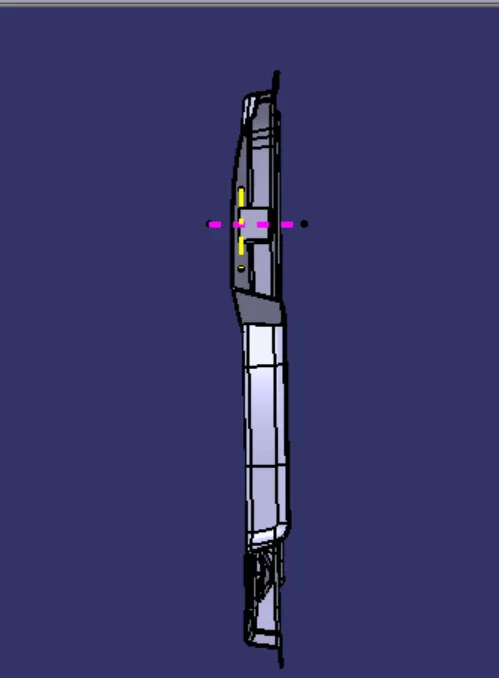

side views

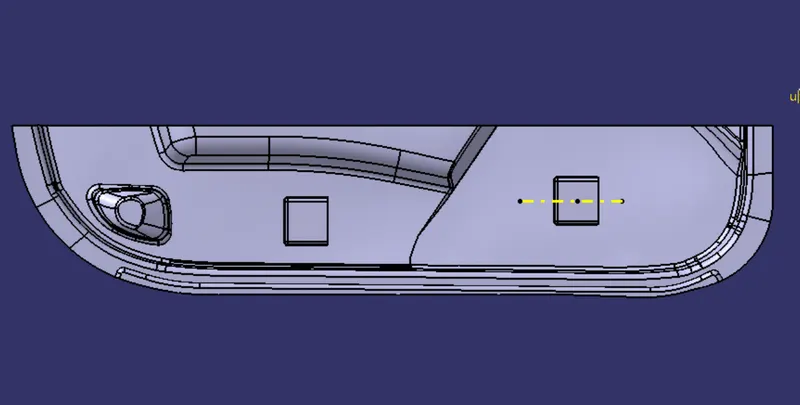

top view
