Week 9 - Attachment Feature Creation - Challenge 2

DOOR TRIM LOWER CHALLANGE REPORT

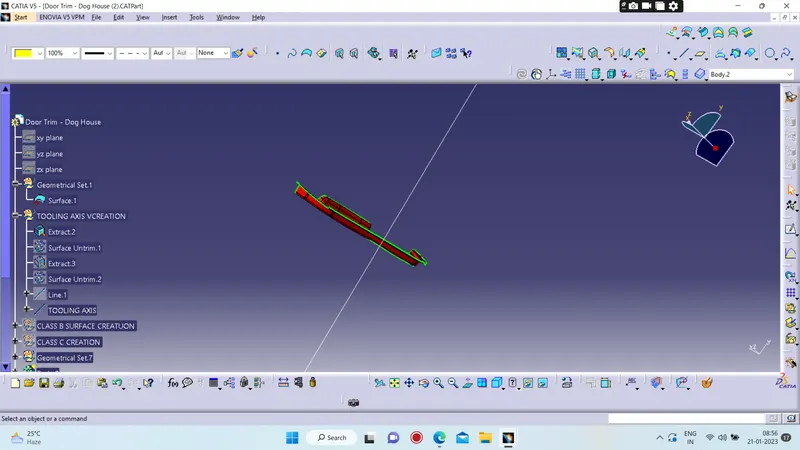

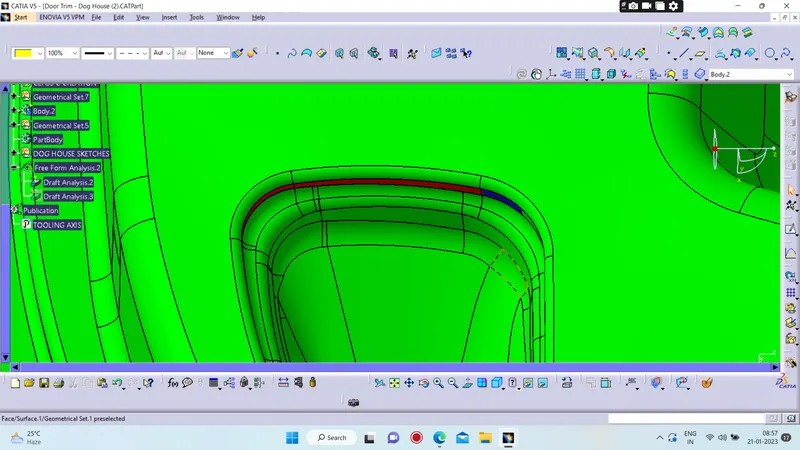

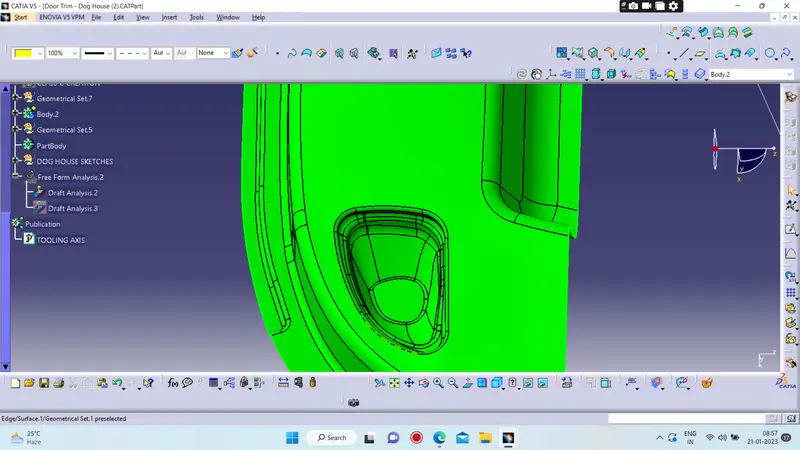

TOOLING AXIS CREATION AND SURFACE PARTIAL DRAFT ANALYSIS .

CHECKED THE SURFACES WITH RESPECTIVE ALL THE AXIS AND EXTRACTED ONE FLAT SURFACE THROUGH WITH ALL THE SURFACES ARE SEEN WHEN PARTIAL DRAFT ANALYSIS IS DONE
CREATED A POINT ON THE SURFACE
CREATED A LINE NORMAL TO THE SURFACE EXTRACTED AND NAMED IT AS TOOLING AXIS
WITH RESPECTIVE THE TOOLING AXIS CREATED PERFORMRD DRAFT ANALYSIS AND THE DRAFT ANALYSIS GOT JUSTIFIED

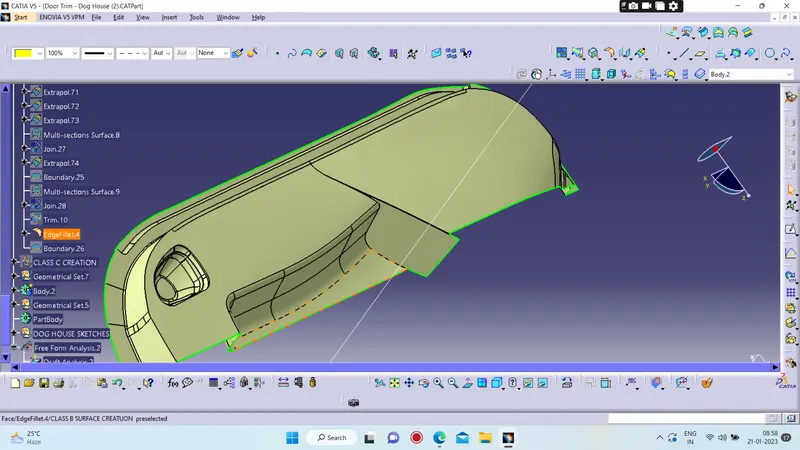

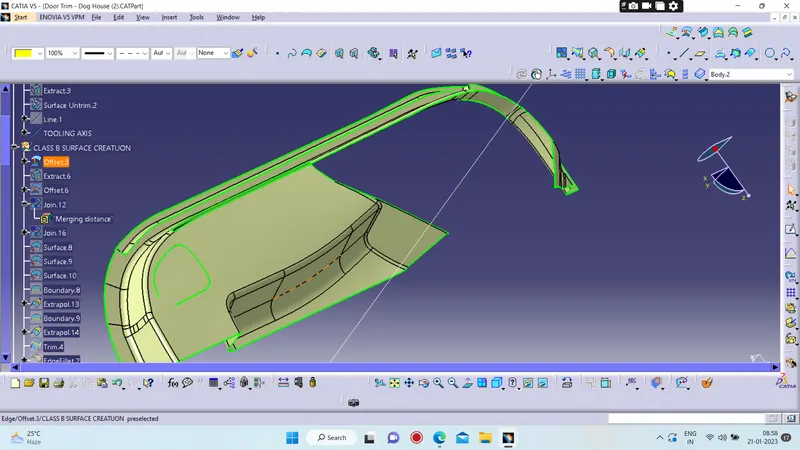

CLASS B SURFACE CREATION

INTIALLY CHECKED THE B BY TAKING THE INPUTS FROM THE CLASS A SURFACE CREATED THE C SURFACE WHICH CONNECTS BETWEEN A NAD B SURFACE AND BY USING OFF SET METHOD OFFSETTED THE CLASS A SURFACE WITH 2.5 MM DOWNWARDS
AND FOUND FEW SURFACES GOT MISSED ESPECIALLY FILLET AREAS
WORKED ON THOSE ARES AND FILLED THOSE AREAS BY USING EXPOLATION ,MULTI EXTRACTS ,MULTI SECTION SURFACE AND SWEEP
AND CHECKED ALL THE AREAS FILLED WITH PROPER BOUNDRY WITH RESPECTIVE CLASS A SURFACE

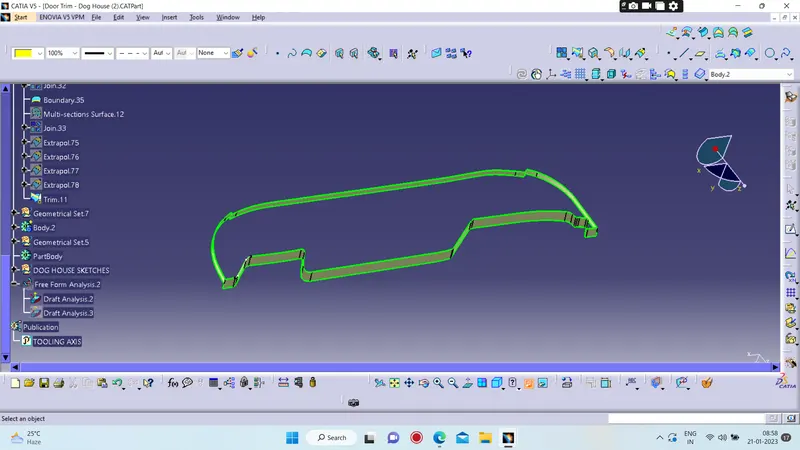

CLASS C SURFACE CREATION :

BY TAKING THE INPUTS FROM THE CLASS A SURFACE CREATED A SURFACE WHICH CONNECTS CLASS A SURFACE AND B SURFACE BY USIND SWEEP COMMAND WITH REPECTIVE DRAFT DIRECTION AND WITH REFERENCE SURFACE DIRECTION OUTSIDE AND JOINED THEM USING 0.003 AS MERGING DISTANCE AND ALSO TRIM AND SPLIT COMMAND
JOINED A AND C SURFACE AS ONE BODY AND TRIMED IT WITH THE B SURFACE TO FORM A CLOSED BODY WITH TRIM COMMAND
CHECKED WITH INTERSECT AND BOUNDRY COMMAND

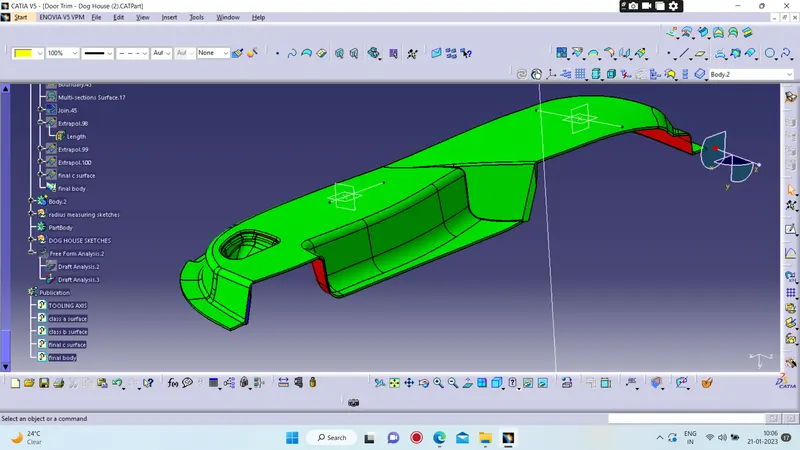

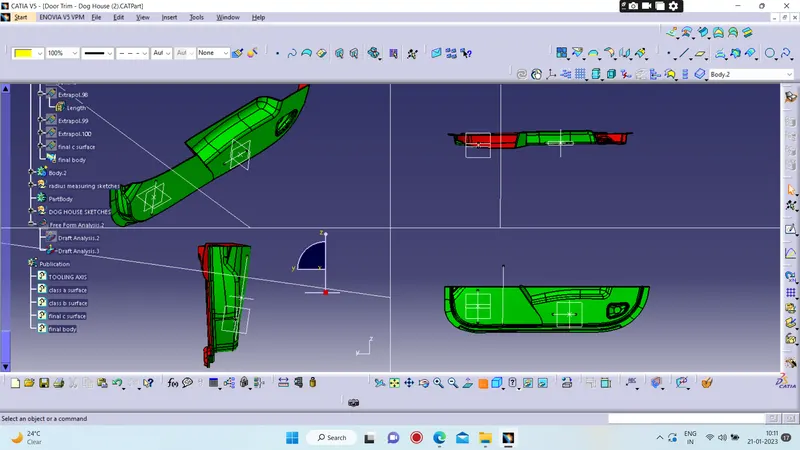

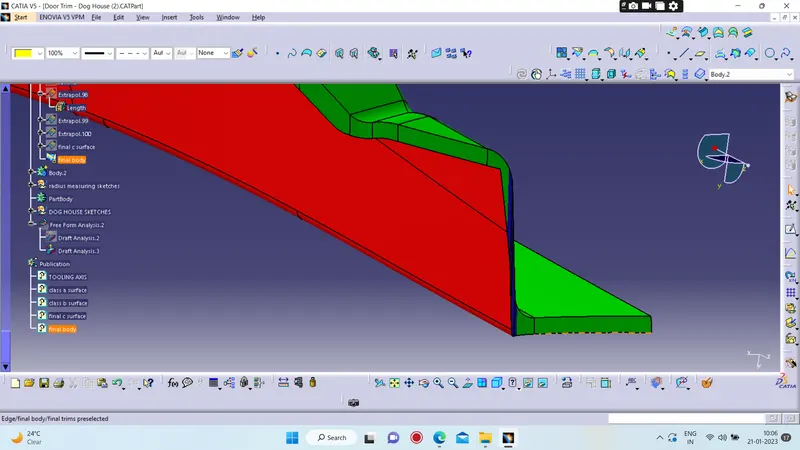

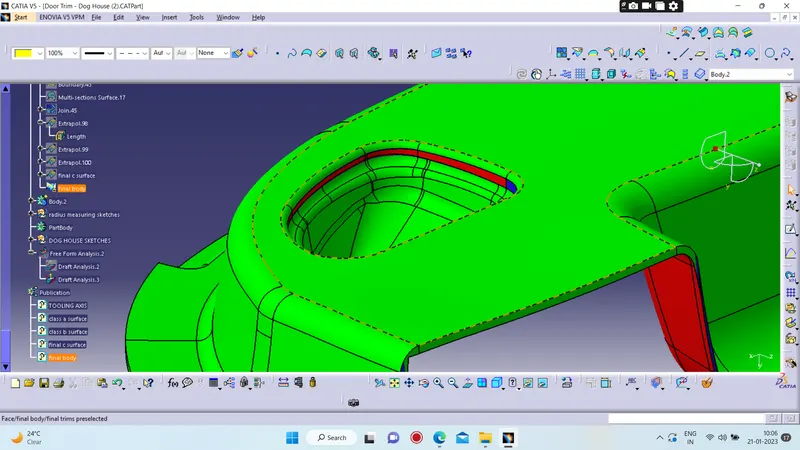

FINAL DRAFT ANALYSIS AND REPORT

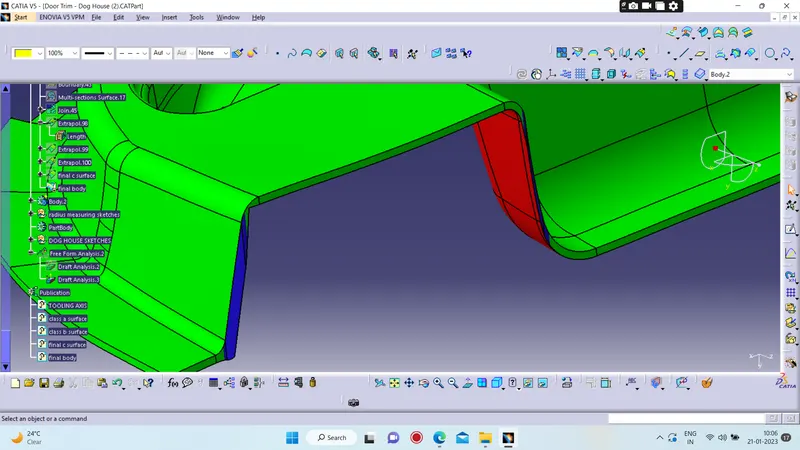

PERFORMED THE DRAFT ANALYSIS ON THE FINAL BODY AND FOUND FEW SURFACES NEED ALTERNATIONS IN THE CLASS A SURFACE SO THAT THOSE SURFACE WILL GET CLEARED WITH RESPECTIVE TOOLING AXIS

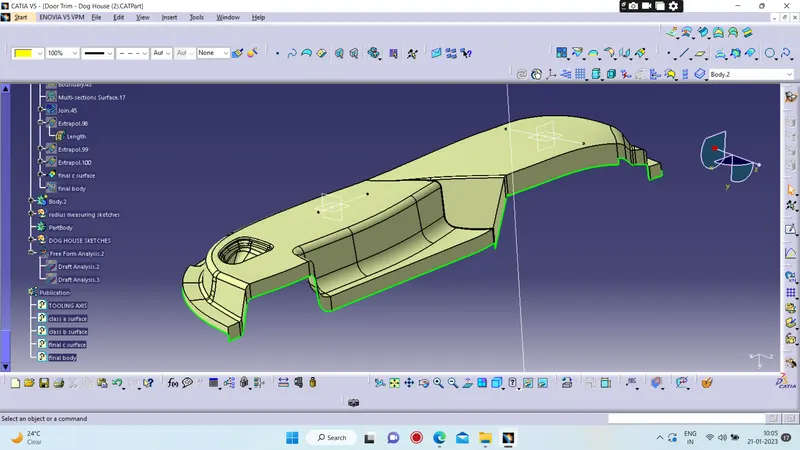

B SIDE FEATURES CREATION

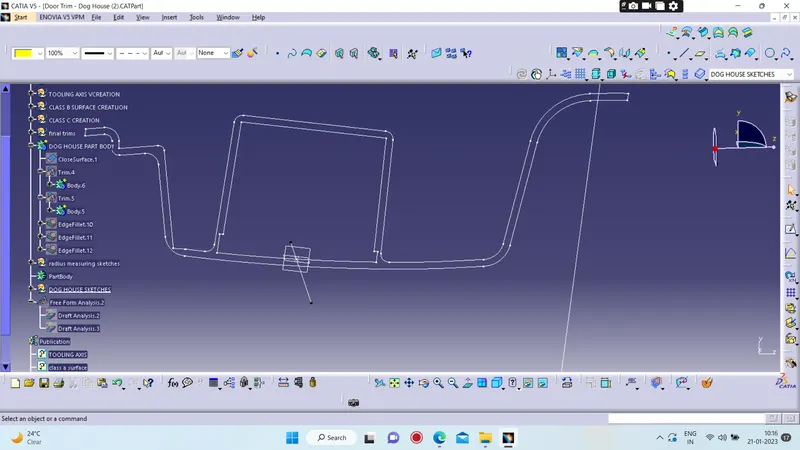

AS PER THE INPUT GIVEN CREATED A PLANE NORMAL TO THE CURVE AND CREATED 2 DOG HOUSES WITH PROPER THICKNESS AND 1.5 DRAFT TO OUT SIDE WALLS AND RADIUS OF 3 AND CREATED LIFTER TOOLING AXIS WITH PROPER EXTRACT TO BOTH THE DOG HOUSES

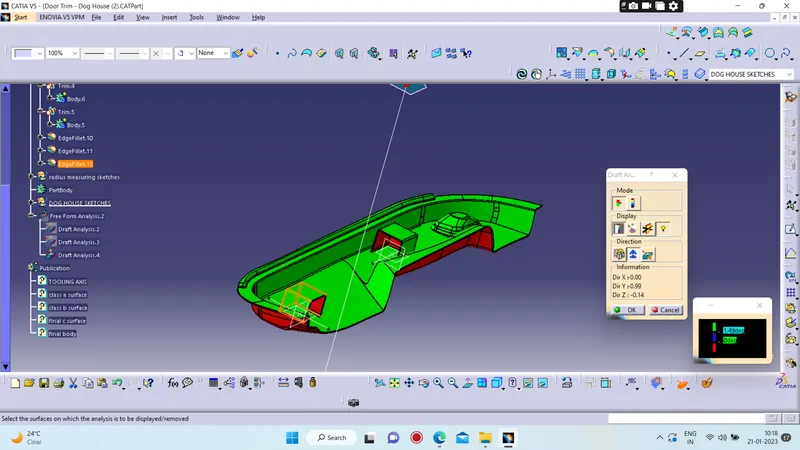

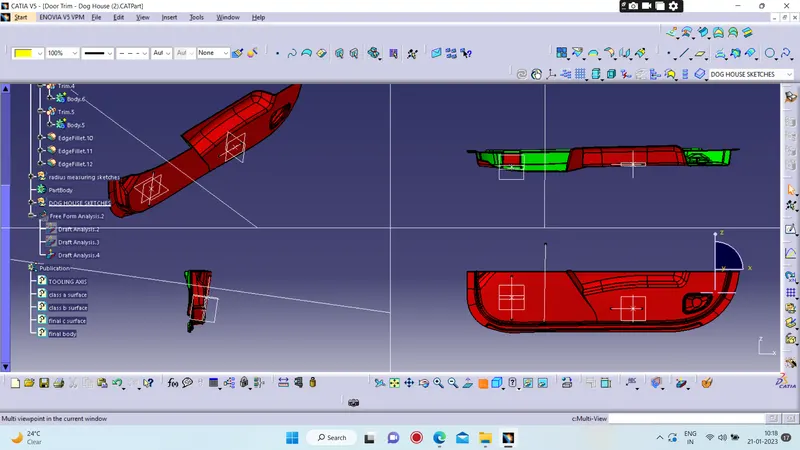

DRAFT ANALYSIS IS DONE ALL THE B SIDE FEATURES ARE GETTING CLEARED WITH THE CLASS B SURFACE ALONG CORE SIDE
CREATED LIFTER AXIS TO BOTH THE DOG HOUSES AND PROVISED 0.5 MM DRAFT TO THE INNER WALLS
AND CREATED SINK MARKS ALSO WITH PROPER DRAFT AND VERIFIED DRAFT WITH BOTH THE TOOLING AXIS WHETHER THEY ARE CLEARING WITH BOTH LIFTER AXIS ARE NOT
