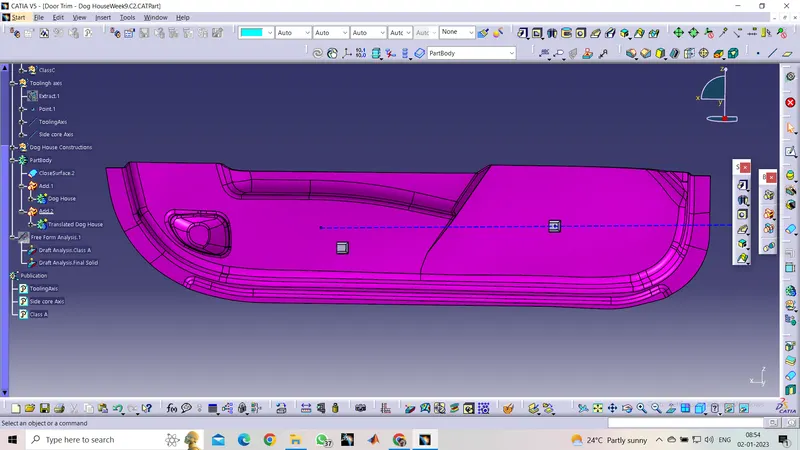

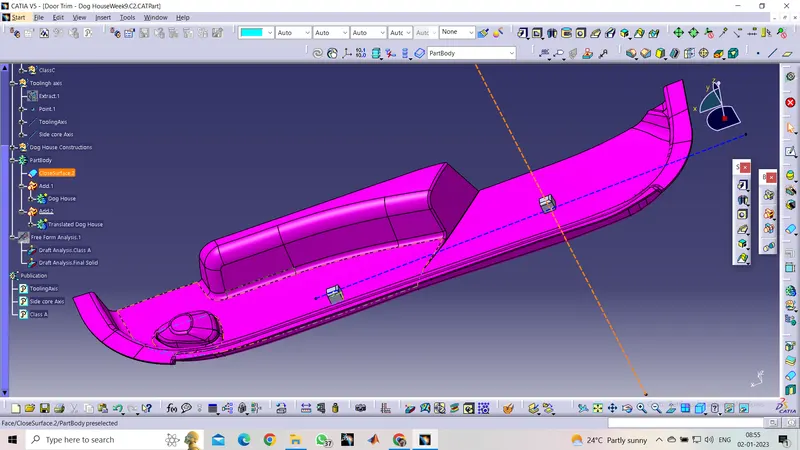

Week 9 - Attachment Feature Creation - Challenge 2

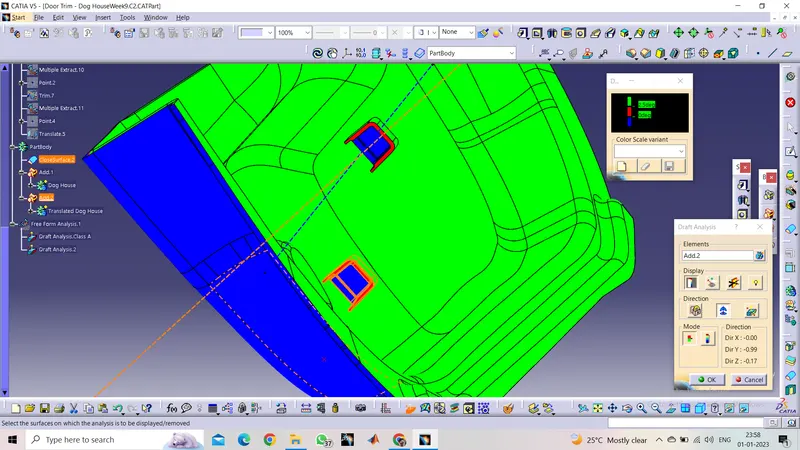

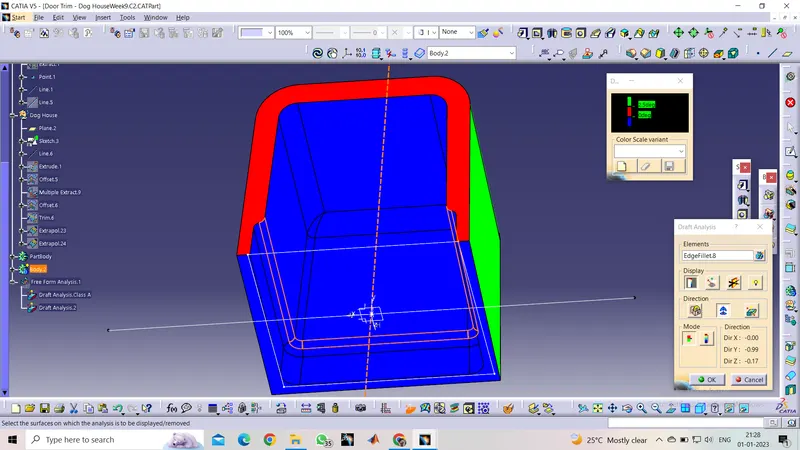

Draft analysis show few faces not as per given angles. If we reduce the angle it gets green. Draft analysis on final solid gives detail knowledge of anguler changes on outer and inner surfaces.

Tooling axis and side core axis were used for giving draft of the dog house faces.

Side core draft:0.5

Main faces draft:3
