Week 9 - Attachment Feature Creation - Challenge 2

Attachment Feature Creation - Challenge 2

AIM:

Create the Dog House for the Door Trim considering the design rules mentioned in the video.

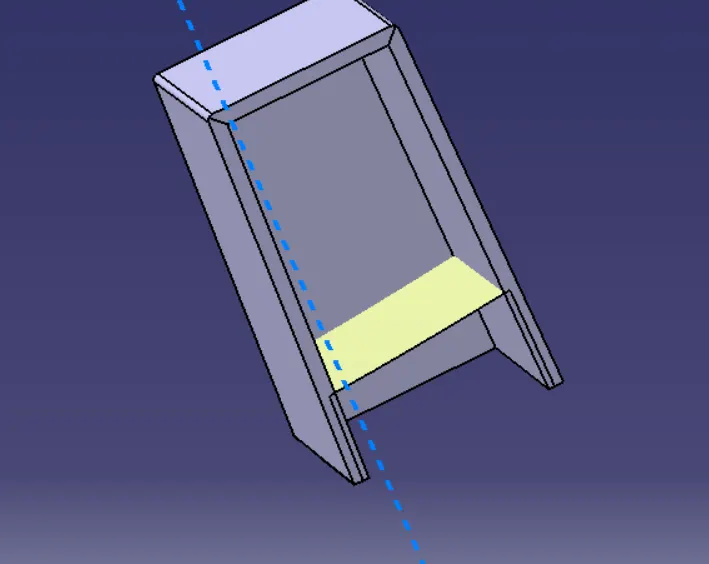

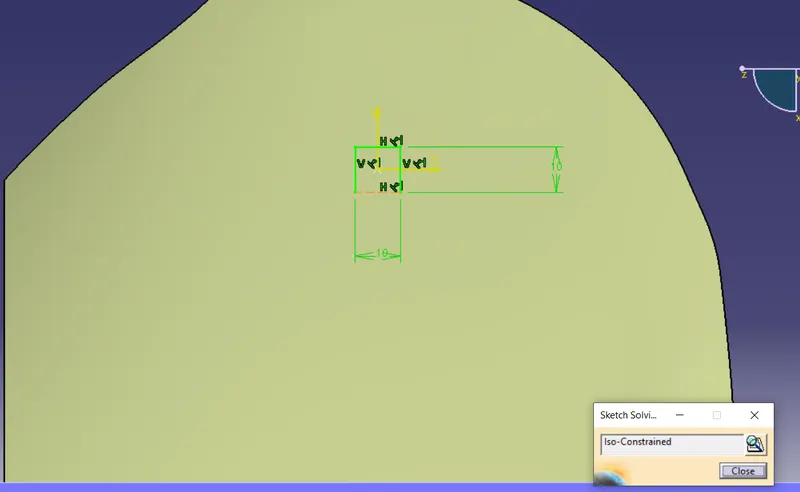

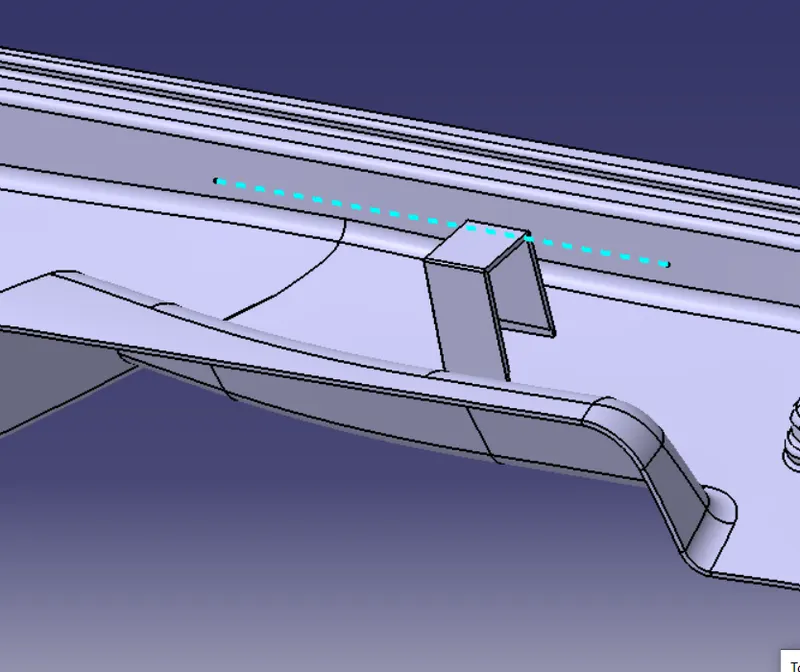

"C" is where the doghouse contacts the backside of the surface

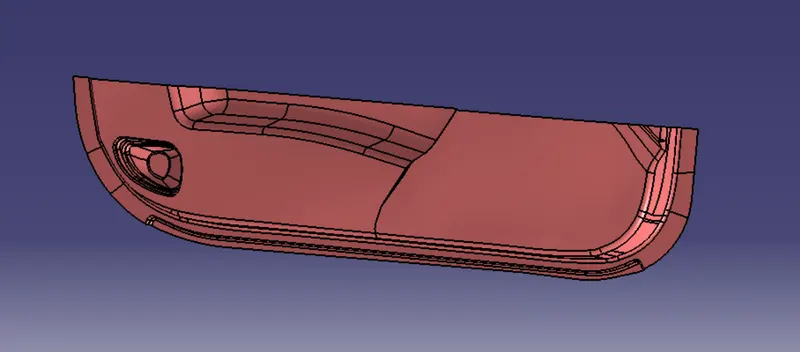

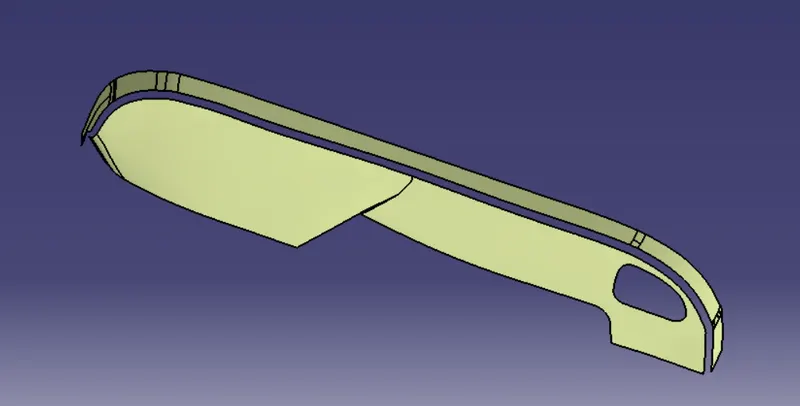

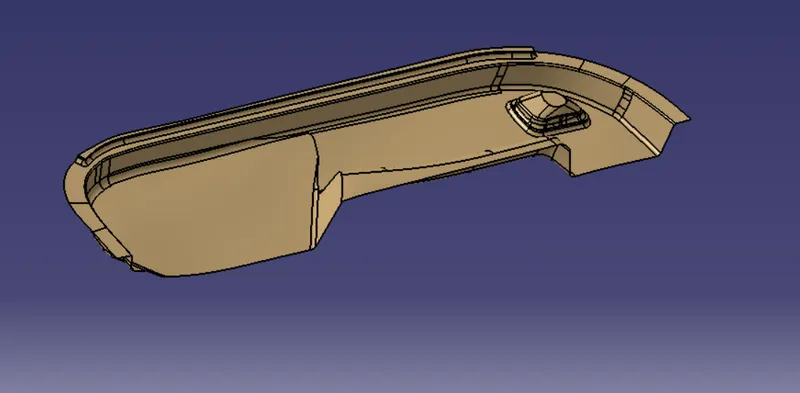

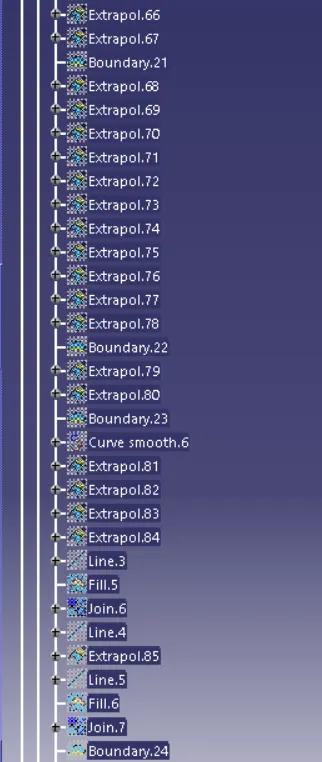

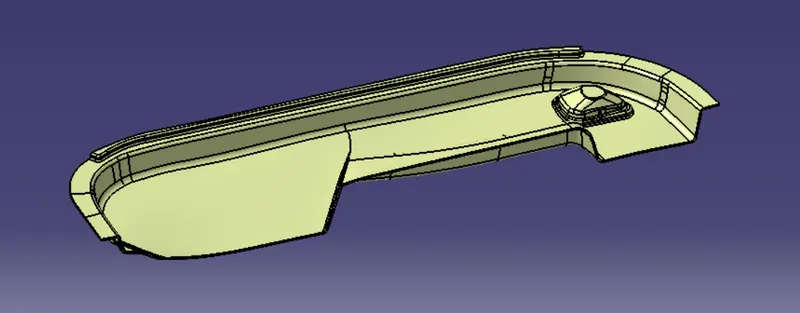

Class A Surface:

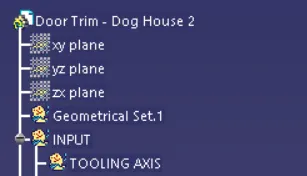

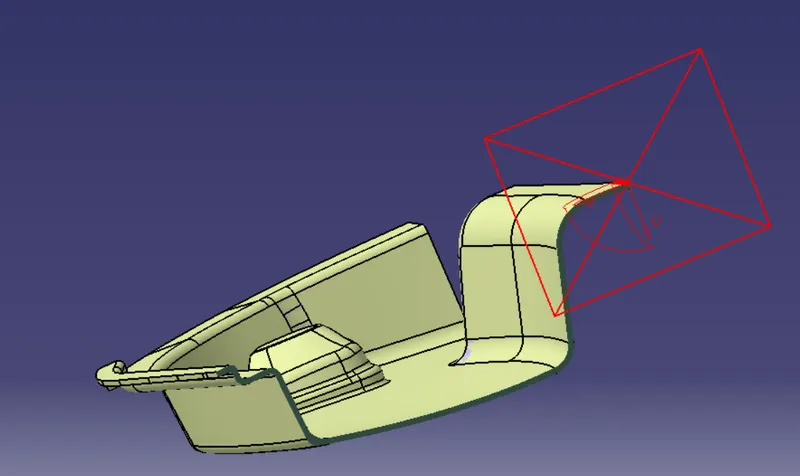

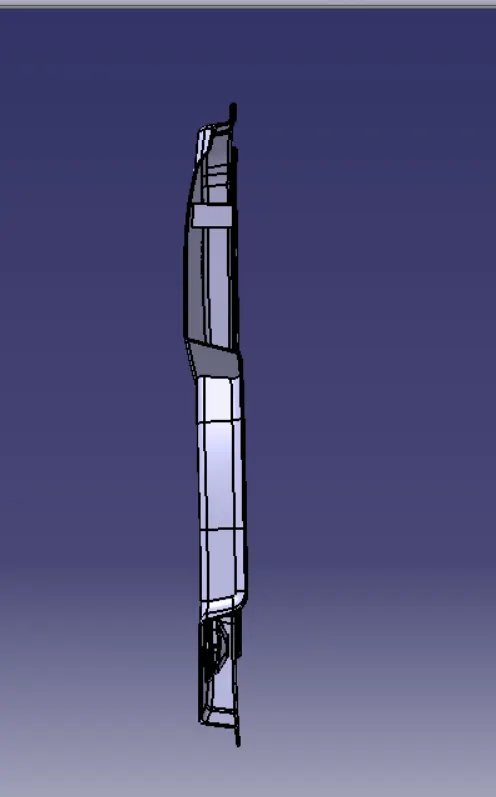

Tooling Axis :

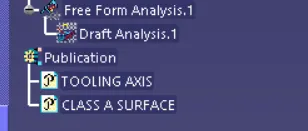

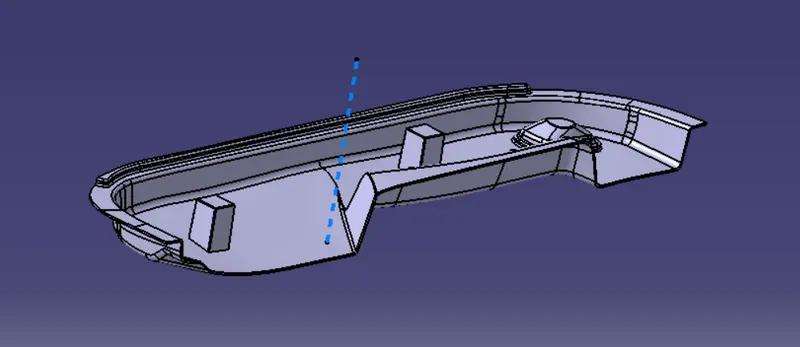

Class-A surface is first analyzed to create the tooling axis. where the molds pull apart
in injection molding. Tooling direction is essential for plastic product design as it decides
the direction for mold separation.

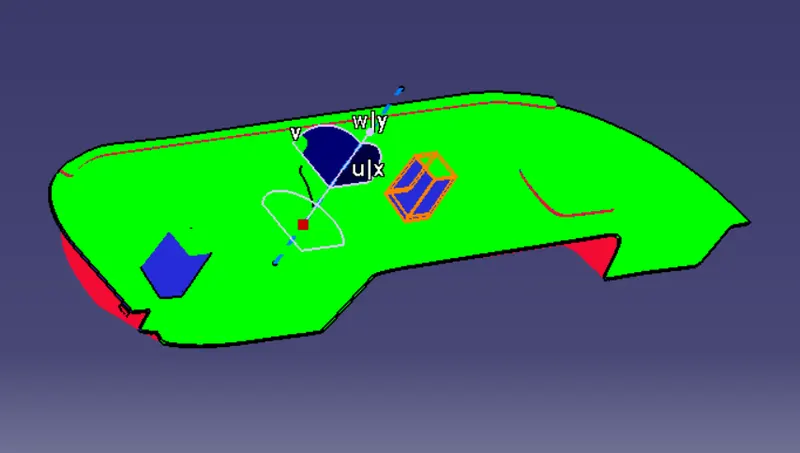

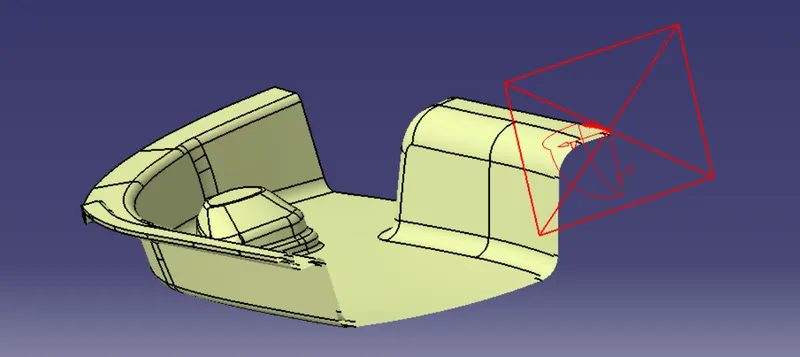

To create the tooling axis first we have to check the best suitable direction for tooling by
using the compass. the y direction is suitable for creating the tooling axis because in the
y direction most of the surfaces are clearing while performing draft analysis. Generally
tooling axis is created using bisecting line method but here A line normal to the surface
is created in the y direction and considered the tooling axis.

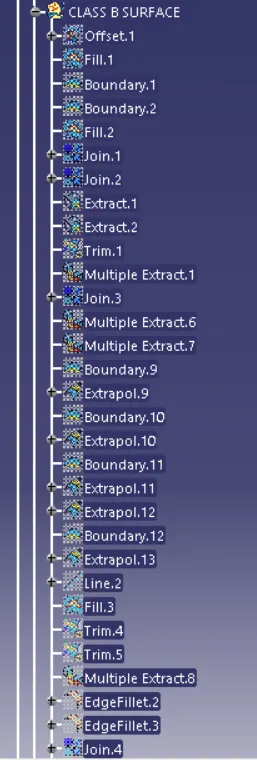

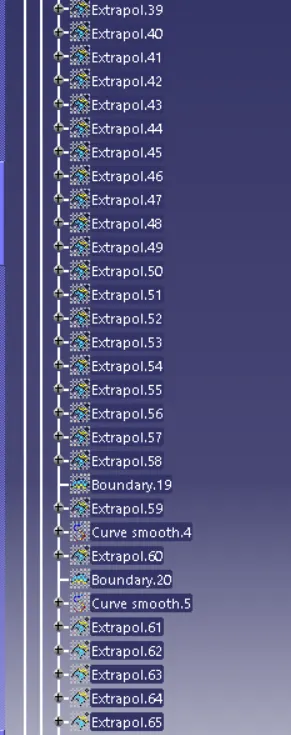

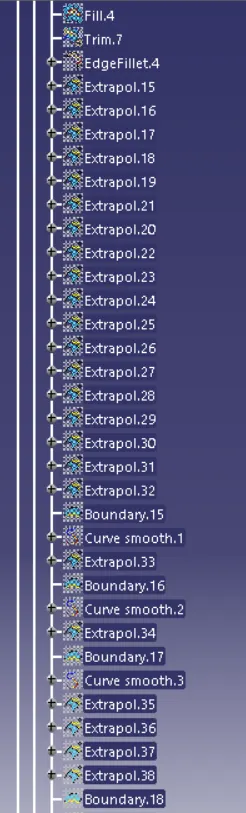

Class B Surface

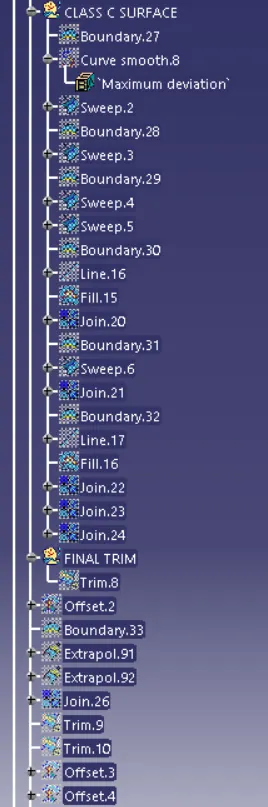

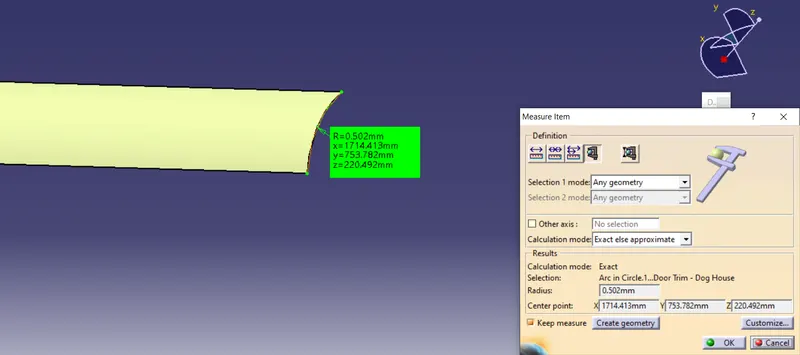

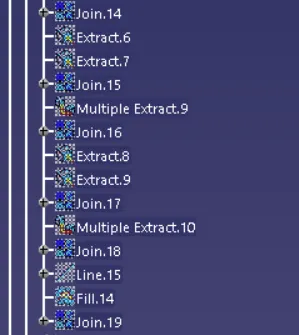

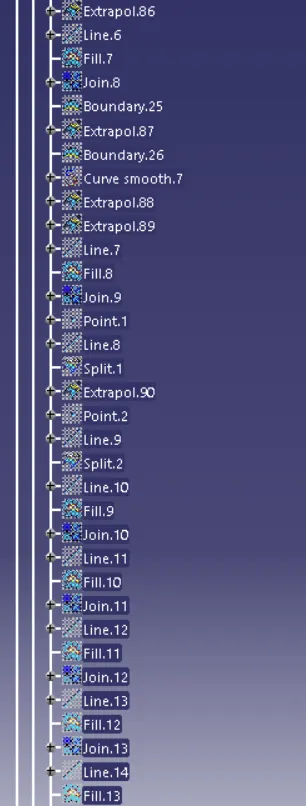

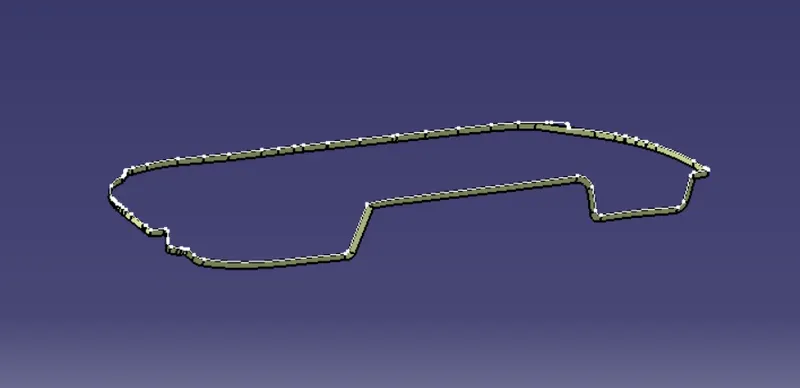

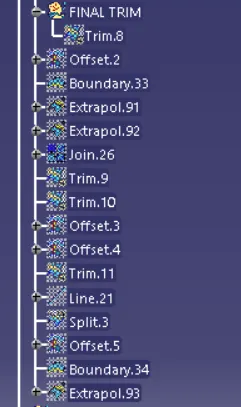

Class C Surface

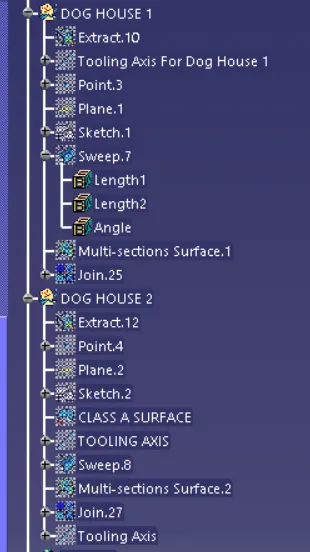

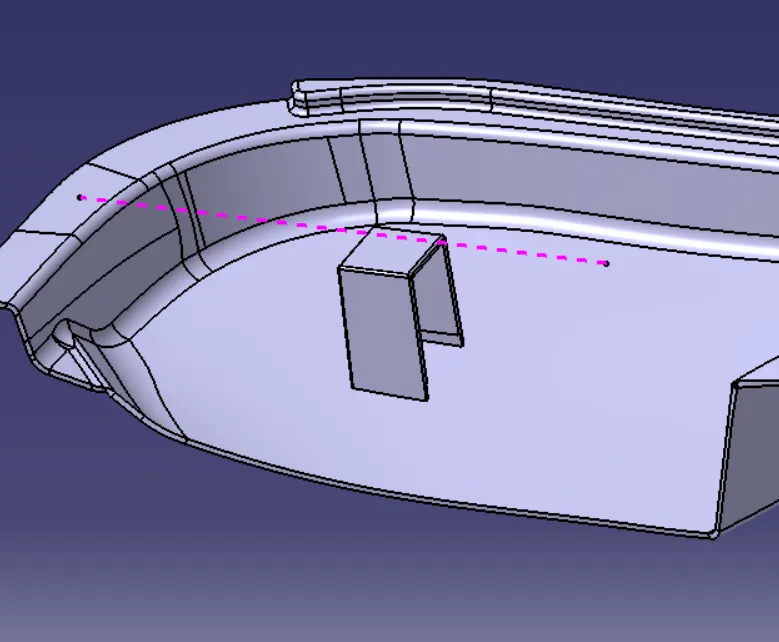

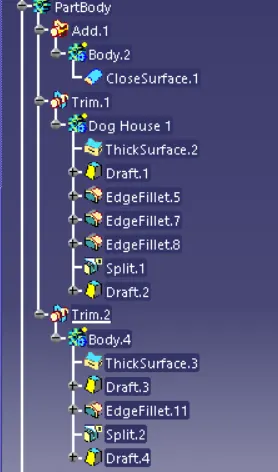

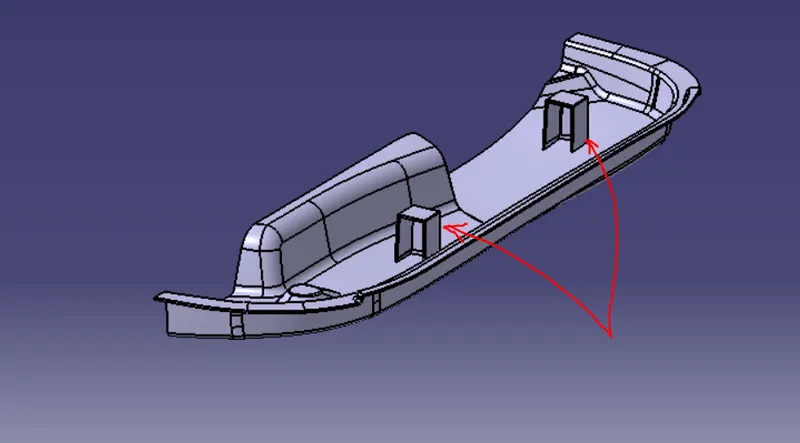

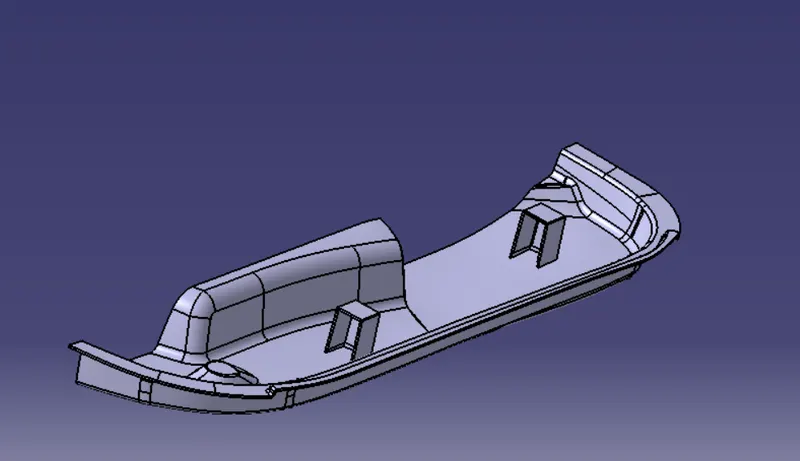

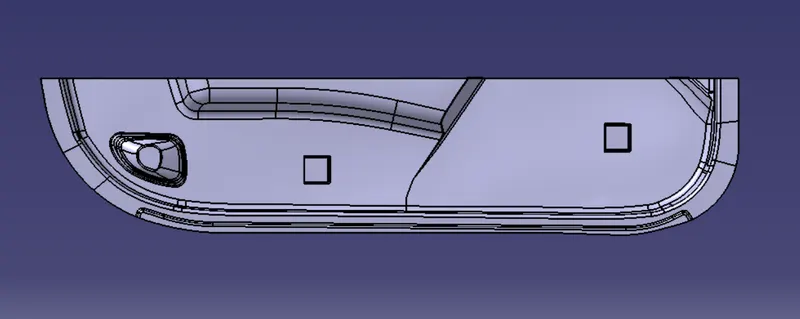

Dog House
