Week 9 - Attachment Feature Creation - Challenge 1

RIB CREATION

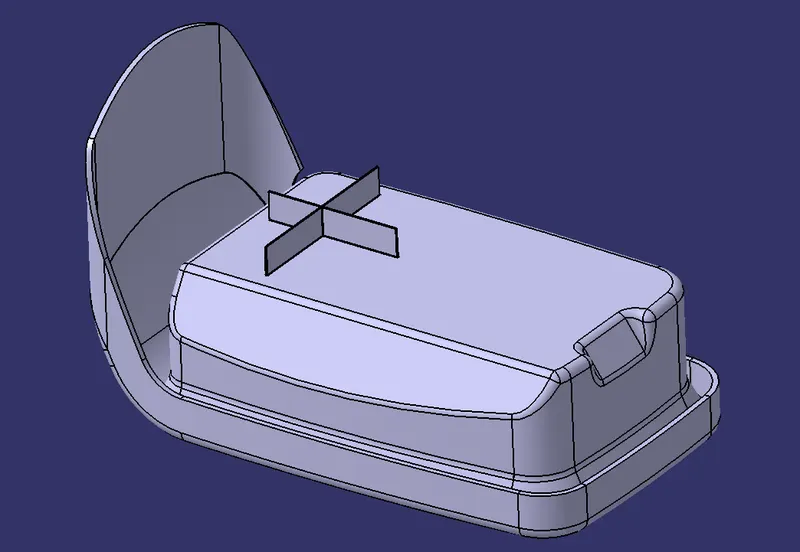

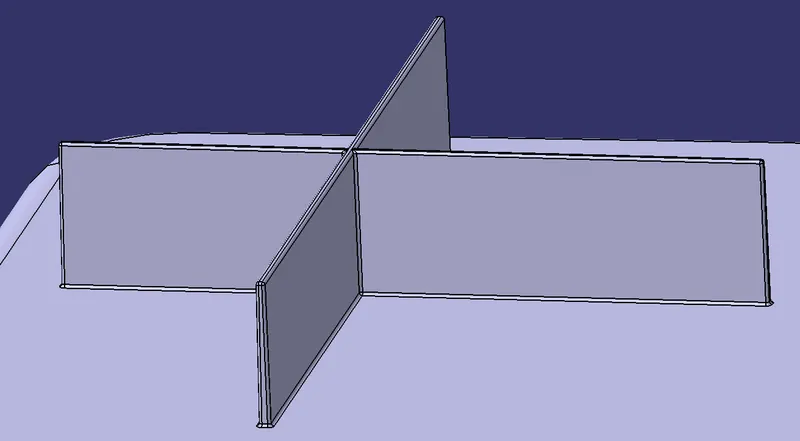

Rib in cross formation

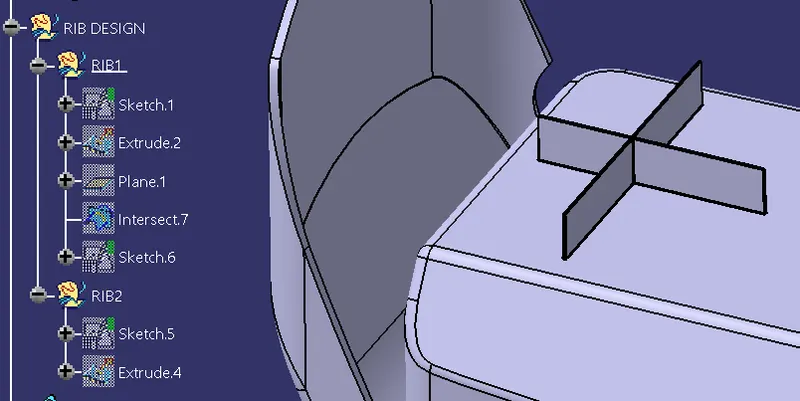

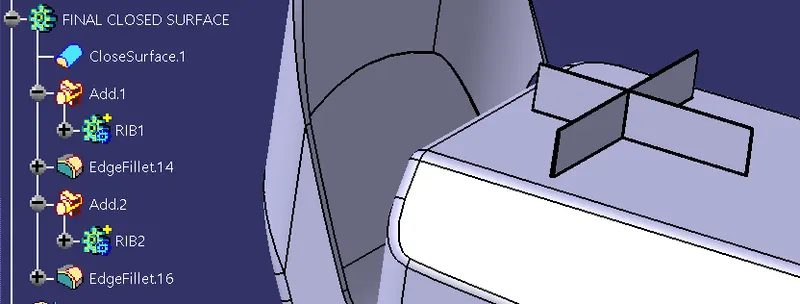

Tree structure

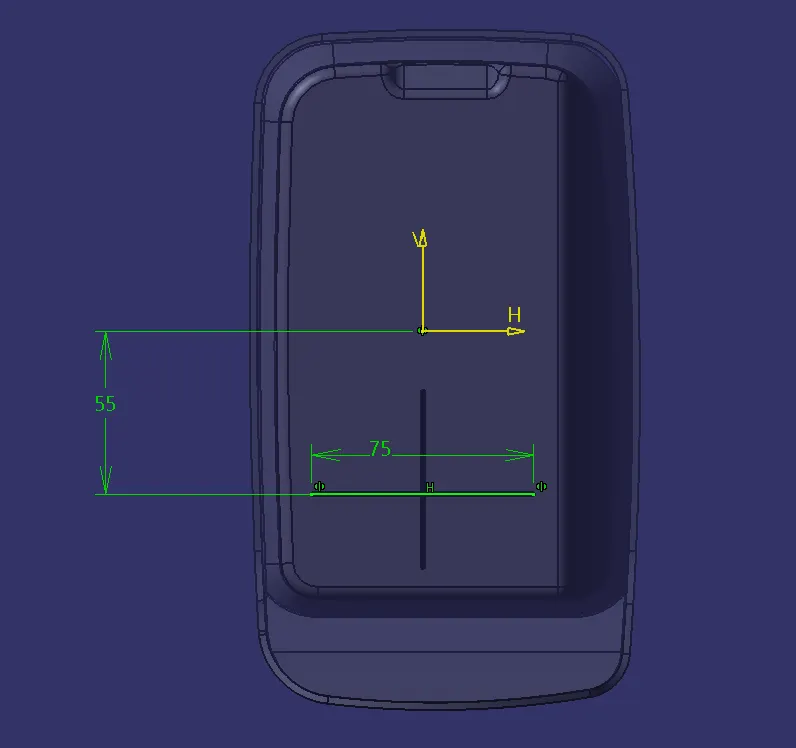

Iso-constrained Sketch

Base thickness of component = 2.5 mm (t)

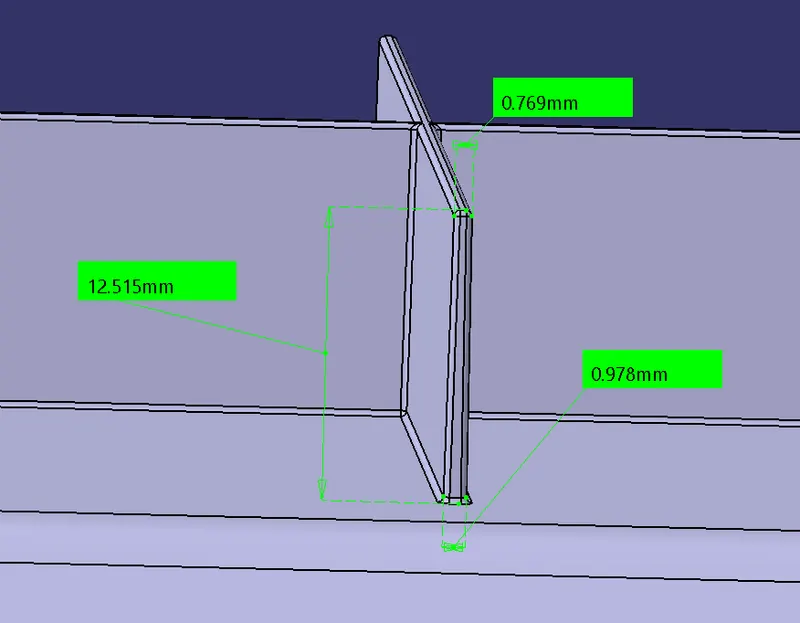

Height of rib from surface = 12.515 mm (H=5 x t)

Thickness at top = 0.769 mm (Must keep more than 0.75 mm)

Thickness at bottom = 0.978 mm (B= 0.4 x t)

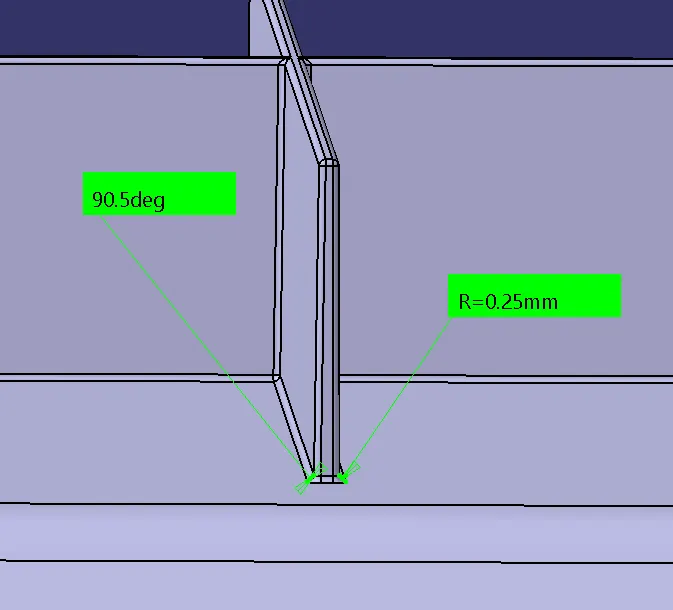

Fillet radius = 2.5 mm (minimum)

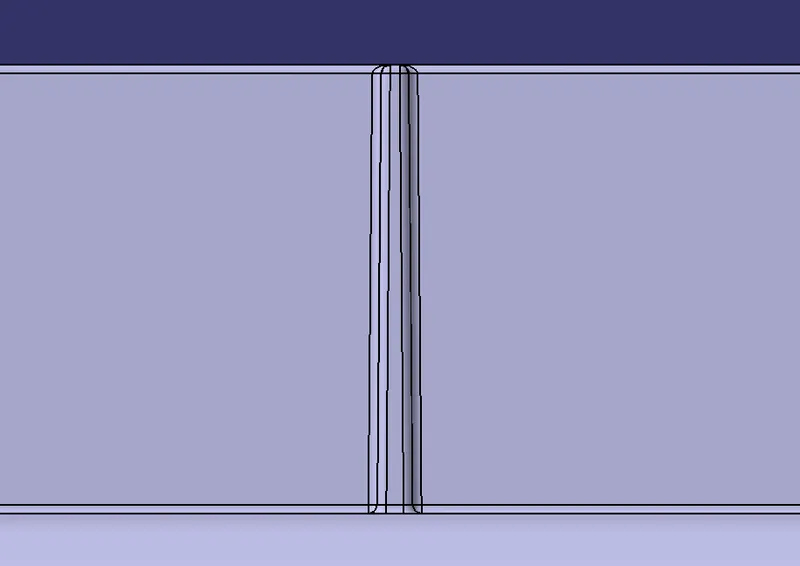

Draft angle = 0.5 degree per side

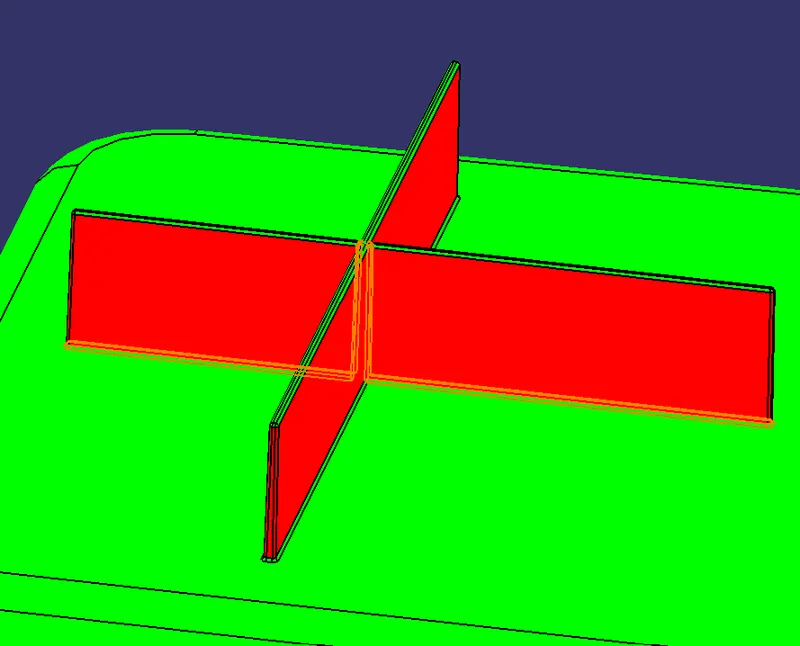

Draft analysis- Red contours are showing because of 0.5 degree draft angle.
