Week 9 - Attachment Feature Creation - Challenge 1

Aim-

To create an out featured rib on the centre console coin holder.

Procedure-

Firstly open the coin holder using the open command

Rib-

To create a rib first extract the base surface of the coin holder.

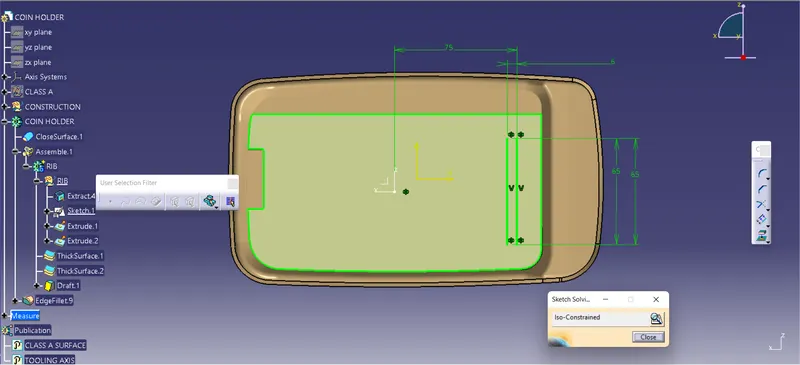

Create a positioning sketch draw a line , constraint it and define it as an output feature.

Extrude the output line using extrude command.

Go to part design ,create a part body and assign thickness to the extruded line.

Draft the thickened rib with an angle of 0.5 deg.

After drafting, measure that the top surface is greater than 0.75mm.

Now give the fillets to the edges of 0.25mm all sides.

Assemble the rib body with coin holder.

Simillarly create another rib with a distance of 3:1 ratio the created rib.

Using formula

Y/X=3

Height of rib Y= 12.5

Distance between ribs X=?

X=12.5/3

Y=4.16

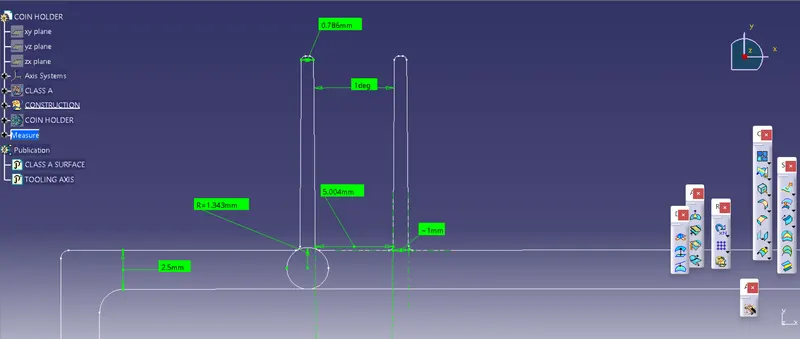

Now create an intersection using a YX plane to determine the rib root thickness.

Create a tritangent circle by selection the extracted curves and line.

By using measuring tool measure the distance ,height and thickness.

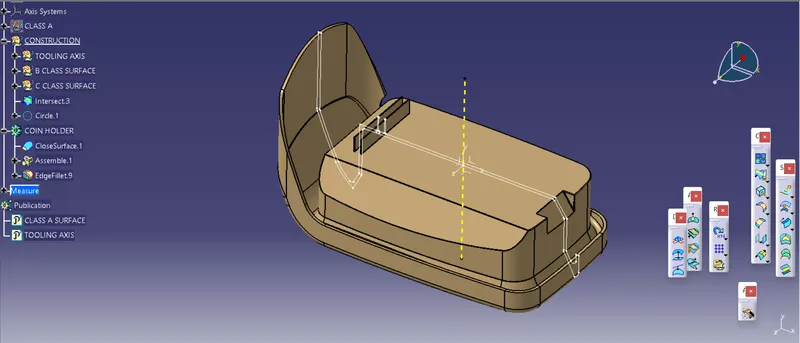

IMAGES:

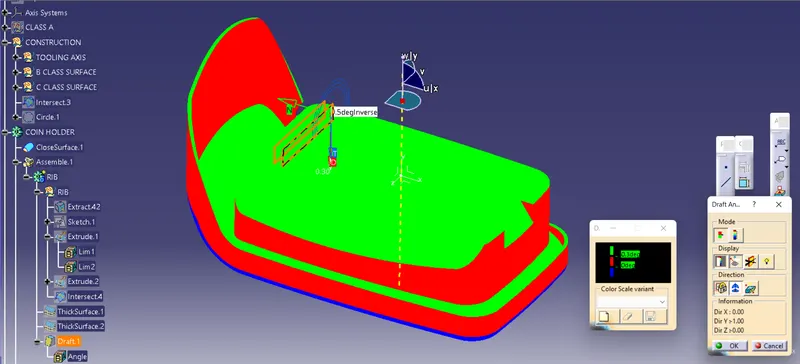

DRAFT ANALYSIS:

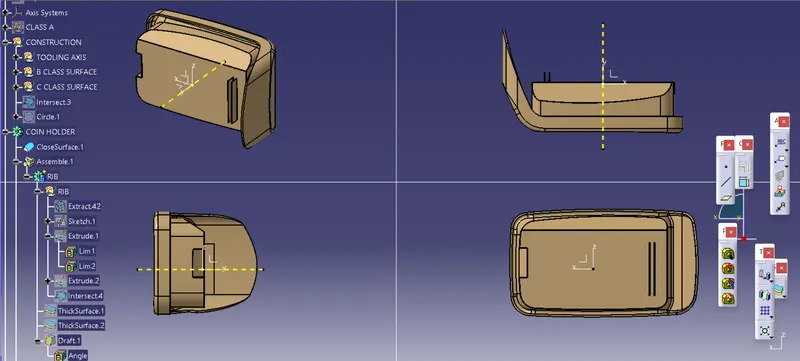

MODEL VIEWS:
