Week 9 - Attachment Feature Creation - Challenge 1

*Creating Ribs for the given PartBody.

Ribs Guidelines:

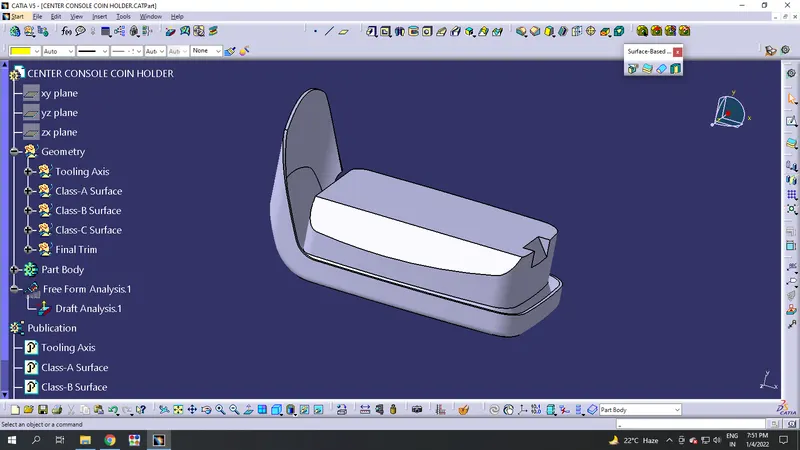

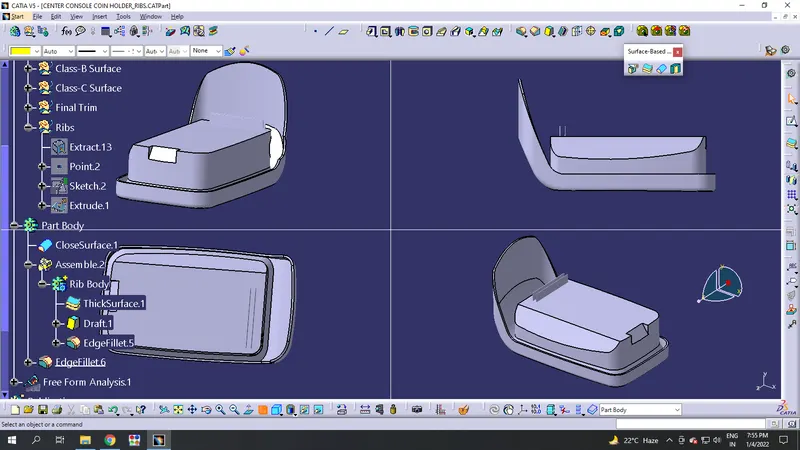

Given PartBody:

Creation of Ribs:

Step-1:

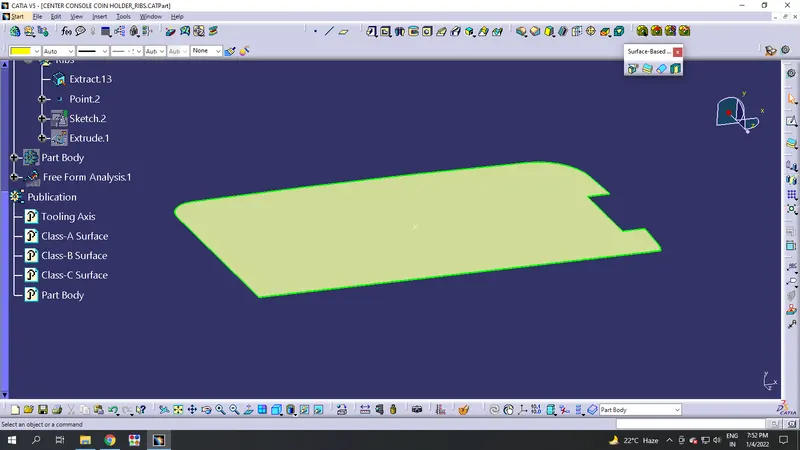

• Extract the top surface on which the ribs have to locate.

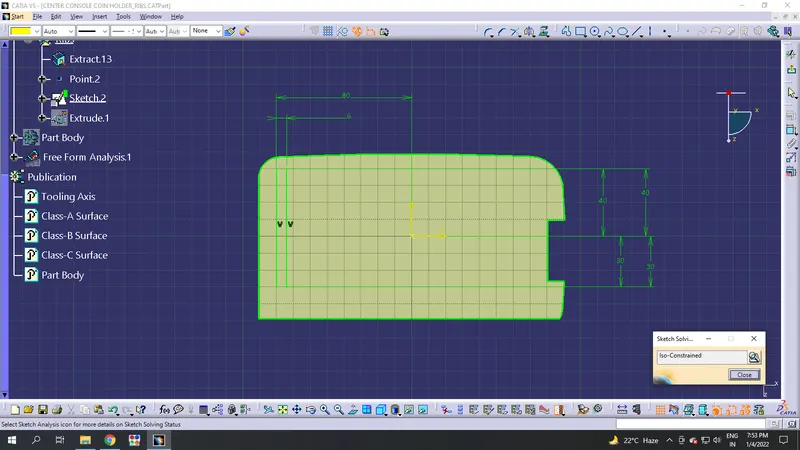

• Take a mid point to it and also do sketch to it.

Step-2:

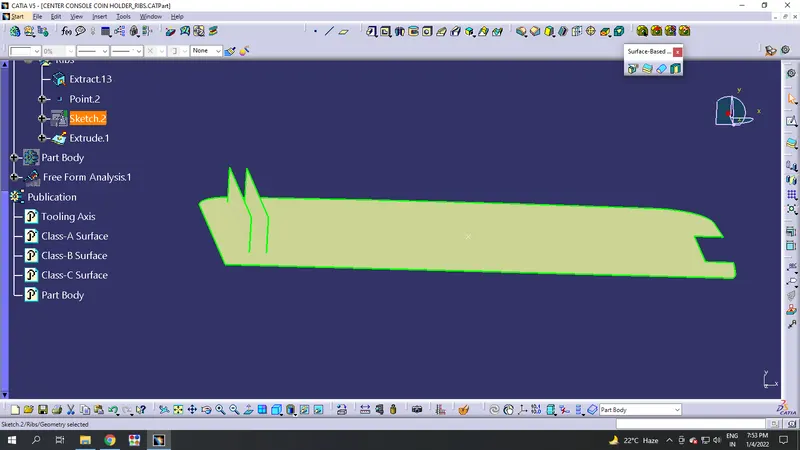

Extrude the sketch to the required limit (i.e height = 5 * wall thickness).

Step-3:

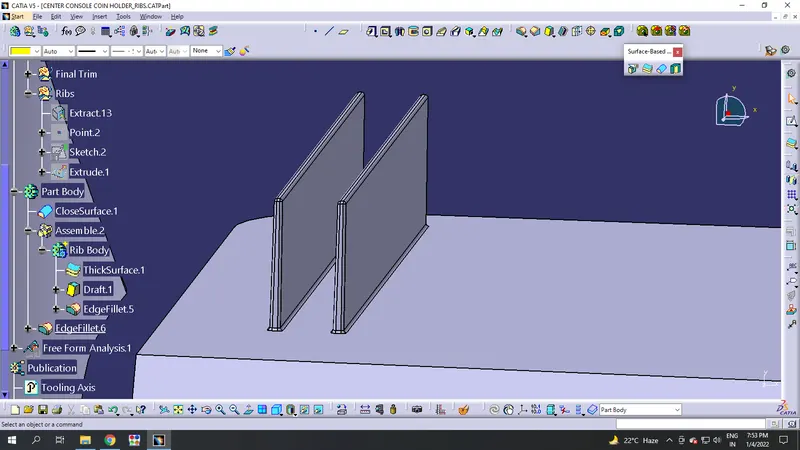

Take that extruded surface and make that as a partbody by doing thickned process with the required thickness (i.e width = 0.4*wall thickness).

Step-4:

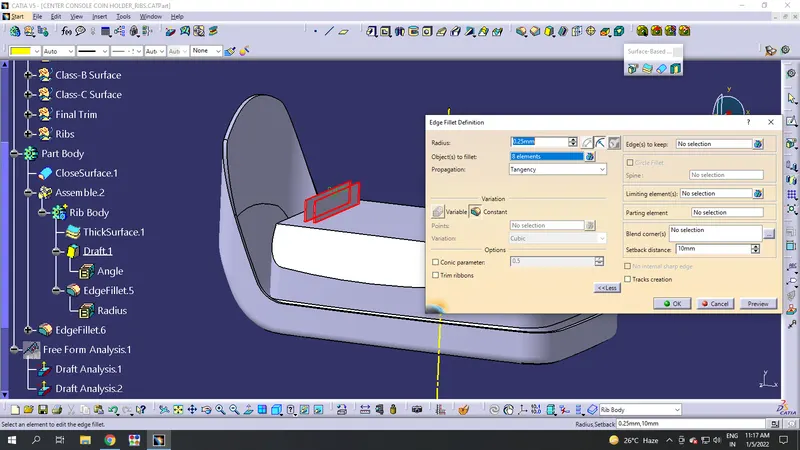

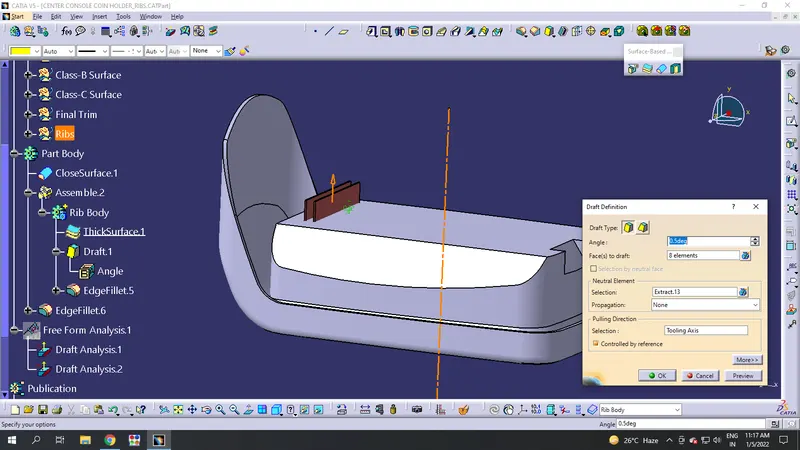

Do fillets & draft as required to the model.

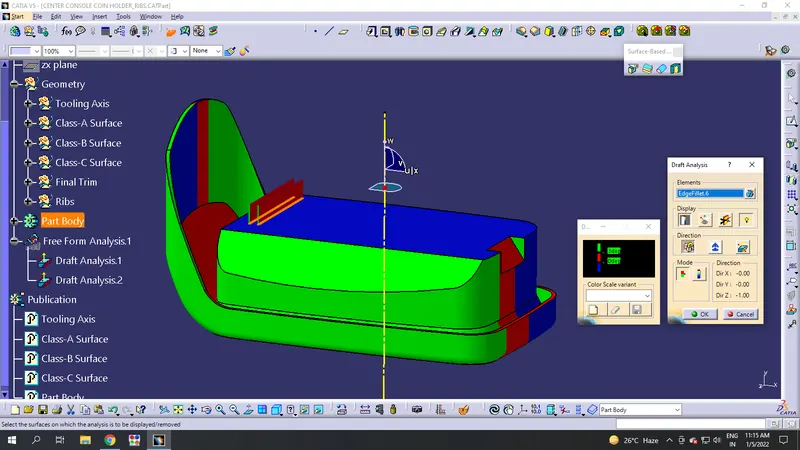

Draft Analysis:
