Week 9 - Attachment Feature Creation - Challenge 1

1. TOOLING AXIS

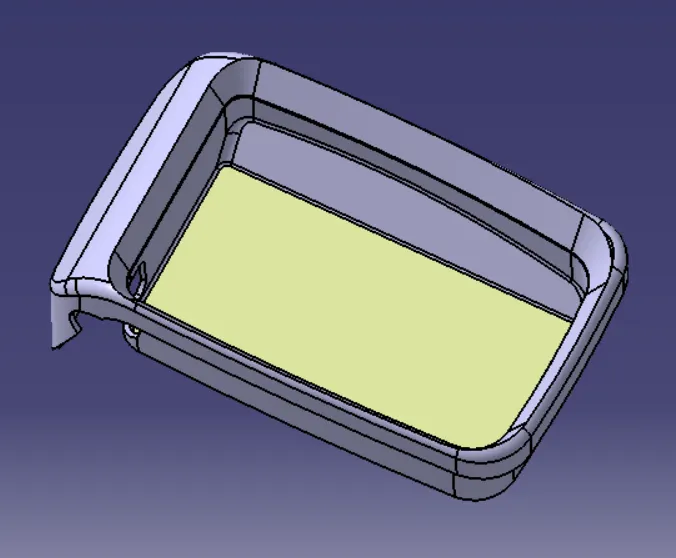

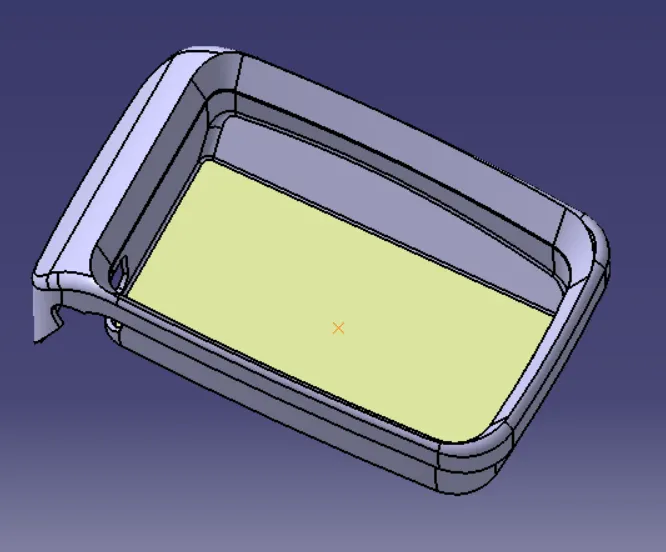

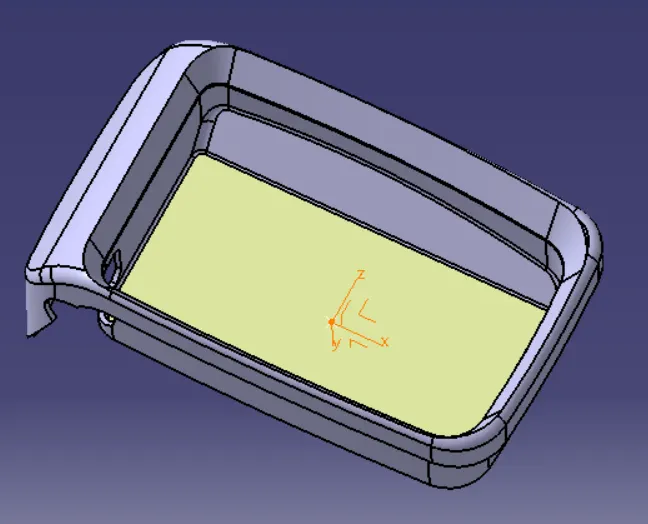

FIRST EXTRACT THE SURFACE AT THE BASE OF THE COIN HOLDER FLAT SURFACE

NOW TAKE A POINT AND SELECT THE ON THE SURFACE AND MAKE A POINT ON THE CENTER OF THE SURFACE.

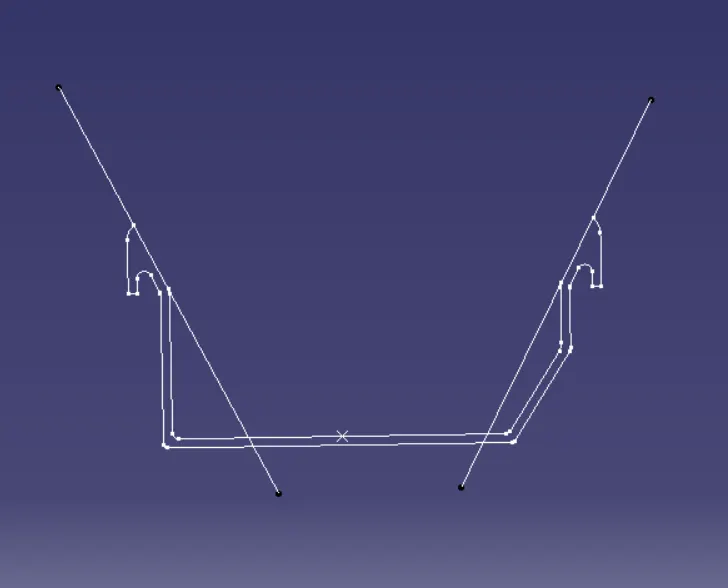

NOW INSERT THE AXIS TO MAKE A INTERSECTION FOR BISECTING LINE

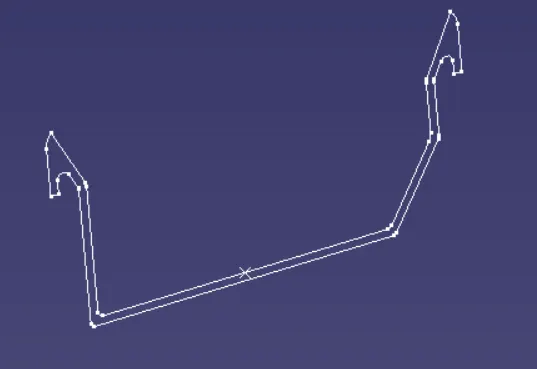

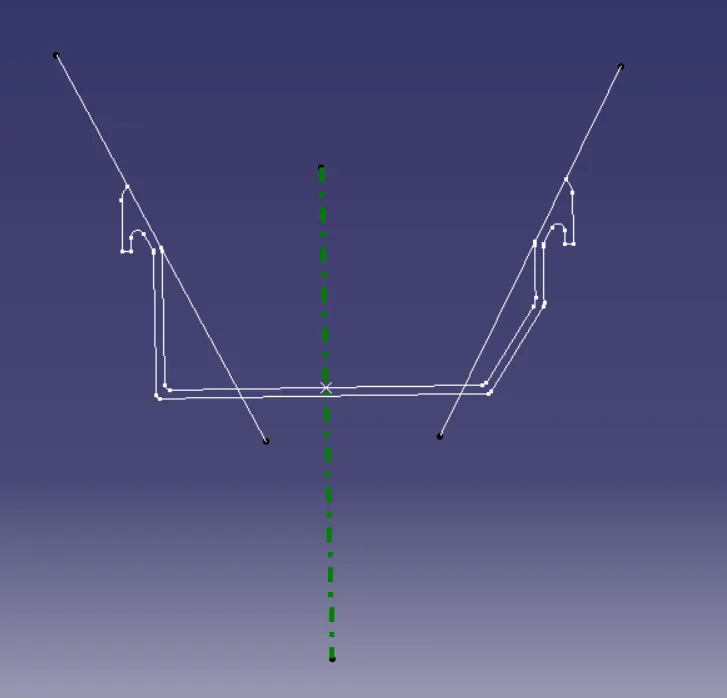

NOW INTERSECT WITH ZY PLANE AND COIN HOLDER BODY

WITH THESE INTERSECTION LINES CREATE A POINT TO POINT LINE

USING THE BISECTING LINE OPTION CREATE A TOOLING AXIS

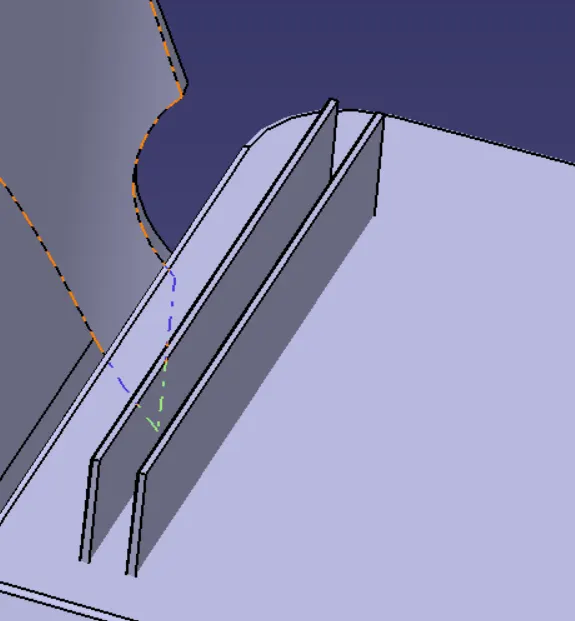

2. RIB CREATION

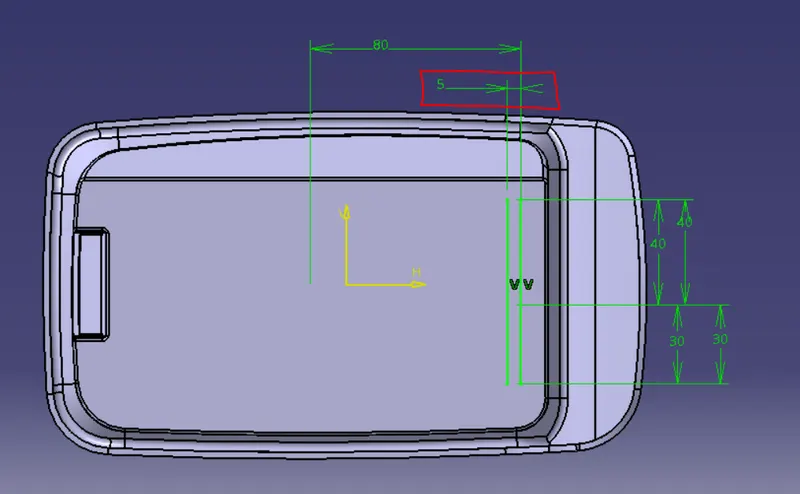

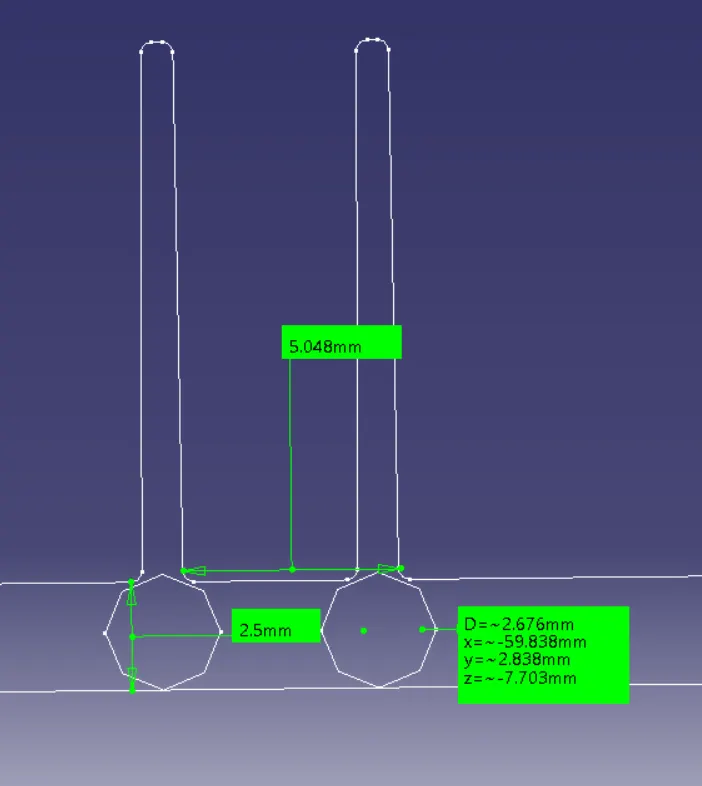

CREATING THE TWO LINES AND BETWEEN TWO RIBS AS PER THE DESIGN RULES ITS 2t SO THICKNESS IS 2.5*2=5mm

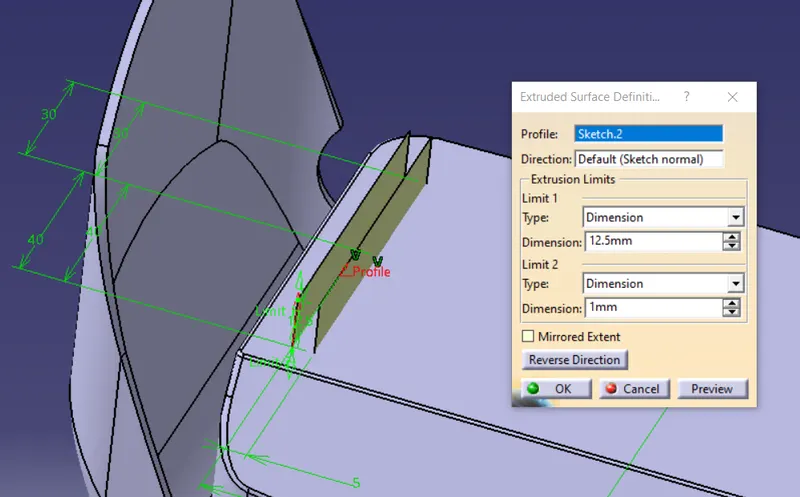

FOR THE HEIGHT OF THE RIB AS PER THE STANDARD 5t SO THICKNESS IS 2.5*5=12.5 FOR SAFER SIDE WE EXTRUDE OTHER SIDE 1mm

3. RIB DESIGN

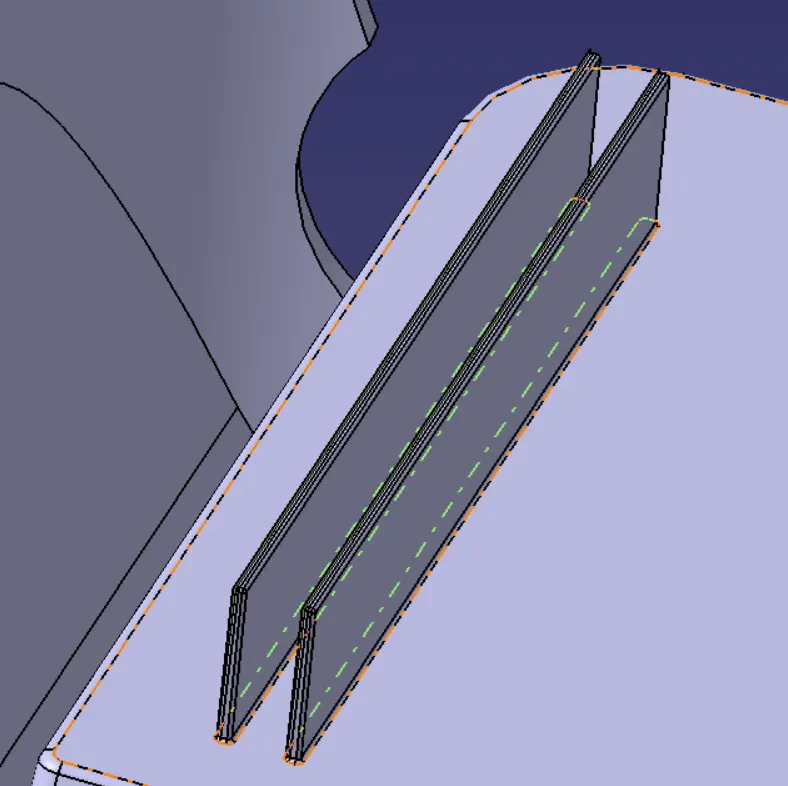

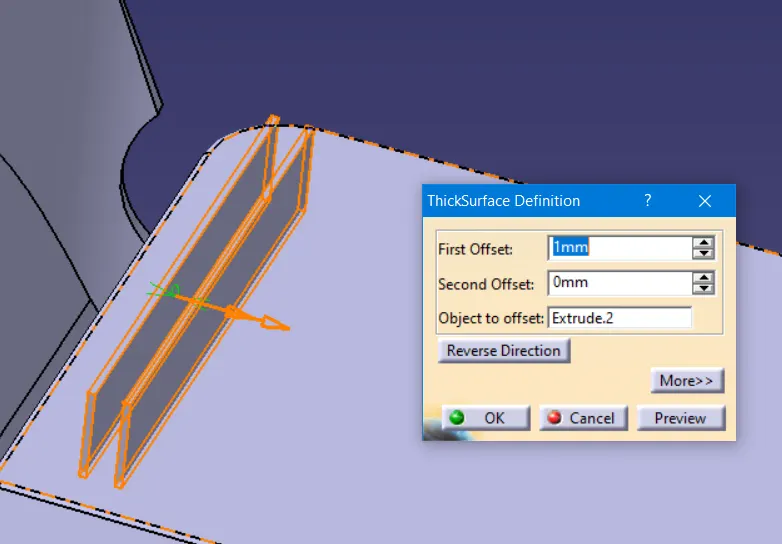

NOW SWITCH TO PART DESIGN AND MAKE THE THICKNESS AS PER DESIGN STD 0.4t SO THICKNESS 1*0.4=1mm

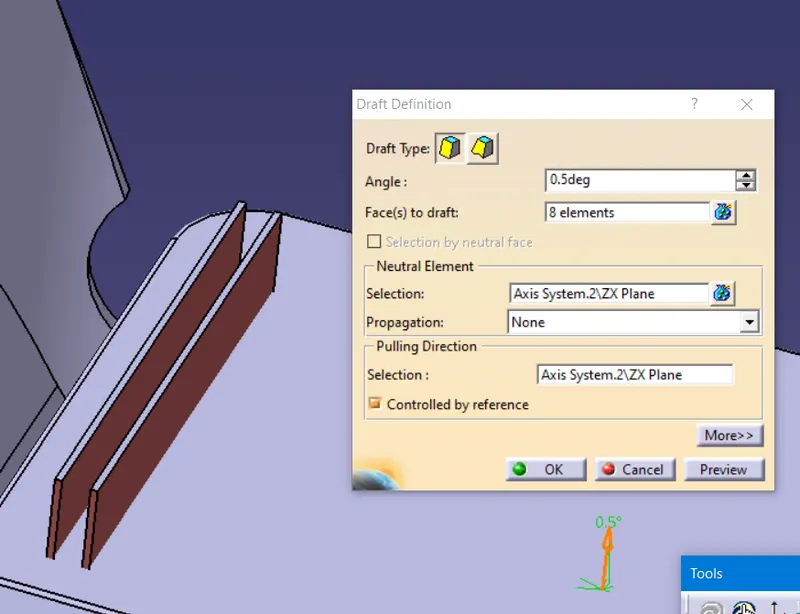

NOW PERFORMING THE DRAFT FOR THE RIB PARTS AS PER THE DESIGN STD DRAFT MUST BE = 0.5 OR > 0.5

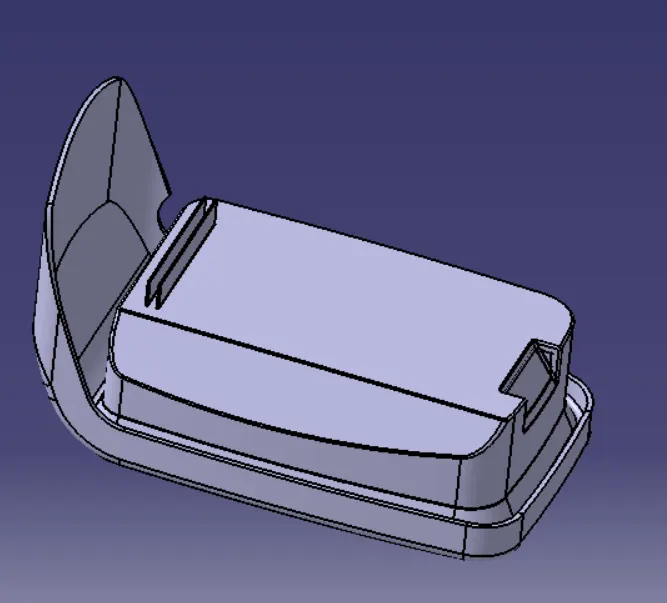

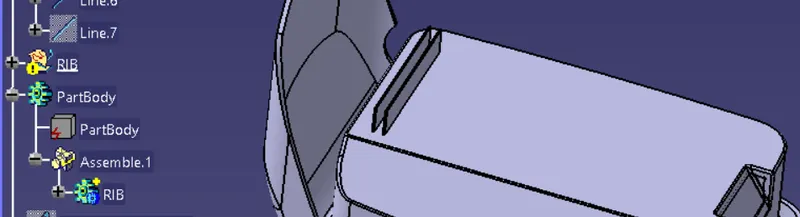

ASSEMBLE THE PART TO THE PART BODY TO UNITE AND PERFORM FILLET

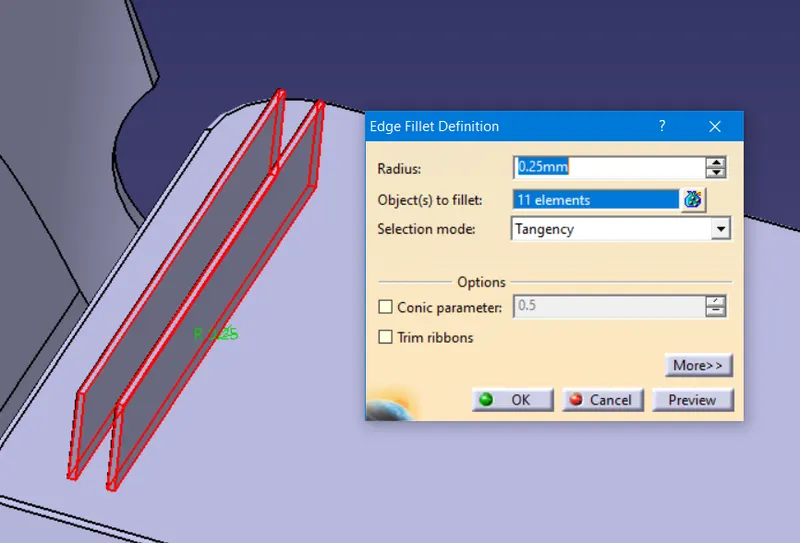

MAKEING THE SHARP EDGES AS FILLET RADIUS AS PER THE DESIGN STD MAX RADIUS WILL BE 0.25

4. DRAFT ANALYSIS

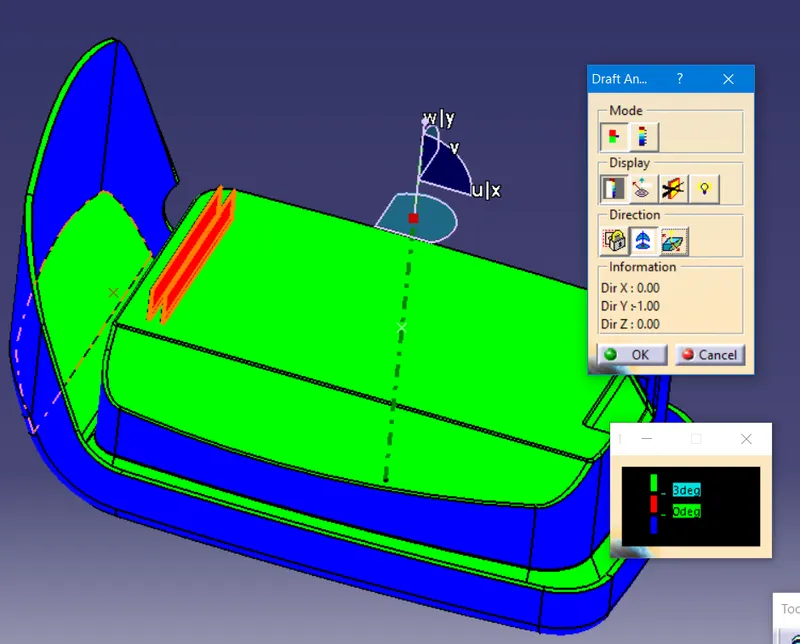

ACCORING TO THE TOOLING AXIS DIRECTION THE EJECTION PART IS CLEARING THE DRAFT ANLYSIS

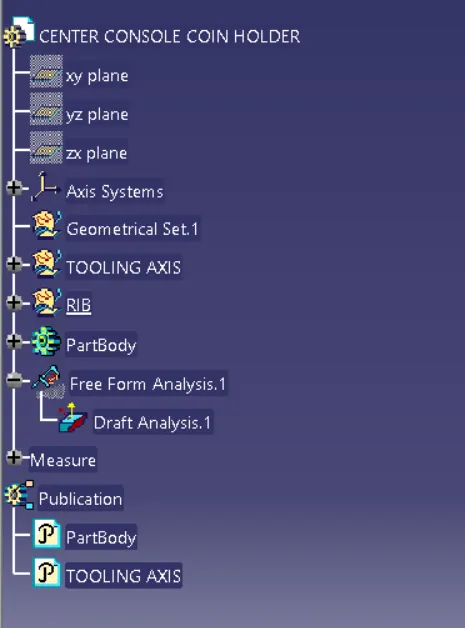

5. TREE STRUCTURE
