Week 9 - Attachment Feature Creation - Challenge 1

                       DESIGN OF HOOD PANEL INTRODUCTION A car HOOD panel is one of the most important components of the BIW(BODY IN WHITE), it considered as the closure sheet-metal component, A hood panal consist of two panels that are hammed together to form…

UNDERBODY COATING: Underbody coating is a coating which is coated at the under body of the car that provides long term protection from corrosion,stones,chips to car's underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone…

Benchmarking in Automotive Industry is a process of study or comparison of similar products,services,performances which are available in the market to develop a new product.For example it can be used to compare the availability of the product and the features and services that are provided and also on the basis of…

CAR DOOR PLASTIC TRIMS DESIGNED FOR INJUCTION MOLDING  OBJECTIVE Here i received class A surface of a car door's plastic trims. My objective is to develop the class A surface received into manufacturable product design following the OEM design standards using  CATIA V5  surface workbench      …

   OBJECTIVE: To develop Class A surface and master section input of a car interior B pillar provided into a functional product design following the OEM design standards using CATIA V5 Surface workbench following the injection moulding principles. ABSTRACT Pillars are the vertical or near vertical supports of…

DOOR APPLIQUE DESIGN FEATURE TREES

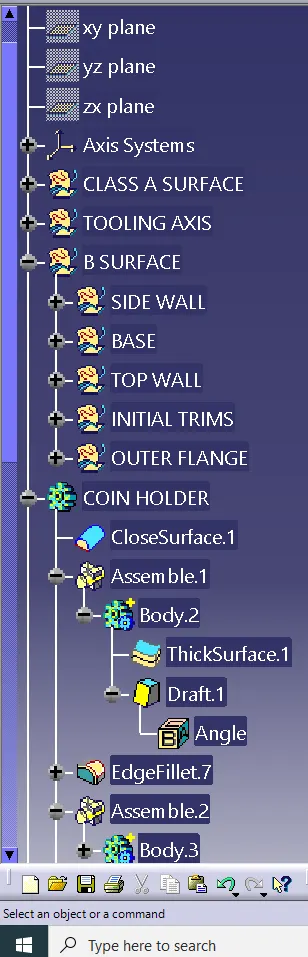

FEATURE TREES OF SCREW BOSS AND GOG HOUSE

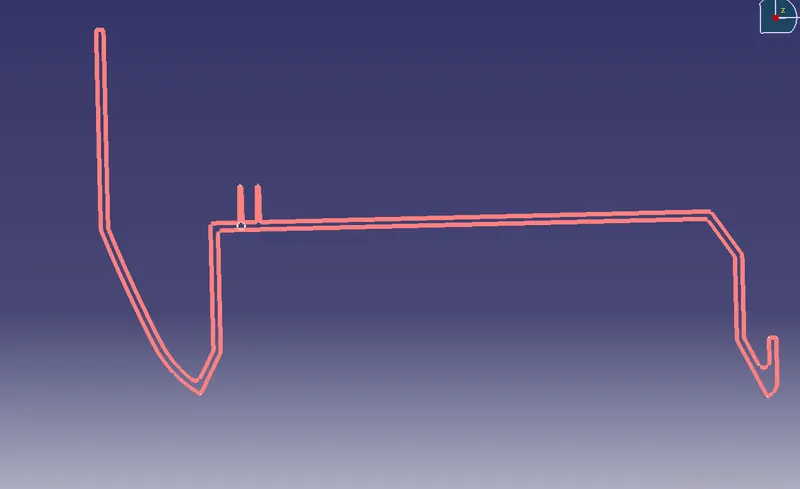

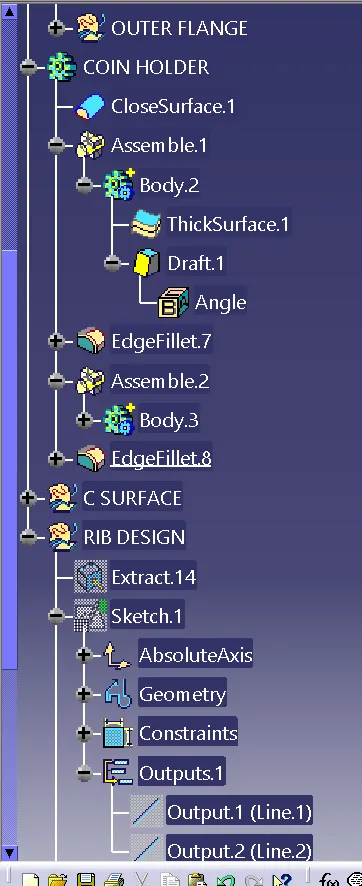

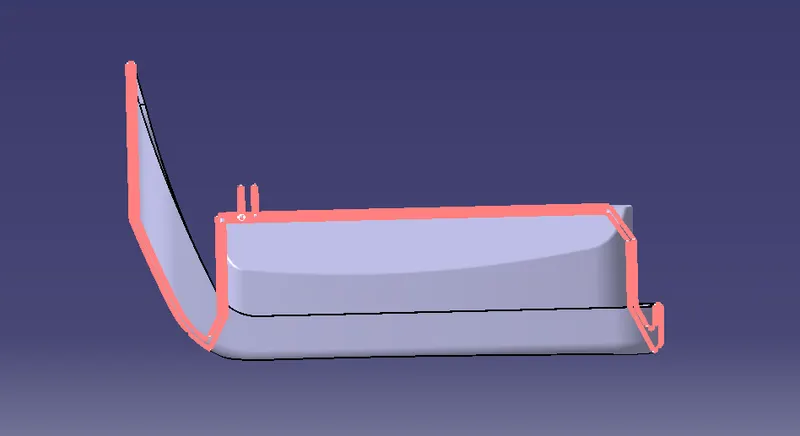

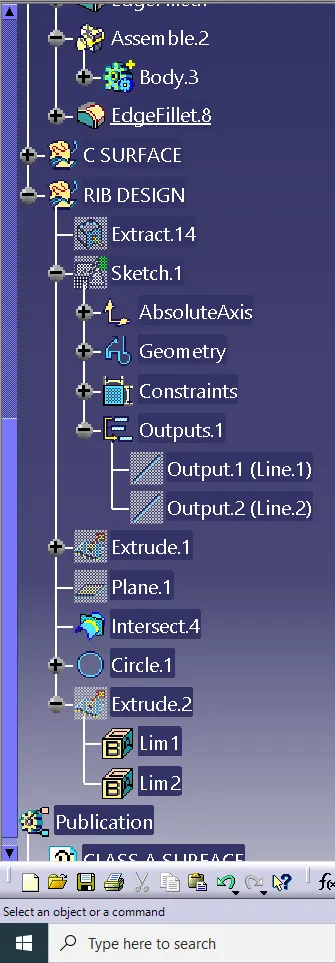

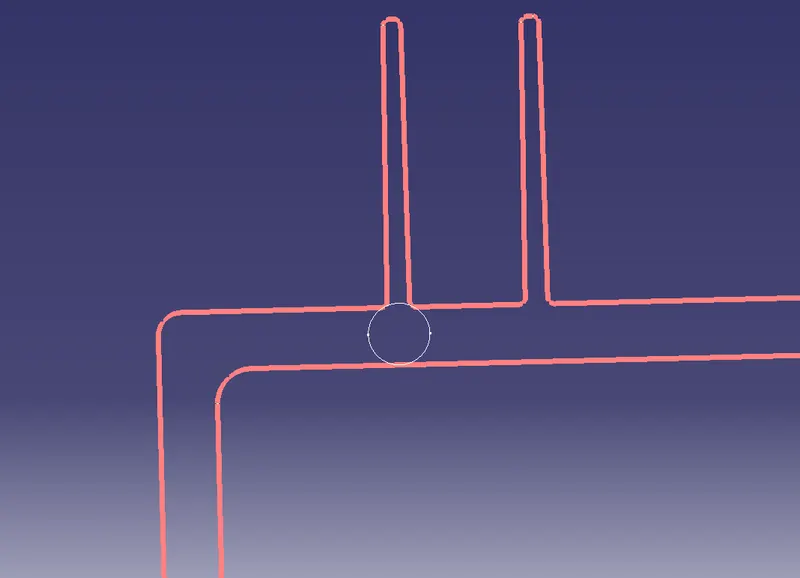

TREE STRUCTURES OF DESIGN RULE FOR RIBS IN COIN HOLDER

It is a tool that allows the user to ‘see’ whether the part they are designing can be removed from the tool being used to make it. In the case of plastic injection molded parts it also allows the designer to see if there is enough draft on the part to ensure that it can be correctly grained. I always use the…

DRAFT ANALYSIS Crating draft analysis first we toos given surface A  Created tooling axis with help of the surface A , extracted the surface to create a point on the suface , and created intersecting line with help of the surface A with help of the point we created line that was the tooling axis

DETAIL REPORT OF THE BASE BRACKET DESIGN CREATING THE TOOLONG AXIS WE RECIVED THE CLASS A SURFACE WE CREATE A TOOLING AXIS ON THE GIVEN CLASS A SURFACE FOR CREATING TOOLING AXIS FIRST WE CREATED A DUMMY AXIS AND CREATED A PLANE WITH HELP OF THE PONT AND WE CREATED ANOTHER LINE ON THE SMALL HOLE BISECTING…

  The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified…

 1. Radar Mast   1. Radar Mast  FEATURE TREES ASSEMBLY OF YACHT FEATURE TREES OF ASSEMBLY TOP VIEW ISOMETRIC VIEW FRONT VIEW SURENDHER MODELING OF YACHT AIM&OBJECTIVE: * To apply different tools of surfacing in solid works * Make a model of the yacht using solid works  * Do assembly and rendering…

Report of American Chopper   AIM And OBJECTIVE:  To learn the solidworks interface and simultaneously sketch or model the parts of American Chopper, apply appearences and materials, Do assembly of moduled parts to get the chopper  Do visualization of the assembled chopper with the environment  INTRODUCTION…
