Assembly of Yacht

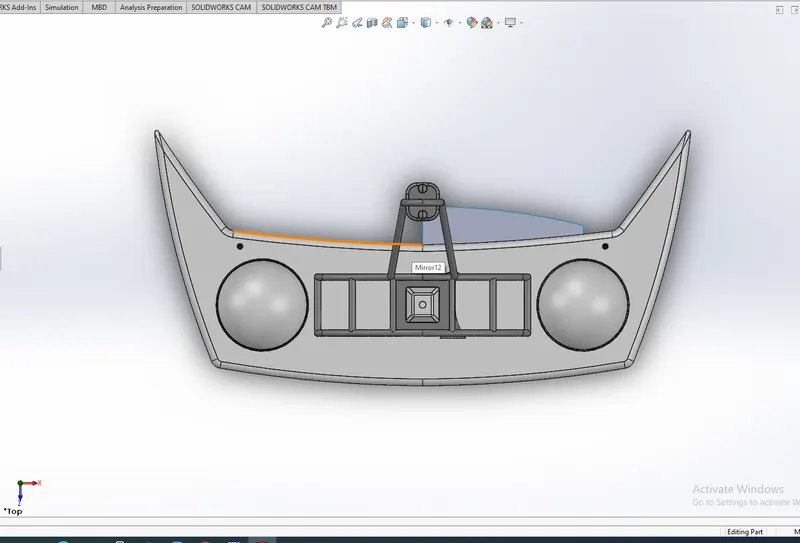

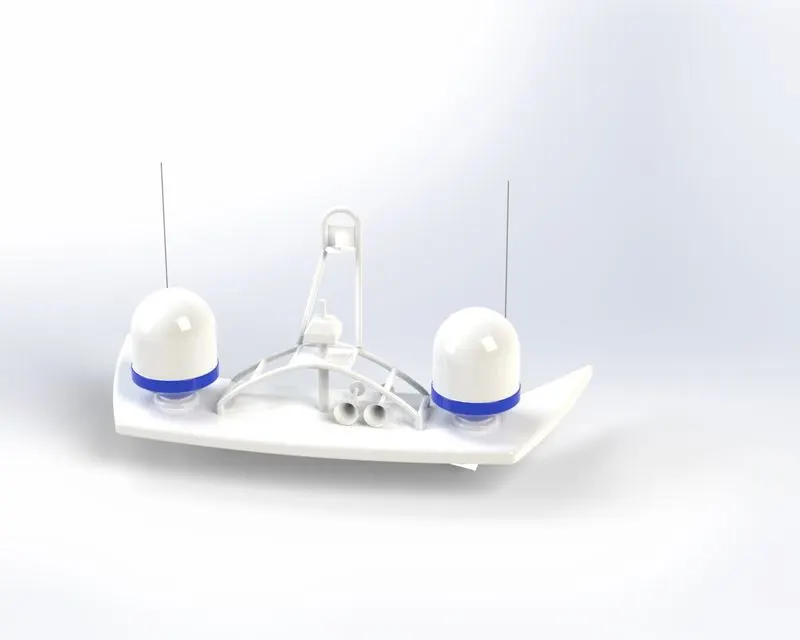

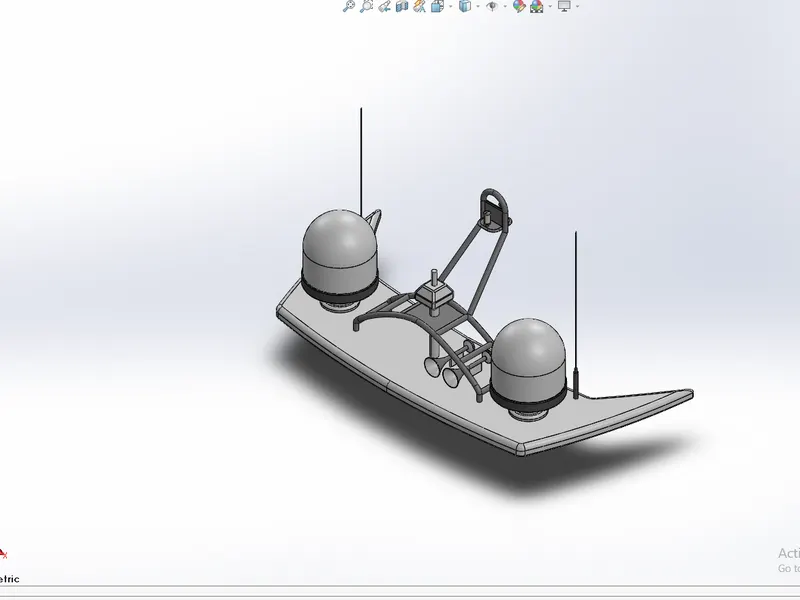

1. Radar Mast

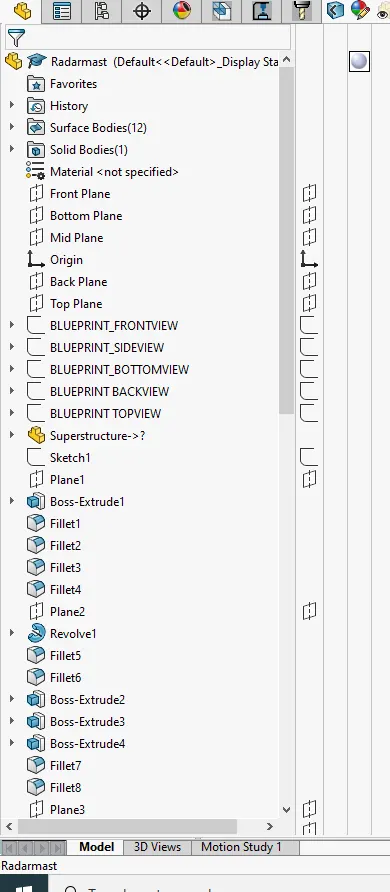

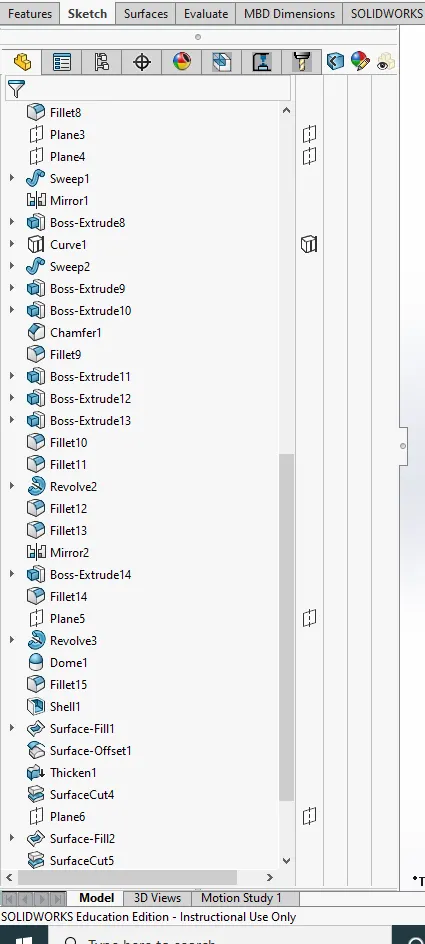

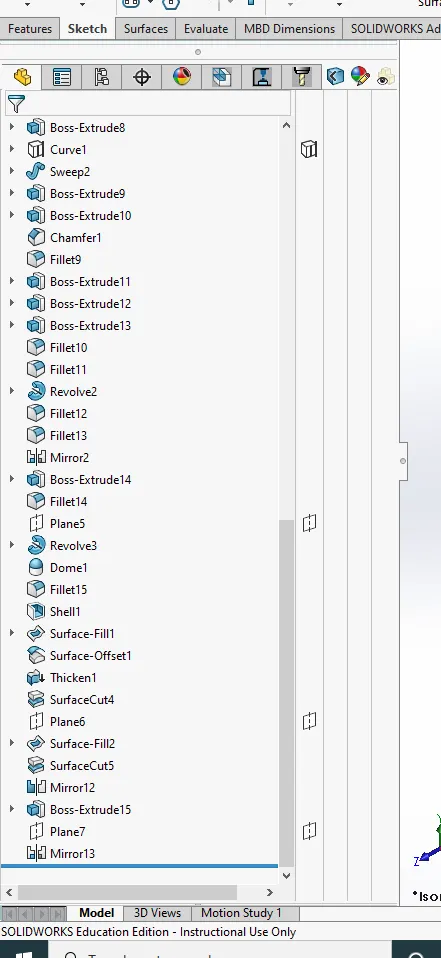

1. Radar Mast FEATURE TREES
ASSEMBLY OF YACHT

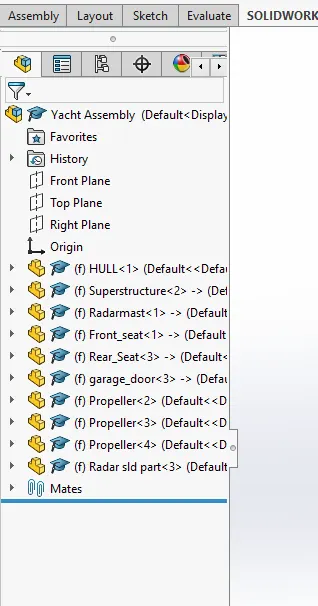

FEATURE TREES OF ASSEMBLY

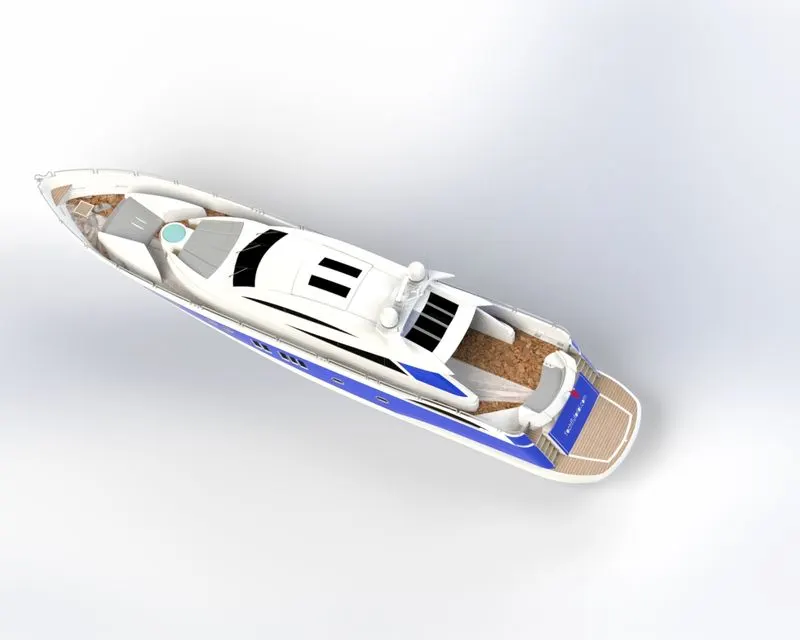

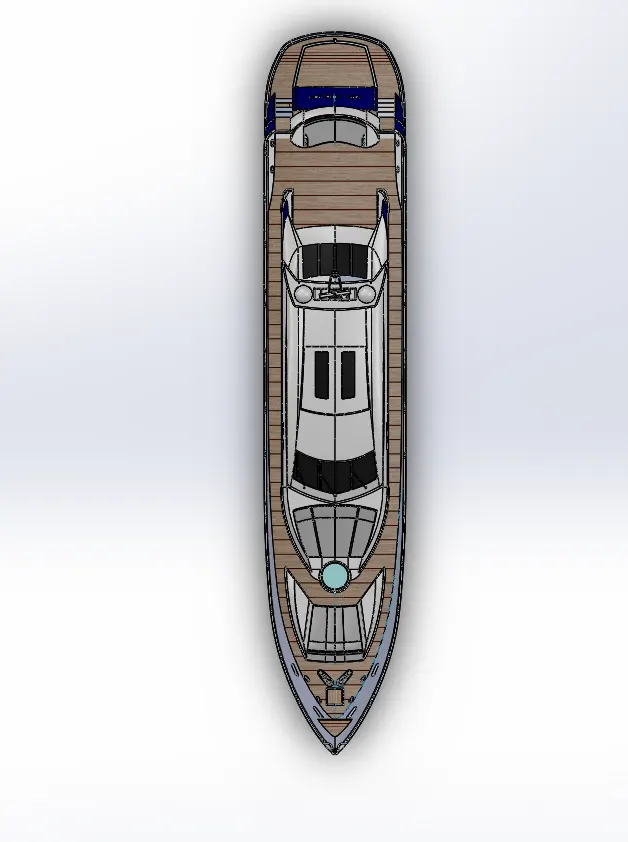

TOP VIEW

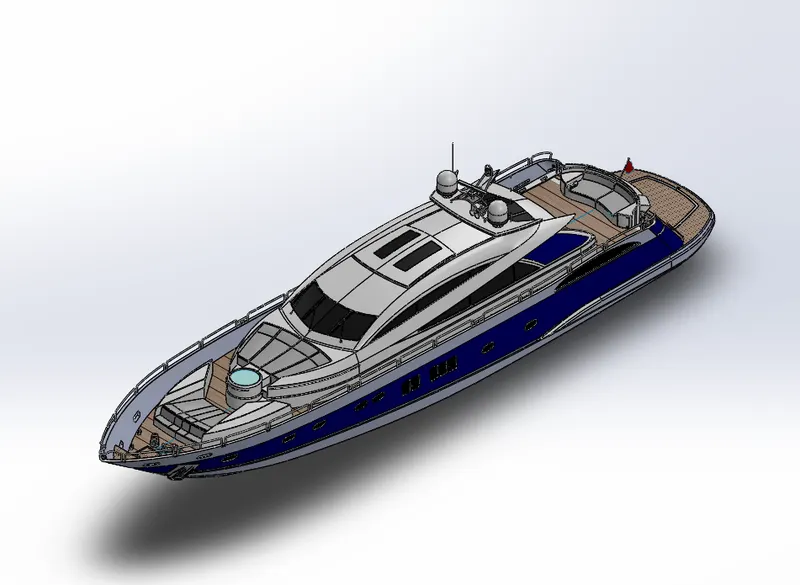

ISOMETRIC VIEW

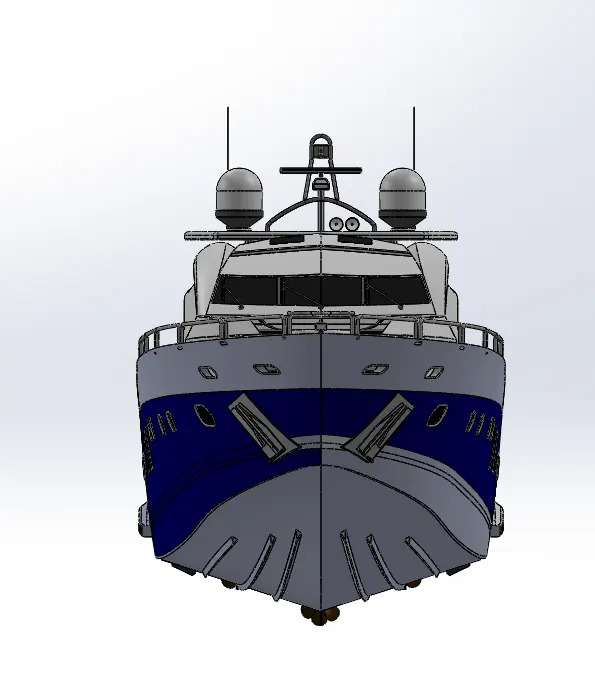

FRONT VIEW
SURENDHER MODELING OF YACHT
AIM&OBJECTIVE:
* To apply different tools of surfacing in solid works
* Make a model of the yacht using solid works
* Do assembly and rendering using solidworks
INTRODUCTION
Solid work is mechanical 3D CAD (Computer-aided design)software used to create 2D&3D models it helps to design products better, faster and more cost -effectively ,
yacht modeling complitely depends on surfsce modeling, in this modeling the most important part to set up the bluprint then as per the requirement of parts in blueprint do the processto get the desired parts
COMMON TOOLS USED IN YACHT MODELING
PLANE: here the section view of the model is to be sketched
SKETCHE: It gives the work base to create 2D&2D sketches
SMART DIMENSSION: By usiong this easy to provide the dimension value to the sketch to get the desired shape
FILLET: It provides round shape at corner edges
CHAMFER: It provides sloping edges at corners
EXTRUDE SURFACE: Used to get surface from the sketch
REVOLVE SURFACE: Used to revolve the sketch with the reference of axis or lines in the surface form
SWEPT SURFACE: It provide a surface by closed profile along an open and closed path
OFFSET SUREFACE: Used to get pre surface on another plane
KNIT SURFACE: Used to provide appropriate tolerance
EXTEND SURFACE: Used for extension of surface
FILLED SURFACE: Used to fill the blank surface
CONVERT ENTITIES: Using this easy to get sketched into the other plane or same plane with the same dimension value
OFFSET: It adds 3D sketches on faces
EXTRUDE BOSS/BASE: Used to get a solid body in one or two direction
REVOLVED BOSS/BASE: Used to get revolve the sketch with the reference of axis or line in this solid form
EXRUDE CUT:Used to remove materials from the solidbody
SWEPT BOSS/BASE: It provide a solid body by closed profile along an open and closed path
PATTERN : It features the object in a particular direction or path
PROJECTED CURVE: It combines two 2D contineous curves into a 3D curves
TRIM: It is used to cut the extra line of the surface
APPEARANCE: Using this can get a different looks &apply different materials
SHELL: The shell tool hollows out a part
DECALS: Using this tools painted stickers to be applied
COMPONENTS OF YACHT
BLUE PRINT
PROPELLER
RADAR
HULL
GARAGE DOOR

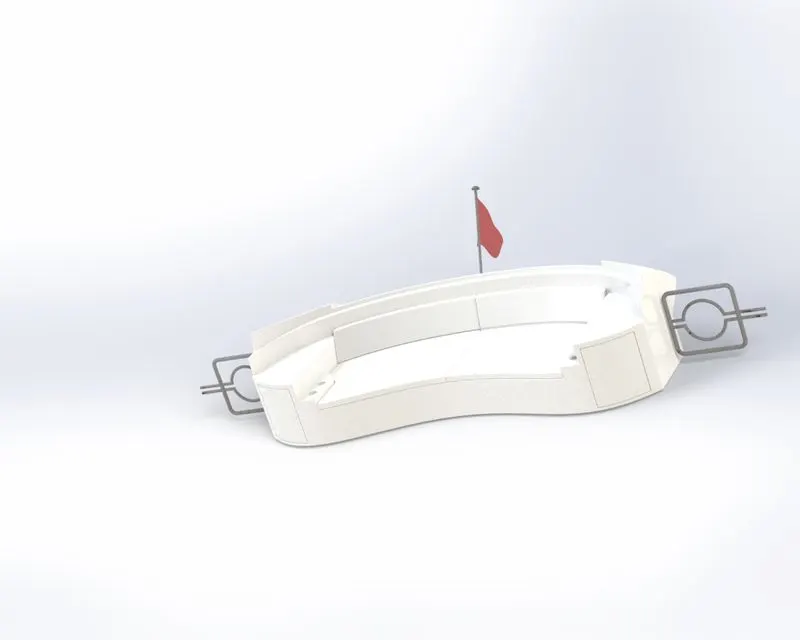

REAR SEAT
MIDDLE SEAT
FRONT SEAT
SUPERSTRUCTURE
RADAR MAST
FINAL ASSEMBLY OF YACHT

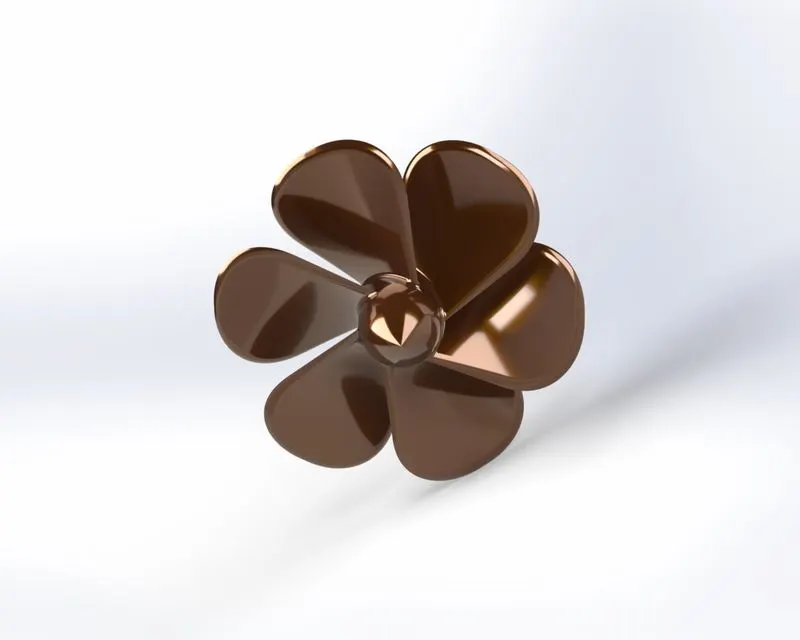

PROPELLER:
It rotary motion through the air create a difference in pressure between the front and back surfaces of its blade it provides thrust so that yacht moves easily
RADAR:
It is used to detect the object`s position signals etc. Relative to the position of yacht

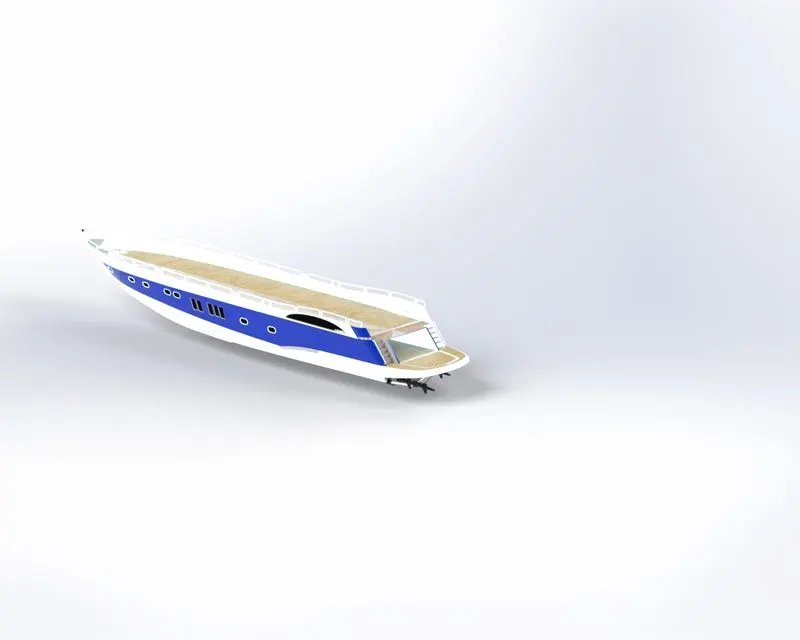

HULL:
It is the watertight enclosure of the ship which protects the goods carrying area machinary and accomodation spaces of the ship
from the weather flooding and structural damage
GARAGE DOOR :
It provides safety from bad weather moisture etc.

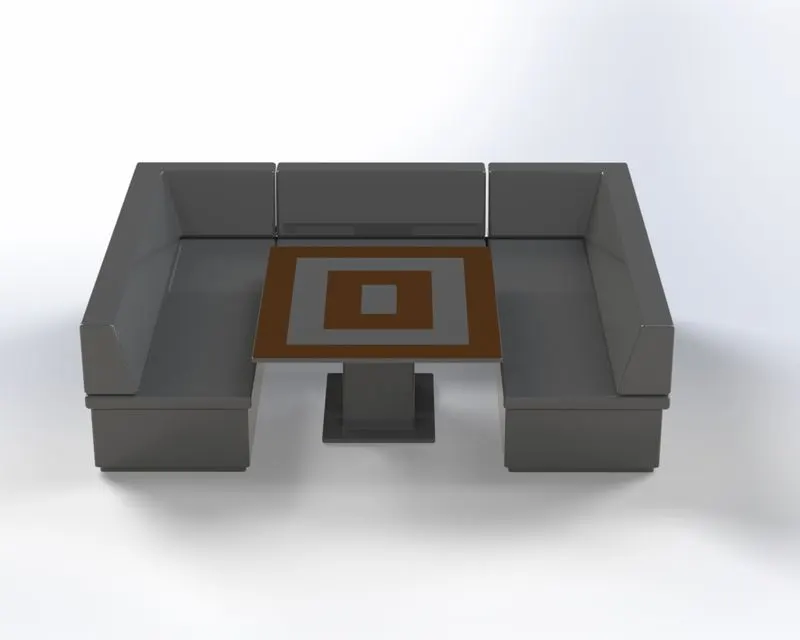

SEAT :
It is used for the purpose of rest , it is also an important part of the superstructure

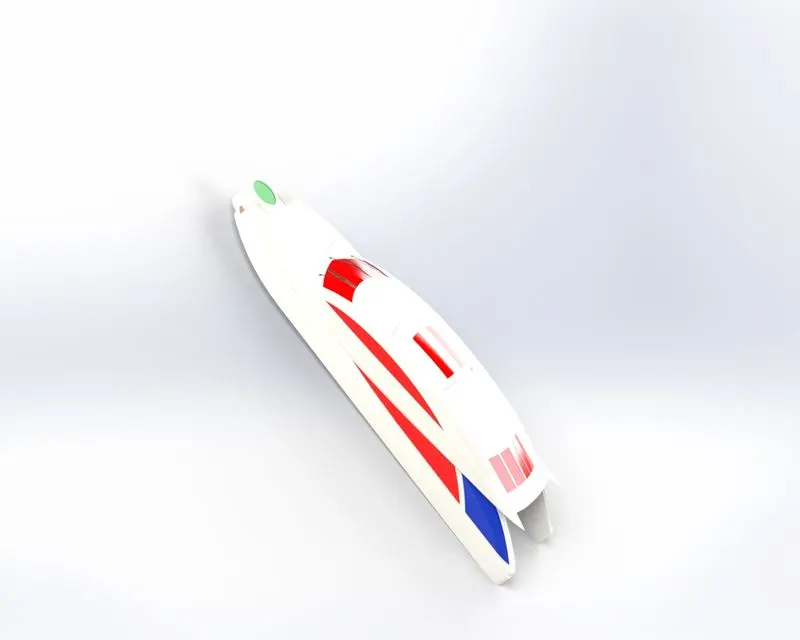

SUPERSTRUCTURE:
A superstructure is an upward extension of the yacht it is like a head &gives apretty good look and mounted over the hull by the base isolation whole yacht can be protected from severe damage

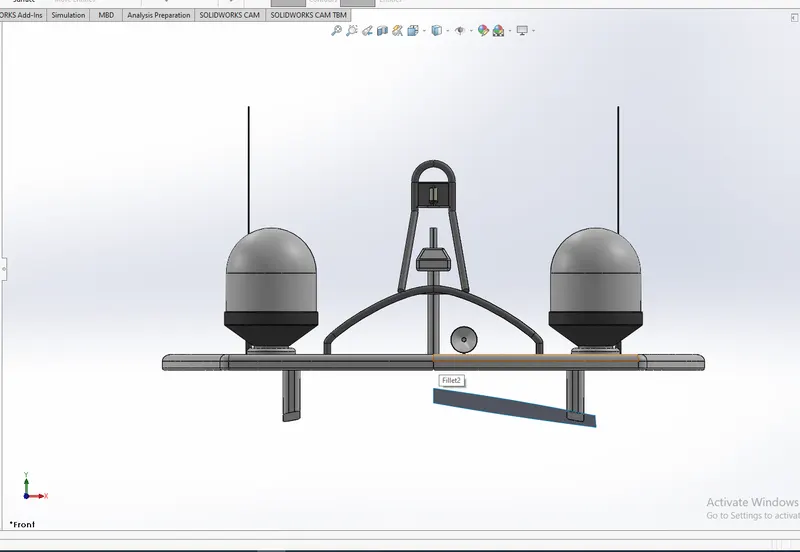

RADAR MAST:
It is the complete assembly of the radar system which protects from the harmful things
ASSEMBLY YACHT:
In assembly part all
individual parts inserted into assembly tools of solidworks fix one of the component into the workbase proved mates and relation remaining part to the fixed one with respect to line vertex& planes

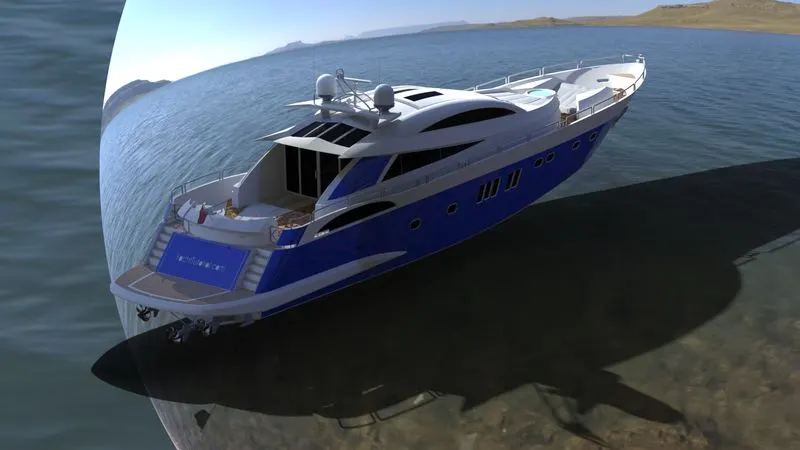

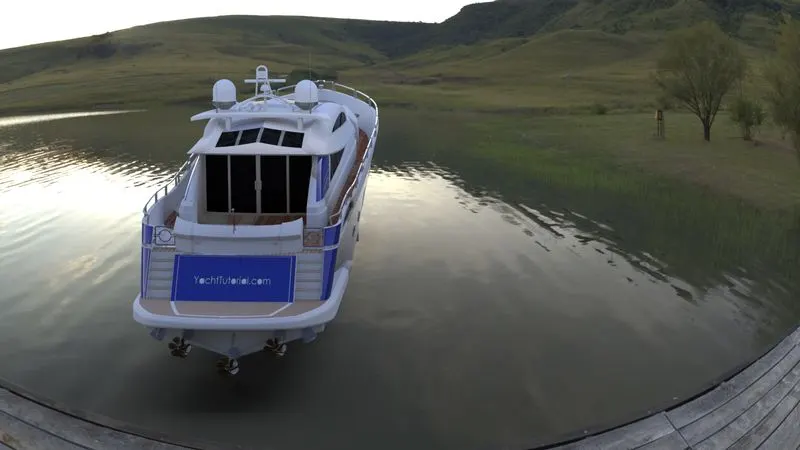

RANDERING:
It is very important part because of different materials colors etc. to be applied to assembly one here the product to be seen under environmental conditions with different views it gives a realistic view of the model relative to the environment
