Week 8 - Challenge 2 - Base Bracket Design
DETAIL REPORT OF THE BASE BRACKET DESIGN

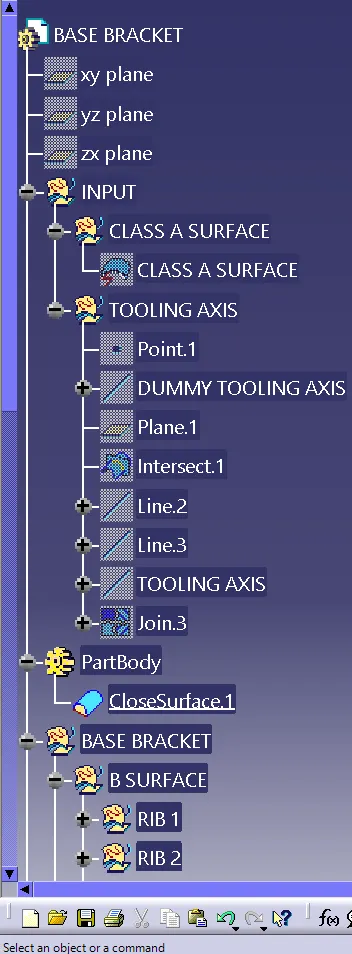

- CREATING THE TOOLONG AXIS
- WE RECIVED THE CLASS A SURFACE WE CREATE A TOOLING AXIS ON THE GIVEN CLASS A SURFACE
- FOR CREATING TOOLING AXIS FIRST WE CREATED A DUMMY AXIS AND CREATED A PLANE WITH HELP OF THE PONT
- AND WE CREATED ANOTHER LINE ON THE SMALL HOLE
- BISECTING THE BOTH LINES WITH HELP OF THE WE CREATED LINES ON INTERSECT METHOD AND CREATED A TOOLING AXIS

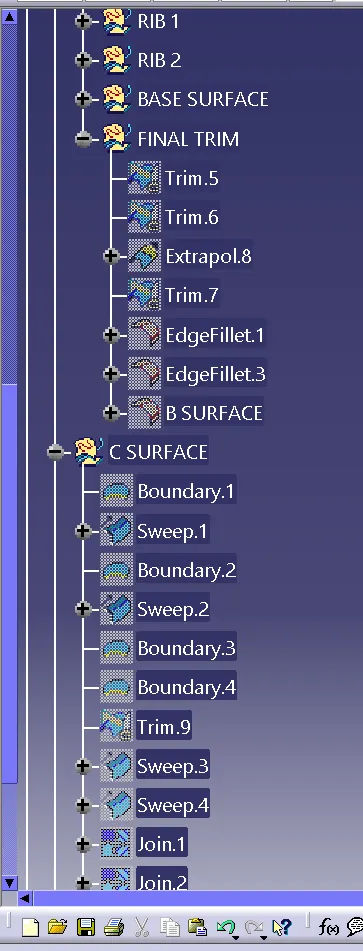

- AFTER THAT WE CREATING THE CLASS A SURFACE INTO 3 PARTS 2 RIB AND BASE SURFACE
- IN RIB WE EXTRACTED RIB PARTS AND UNTRIM THOSE PARTS AND EXTRAPOLE TO THEM AFTER THAT TRIM WHAT WE NEED
- AFTER THAT OFFSET TO THE 2.5 MM AND TRIMMEED EVERY THING TOGETHER
- AND CREATED FILLET 5 MM
- AND FINALLY CREATED THE B SURFACE

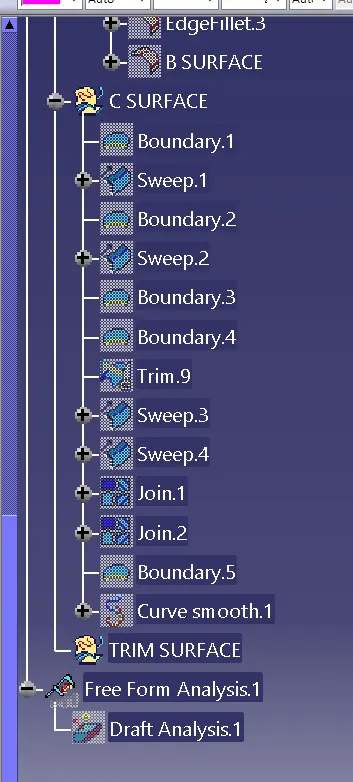

- WE CREATED OUTER BOUNDRY AND SWEEP OUT OF IT USING THE DRAFT DIRECTION 3 DEGREES SAME THING WE DONE IN THE HOLES WHICH INSIDE AND WE GOT OTHER TWO SWEEPS ALSO
- LATER WE JOINED ALL 3 COMPONENTS C SURFACE WIT B SURFACE JOINED EVERYTHING TOGETHER AND TRMI B SURFACE

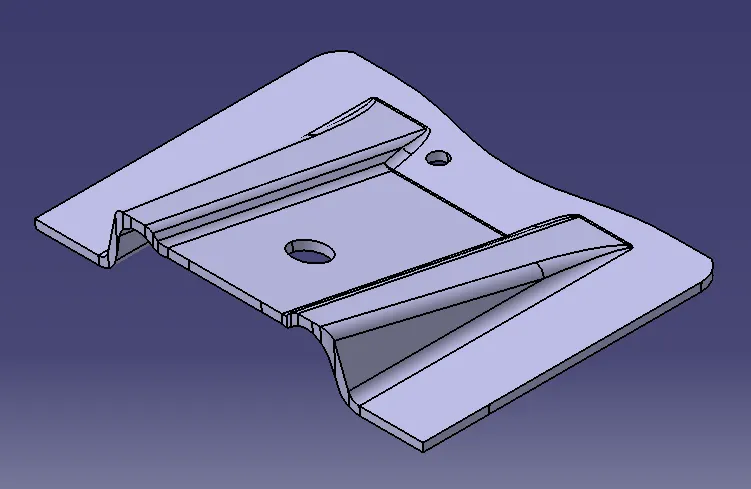

- AND WE CREATE CLOSED BODY OUT OF IT
