Week 9 - Attachment Feature Creation - Challenge 1

Aim : To Create the rib for the Centre console coin holder considering the design rules.

Draft Analysis : It helps to gather the draft angle on multiple surfaces without the need for manual measurements.

Draft Angle : It is the angle that the draft faces make with the pulling direction.

Pulling Direction : It allows you to define the coordinates and the type of the axis system.

Procedure :

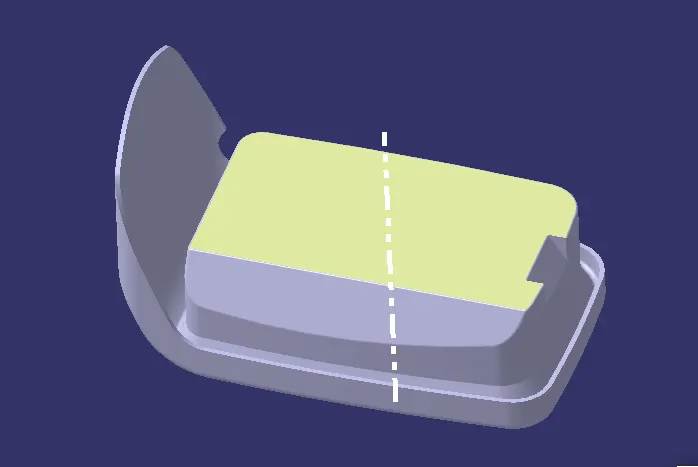

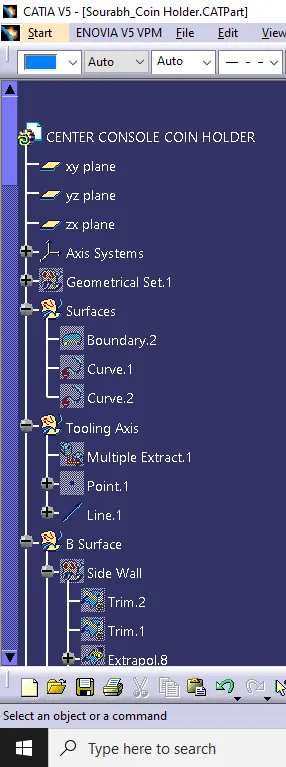

Step1 : Import the Given Class A surface in the Catia Software.

Step 2 : Test The Boundaries of the surface.

Step 3 : To create a tooling axis, first make sure you have created a dummy axis.

Step 4 : Use intersect option in the toolbar, select the zx plane as the first reference and the class a surface as the second element.

Step 5 : Make a dummy axis

Step 6 : Now create lines seperating walls of the class a surface.

Step 7 : Using these two lines, create a tooling axis in x-direction.

Step 8 : Perform intersect option and create outer lining of the model, selecting yz plane

Step 9 : Again create two lines from the points on the side of the sketch using point to point command.

Step 10 : Create the Tooling Axis in the Z-Direction.

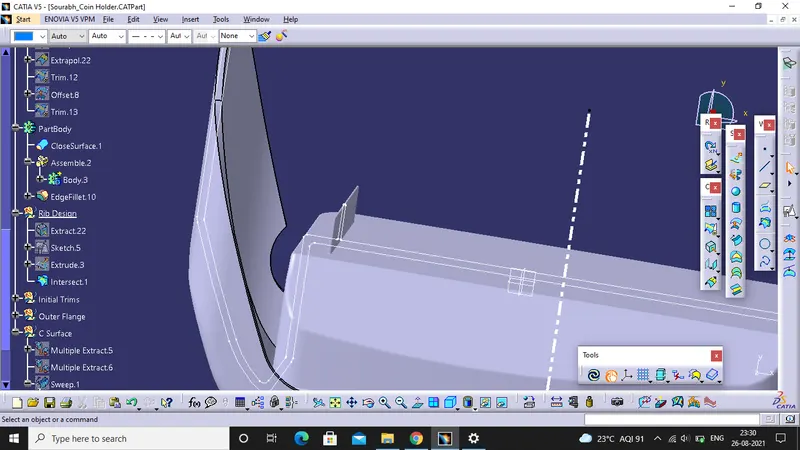

Step 11 : Create a Line to extrude surface.

Step 12 : Create a surface of thickness 1mm.

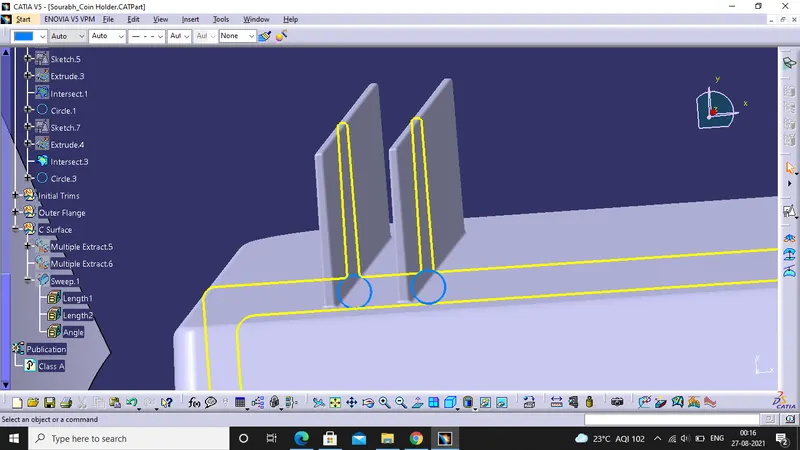

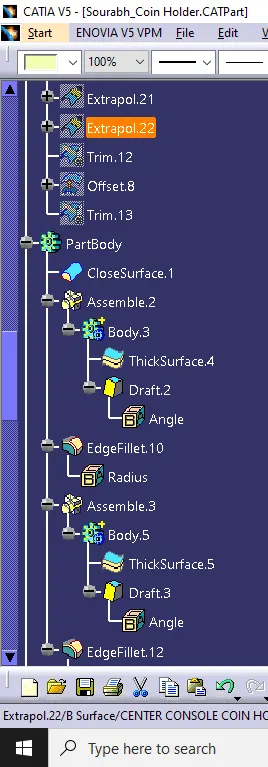

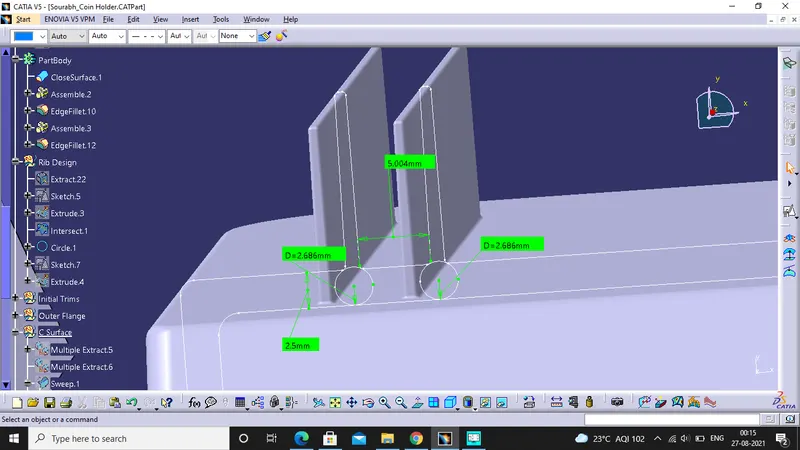

Step 13 : Apply Draft

Step 12 : Draft angle should not exceed 0.5deg

Step 13 : Radius should be 0.25mm

Step 14 : Take the necessary readings

Result : Create the rib for the centre console coin holder considering the design rules
