Week 8 - Universal Joint

Aim - Simulation of Universal Joint

Procedure

1. import geometry, assign materials

2. Delete contacts

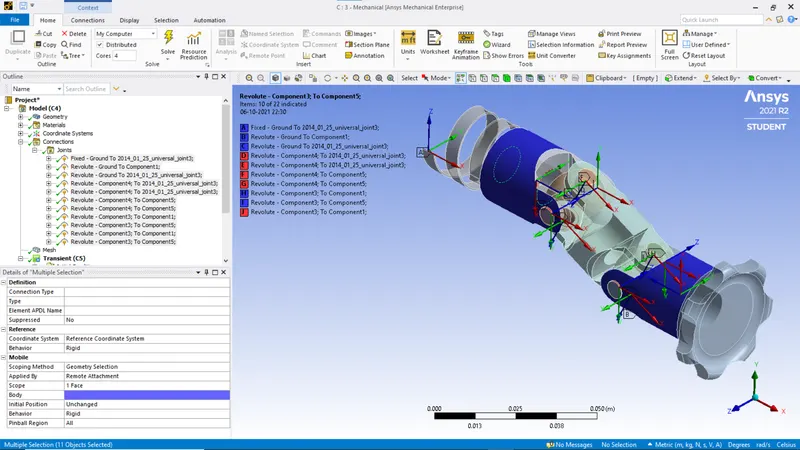

3. Create joints

4. Set up Analysis Settings - Number of steps = 5

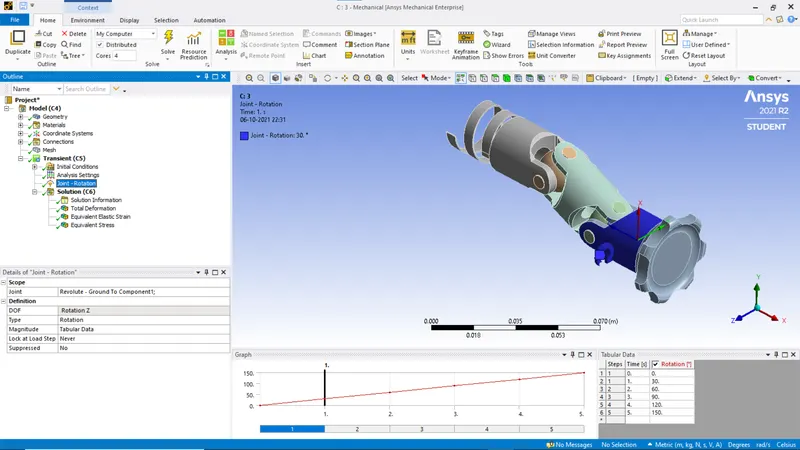

5. Creste joint load.

6. Run simulation

Case - 1 (Structutral Steel)

Case - 2 (Stainless Steel)

Case - 3 (Titanium Alloy)

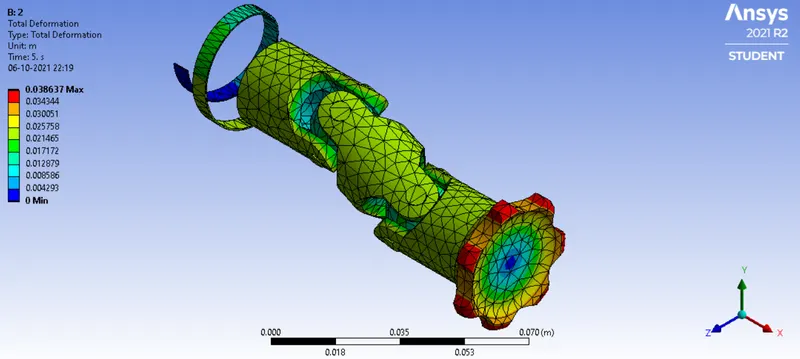

Results

	Stress	Strain	Displacement

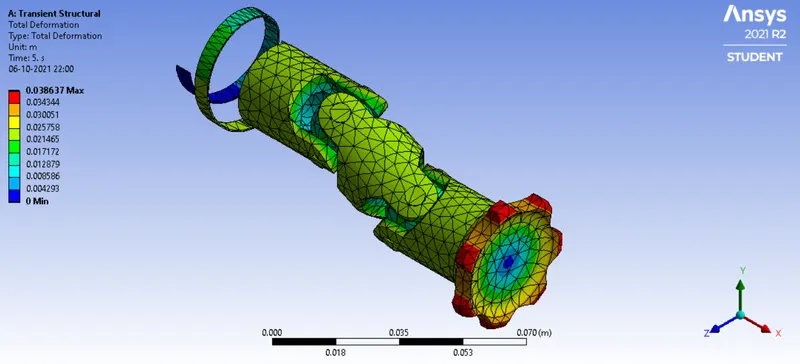

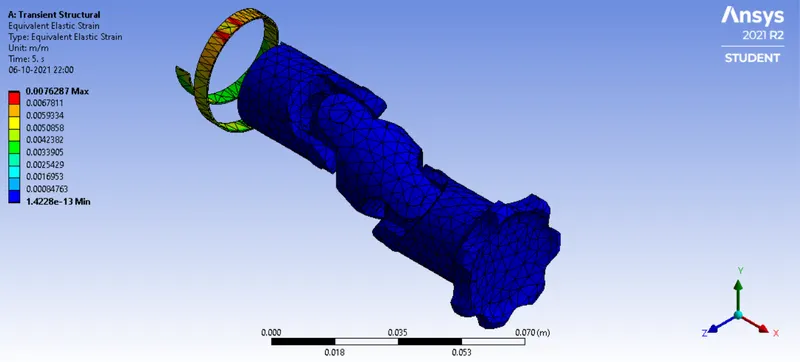

Structural Steel	0.00934/1.501e9	1.4228e-13/0.0076287	0/0.038637

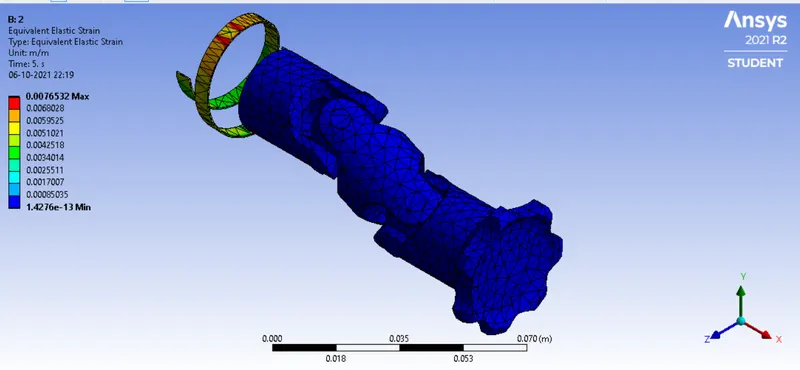

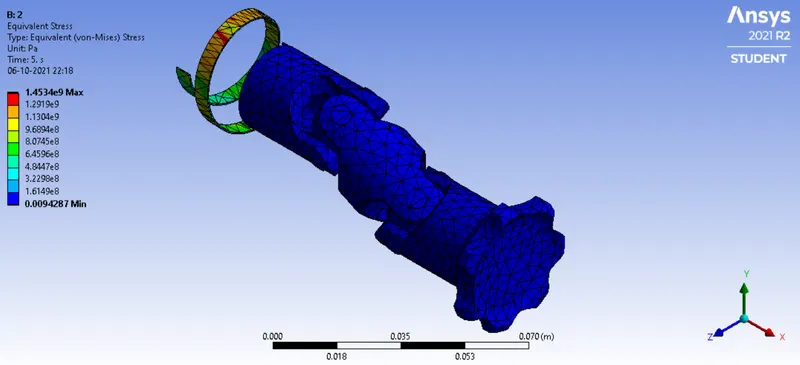

Stainless Steel	0.00942/1.4534e9	1.4276e-13/0.0076532	0/0.038637

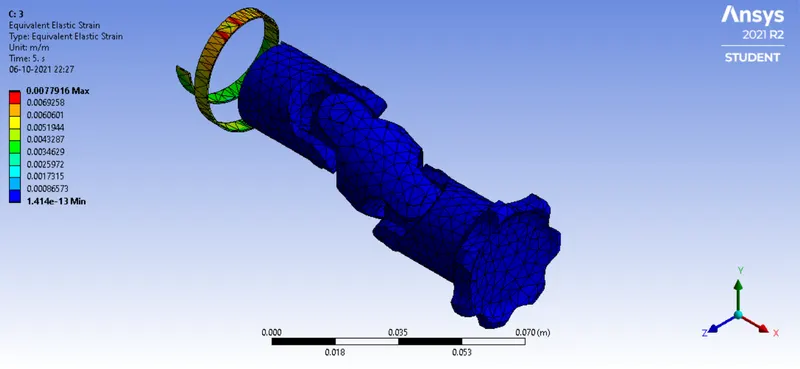

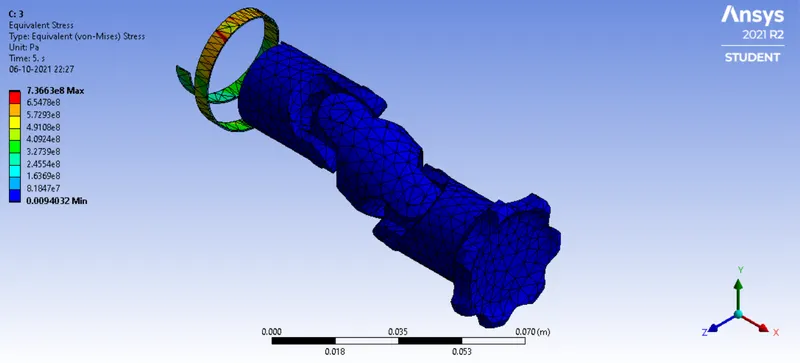

Titanium Alloy	0.0094/7.3663e8	1.414e-13/0.00779	0/0.038637
