Universal Joint
Aim:
To perform a transient structural analysis on a double universal joint with a spring in ANSYS-WORKBENCH.
Objective:
There must be three materials used on the joint with the springs alone and the materials are Structural Steel, Stainless Steel and Titanium alloy.
Procedure:

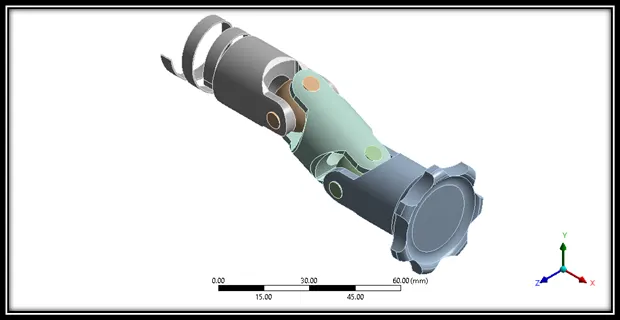

Initially, we will be importing the geometry model into ANSYS-WORKBENCH and then check for any geometrical errors in the same.
After which we will proceed to give Connections for the case setup model. For this simulation we will be only studying about the solution parameters occurring at the spring so we won’t be providing any contacts for the case setup model rather we will be providing only the joints for the model which will transmit the motion throughout the universal joint.

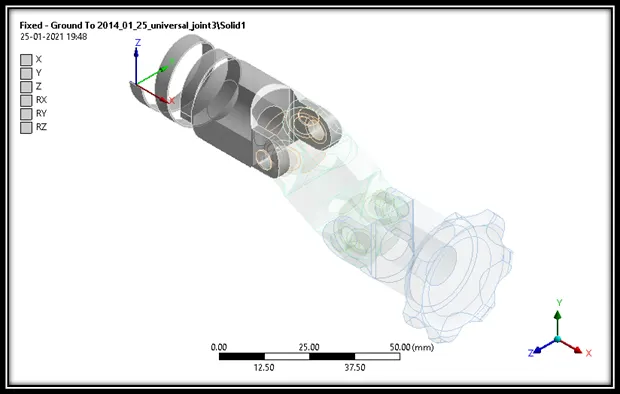

The first type of Joint will be Fixed which is to be given only the corner face of the spring model as shown in the image below.

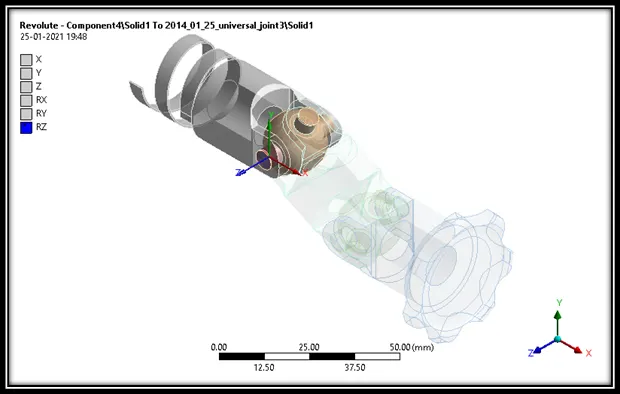

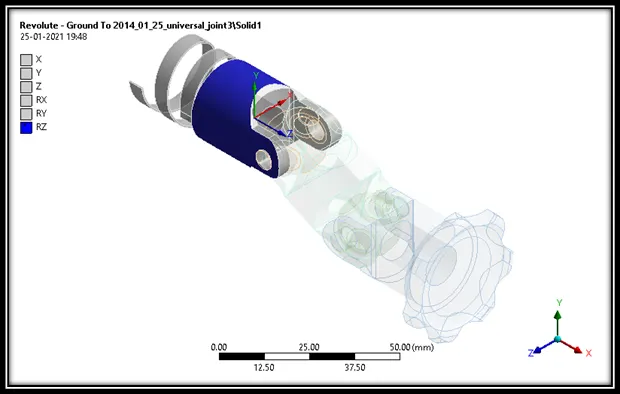

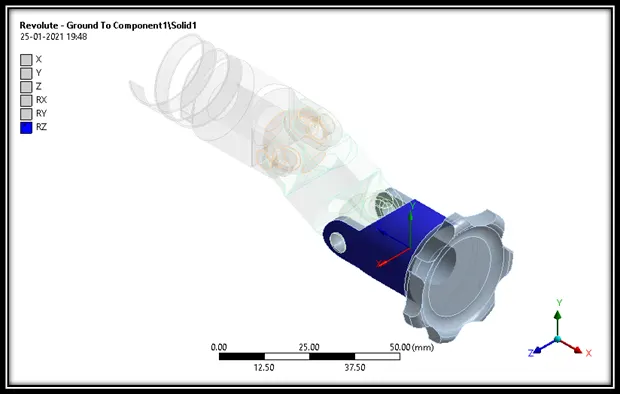

Now, we will be providing Revolute Joint as Ground to Body for the both the joints and the rotation co-ordinating properly to the global co-ordinate axis as shown in the two images below.

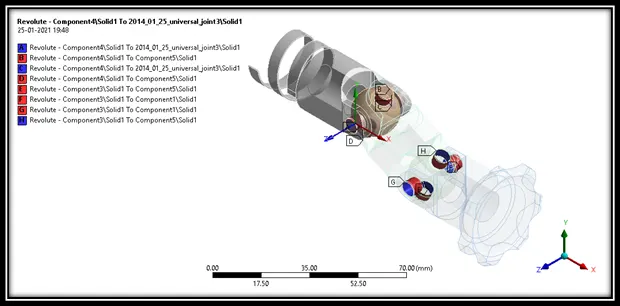

Finally for the connections we will be providing Revolute Joints with Body to Body option so that the motion is transmitted and the faces to be selected are shown in the image below.
After selecting all the required joints for the Revolute Joint with Body to Body option it will be seen as shown in the image below.

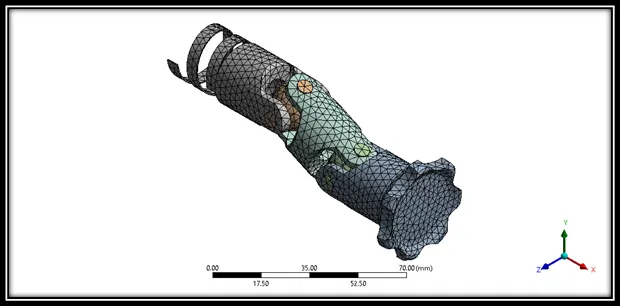

Then we will be providing mesh for the setup model and to obtain accurate values we must provide the element size such that the setup model will have a refined mesh.

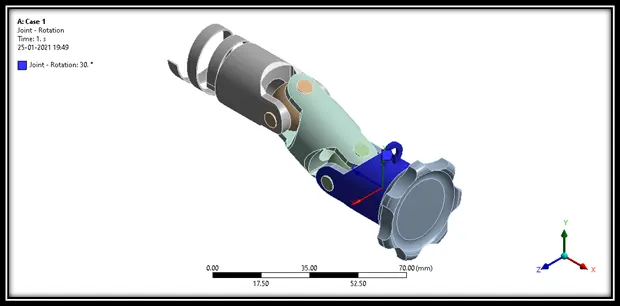

Now, for the boundary conditions we will be providing Joint Rotation for one of the joints and the values will be entered in tabular data for the given time steps respectively as shown in the image below.
Simulation:
Case 1:

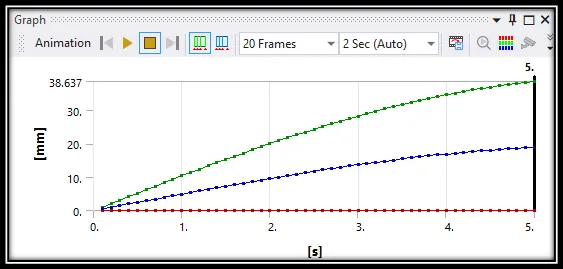

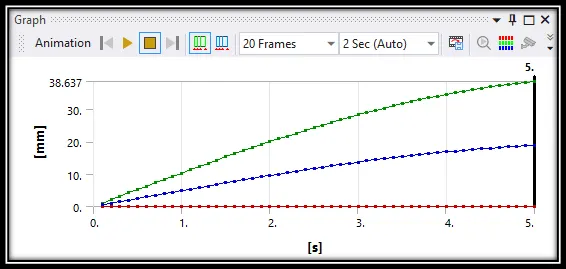

Total Deformation:
|
Time [s] |
Minimum [mm] |
Maximum [mm] |
Average [mm] |
|
|
1 |
0.1 |
0 |
1.0471 |
0.49247 |
|
2 |
0.2 |
0 |
2.0934 |
0.9849 |
|
3 |
0.3 |
0 |
3.1384 |
1.477 |
|
4 |
0.4 |
0 |
4.1811 |
1.9687 |
|
5 |
0.5 |
0 |
5.221 |
2.4597 |
|
6 |
0.6 |
0 |
6.2574 |
2.9497 |
|
7 |
0.7 |
0 |
7.2894 |
3.4387 |
|
8 |
0.8 |
0 |
8.3165 |
3.9263 |
|
9 |
0.9 |
0 |
9.3378 |
4.4122 |
|
10 |
1 |
0 |
10.353 |
4.8964 |
|
11 |
1.1 |
0 |
11.361 |
5.3784 |
|
12 |
1.2 |
0 |
12.361 |
5.8582 |
|
13 |
1.3 |
0 |
13.352 |
6.3352 |
|
14 |
1.4 |
0 |
14.335 |
6.8094 |
|
15 |
1.5 |
0 |
15.307 |
7.2803 |
|
16 |
1.6 |
0 |
16.269 |
7.7477 |
|
17 |
1.7 |
0 |
17.22 |
8.2113 |
|
18 |
1.8 |
0 |
18.16 |
8.6706 |
|
19 |
1.9 |
0 |
19.086 |
9.1253 |
|
20 |
2 |
0 |
20 |
9.575 |
|
21 |
2.1 |
0 |
20.9 |
10.019 |
|
22 |
2.2 |
0 |
21.786 |
10.458 |
|
23 |
2.3 |
0 |
22.656 |
10.89 |
|
24 |
2.4 |
0 |
23.511 |
11.316 |
|
25 |
2.5 |
0 |
24.35 |
11.735 |
|
26 |
2.6 |
0 |
25.173 |
12.146 |
|
27 |
2.7 |
0 |
25.978 |
12.549 |
|
28 |
2.8 |
0 |
26.765 |
12.944 |
|
29 |
2.9 |
0 |
27.534 |
13.33 |
|
30 |
3 |
0 |
28.284 |
13.707 |
|
31 |
3.1 |
0 |
29.015 |
14.075 |
|
32 |
3.2 |
0 |
29.726 |
14.432 |
|
33 |
3.3 |
0 |
30.416 |
14.779 |
|
34 |
3.4 |
0 |
31.086 |
15.116 |
|
35 |
3.5 |
0 |
31.734 |
15.442 |
|
36 |
3.6 |
0 |
32.361 |
15.756 |
|
37 |
3.7 |
0 |
32.965 |
16.059 |
|
38 |
3.8 |
0 |
33.547 |
16.351 |
|
39 |
3.9 |
0 |
34.106 |
16.631 |
|
40 |
4 |
0 |
34.641 |
16.899 |
|
41 |
4.1 |
0 |
35.153 |
17.155 |
|
42 |
4.2 |
0 |
35.64 |
17.399 |
|
43 |
4.3 |
0 |
36.103 |
17.63 |
|
44 |
4.4 |
0 |
36.542 |
17.85 |
|
45 |
4.5 |
0 |
36.955 |
18.057 |
|
46 |
4.6 |
0 |
37.343 |
18.252 |
|
47 |
4.7 |
0 |
37.706 |
18.435 |
|
48 |
4.8 |
0 |
38.042 |
18.605 |
|
49 |
4.9 |
0 |
38.353 |
18.763 |
|
50 |
5 |
0 |
38.637 |
18.909 |
Simulation Video - https://drive.google.com/file/d/1wyU1aiWxob3B5MqQ8NXcP35AATYWntUi/view?usp=sharing

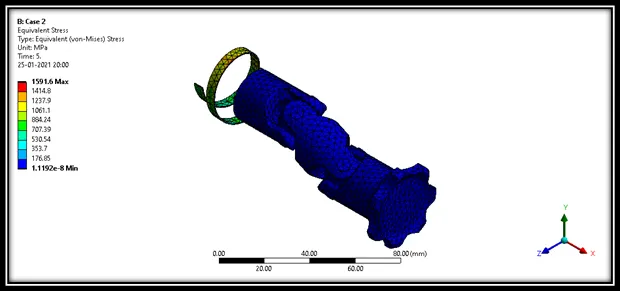

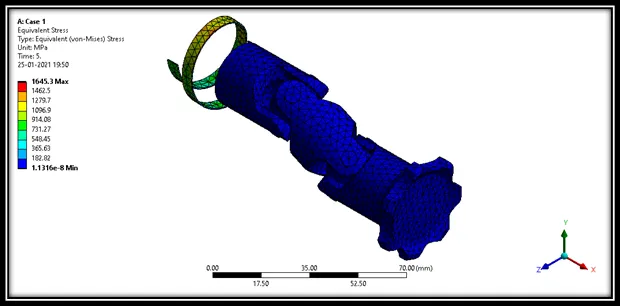

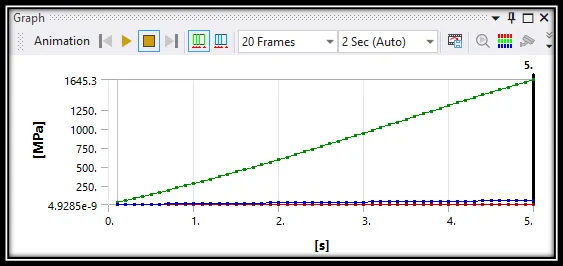

Equivalent Stress:
|
Time [s] |
Minimum [MPa] |
Maximum [MPa] |
Average [MPa] |
|
|
1 |
0.1 |
1.13E-07 |
25.794 |
1.0777 |
|
2 |
0.2 |
2.50E-07 |
51.972 |
2.1534 |
|
3 |
0.3 |
2.95E-07 |
78.528 |
3.2279 |
|
4 |
0.4 |
5.48E-07 |
105.49 |
4.3004 |
|
5 |
0.5 |
5.63E-07 |
132.83 |
5.3721 |
|
6 |
0.6 |
6.61E-07 |
160.58 |
6.4418 |
|
7 |
0.7 |
5.53E-07 |
188.73 |
7.511 |
|
8 |
0.8 |
5.97E-07 |
217.3 |
8.5784 |
|
9 |
0.9 |
7.19E-07 |
246.26 |
9.6452 |
|
10 |
1 |
5.66E-07 |
275.65 |
10.71 |
|
11 |
1.1 |
5.45E-07 |
305.44 |
11.775 |
|
12 |
1.2 |
4.14E-07 |
335.64 |
12.839 |
|
13 |
1.3 |
5.05E-07 |
366.25 |
13.902 |
|
14 |
1.4 |
4.83E-07 |
397.26 |
14.964 |
|
15 |
1.5 |
3.40E-07 |
428.67 |
16.025 |
|
16 |
1.6 |
3.51E-07 |
460.47 |
17.086 |
|
17 |
1.7 |
2.69E-07 |
492.66 |
18.146 |
|
18 |
1.8 |
2.50E-07 |
525.22 |
19.206 |
|
19 |
1.9 |
2.16E-07 |
558.15 |
20.265 |
|
20 |
2 |
1.85E-07 |
591.43 |
21.325 |
|
21 |
2.1 |
1.41E-07 |
625.06 |
22.384 |
|
22 |
2.2 |
1.43E-07 |
659.01 |
23.443 |
|
23 |
2.3 |
1.43E-07 |
693.27 |
24.502 |
|
24 |
2.4 |
1.25E-07 |
727.82 |
25.56 |
|
25 |
2.5 |
9.35E-08 |
762.64 |
26.62 |
|
26 |
2.6 |
7.91E-08 |
797.72 |
27.679 |
|
27 |
2.7 |
5.01E-08 |
833.02 |
28.739 |
|
28 |
2.8 |
6.65E-08 |
868.53 |
29.799 |
|
29 |
2.9 |
4.26E-08 |
904.22 |
30.859 |
|
30 |
3 |
4.47E-08 |
940.07 |
31.92 |
|
31 |
3.1 |
1.35E-08 |
976.05 |
32.982 |
|
32 |
3.2 |
2.94E-08 |
1012.1 |
34.044 |
|
33 |
3.3 |
1.32E-08 |
1048.3 |
35.107 |
|
34 |
3.4 |
2.03E-08 |
1084.5 |
36.171 |
|
35 |
3.5 |
1.10E-08 |
1120.7 |
37.235 |
|
36 |
3.6 |
1.24E-08 |
1156.9 |
38.3 |
|
37 |
3.7 |
9.40E-09 |
1193 |
39.367 |
|
38 |
3.8 |
1.04E-08 |
1229.1 |
40.434 |
|
39 |
3.9 |
6.90E-09 |
1265 |
41.502 |
|
40 |
4 |
1.43E-08 |
1300.8 |
42.571 |
|
41 |
4.1 |
5.32E-09 |
1336.5 |
43.641 |
|
42 |
4.2 |
1.49E-08 |
1371.9 |
44.712 |
|
43 |
4.3 |
6.07E-09 |
1407.2 |
45.784 |
|
44 |
4.4 |
1.28E-08 |
1442.2 |
46.856 |
|
45 |
4.5 |
4.93E-09 |
1476.9 |
47.93 |
|
46 |
4.6 |
1.12E-08 |
1511.3 |
49.005 |
|
47 |
4.7 |
6.23E-09 |
1545.3 |
50.08 |
|
48 |
4.8 |
1.13E-08 |
1579.1 |
51.157 |
|
49 |
4.9 |
7.68E-09 |
1612.4 |
52.234 |
|
50 |
5 |
1.13E-08 |
1645.3 |
53.312 |
Simulation Video - https://drive.google.com/file/d/14TYiQRlNaruahLTuS3QRT-7aWrKek_Hl/view?usp=sharing

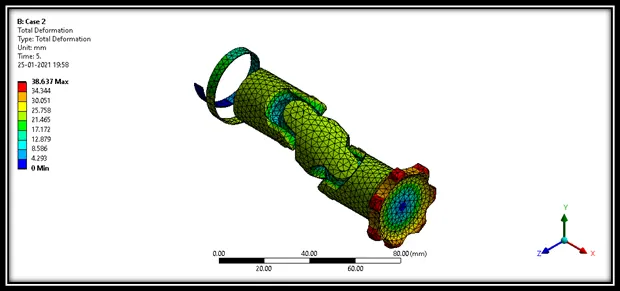

Case 2:

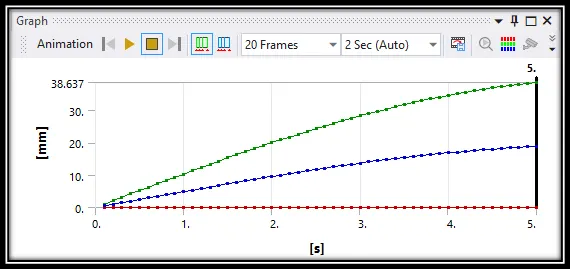

Total Deformation:
|
Time [s] |
Minimum [mm] |
Maximum [mm] |
Average [mm] |
|
|
1 |
0.1 |
0 |
1.0471 |
0.49247 |
|
2 |
0.2 |
0 |
2.0934 |
0.98489 |
|
3 |
0.3 |
0 |
3.1384 |
1.477 |
|
4 |
0.4 |
0 |
4.1811 |
1.9687 |
|
5 |
0.5 |
0 |
5.221 |
2.4596 |
|
6 |
0.6 |
0 |
6.2574 |
2.9497 |
|
7 |
0.7 |
0 |
7.2894 |
3.4386 |
|
8 |
0.8 |
0 |
8.3165 |
3.9262 |
|
9 |
0.9 |
0 |
9.3378 |
4.4122 |
|
10 |
1 |
0 |
10.353 |
4.8963 |
|
11 |
1.1 |
0 |
11.361 |
5.3784 |
|
12 |
1.2 |
0 |
12.361 |
5.8581 |
|
13 |
1.3 |
0 |
13.352 |
6.3352 |
|
14 |
1.4 |
0 |
14.335 |
6.8093 |
|
15 |
1.5 |
0 |
15.307 |
7.2803 |
|
16 |
1.6 |
0 |
16.269 |
7.7477 |
|
17 |
1.7 |
0 |
17.22 |
8.2112 |
|
18 |
1.8 |
0 |
18.16 |
8.6705 |
|
19 |
1.9 |
0 |
19.086 |
9.1252 |
|
20 |
2 |
0 |
20 |
9.5749 |
|
21 |
2.1 |
0 |
20.9 |
10.019 |
|
22 |
2.2 |
0 |
21.786 |
10.458 |
|
23 |
2.3 |
0 |
22.656 |
10.89 |
|
24 |
2.4 |
0 |
23.511 |
11.316 |
|
25 |
2.5 |
0 |
24.35 |
11.735 |
|
26 |
2.6 |
0 |
25.173 |
12.146 |
|
27 |
2.7 |
0 |
25.978 |
12.549 |
|
28 |
2.8 |
0 |
26.765 |
12.944 |
|
29 |
2.9 |
0 |
27.534 |
13.33 |
|
30 |
3 |
0 |
28.284 |
13.707 |
|
31 |
3.1 |
0 |
29.015 |
14.075 |
|
32 |
3.2 |
0 |
29.726 |
14.432 |
|
33 |
3.3 |
0 |
30.416 |
14.779 |
|
34 |
3.4 |
0 |
31.086 |
15.116 |
|
35 |
3.5 |
0 |
31.734 |
15.441 |
|
36 |
3.6 |
0 |
32.361 |
15.756 |
|
37 |
3.7 |
0 |
32.965 |
16.059 |
|
38 |
3.8 |
0 |
33.547 |
16.351 |
|
39 |
3.9 |
0 |
34.106 |
16.631 |
|
40 |
4 |
0 |
34.641 |
16.899 |
|
41 |
4.1 |
0 |
35.153 |
17.155 |
|
42 |
4.2 |
0 |
35.64 |
17.398 |
|
43 |
4.3 |
0 |
36.103 |
17.63 |
|
44 |
4.4 |
0 |
36.542 |
17.85 |
|
45 |
4.5 |
0 |
36.955 |
18.057 |
|
46 |
4.6 |
0 |
37.343 |
18.252 |
|
47 |
4.7 |
0 |
37.706 |
18.435 |
|
48 |
4.8 |
0 |
38.042 |
18.605 |
|
49 |
4.9 |
0 |
38.353 |
18.763 |
|
50 |
5 |
0 |
38.637 |
18.909 |
Simulation Video - https://drive.google.com/file/d/1UoTKs2CRDSyaZzbAJa69xLqmAjD1qMMU/view?usp=sharing

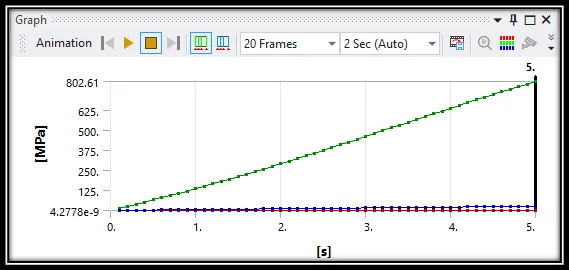

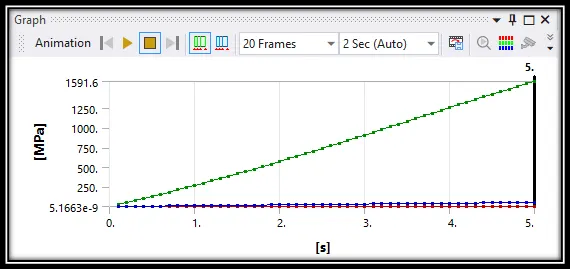

Equivalent Stress:
|
