Week 8 - Universal Joint

Title: Transient Structural analysis on Double universal joint with spring.

Objective:

For this challenge, you will have to perform a transient structural analysis on a double universal joint with a spring using three different materials: Structural Steel, Stainless Steel and Titanium alloy. The three materials must be used on the joint with the springs alone. Use a refined mesh if possible for the academic license. You need to obtain the Equivalent stress and total deformation for all the three cases and compare them.

Case setup:

Material:

Structural Steel, Stainless Steel and Titanium alloy are the materials used on the joint with the springs alone in 3 cases respectively and the other components are assigned with structural steel.

Contacts:

Contacts are not given importance in this case study.

Joints:

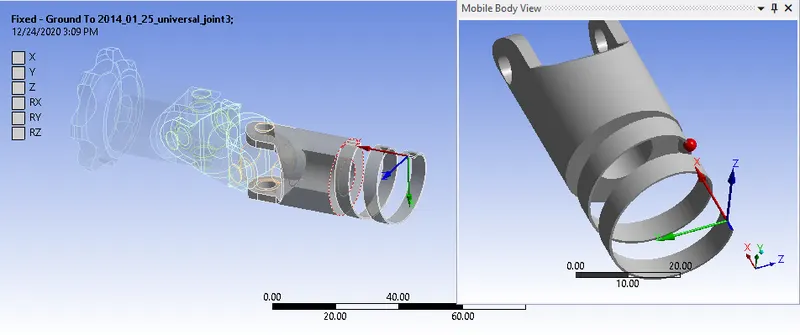

1.Fixed joint on spring bottom Face

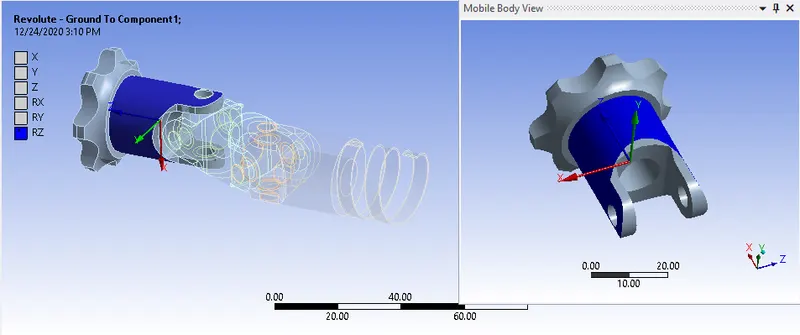

2.Revolute joint ground to body for component 1

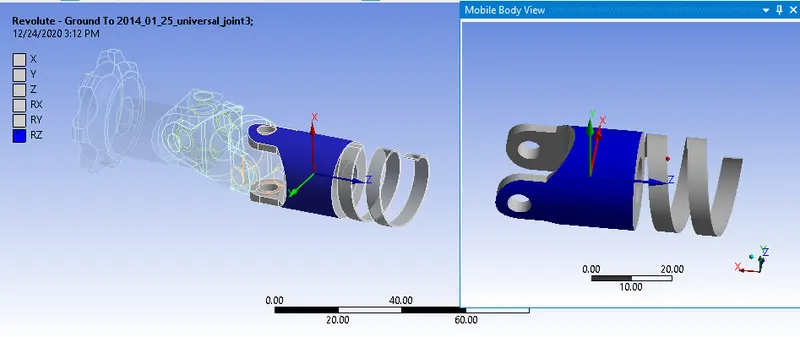

3.Revolute joint Ground to universal joint with spring

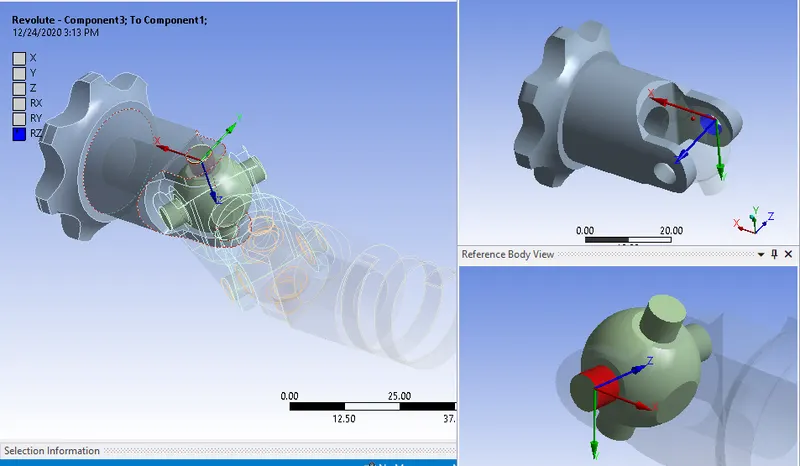

4. Revolute joint Body-Body for all 8 pin joints

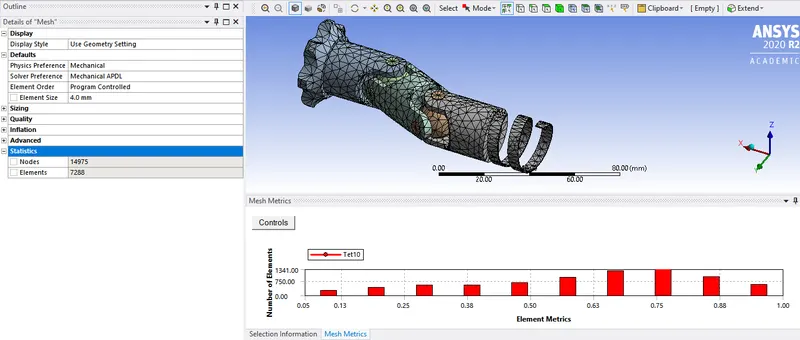

Meshing:

Adaptive meshing is done with mesh size of 4mm

No of nodes are 14975 and No of elements are 7288 in all three cases.

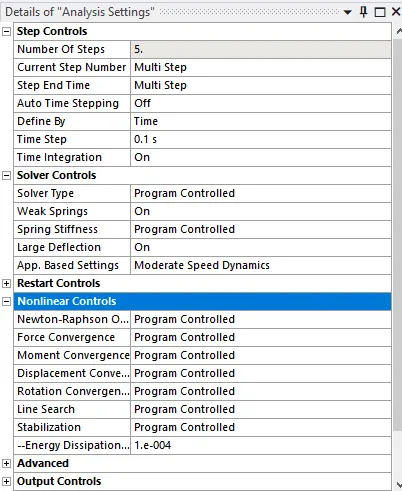

Analysis settings:

In this analysis we are using 5 steps and all the steps have same settings.

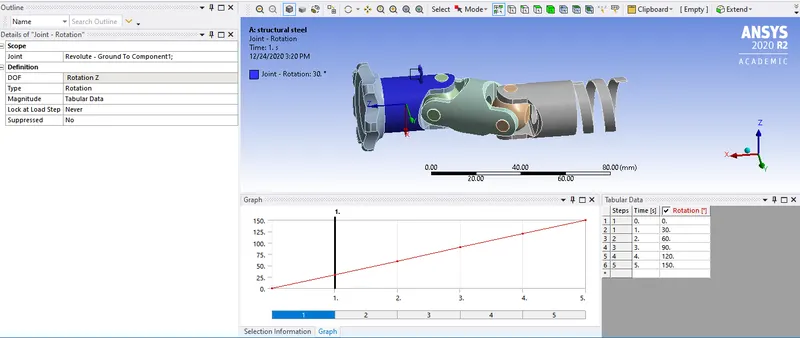

Joint Load:

Rotation is given to Component 1 as input.

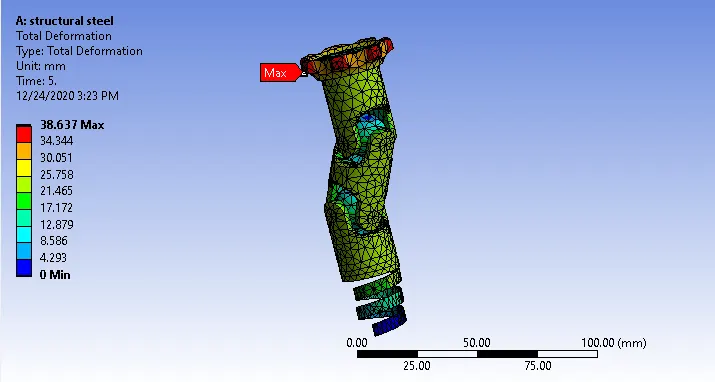

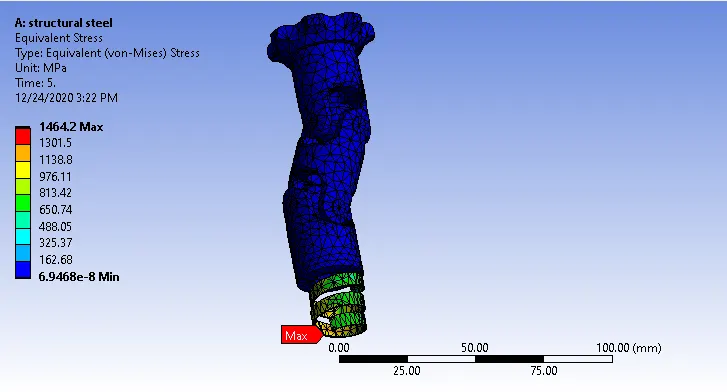

Results of Case-1 with Structural steel:

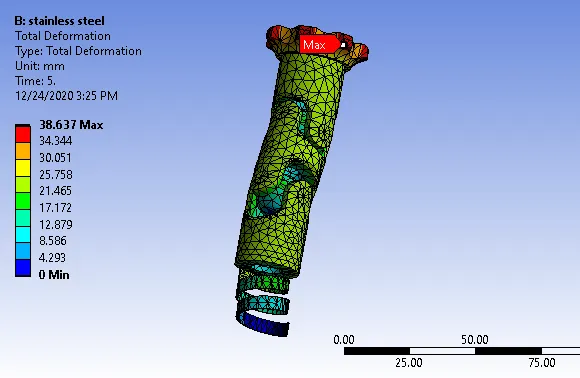

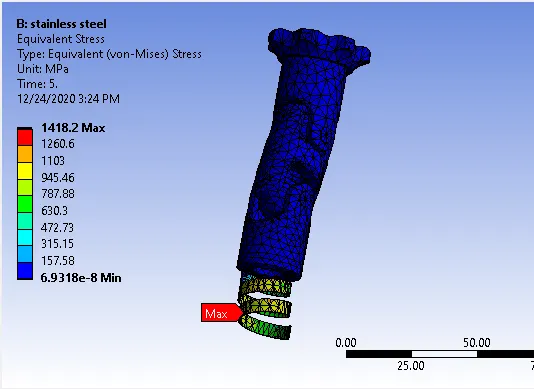

Results of Case-2 with Stainless steel:

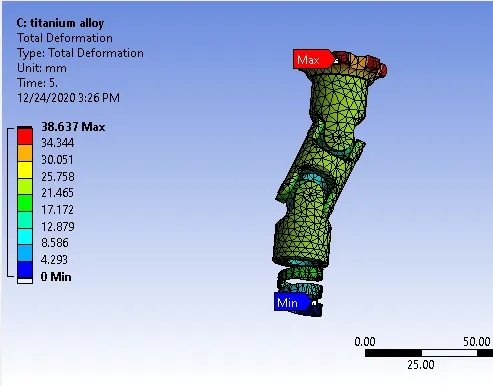

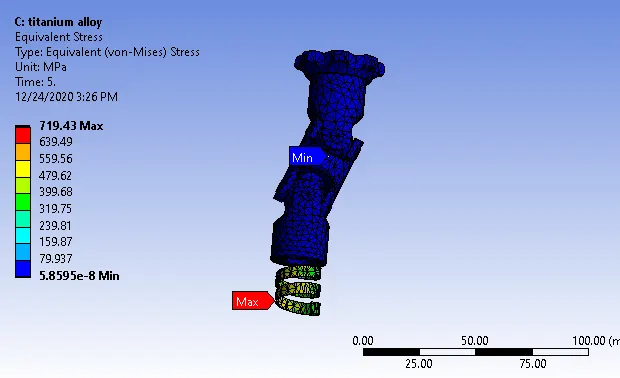

Results of Case-3 with Titanium Alloy:

Conclusion:

Tabulate the results below as per simulation:

Case	Max.equivalent stress	Total Deformation
Structural steel	1464.2	38.637
Stainless steel	1418.2	38.637
Titanium Alloy	719.43	38.637

1.Maximum equivalent stress induced is more in Structural steel ( 1464.2 Mpa ) and Low in Titanium Alloy ( 719.43 Mpa ). It is observed that Max equivalent stress is almost same for structural steel and stainless steel.

2.Total deformation is same in all three cases.
