Week- 8 - Solid meshing

AIM:

For the given Rear View mirror component, check for geometical errors and mesh the surfaces with 2D element and usetetra element to mesh volume.

Gometry Cleanup:

1. Geometry with igs format is upload.

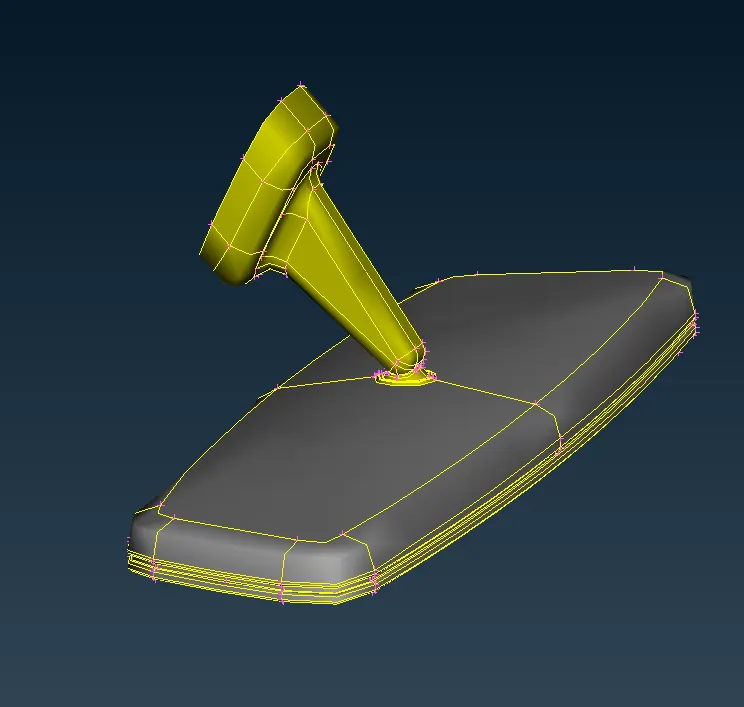

2. Performed Topo and orient to proceed to check geometry and fix errors. Final geometry shown in figure.

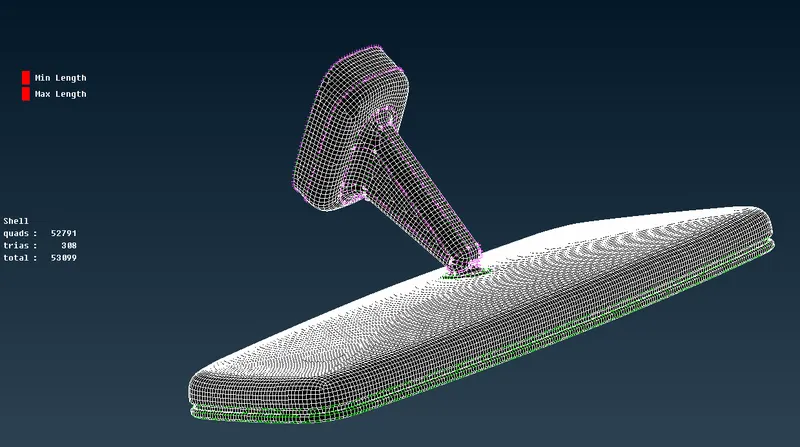

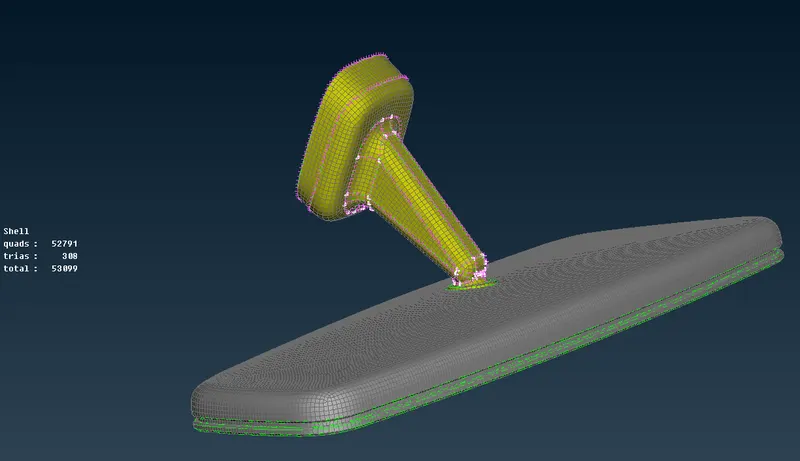

Surface Mesh:

1. Each part of the assembly is identified and meshed using batch mesh scenario.

2. There are no off surface.

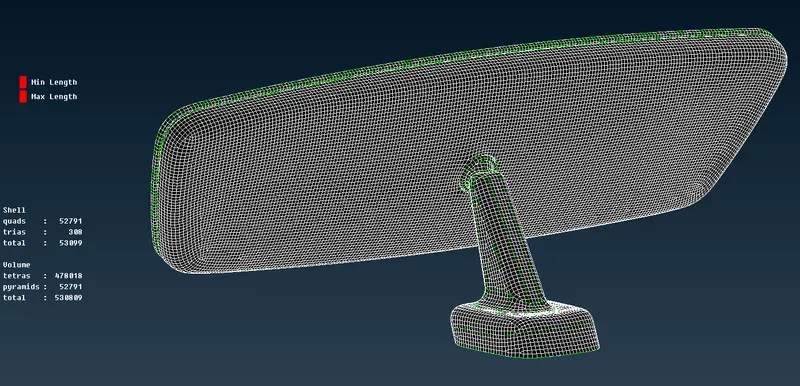

VOLUME MESH

1. New volume is created and verified with the list

2. TETRARAPID is used to mesh each volume one by one.

Outcome:

For the given rear view mirror component, 2D element is performed for

1. Target/Average length 1

2. Minimum Length 0.5

3. Maximum Length 2

Tera element is created in the volume for

1. Collapse 0.2

Good quality solid meshes are created for the rear view mirror.
