Week- 8 - Solid meshing

Aim: To mesh the supplied component and extract a mid surface. Given model:                   Objectives: To check the model for geometrical errors. To remove a component's mid-surface. Defeature and clean the Midsurface to remove any features and prevent any minimum length…

AIM Meshing Backdoor Geometry of the car OBJECTIVE To mesh the given backdoor geometry of an automobile using the manual midsurfacing procedure. must make sure the mesh is of the finest quality, has a small amount of trias, and flows well. PROCEDURE 1. We must choose one of the parts and remove its midsurface in order…

Title:  PREPROCESSING OF HOOD USING HYPERMESH Aim: To create mesh on Hood using Hyper mesh and extract mid-surface. Provided model   Steps required: Geometry import and cleaning. Mid-surface extraction and property assignment. Surface blending within the specified quality standards. Procedure: Step…

Aim: Using Hypermesh, produce 1D components on the specified component with the specified cross-section and DOF. PROCEDURE: 1. Bringing in the geometry. Delete the wireframe and then import the geometry into the workspace. 2. Creating the mid surface for the specified component. Step 1: Choose the component and make it…

Aim:- To go through how the casting approach in ANSA and the mid-surface extraction method were used to mesh the instrumental panel in order to properly depict the component's intricate geometry. Objective:- To present a thorough description of the ANSA casting procedure and how it is used in the instrumental panel meshing…

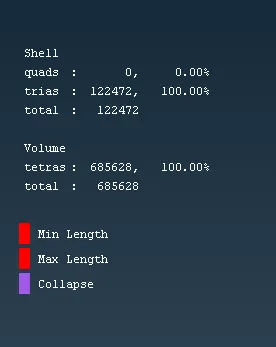

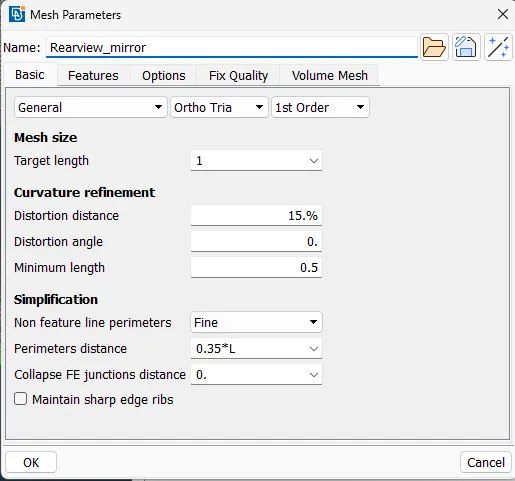

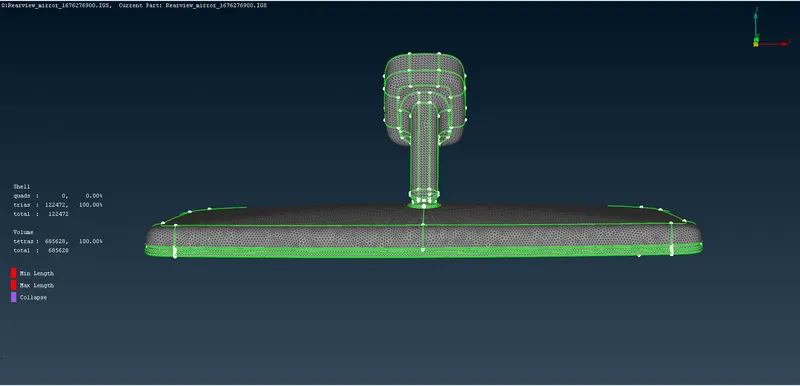

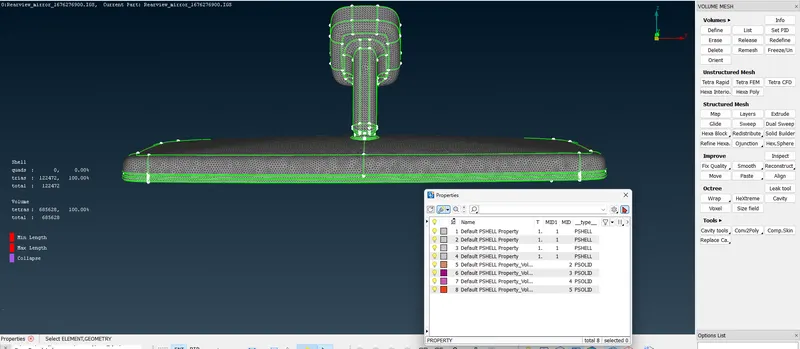

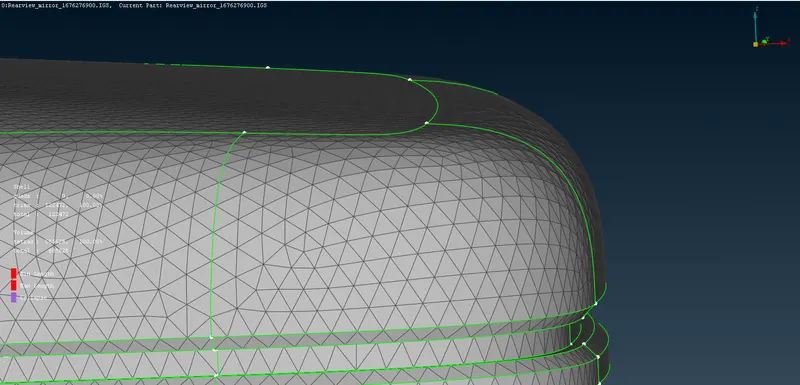

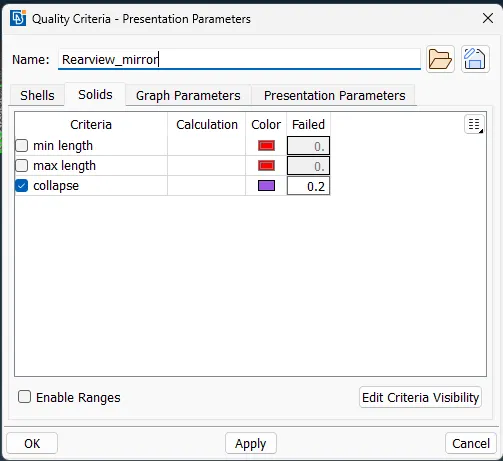

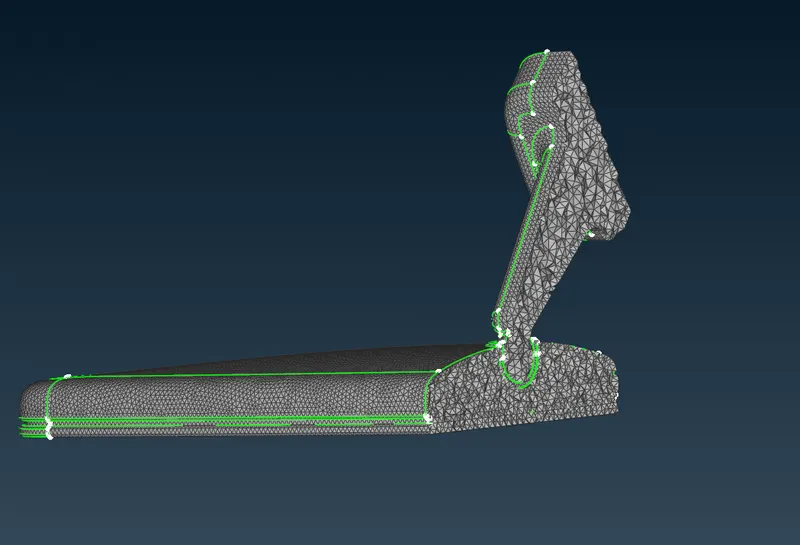

AIM: To use ANSA to perform a 3D unstructured mesh on the specified rearview mirror. Learning outcome 1. Acquired knowledge of 3D meshing (Solid meshing) and techniques for using ortho trias to capture curved faces.2. Standards of excellence for solid unstructured meshes and methods to repair faulty parts3. Hands-on work…

Title: - 2D meshing for Plastic components Aim: - To comprehend and utilise ANSA for 2D meshing on plastic components.   Objective: - To study and exercise geometry correction                     To become proficient in meshing and properly extracting…

Title: Sheet metal 2D meshing od Floor Panel Aim:- To comprehend and utilise ANSA for 2D meshing on sheet metal part. Objective: - To study and exercise geometry correction                     To become proficient in meshing and properly extracting midsurface  …

Title: - 2D meshing for sheet metal Aim: - To understand and perform 2D meshing on sheet metal using ANSA Objective: - To learn and practice geometry clean-up                   To learn extracting mid surface with suitable way and meshing      …

Title: - 2D meshing for sheet metal Aim: - To understand and perform 2D meshing on sheet metal using ANSA Objective: - To learn and practice geometry clean-up                   To perform meshing                   To remove most of…
