Week- 8 - Solid meshing

Aim:-

For the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	2

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

S.No	Quality Criteria	Value
1	Tet collapse	0.2

Procedure :

First we took the model from given link and download the model.

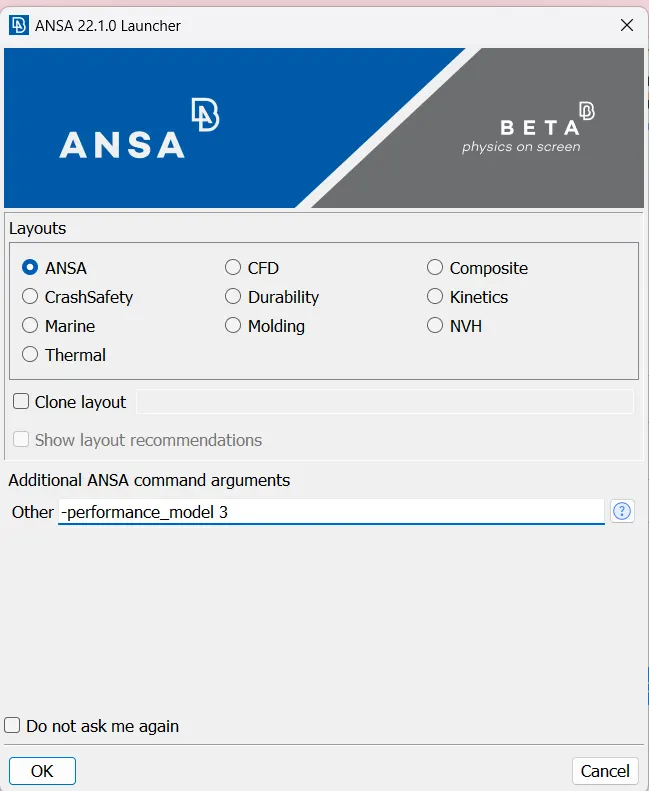

Then we open model in ANSA,for fixing graphical issue we will give inputs like below

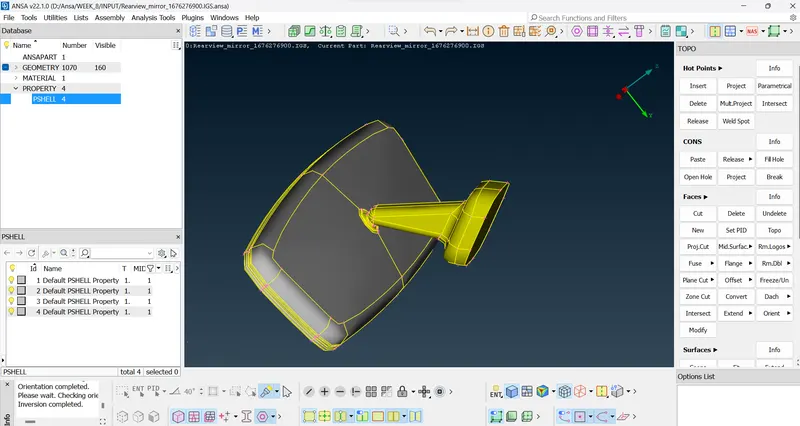

Then we can open the file.model like Below

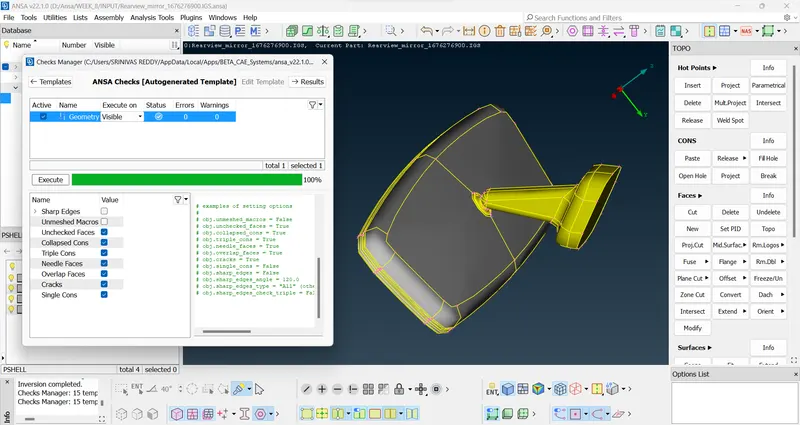

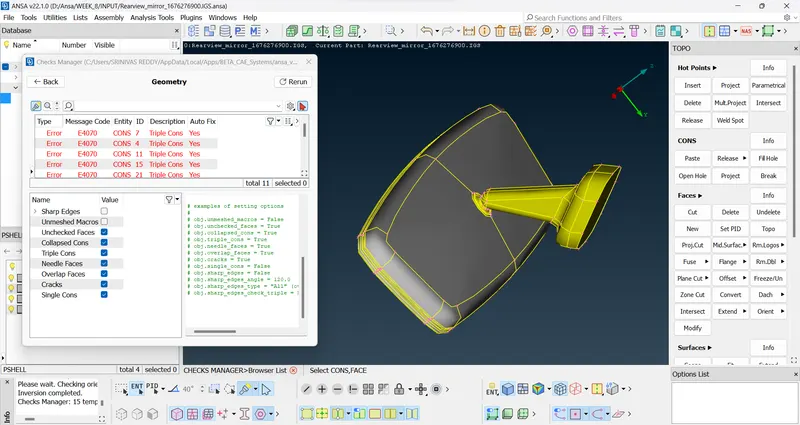

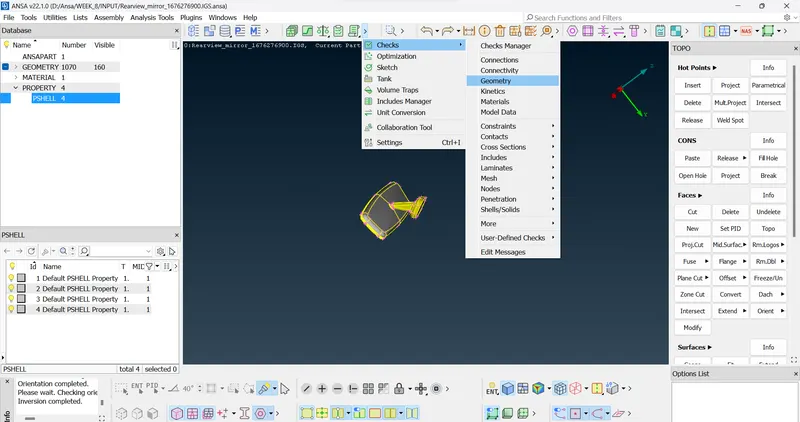

Next we check the geometrical check for the model

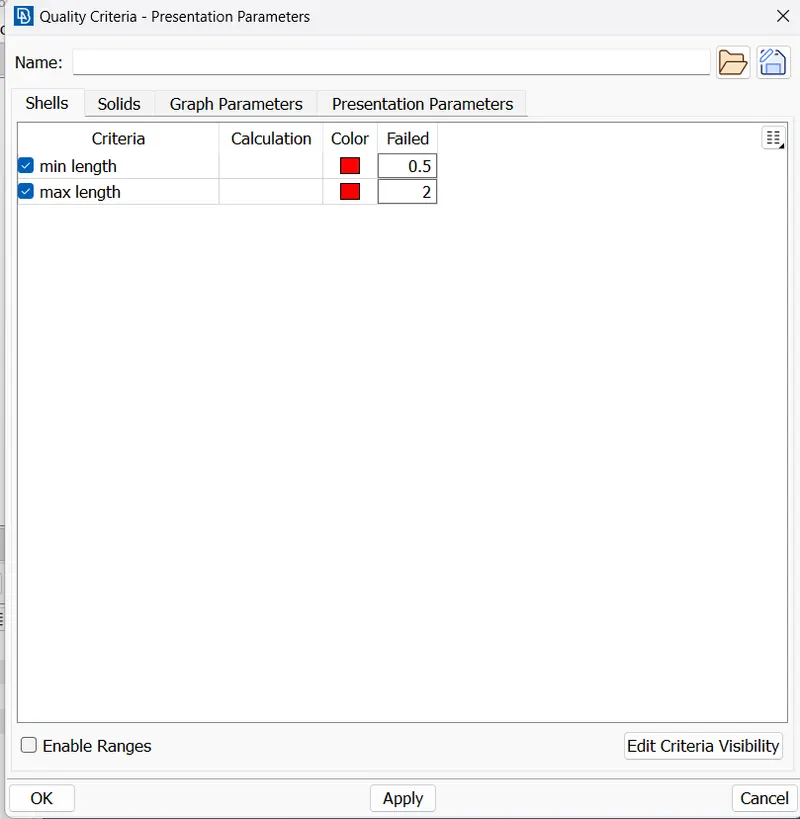

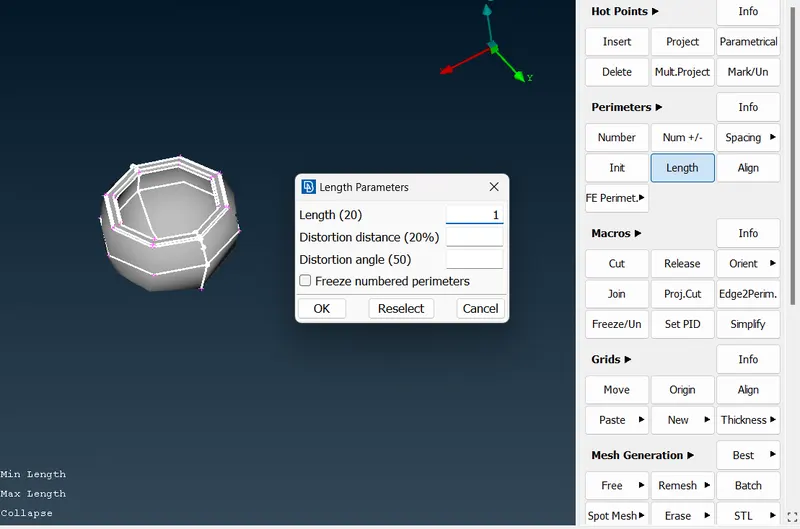

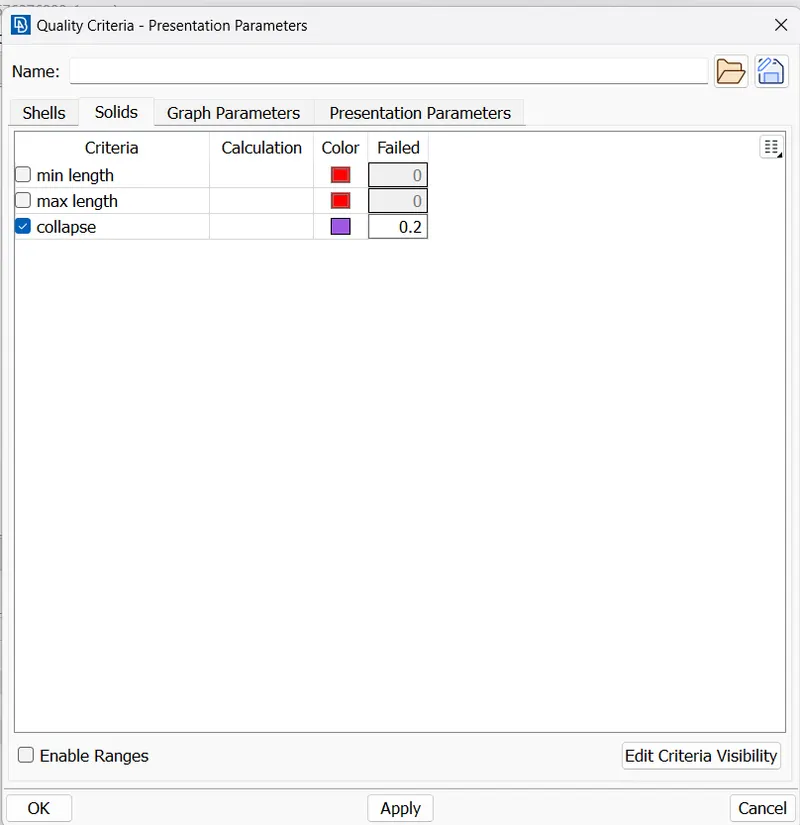

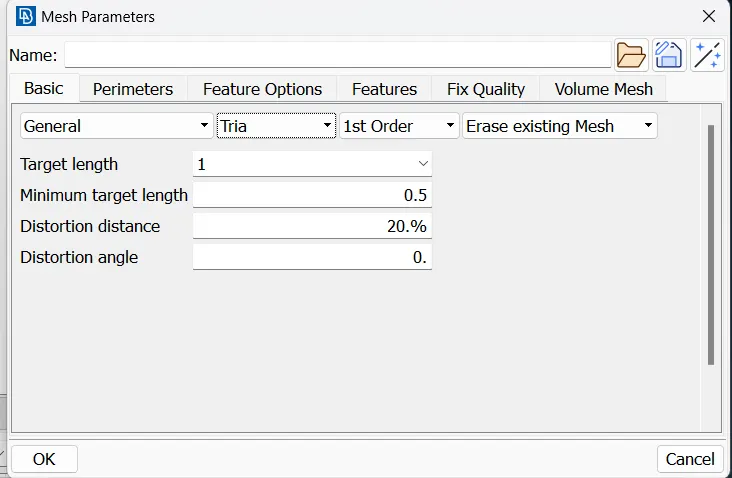

After that we give mesh properties and mesh quality criteria.In rear view mirror component we have 4 property id.so individually we can create 3d mesh.

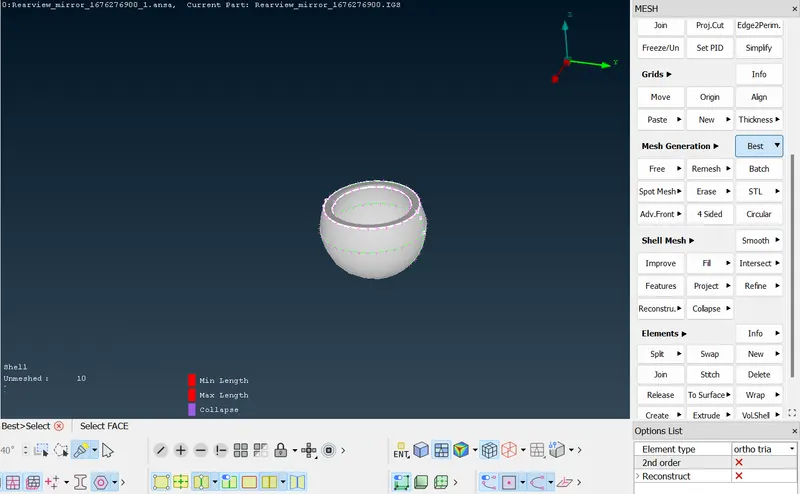

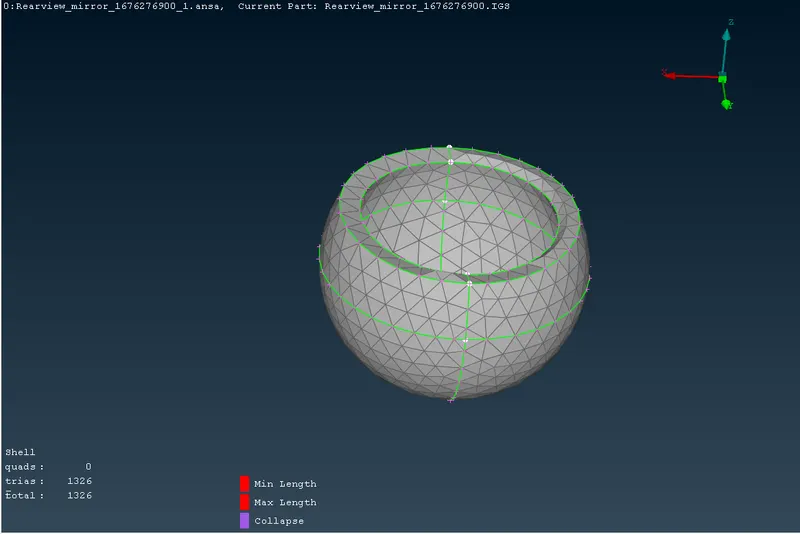

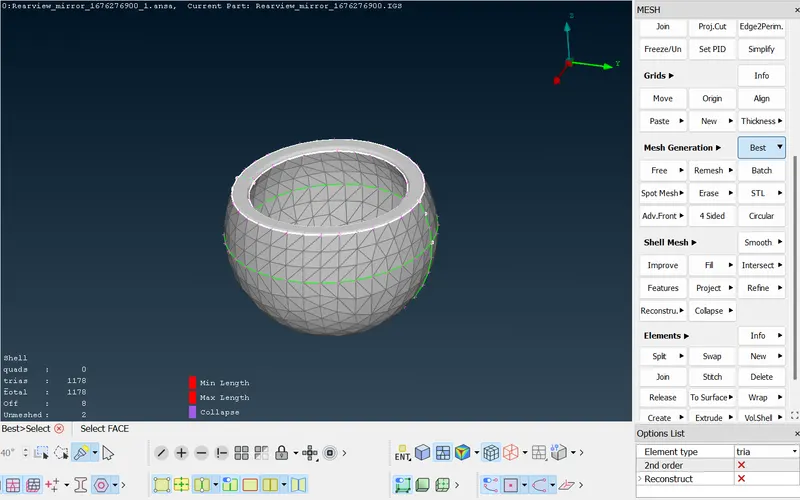

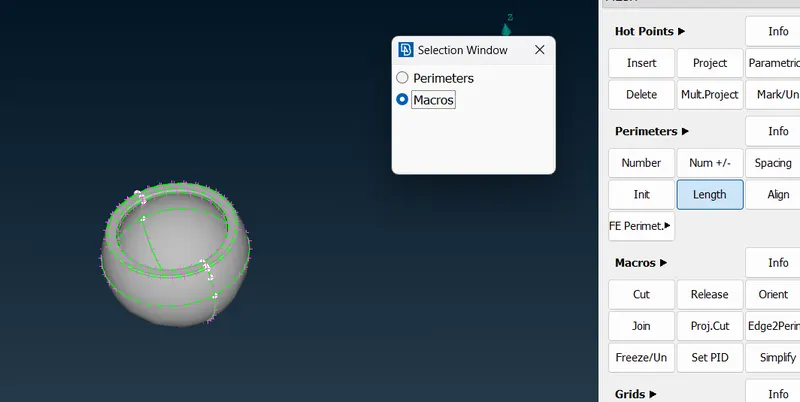

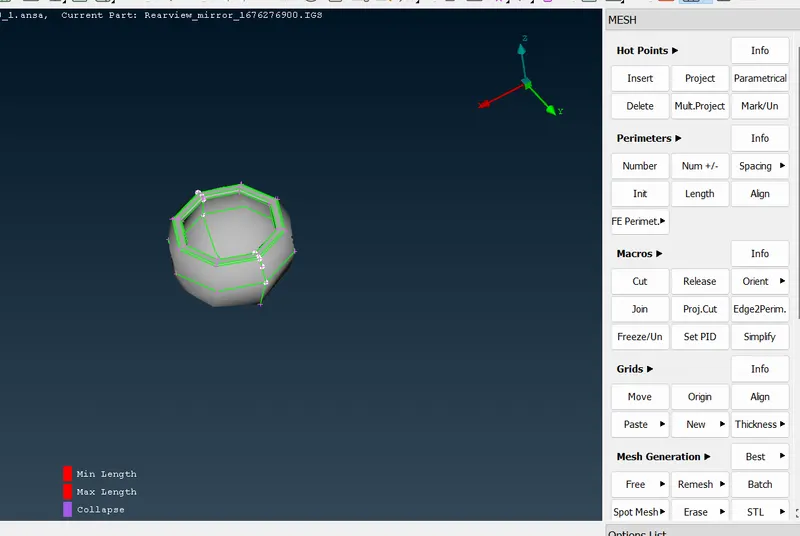

Then we give the 2D mesh and we use 'BEST'.In which for curvature surface we put the ortho tria mesh and for flat surface we can put the Tria surface.

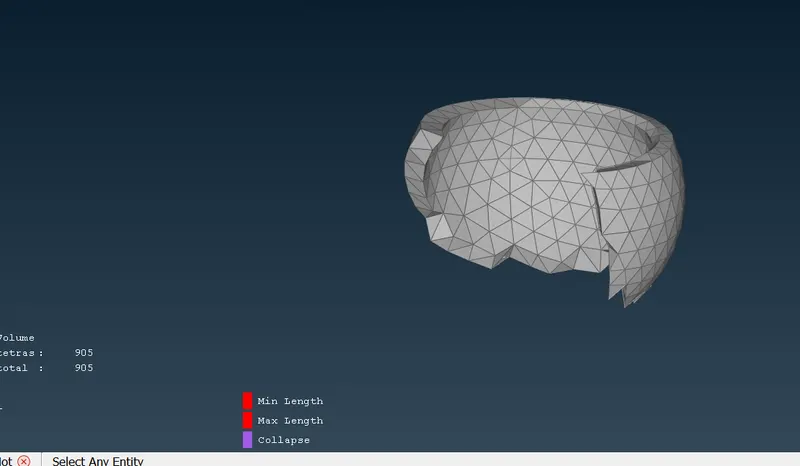

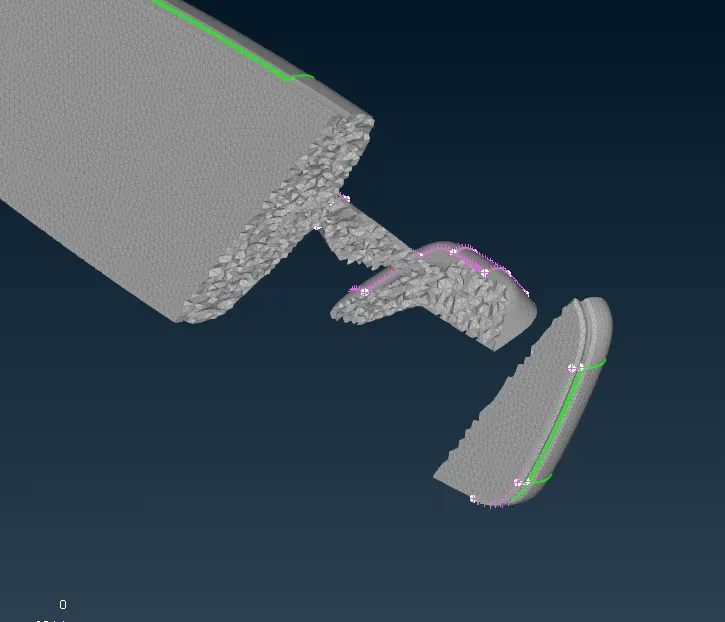

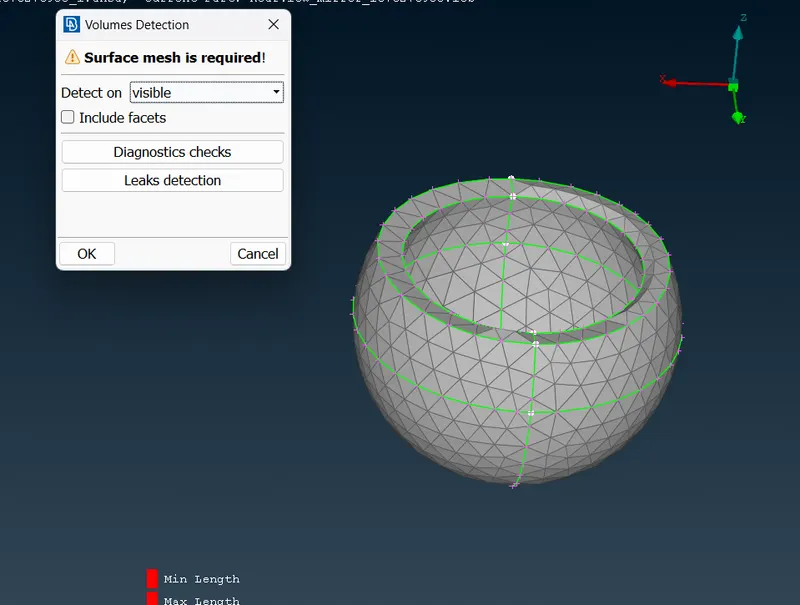

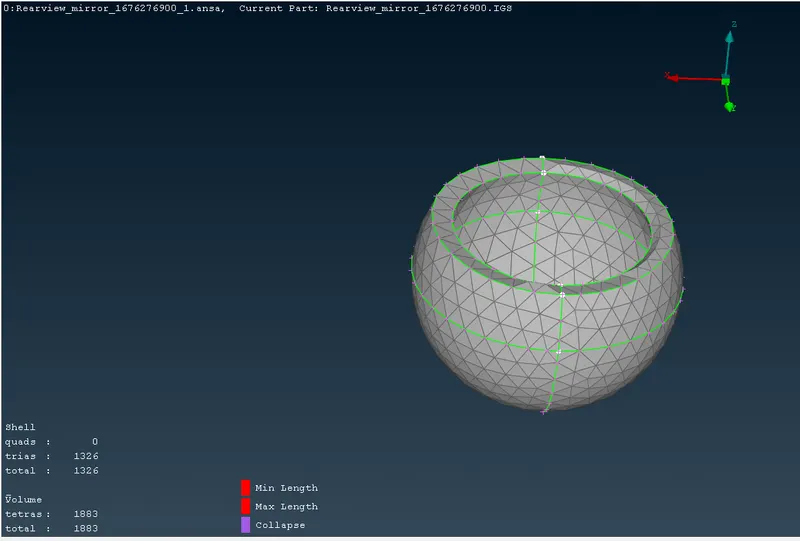

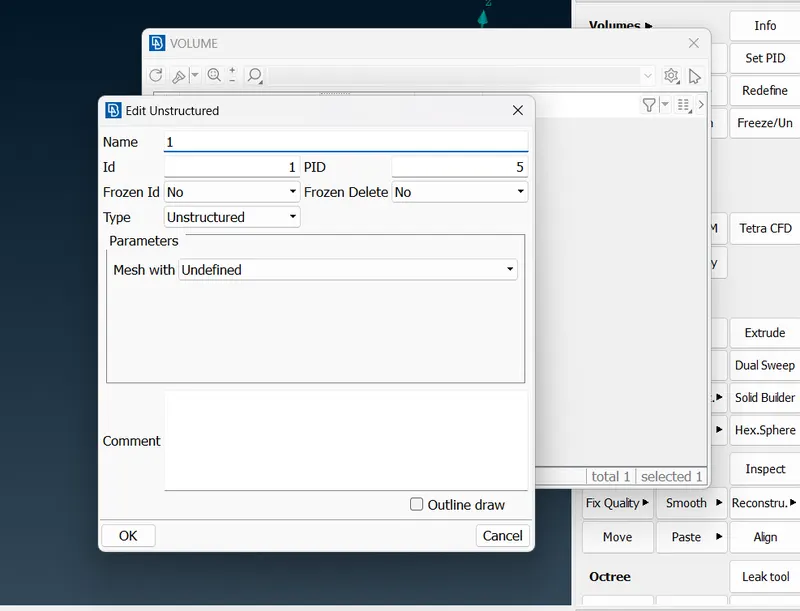

Then we move to volume mesh.

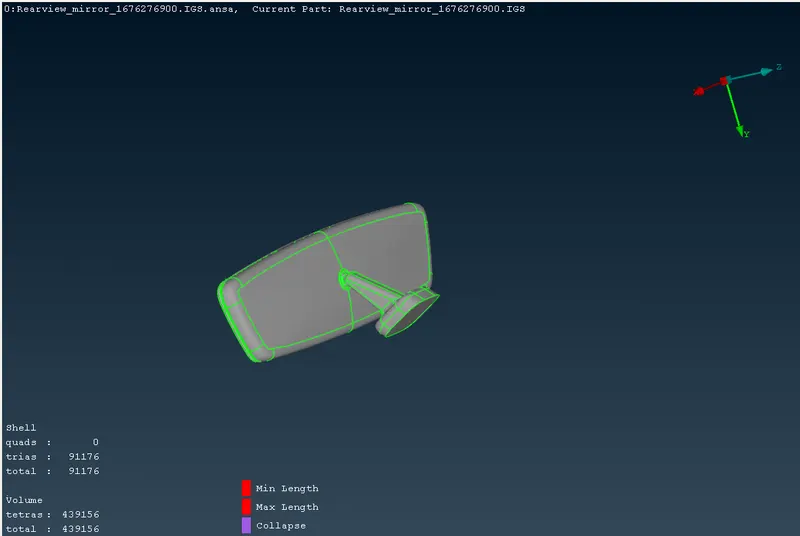

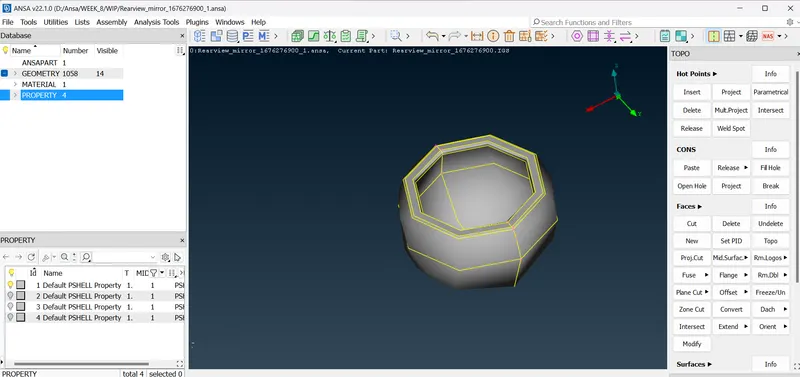

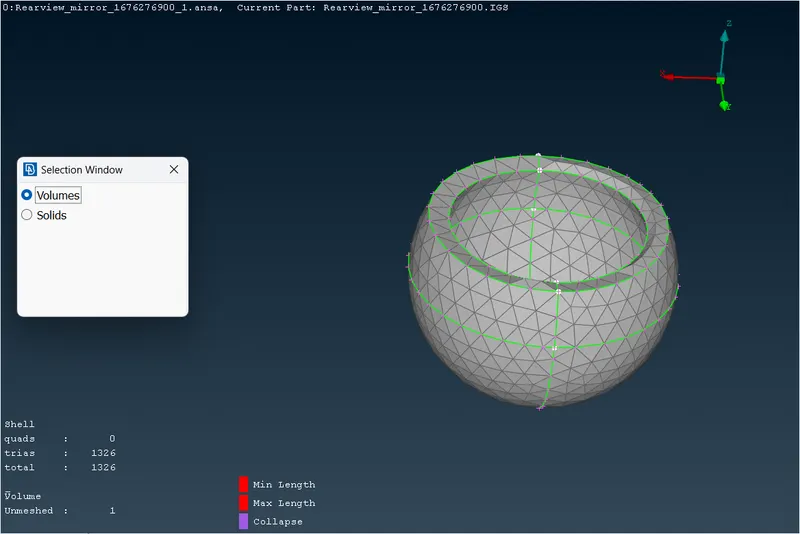

Similarly remaing parts in Rear mirror componen. It shows like below
