Week- 8 - Solid meshing

Objective: To do tera meshing of rear mirror.

CAD model

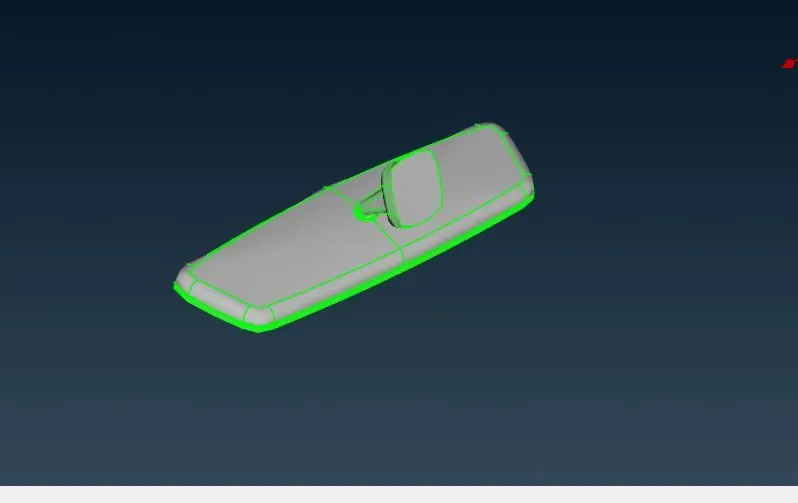

1. To fix the free edges using topo option.

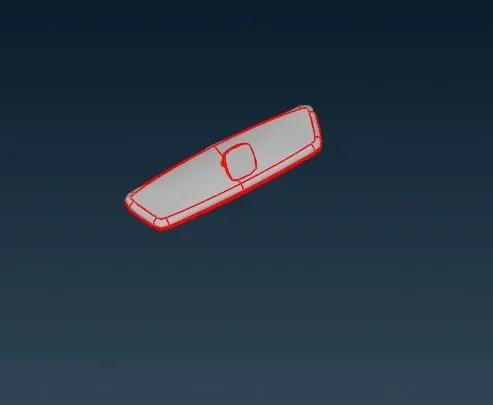

2. Fixing the geometry orientation.

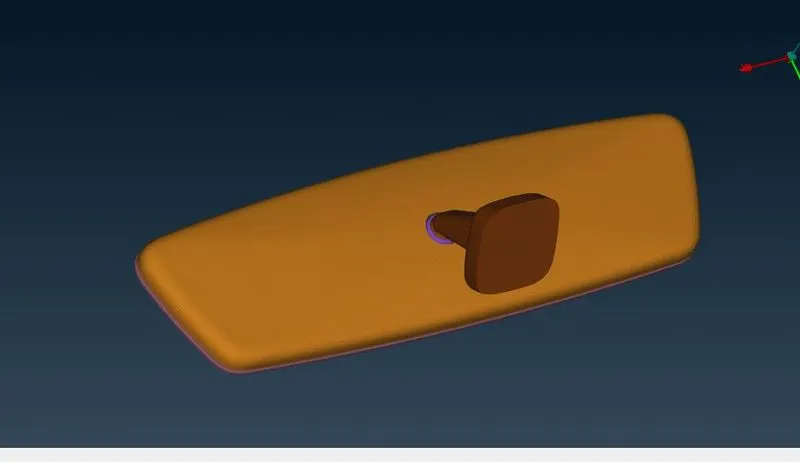

3. Taking one part for meshing. and checked the cad using topo option and geometry orientation is done.

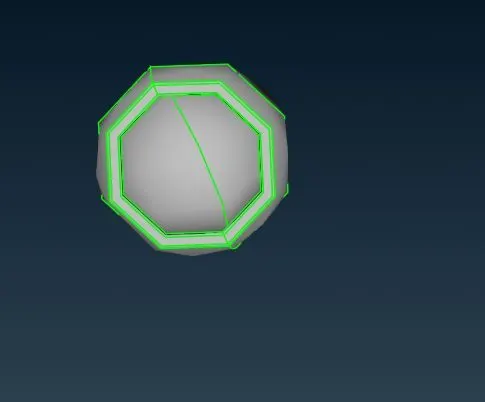

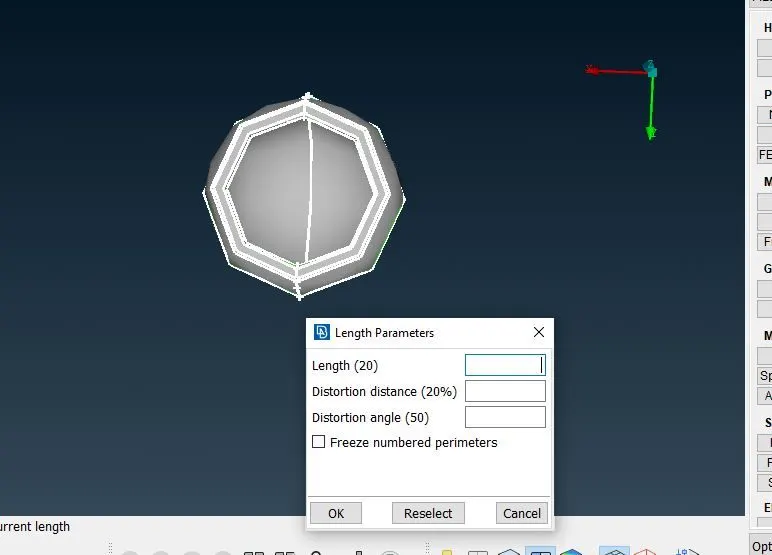

4. Target length for 2d shell mesh is set.

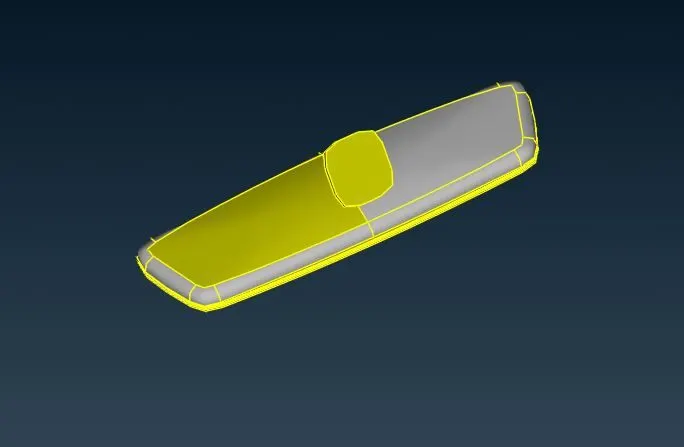

5. 2d shell mesh of given part is done and checked for quality

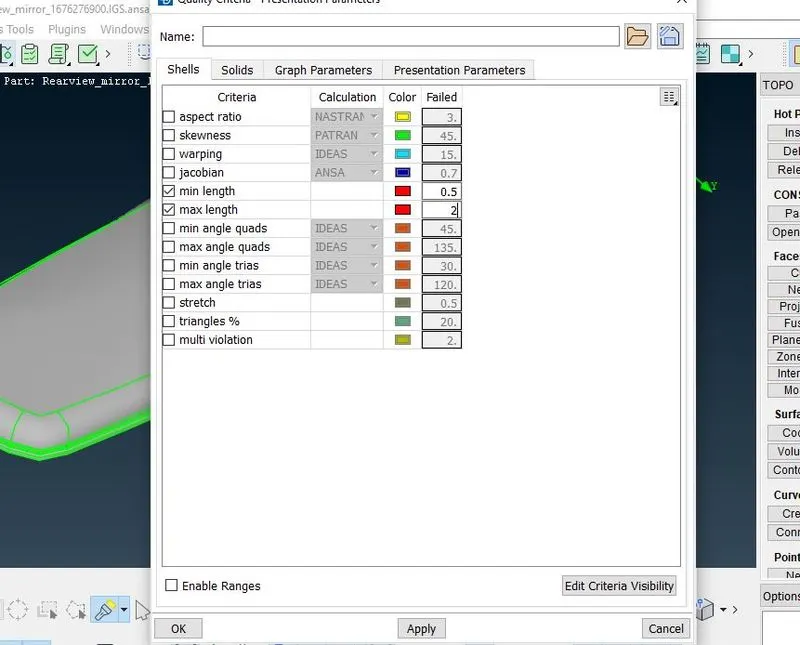

6.Quality criteria is set for tetra mesh.

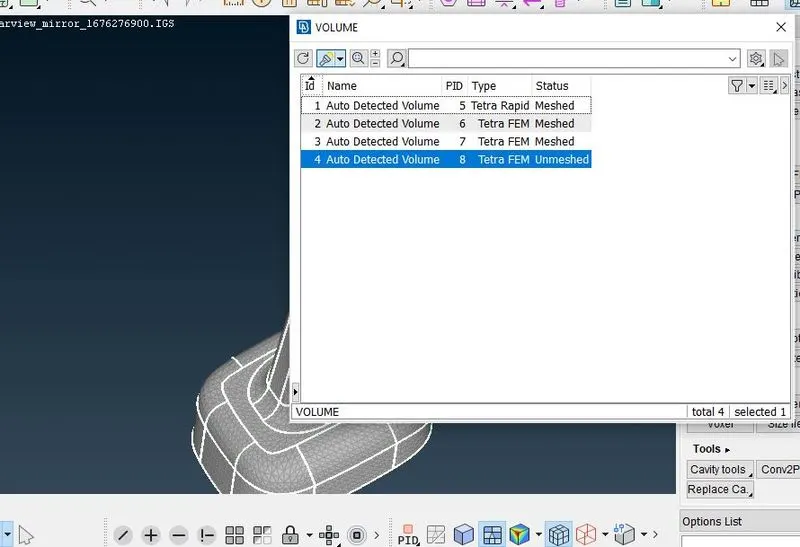

7. Tetra mesh is generated using below option.

Similar procedure is used for remaining parts.

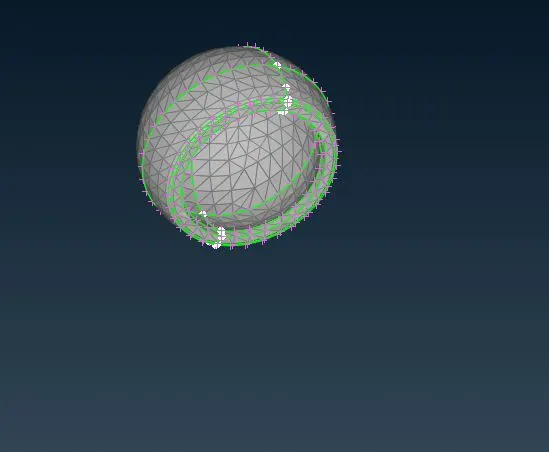

Tera mesh of all parts.
