Week - 5 - 2D meshing for Plastic components

Take CAD model

Using topo option surface connectivvity is done

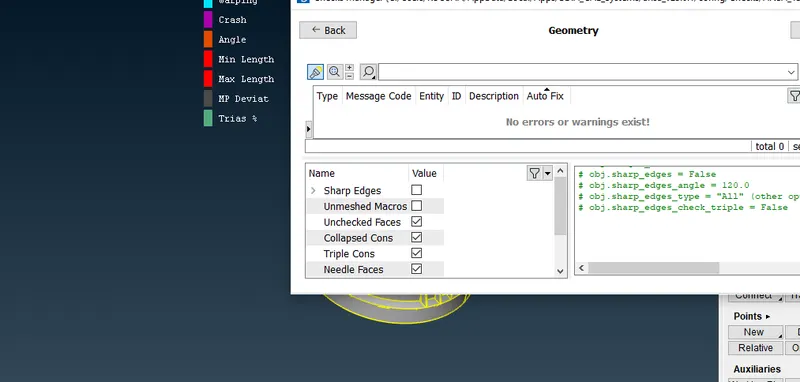

geometry check is done to remove errors in geometry.

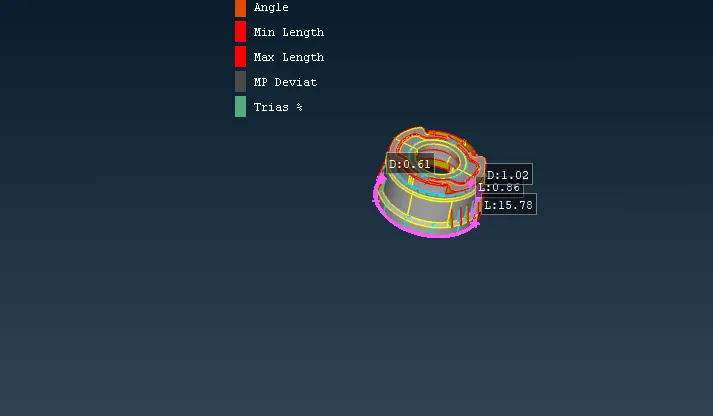

Take the mid surface of plastic bottle using offset option.

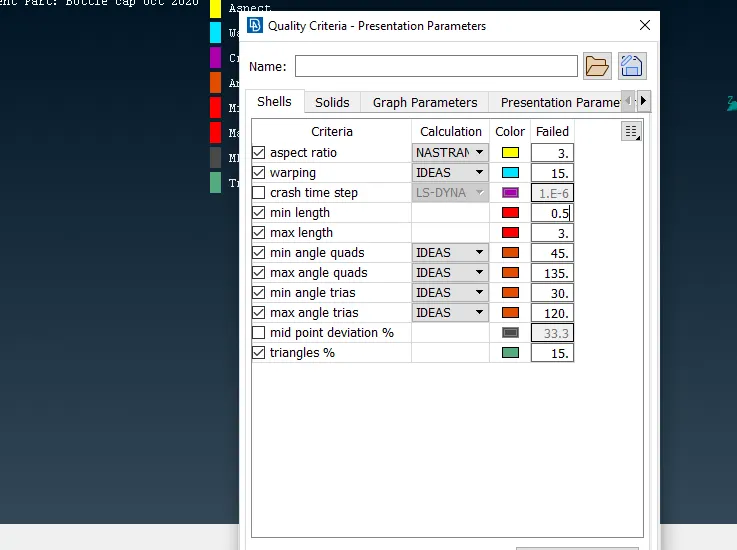

Set te quality criteria assigned.

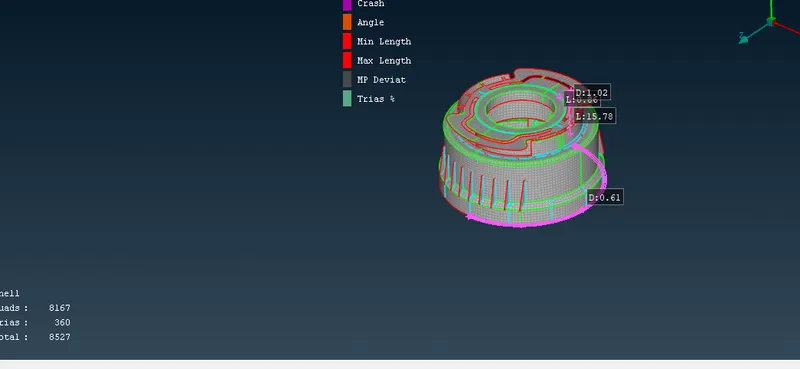

Mesh on the offset surface.
