Project 1 - Meshing of Floor Panel

Objective:

To mesh the floor panel.

Take CAD model.

Using topo option surface connectivity is done.

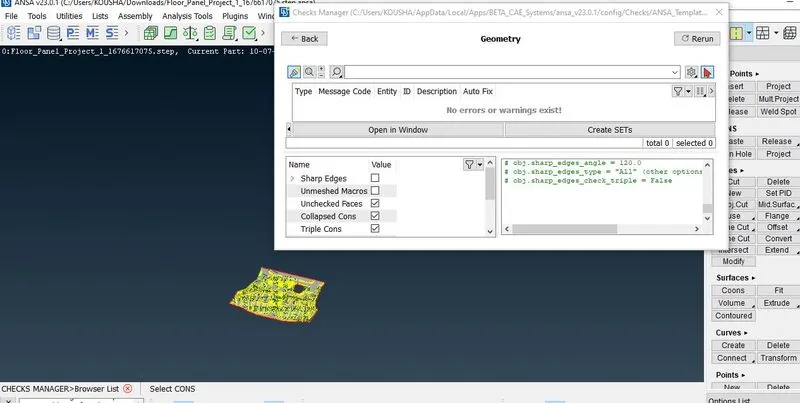

Geometry check is done to remove errors in CAD geometry.

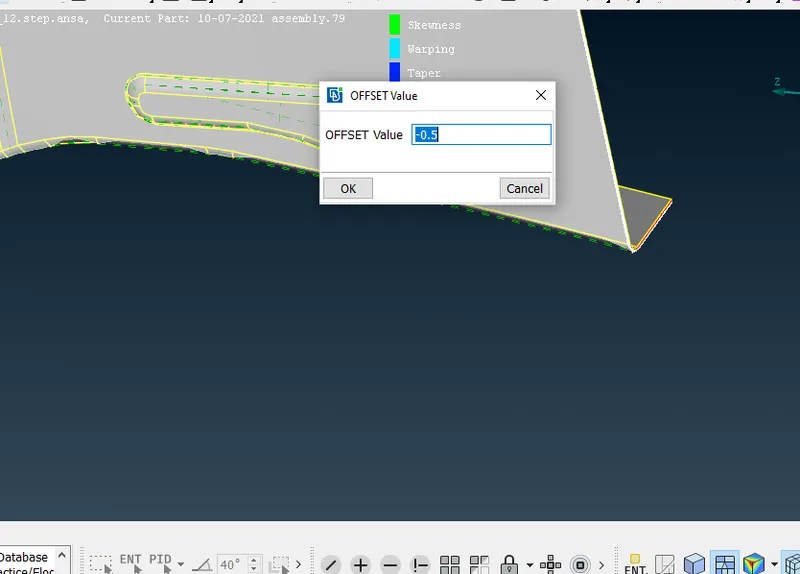

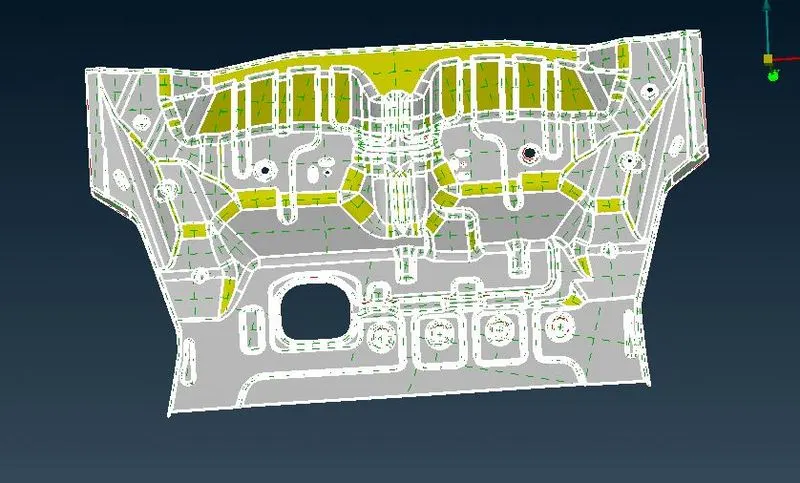

By using offset option mid surface is generated.

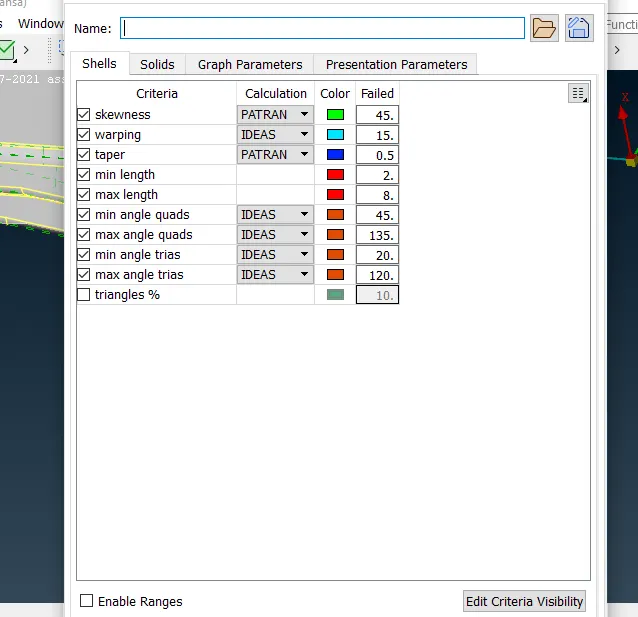

Quality criteria is set

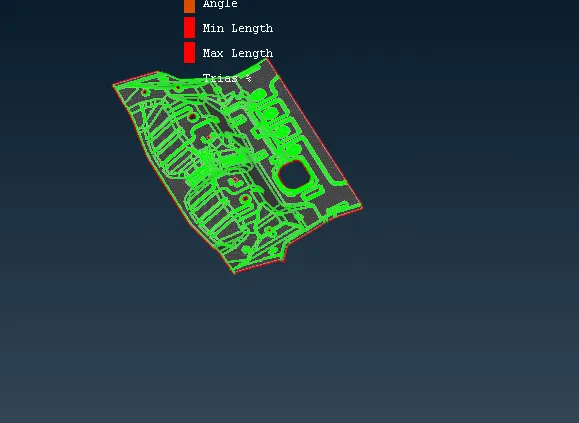

Mesh is done at midsurface for given quality criteria.
