Week 8 - Simulation of a backward facing step in OpenFOAM
Simulation of a backward facing step in OpenFOAM
OBJECTIVE:
Case 1 - Simulate the flow without using any grading factor (i.e., GF = 1)
Case 2 - Simulate the flow with grading factor of 0.2. The cells should be finer near the walls (includig the step wall).
Domain specification
Steps:
open the terminal from Ubuntu (CTRL+ALT+T)
enter the script foam > ls
change the directory cd tutorials > ls
select the incompressible directory cd incompressibe > ls
select icofoam directory using the script cd icofoam > ls
copy the cavity folder to foam run cp -r cavity $FOAM_RUN/cavity_test
change the directory to cd $FOAM_RUN
change to the system directory and edit the block mesh using the script gedit blockMeshDict
change the vertices and the block
similarly check the gedit controlDict
change the physical properties of nu to 1e-5;
navigate to 0 folder and change the pressure p and U velocity using gedit p and gedit U
To run the mesh blockMesh
To check the Mesh checkMesh
To run the case use solver name in this case it is icoFoam
then run the simulation and plot the results using paraFoam
blockMeshDict file for grading factor 0.2
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 10
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0) //0
(0.08 0 0) //1
(0.08 0.005 0) //2
(0 0.005 0) //3
(0.08 0.01 0) //4
(0 0.01 0) //5
(0.2 0.01 0) //6
(0.2 0.005 0) //7
(0.2 0 0) //8
(0.2 -0.01 0) //9
(0.08 -0.01 0) //10
(0 0 0.001) //11
(0.08 0 0.001) //12
(0.08 0.005 0.001) //13
(0 0.005 0.001) //14
(0.08 0.01 0.001) //15
(0 0.01 0.001) //16
(0.2 0.01 0.001) //17
(0.2 0.005 0.001) //18
(0.2 0 0.001) //19
(0.2 -0.01 0.001) //20
(0.08 -0.01 0.001) //21
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 5 1) simpleGrading (0.2 5 1)
hex (3 2 4 5 14 13 15 16) (80 5 1) simpleGrading (0.2 0.2 1)
hex (1 8 7 2 12 19 18 13) (120 5 1) simpleGrading (5 5 1)
hex (2 7 6 4 13 18 17 15) (120 5 1) simpleGrading (5 0.2 1)
hex (10 9 8 1 21 20 19 12) (120 10 1) simpleGrading (5 5 1)
);
edges
(
);
boundary
(
inlet
{
type patch;
faces
(
(0 11 14 3)
(3 14 16 5)
);
}
upperwall
{
type wall;
faces
(
(5 16 15 4)
(4 15 17 6)
);
}
lowerwall
{
type wall;
faces
(
(0 1 12 11)
(10 9 20 21)
(10 21 12 1)
);
}
FrontandBack
{
type empty;
faces
(
(0 3 2 1)
(3 5 4 2)
(10 1 8 9)
(1 2 7 8)
(2 4 6 7)
(11 12 13 14)
(14 13 15 16)
(15 13 18 17)
(13 12 19 18)
(12 21 20 19)
);
}
outlet
{
type patch;
faces
(
(7 6 17 18)
(8 7 18 19)
(9 8 19 20)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //controlDict file: (Defining the timesteps)
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 5;
deltaT 0.001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //change the physical properties
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 1e-5;
// ************************************************************************* //change the p pressure values
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 10
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
upperwall
{
type zeroGradient;
}
lowerwall
{
type zeroGradient;
}
FrontandBack
{
type empty;
}
outlet
{
type fixedValue;
value uniform 0;
}
}
// ************************************************************************* //change the U velocity values
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 10
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.1 0 0);
}
upperwall
{
type noSlip;
}
lowerwall
{
type noSlip;
}
FrontandBack
{
type empty;
}
outlet
{
type zeroGradient;
}
}

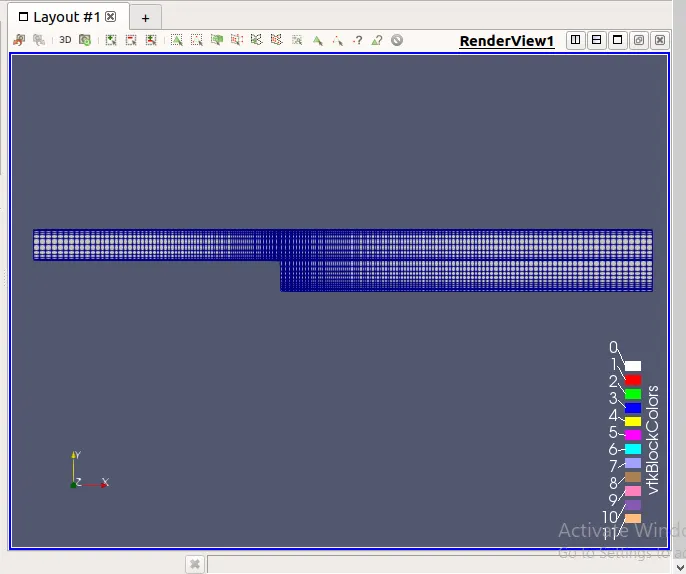

// ************************************************************************* //Mesh for Grading Factor 0.2
blockMeshDict file for grading factor 1
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 10
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0) //0
(0.08 0 0) //1
(0.08 0.005 0) //2
(0 0.005 0) //3
(0.08 0.01 0) //4
(0 0.01 0) //5
(0.2 0.01 0) //6
(0.2 0.005 0) //7
(0.2 0 0) //8
(0.2 -0.01 0) //9
(0.08 -0.01 0) //10
(0 0 0.001) //11
(0.08 0 0.001) //12
(0.08 0.005 0.001) //13
(0 0.005 0.001) //14
(0.08 0.01 0.001) //15
(0 0.01 0.001) //16
(0.2 0.01 0.001) //17
(0.2 0.005 0.001) //18
(0.2 0 0.001) //19
(0.2 -0.01 0.001) //20
(0.08 -0.01 0.001) //21
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 5 1) simpleGrading (1 1)
hex (3 2 4 5 14 13 15 16) (80 5 1) simpleGrading (1 1 1)
hex (1 8 7 2 12 19 18 13) (120 5 1) simpleGrading (1 1 1)
hex (2 7 6 4 13 18 17 15) (120 5 1) simpleGrading (1 1 1)
hex (10 9 8 1 21 20 19 12) (120 10 1) simpleGrading (1 1 1)
);
edges
(
);
boundary
(
inlet
{
type patch;
faces
(
(0 11 14 3)
(3 14 16 5)
);
}
upperwall
{
type wall;
faces
(
(5 16 15 4)
(4 15 17 6)
);
}
lowerwall
{
type wall;
faces
(
(0 1 12 11)
(10 9 20 21)
(10 21 12 1)
);
}
FrontandBack
{
type empty;
faces
(
(0 3 2 1)
(3 5 4 2)
(10 1 8 9)
(1 2 7 8)
(2 4 6 7)
(11 12 13 14)
(14 13 15 16)
(15 13 18 17)
(13 12 19 18)
(12 21 20 19)
);
}
outlet
{
type patch;
faces
(
(7 6 17 18)
(8 7 18 19)
(9 8 19 20)
);
}
);
mergePatchPairs
(
);

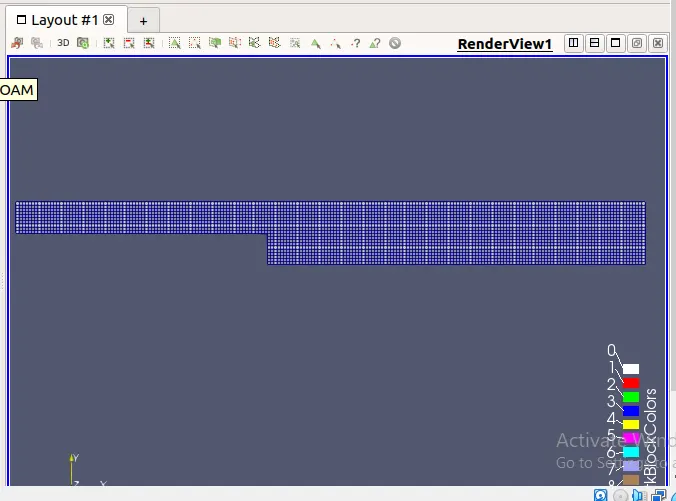

// ************************************************************************* //Mesh for Grading Factor 1;

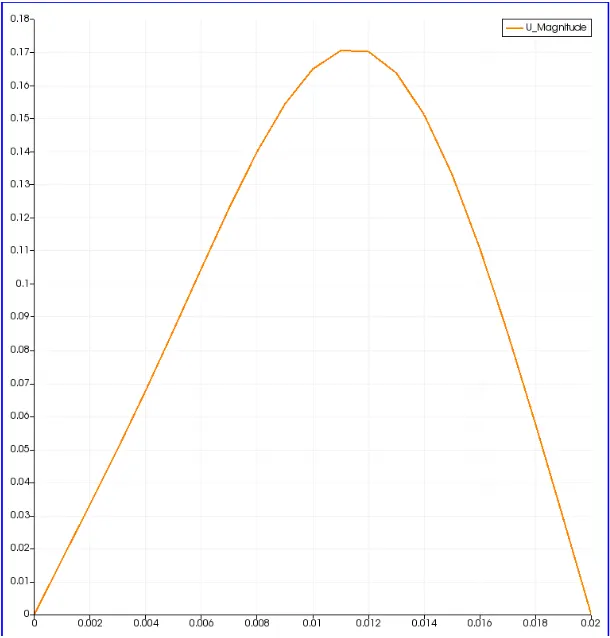

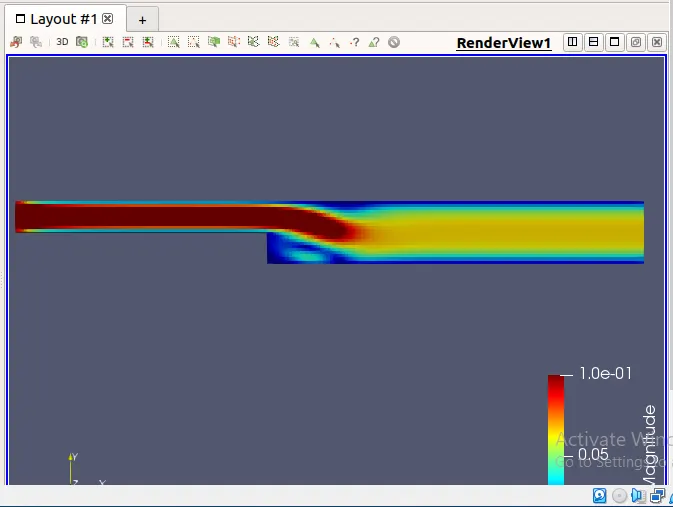

Velocity plot for Grading Factor 1:

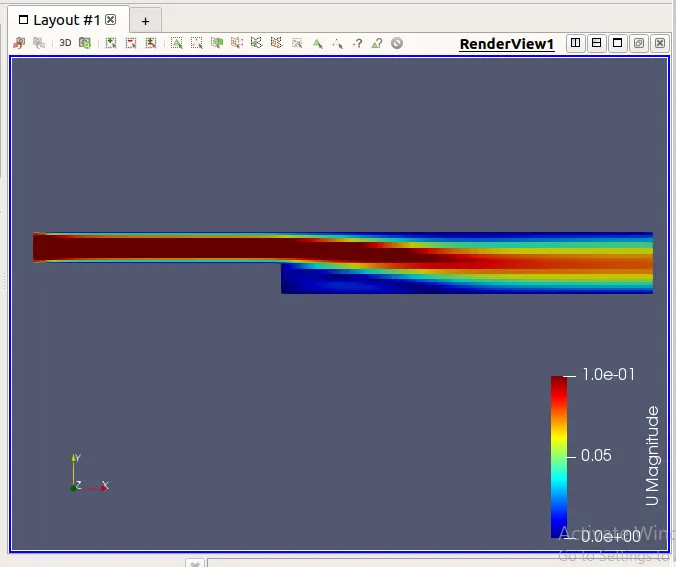

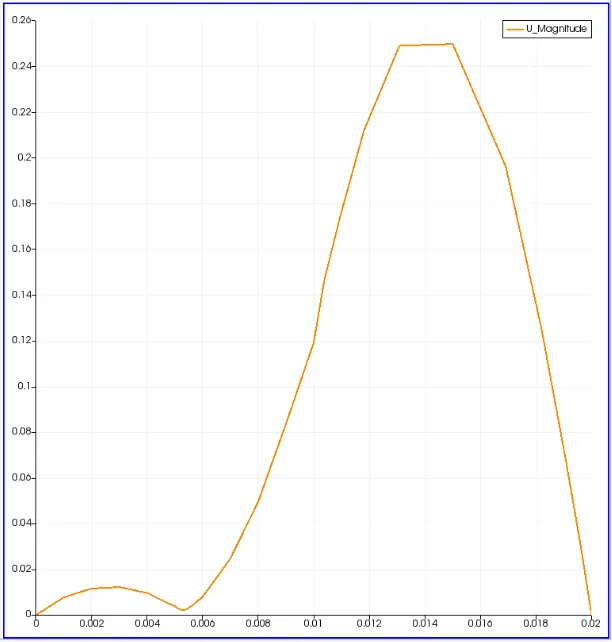

Velocity plot for Grading Factor 0.2:
