Challenge

Week 8- Moving zones approach in Fluent

What are the approaches by which you would model moving zones?

Which approach would you use to model unsteady phenomena?

Simulation

Setup

The mesh file is loaded on to fluent
Stead state pressure based simulation is chosen
in viscous models K-epsilon -Realizable-enhanced wall treatment is selected
Fluid is set to air

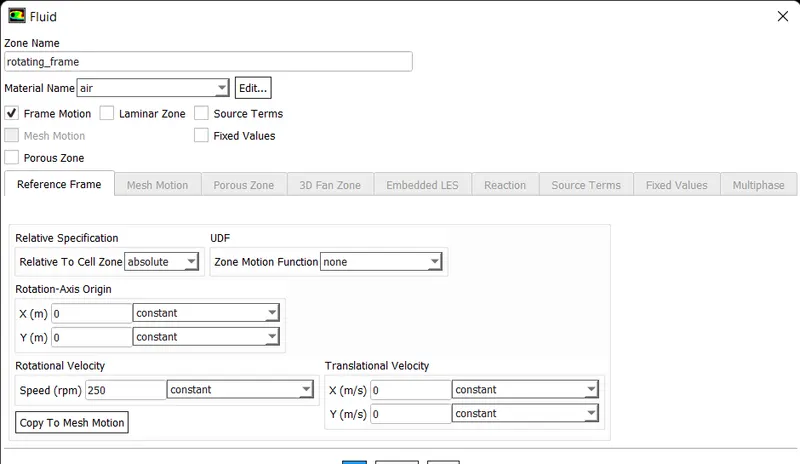

In cell zone conditions frame motion is given which is rotational with a speed of 250 rpm

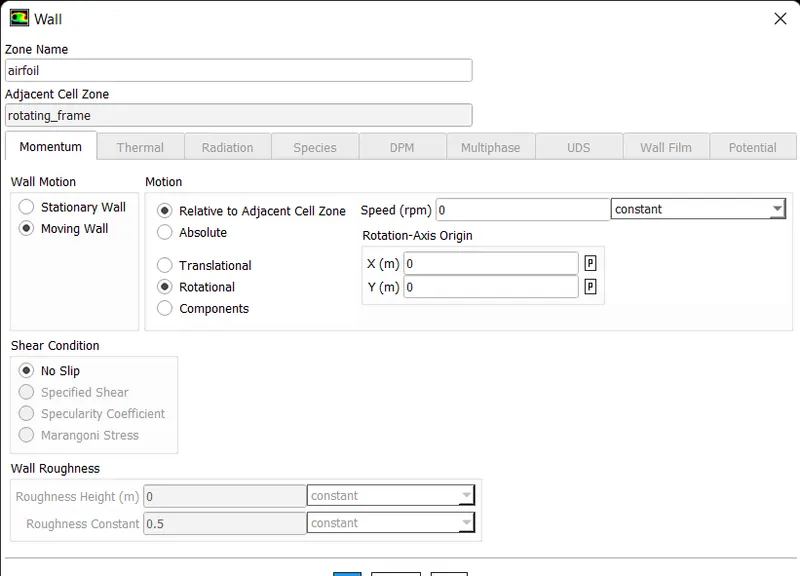

In boundary conditions wall motion is given for airfoil in relative to adjacent cell zone

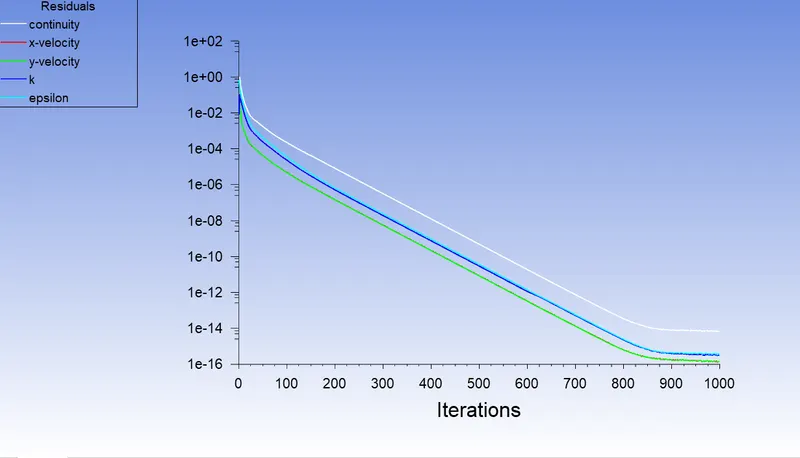

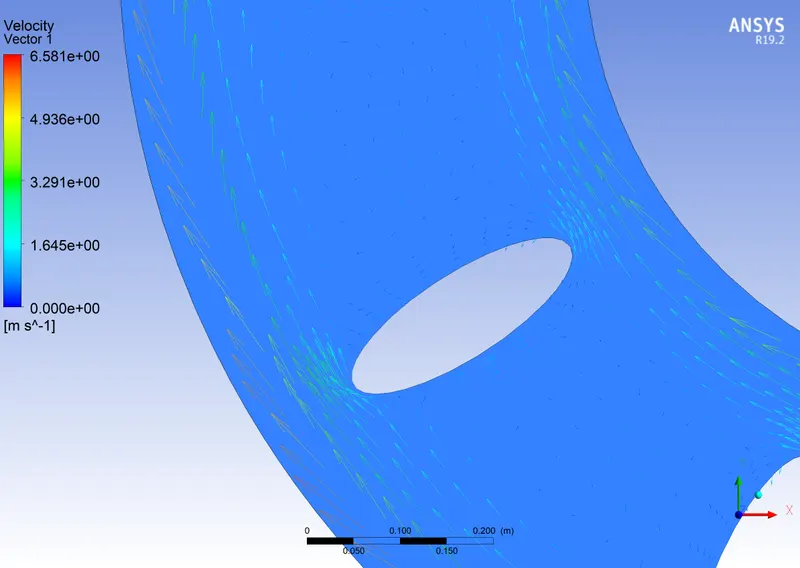

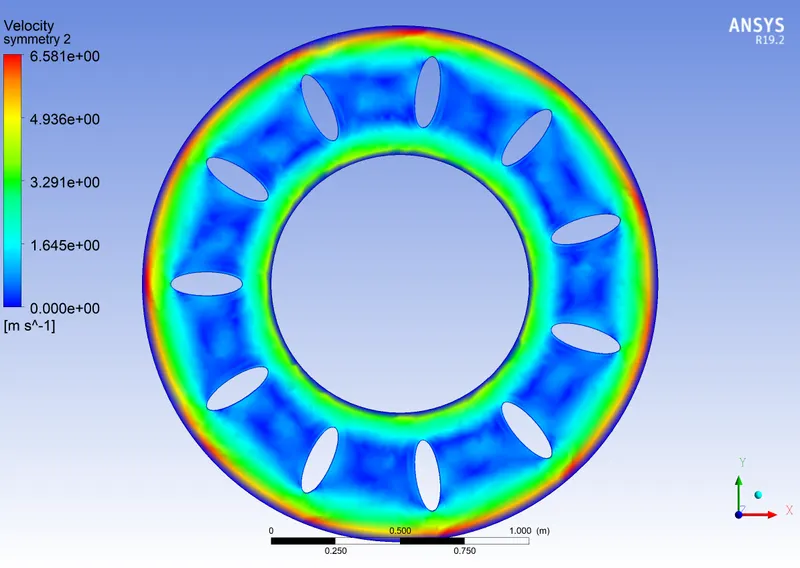

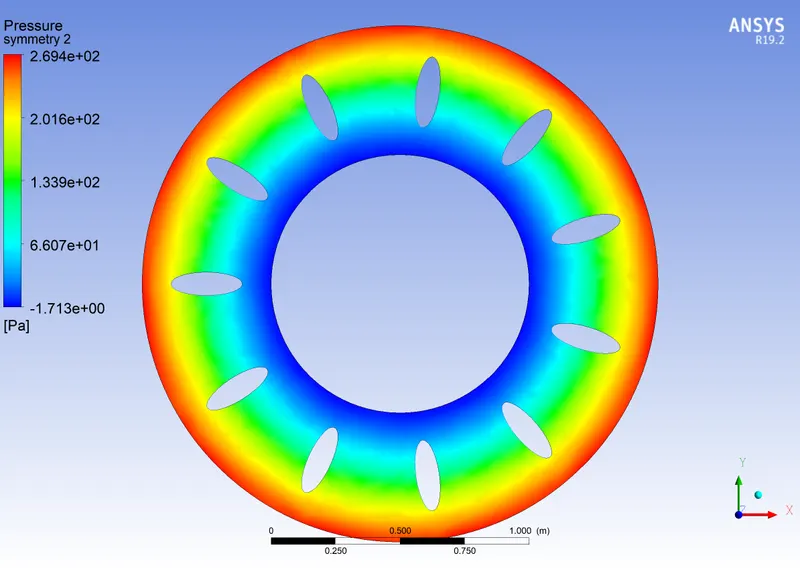

Results
