AIM

To Perform morphing for the given model and Increase the Height of the Dog houses and Ribs.

PROCEDURE

• insert the component in the working area

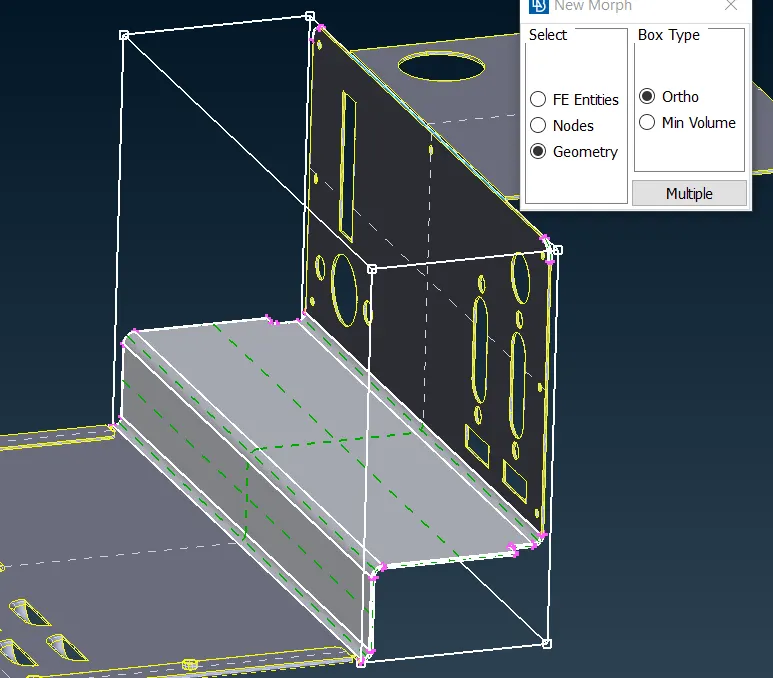

• and go to morph - boxes - new - ortho and select the faces
•
•
• and create the boxes
•
• by this boxes we will move the surface without damage the number of elements

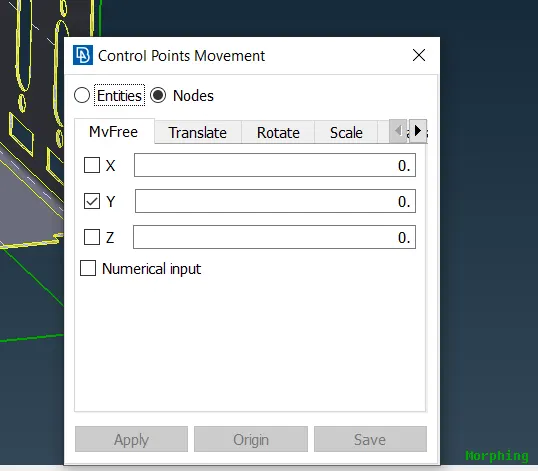

• and have to select the corner
•
• this will decide that what direction should geometry move on
• in x or y or z
• by moving this we have a component like this
•

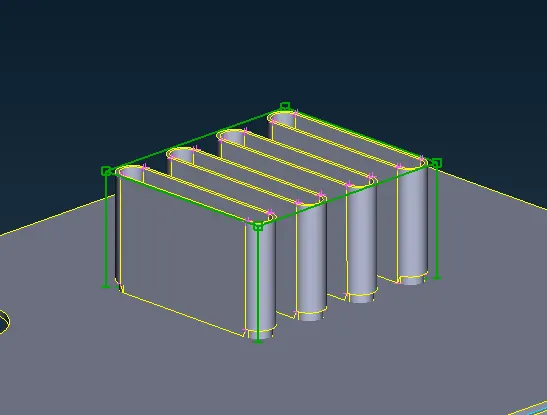

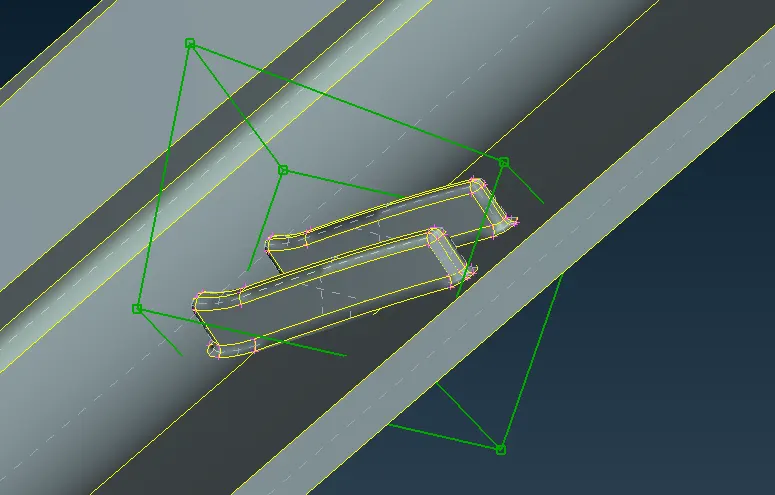

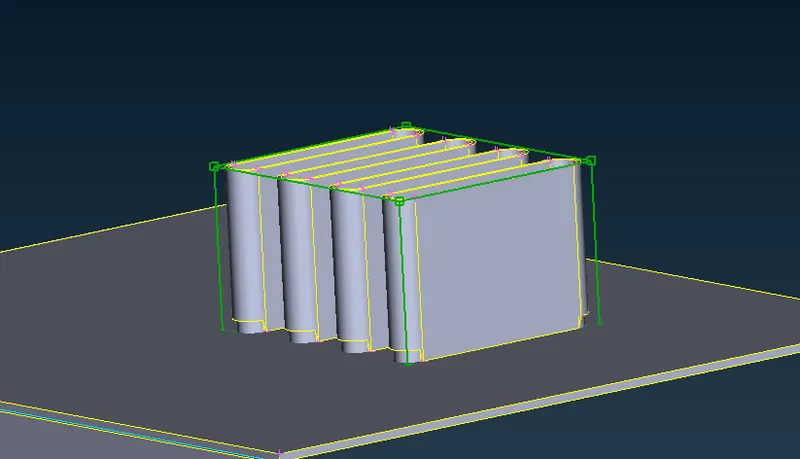

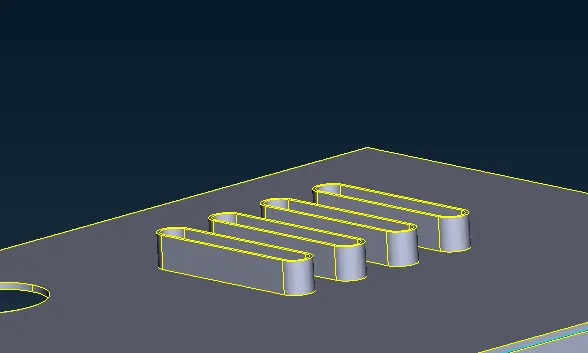

• before morphing and after morphing is
•
• before morphing after morphing \

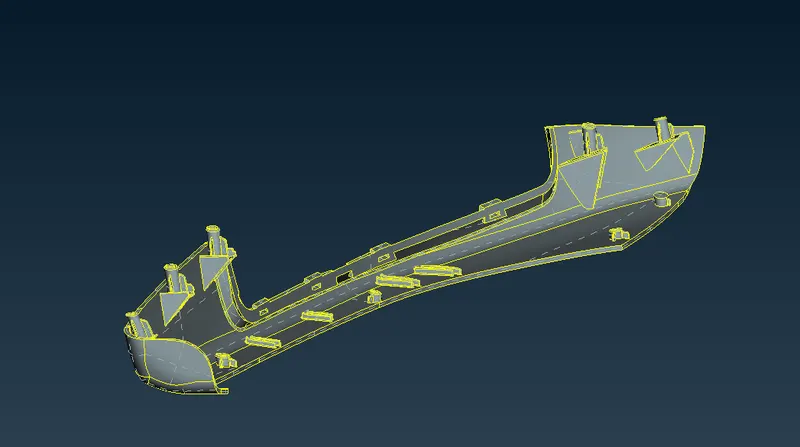

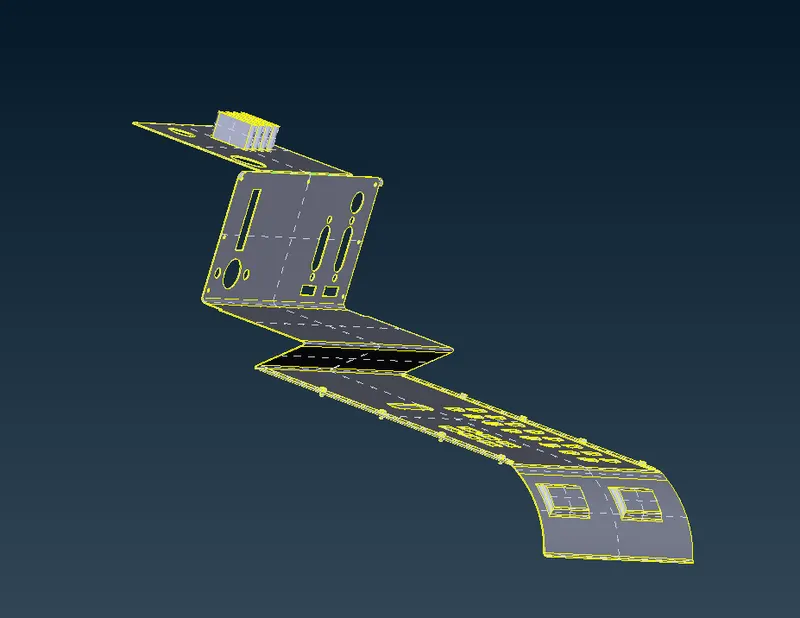

• in the model 2 as same as this

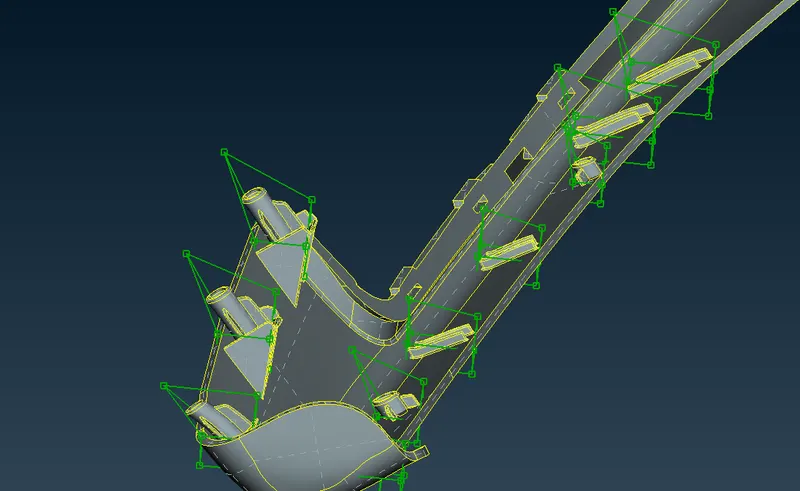

• have to create the boxes
• and move the geometry as what we want
•
•

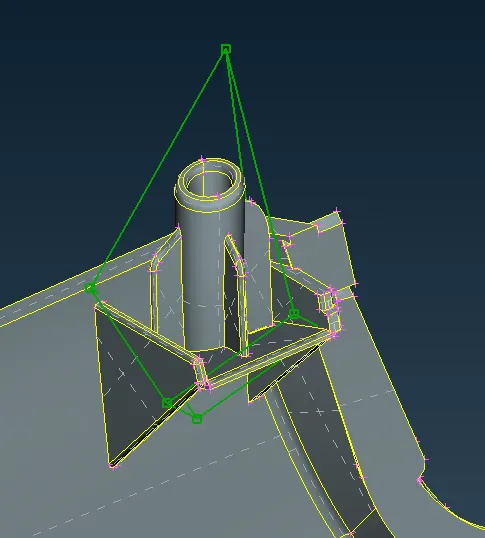

• have to create the boxes in all dog house and ribs
•
