Week - 8 - Morphing

objective:

• Practice all the Morphing techniques that were shown in the video for Model-1.

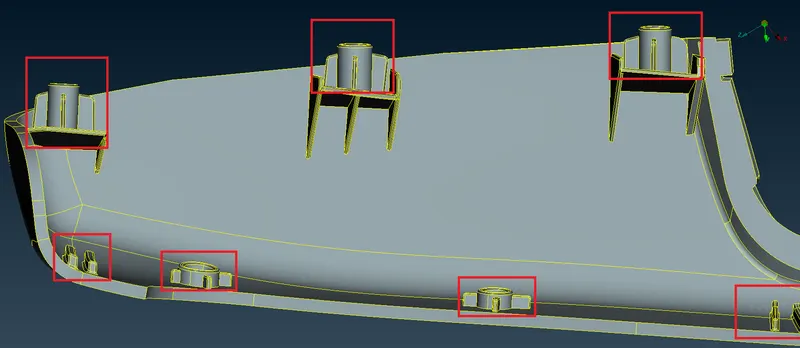

• Perform morphing for the Model-2 and Increase the Height of the Dog houses and Ribs. (Refer Red annotations in the below image to understand what are Dog houses and Ribs).

procedure :

model 1

• import the model 1 and do the topo for this component by topo >face>topo

• Before working on morphing the component, we need to 'clear all geomertical error ' the component and that involves getting rid of deformities, stray single cons, hot points, etc.
• The model is also oriented properly using the orient tool, accessible via Faces > Orient. as shown in fig.

• we can begin with the morphing process by creating the new morph on the region where is morphing required.

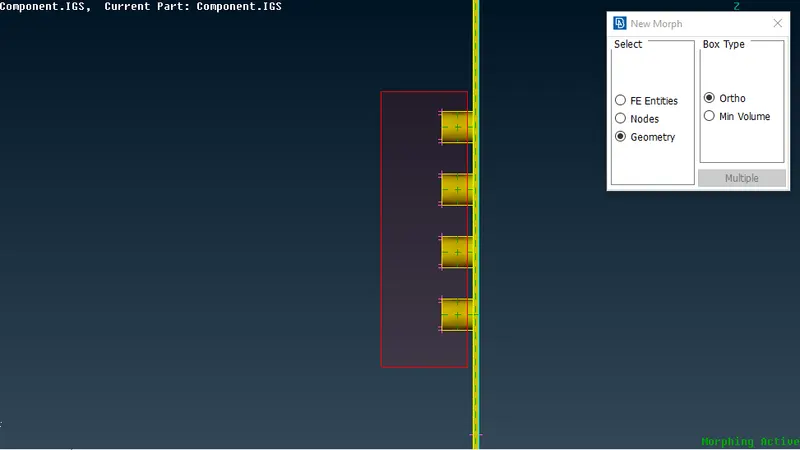

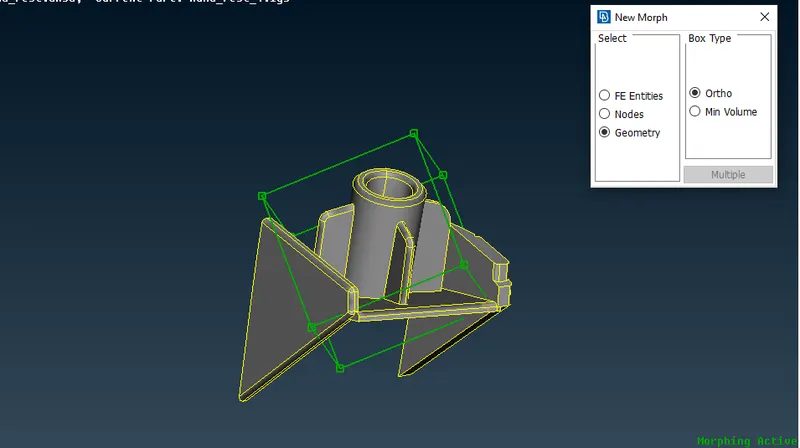

• go to the ‘Morph’ deck and there we need to go to Boxes > New > Ortho and then select geomety.

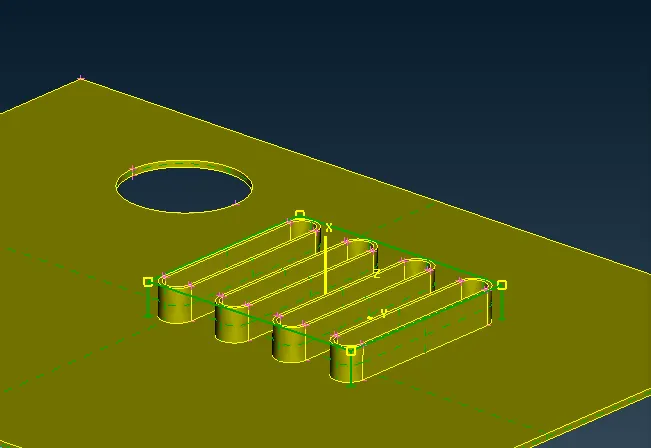

• Now we can select Box Morphing > Move to move these control grids on the morph box. This is essentially ‘morphing’

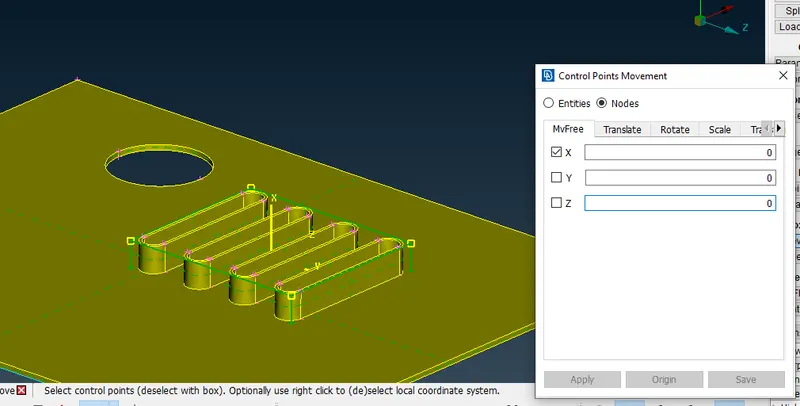

• we can move them based on the coordinate system. By right-clicking one of the nodes on the grid.

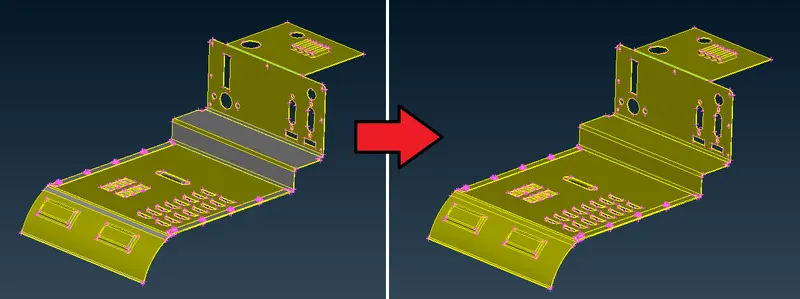

after morphing before morph

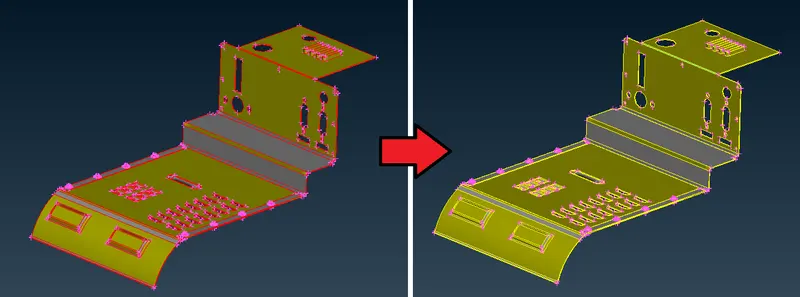

similararly done for some other arean in model 1.

model 2

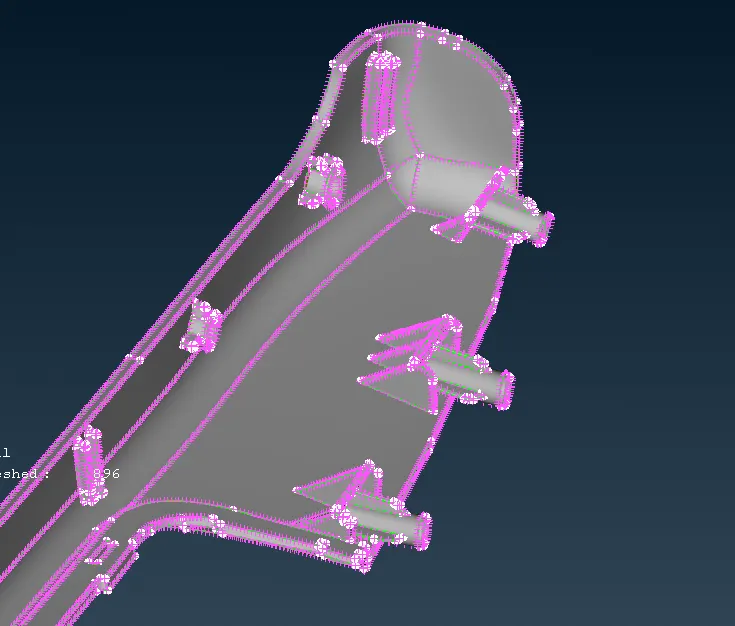

• The requirement in the case of Model-2 is to increase the height of the dog houses and ribs as shown in the following picture.

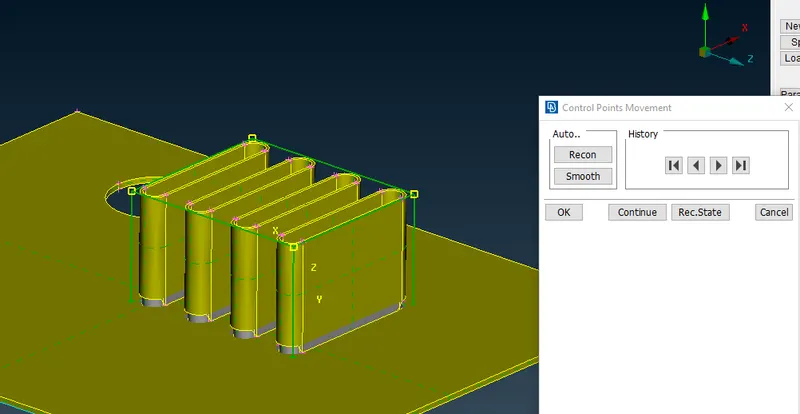

• we can begin with the morphing process by creating the new morph on the region dog house and ribs.
• go to the ‘Morph’ deck and there we need to go to Boxes > New > Ortho and then select the dog gouse geomerty.

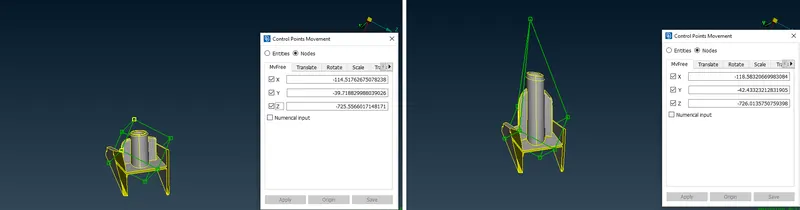

• we can move them based on the coordinate system. By right-clicking one of the nodes on the grid
• simirarly done all the dog house and ribs.

above fig shown morphing done all dogehouse and ribs.

morphing application:

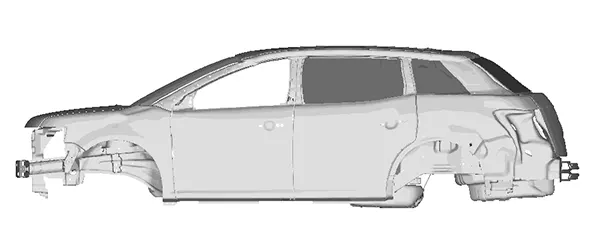

• Morphing is primarily utilized in the automotive industry where it is typically used to match styling, upper body to carry over under body matching, morphing sedan to station wagon or SUV etc. can be executed rapidly.

conclusion:

practiced and Performed the morphing on the model 1 and Model-2 Increased the Height of the Dog houses and Ribs.
