Week 8 - Challenge 6 - Core & Cavity Design

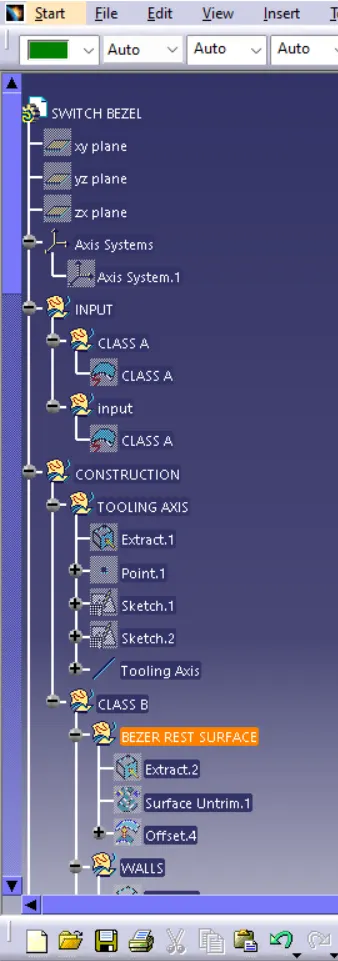

TOOLING AXIS:

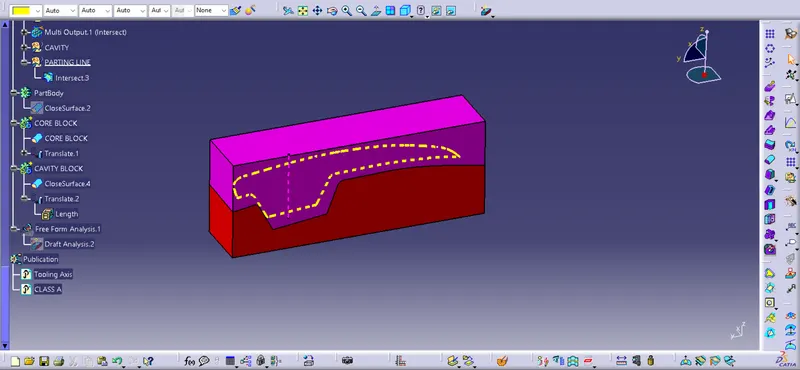

• with the help of direction of tooling axis we created the core and cavity .
• core and cavity will be move along with direction of tooling axis.

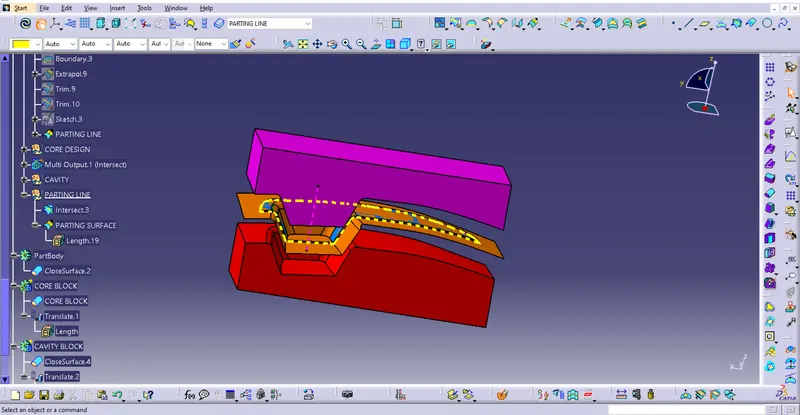

BISECTING METHOD:

• the core and cavity are meet with component that line is bisecting line.
• generally the bisecting line is where class b and class c surface are meet.
