Week 8 - Challenge 6 - Core & Cavity Design

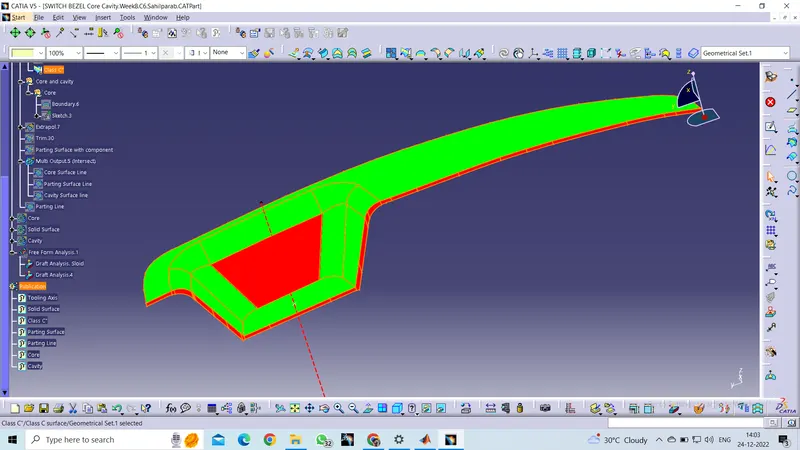

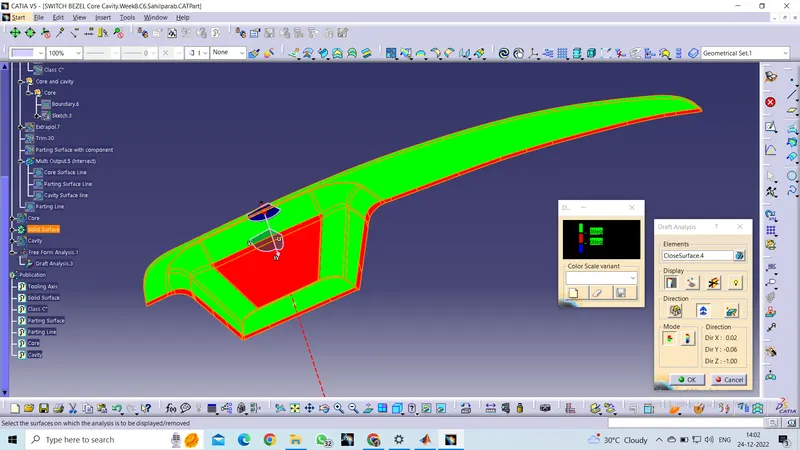

Draft Analysis were performed on Class C and Solid component. We saw the red surfaces on verticle and those surfaces which has angle deviation less than 3degrees. Upon reducing the angle constraint to < 3degrees , we see the red colour goes which meant the deviation is less than 3 on these surfaces. I had sweeped them with 3degrees outside.

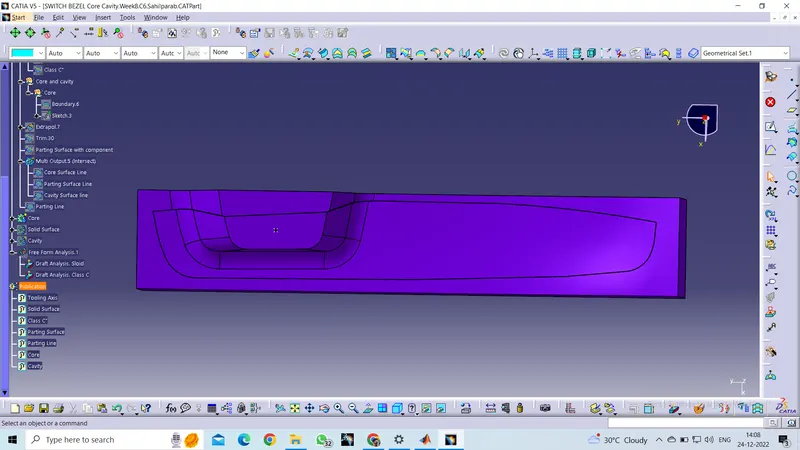

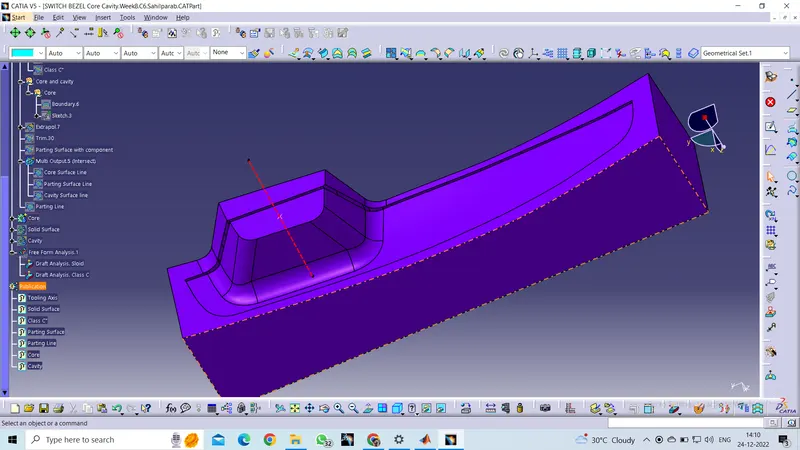

Top and isometric view of Core Component.

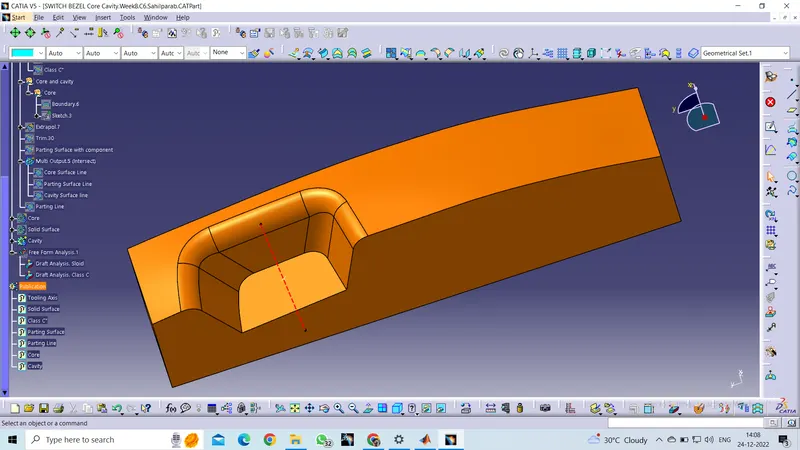

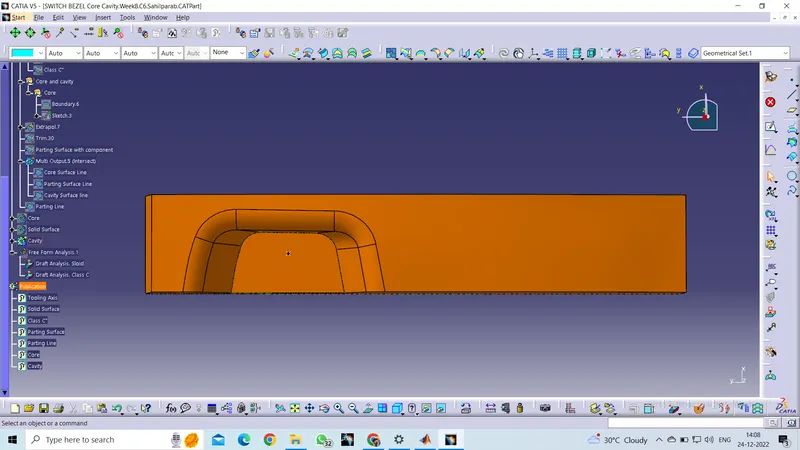

Top and isometric view of Cavity component.

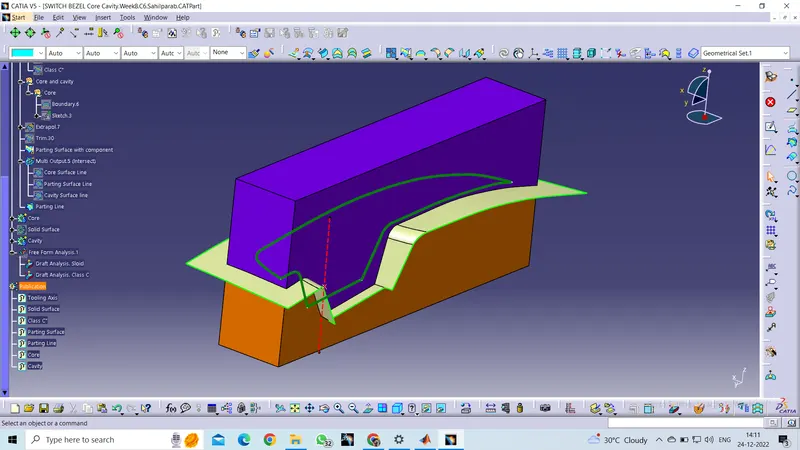

Parting surfacevis the surface that devides the core,component and cavity .

Parting line is the line between parting surface and component. It lies on B surface/cavity.
