Week 8 - Challenge 6 - Core & Cavity Design

DRAFT ANALYSIS

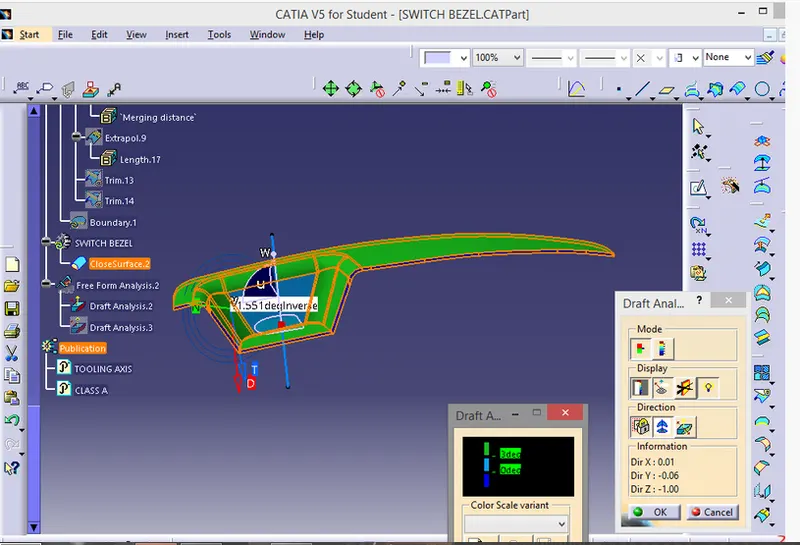

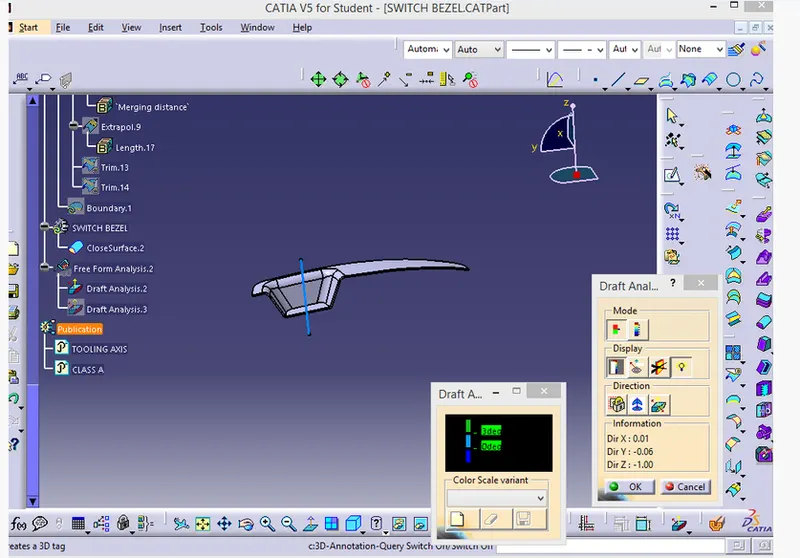

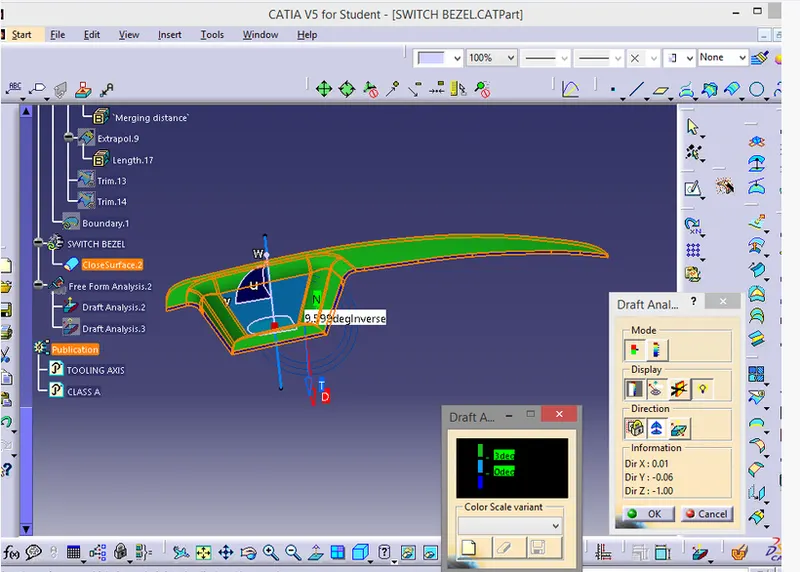

FOR SWITCH BEZEL SOLD  BODY

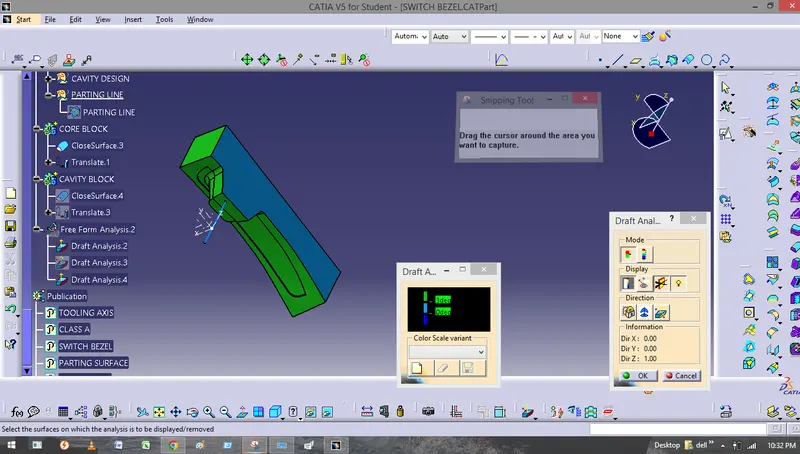

FOR CAVITY

FOR CAVITY

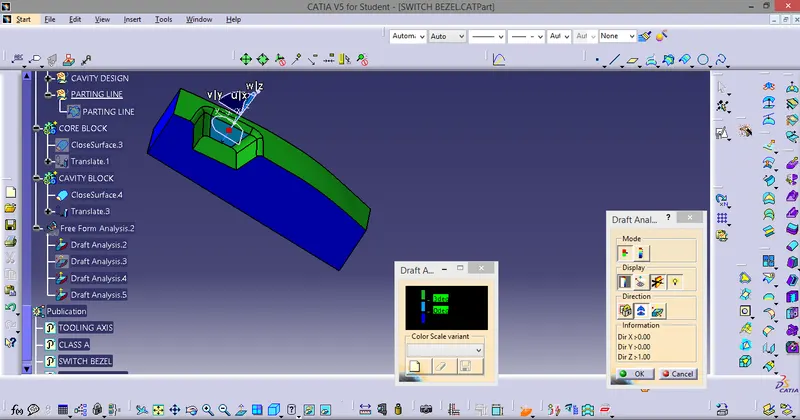

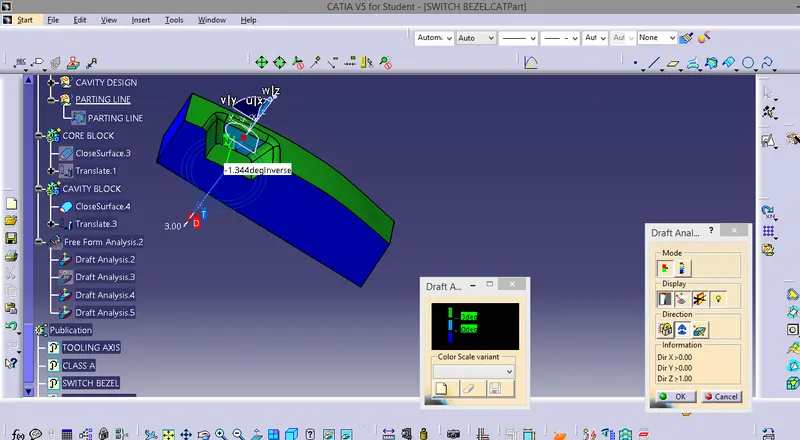

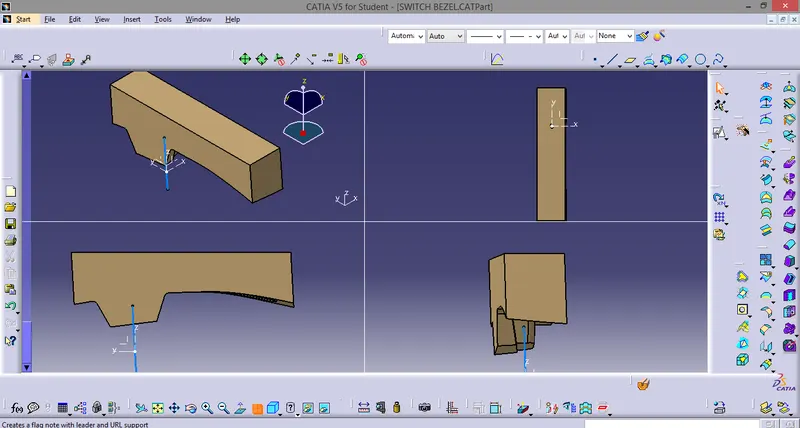

CORE BLOCK

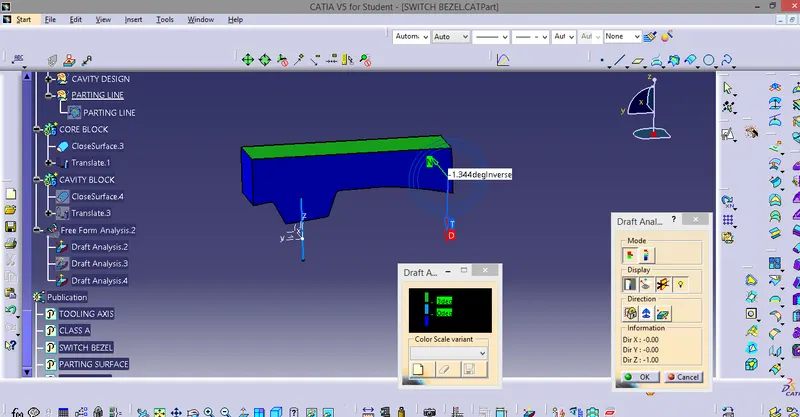

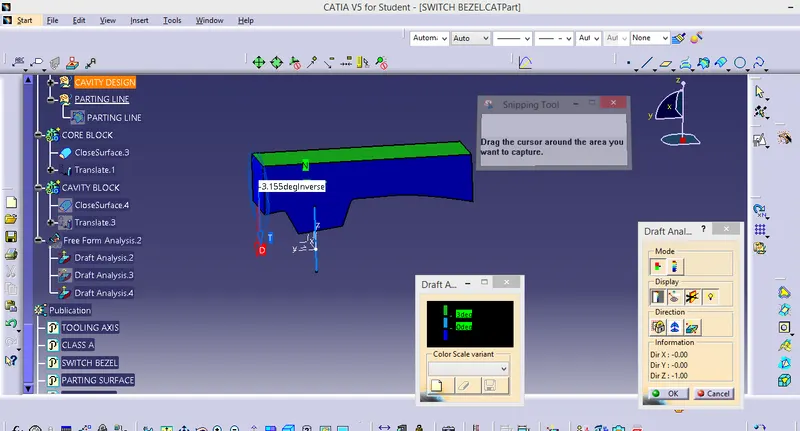

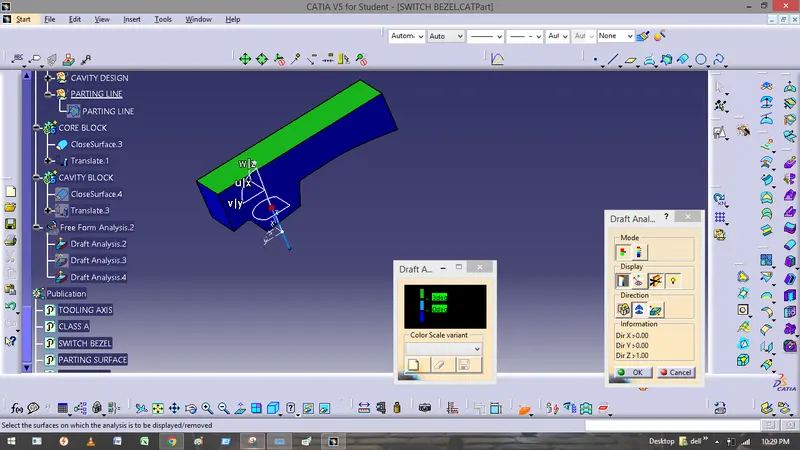

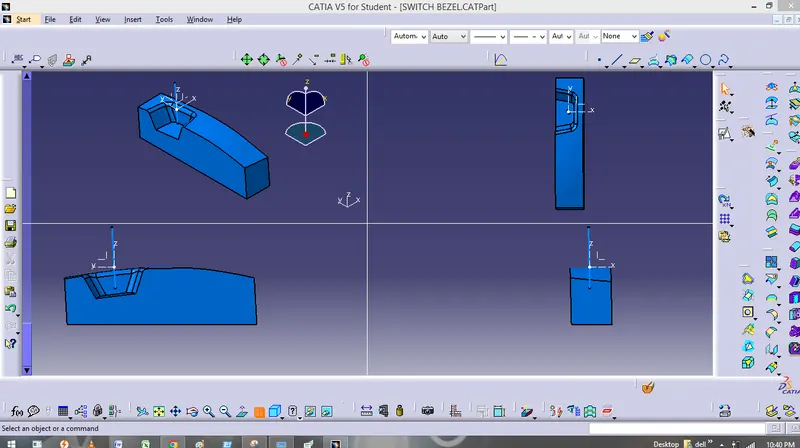

CAVITY BLOCK

Report on on draft analysis

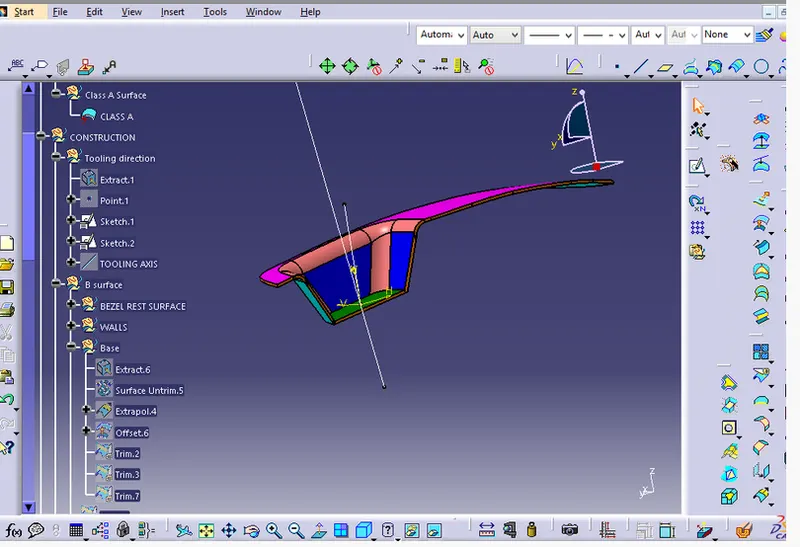

In order to do the draft analysis we need to first make the tooling axis since the component is complicated and has a pocket we need to use both x-axis and y axis to create the tooling axis. with the help of bisection method. so first an  axis is created for x axis in yz plane.

Then an axis against Y axis is created in ZX plane

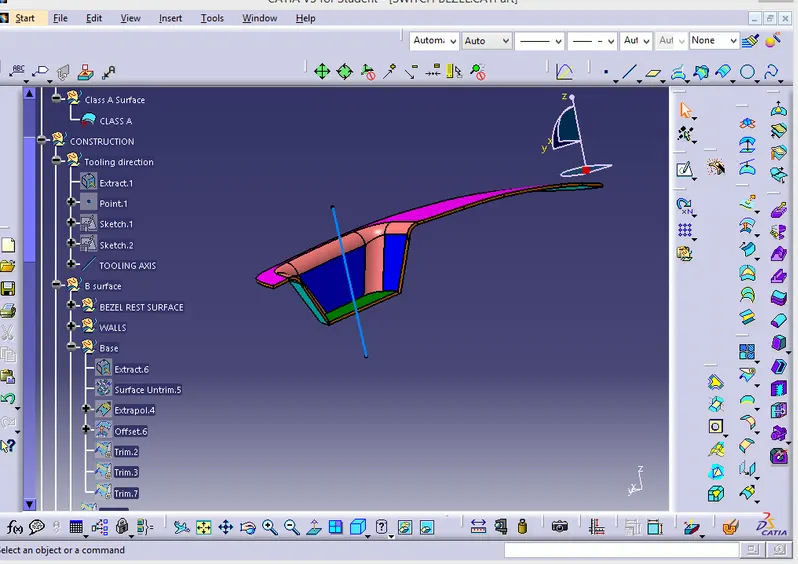

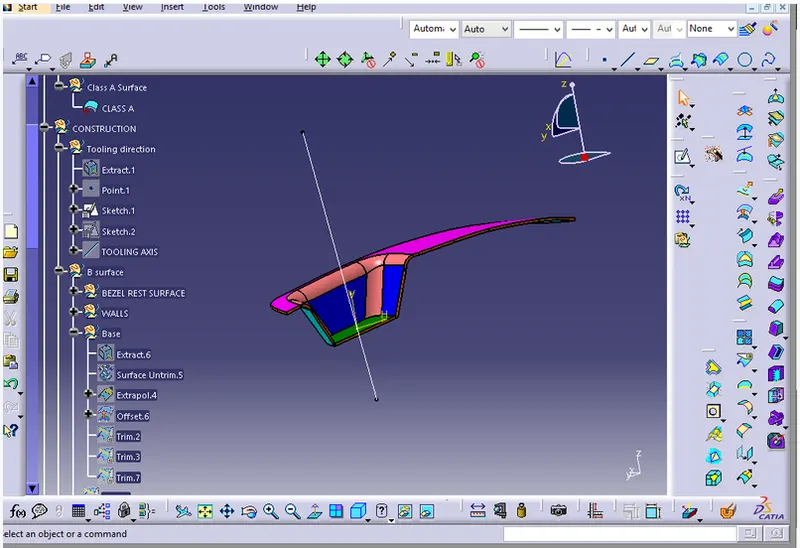

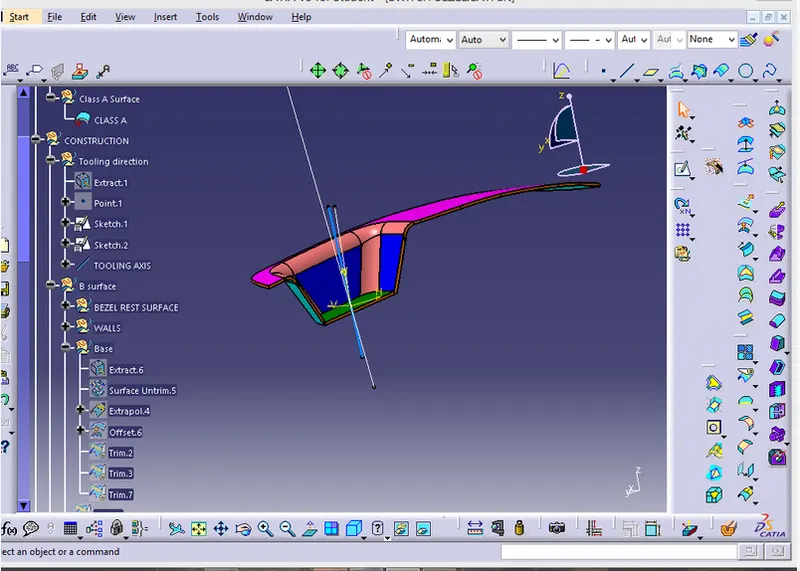

After creating both of the axis using bisecting line tooling axis is created.

Now that we have the tooling axis we can do the draft analysis.

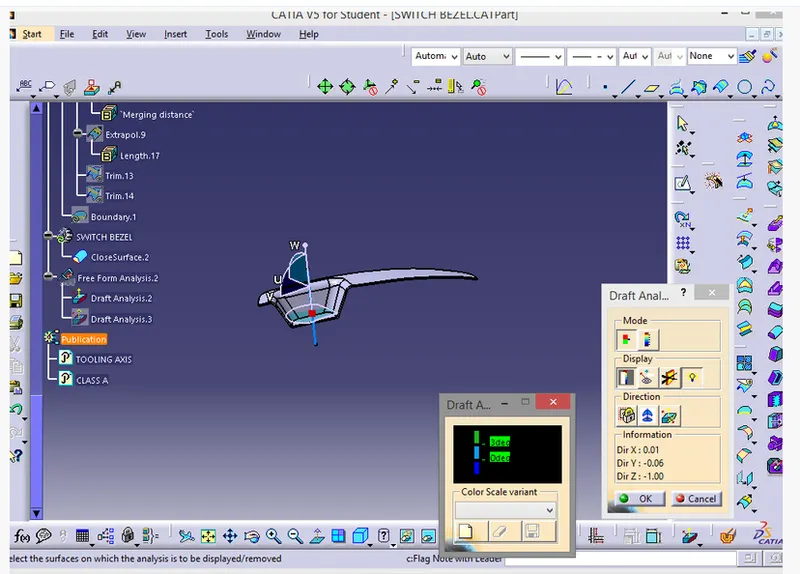

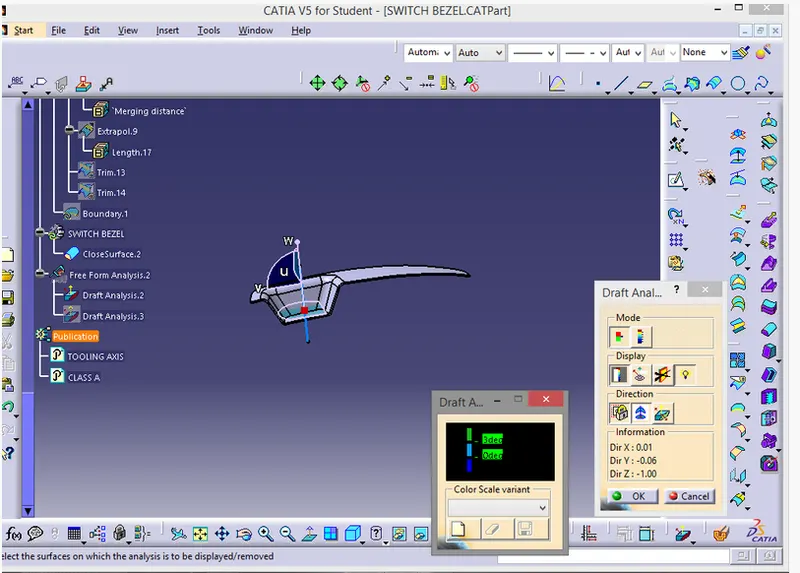

So in order to do the draft analysis we need to go to the material mode and then go to draft analysis

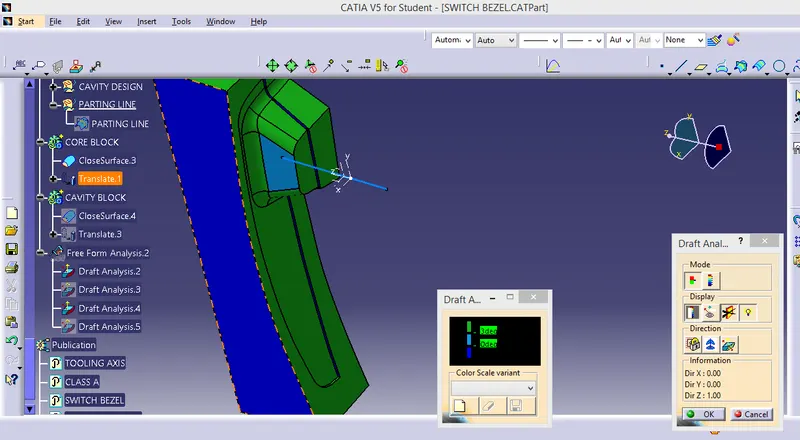

CORE AND CAVITY DRAFT ANALYSIS

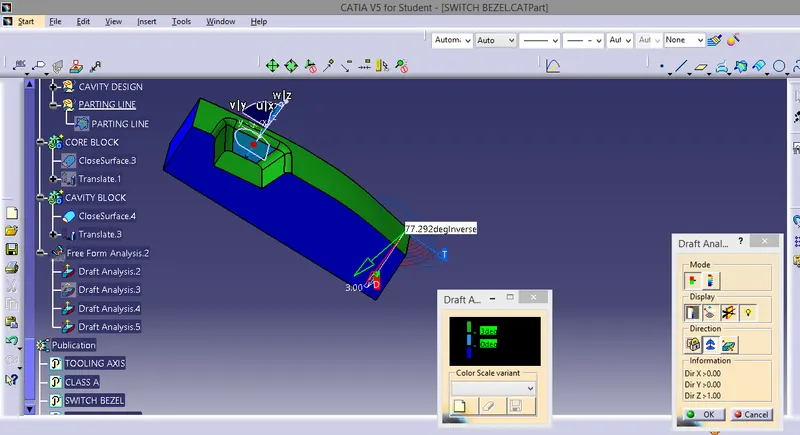

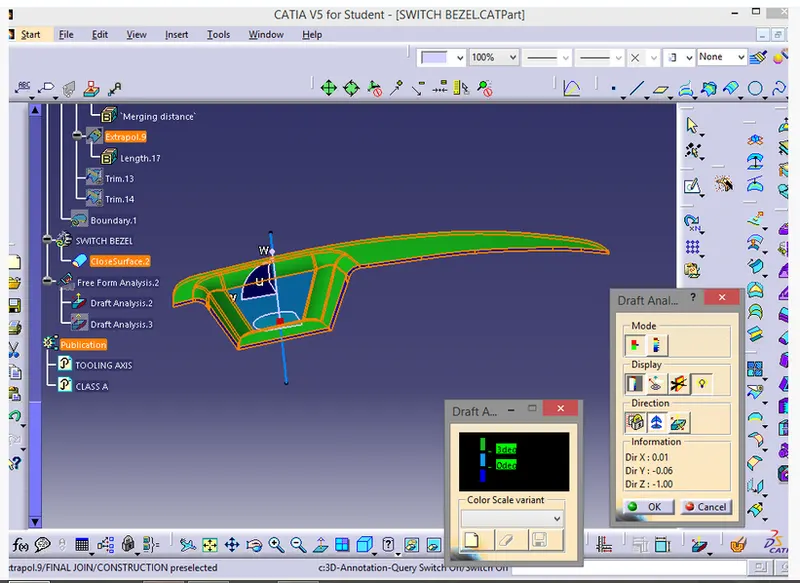

As seen in images below both the  core projection and cavity depression are completely green at 3 degree defined as green in color scale variant except class C and one of the plastic component walls, which means we need to work on Class  C and tooling axis for improvement or tooling will be costly.
