Week 8 - Challenge 2 - Switch Bezel Design

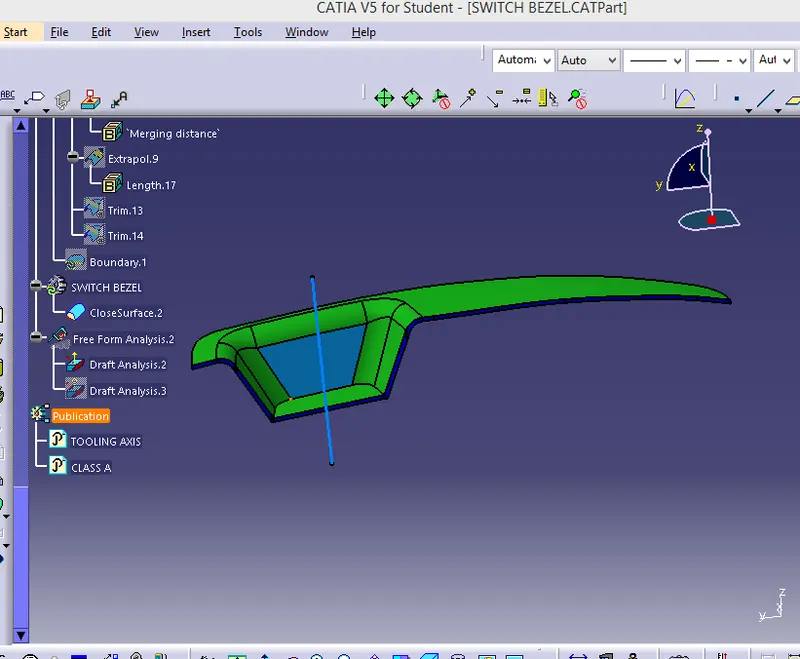

Draft analysis

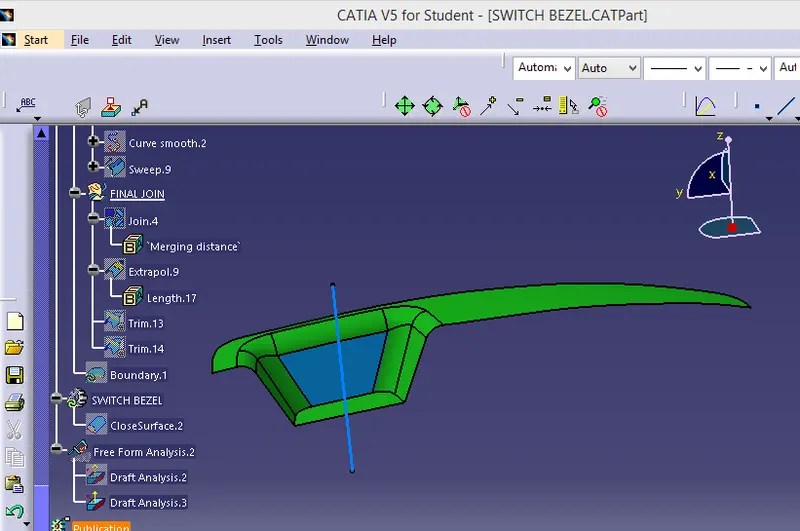

Class A

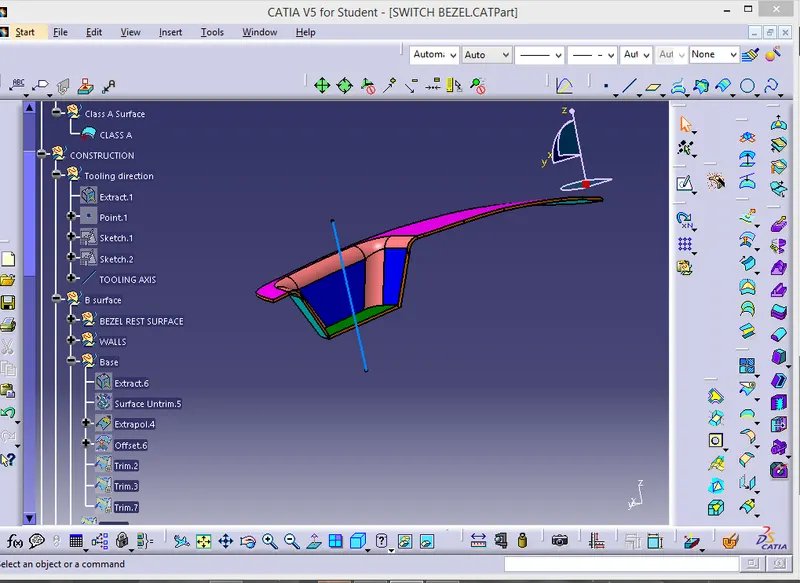

Class A B and C

Report on on draft analysis

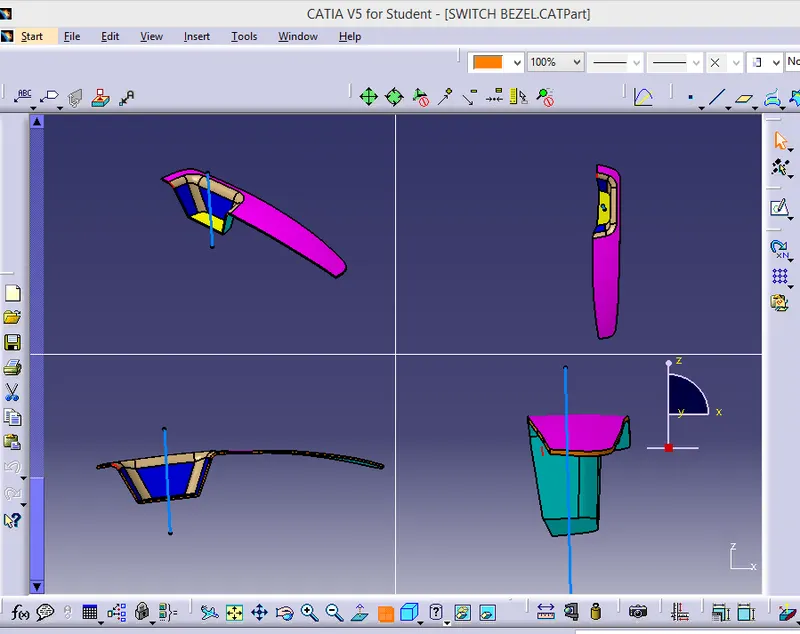

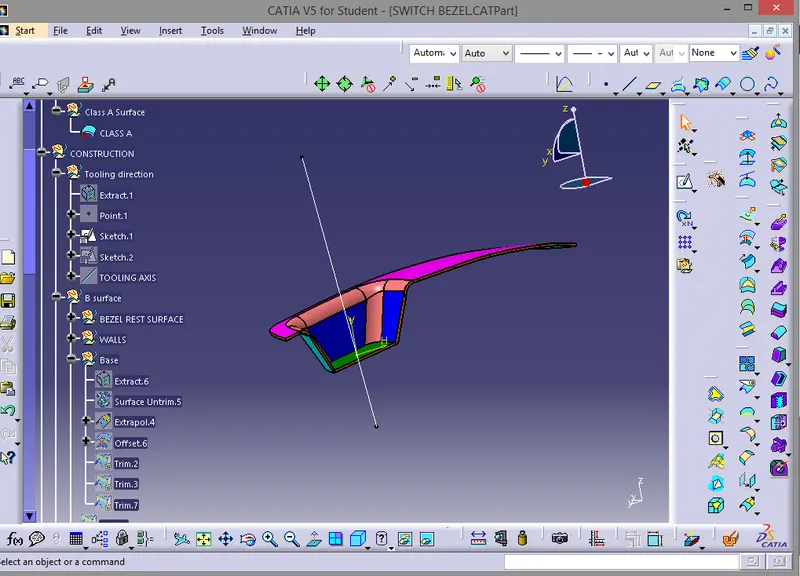

In order to do the draft analysis we need to first make the tooling axis since the component is complicated and has a pocket we need to use both x-axis and y axis to create the tooling axis. with the help of bisection method. so first an  axis is created for x axis in yz plane.

Then an axis against Y axis is created in ZX plane.

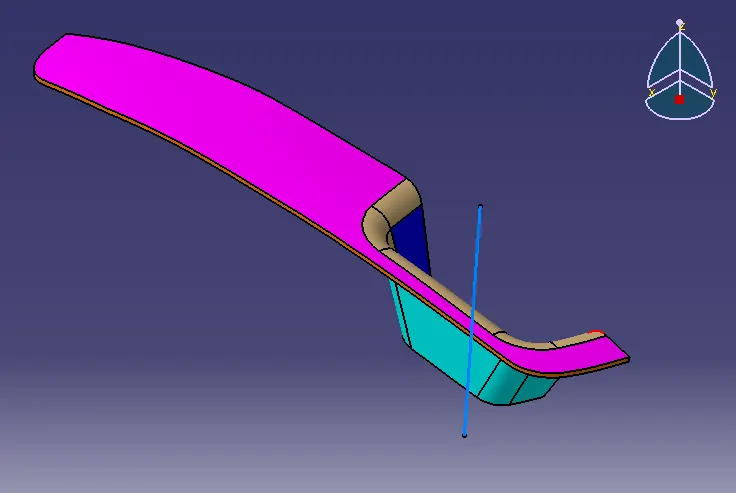

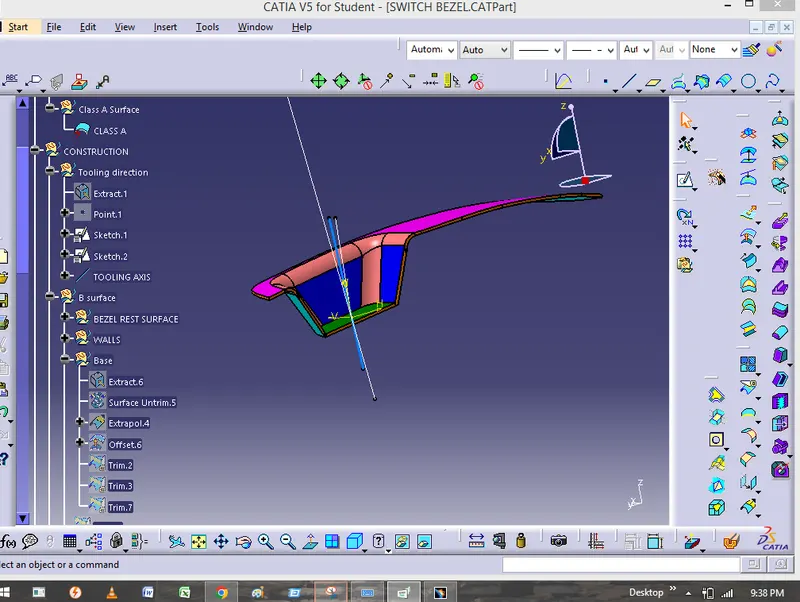

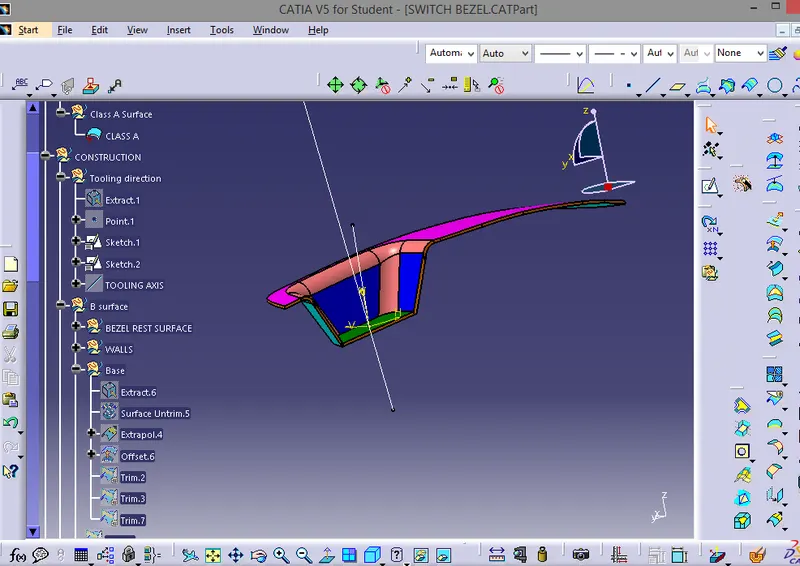

After created both of the axis using bisecting line tooling axis is created.

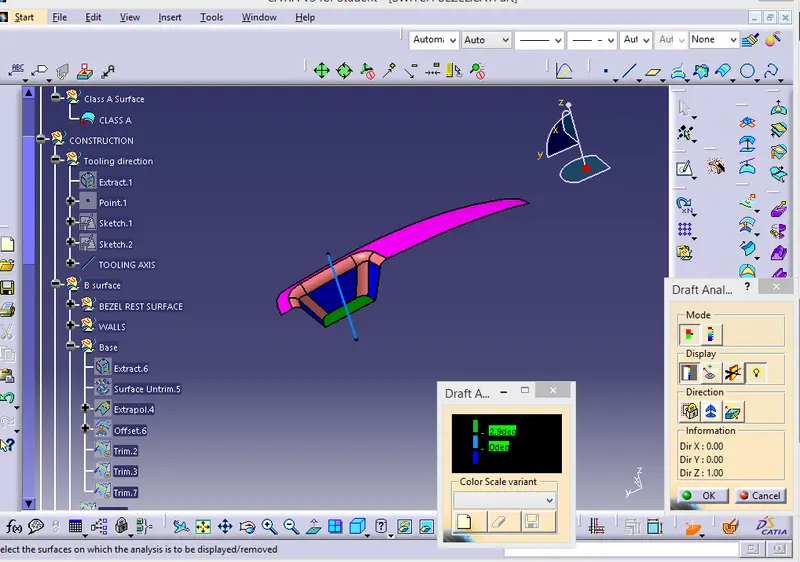

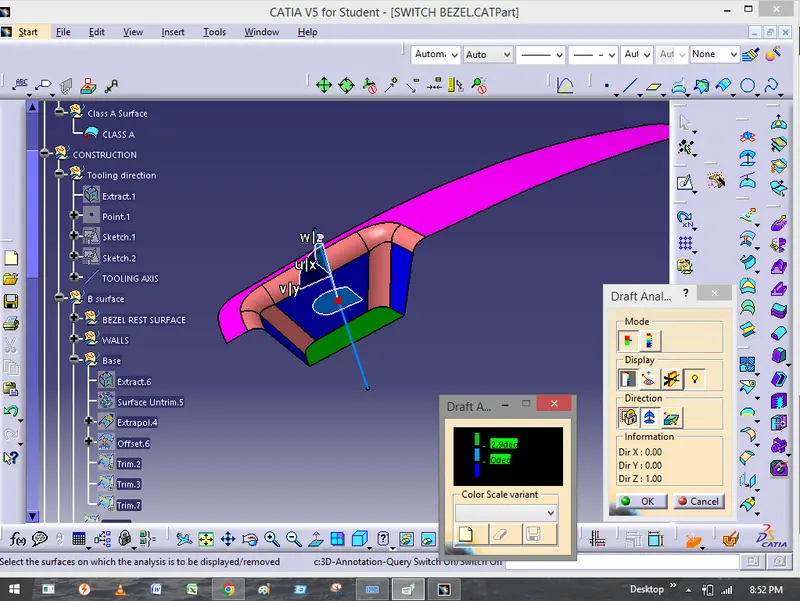

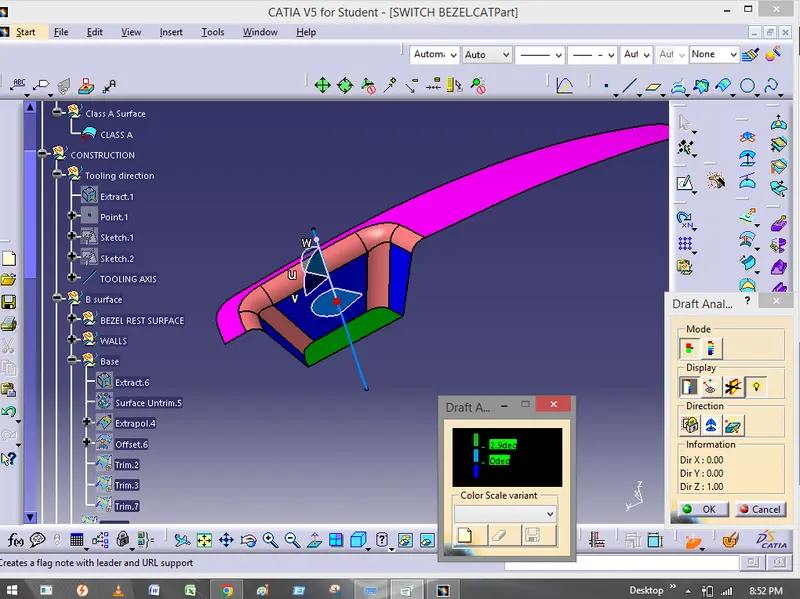

Now that we have the tooling axis we can do the draft analysis.

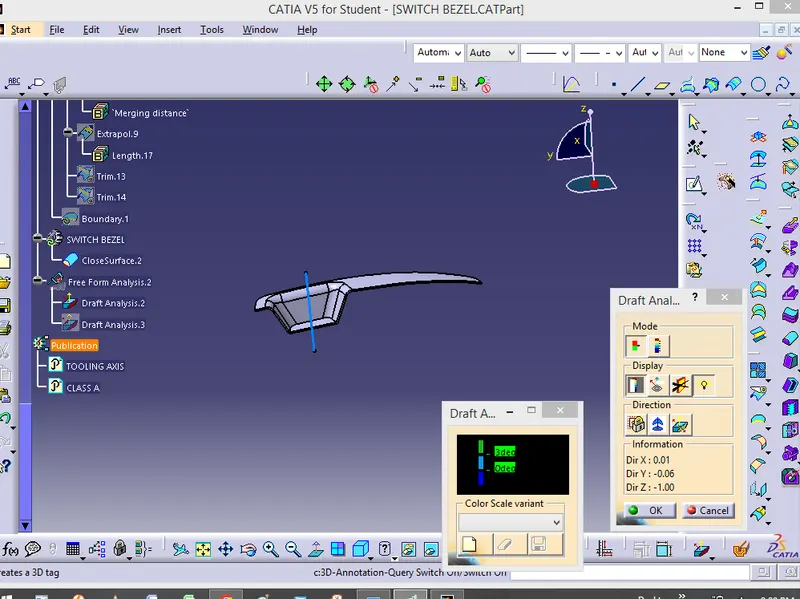

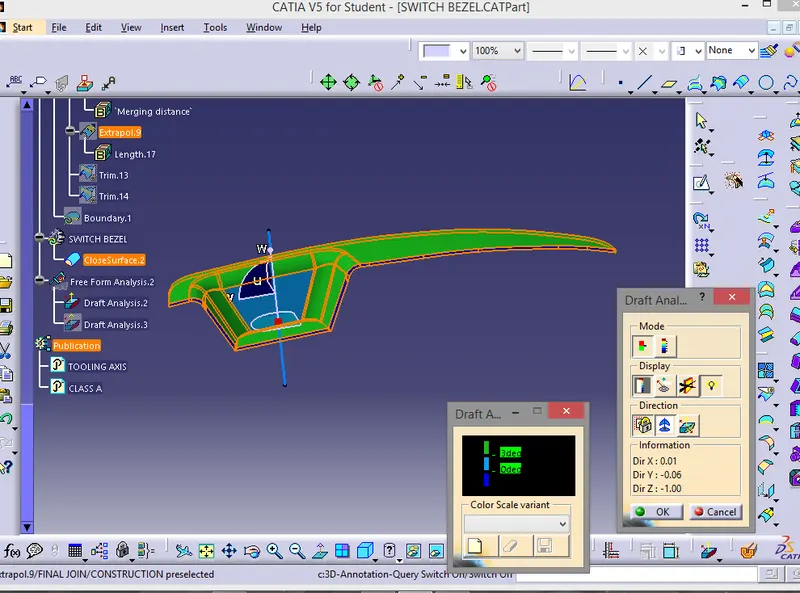

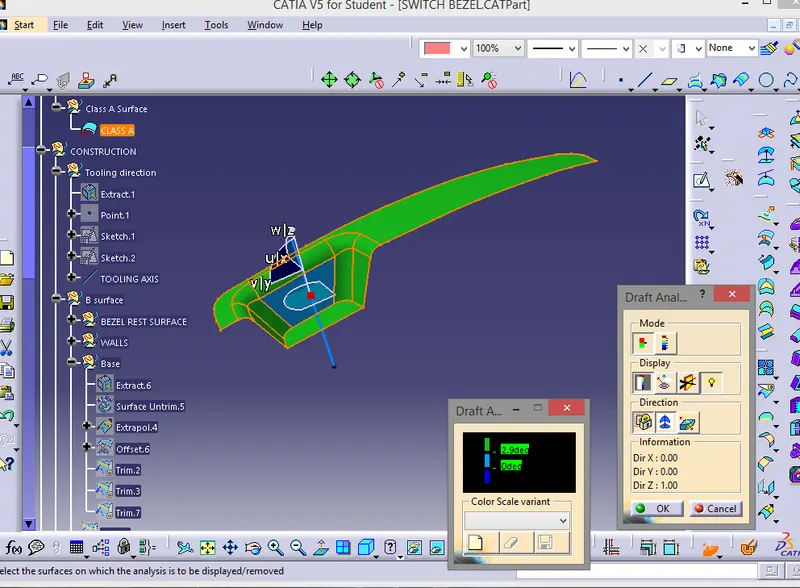

So in order to do the draft analysis we need to go to the material mode and then go to draft analysis

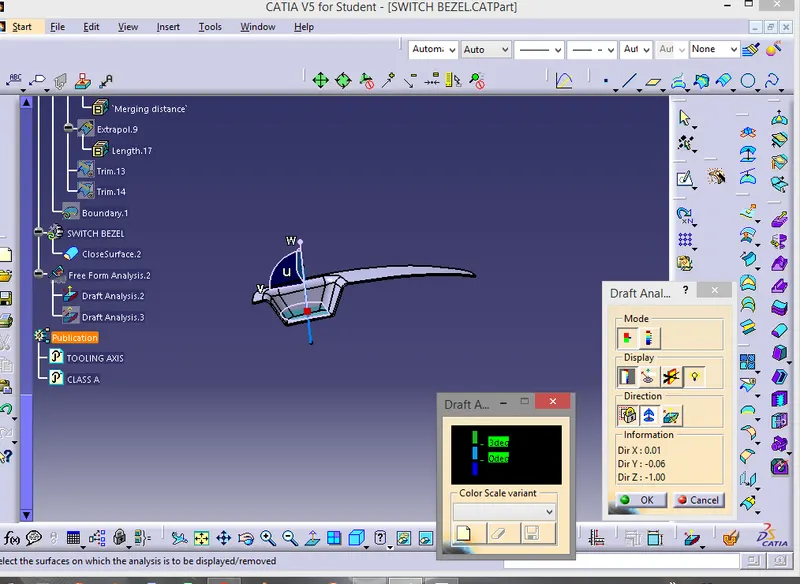

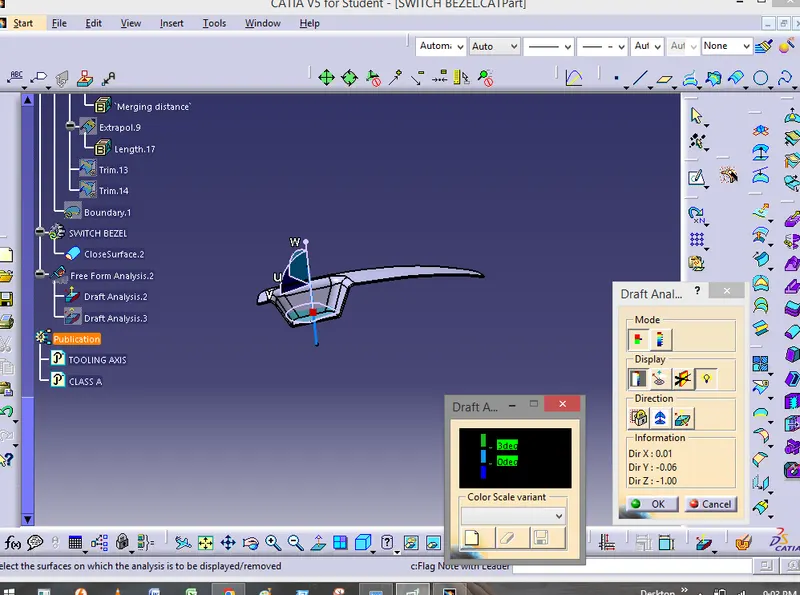

After that we have to turn on the compass and bring it on tooling axis.

And now we are ready for draft analysis.

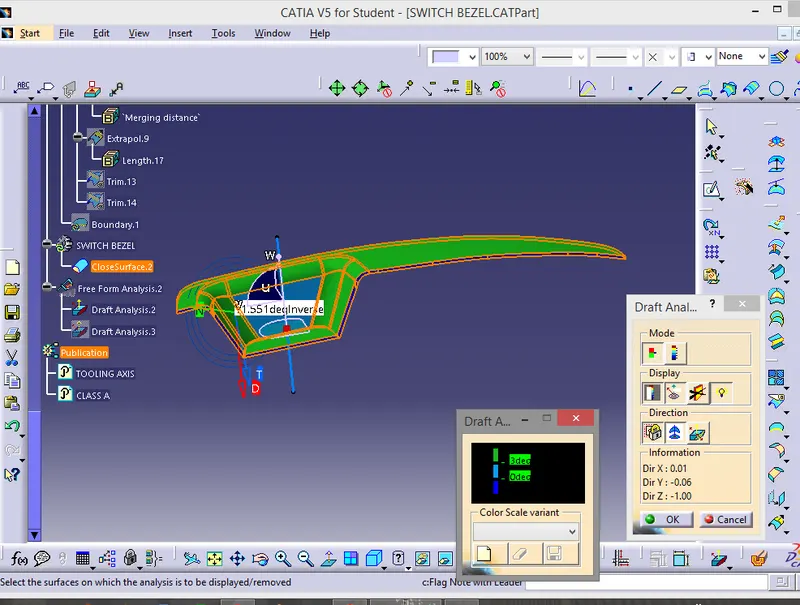

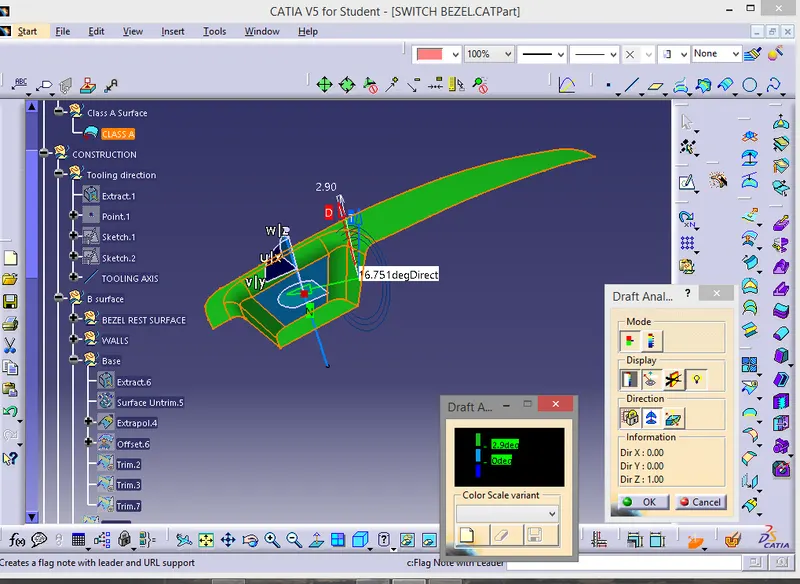

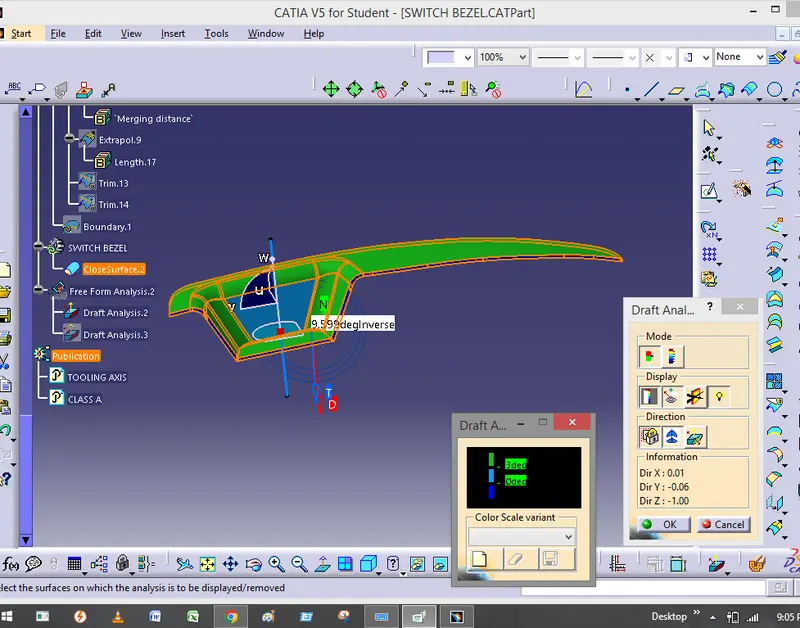

From the draft analysis analysis we found that one of the section from Class A is not drafted at 3degrees but at 0 degrees.
