Week 8 - Challenge 3 - Coin Holder Design

CLASS A SURFACE

CLASS A B AND C SURFACE

REPORT

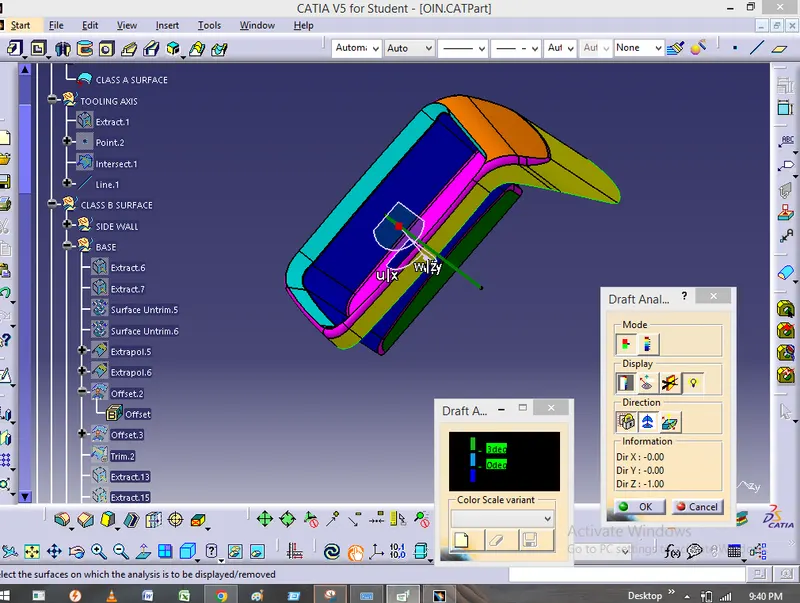

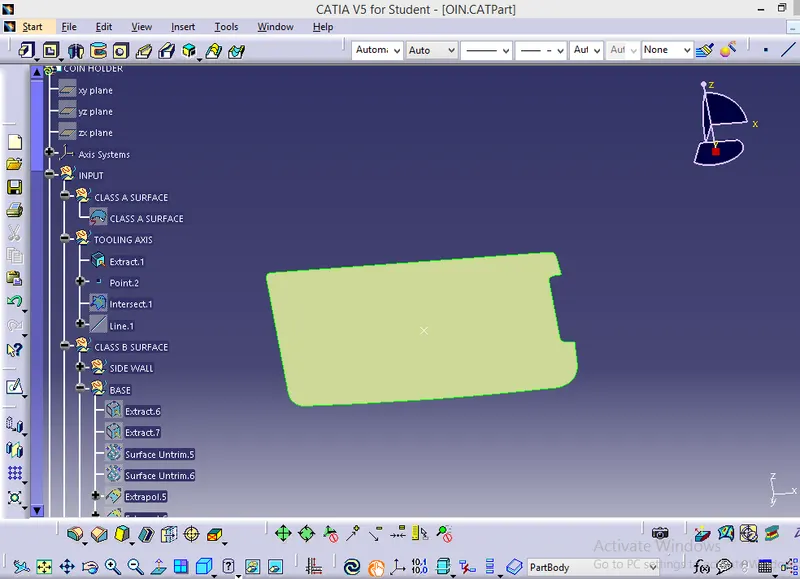

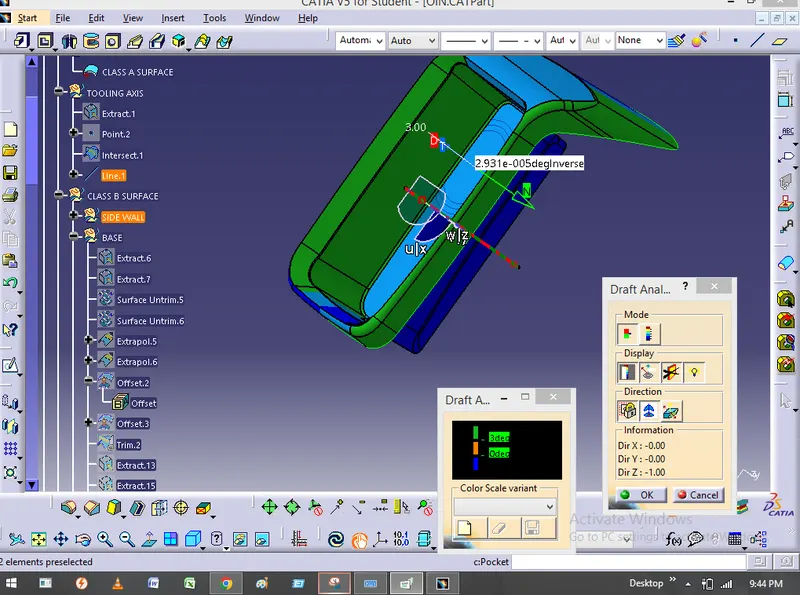

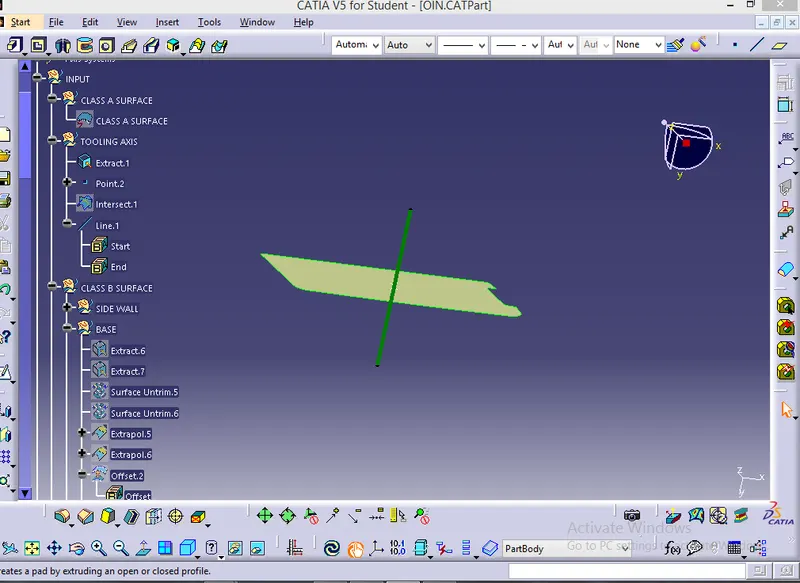

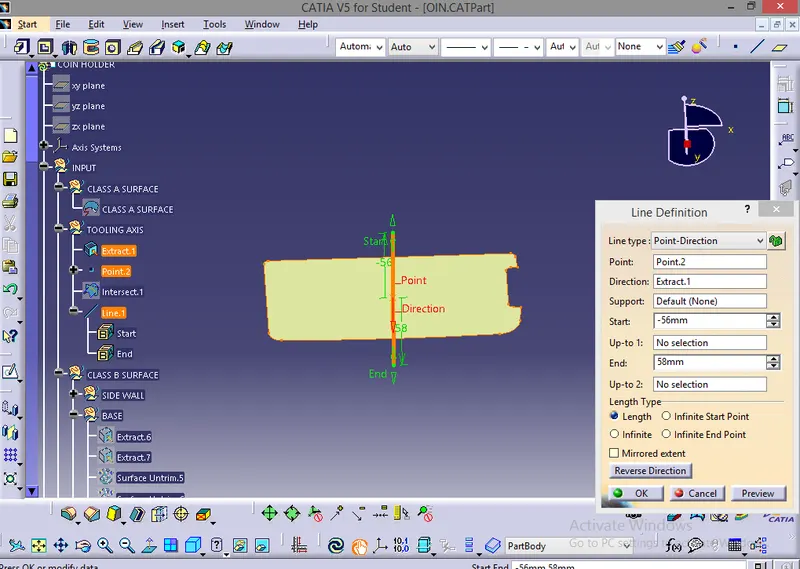

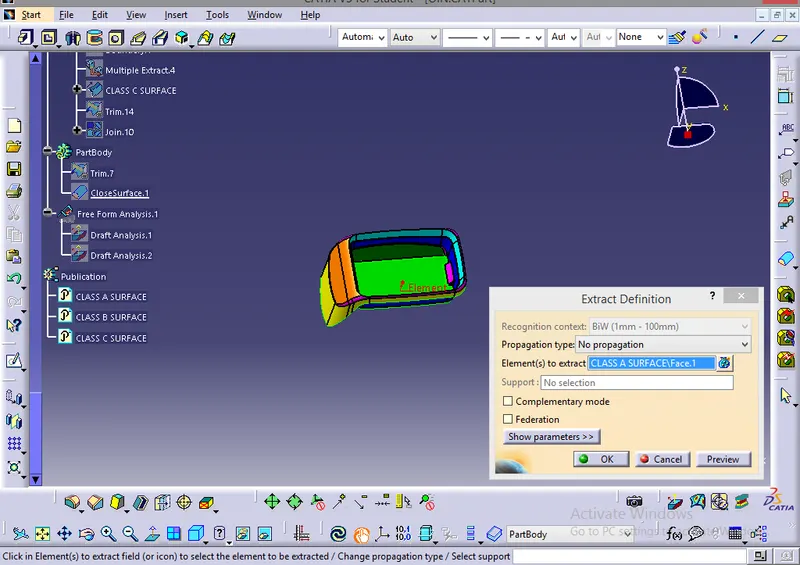

Since the part in this challenge doesnt have a draft bisecting method isnt used here.The tooling axis is created by extracting the base of the part and drawing a line on an axis perpendicular to the base i.e. z axis.

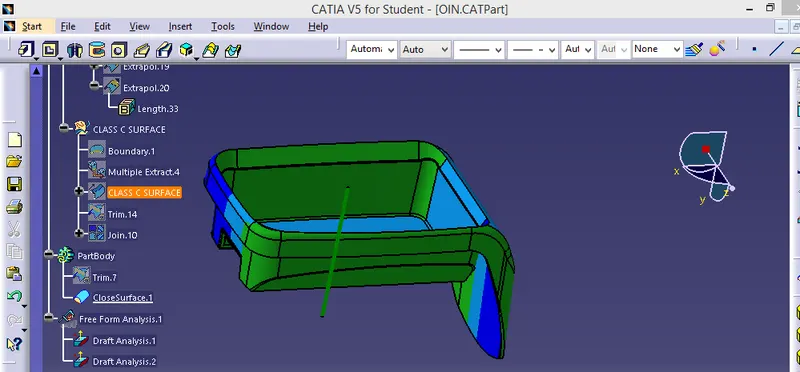

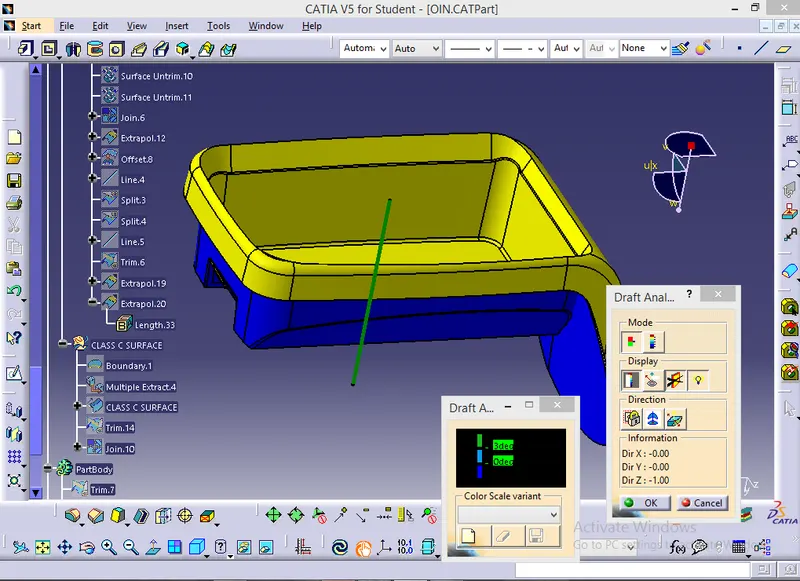

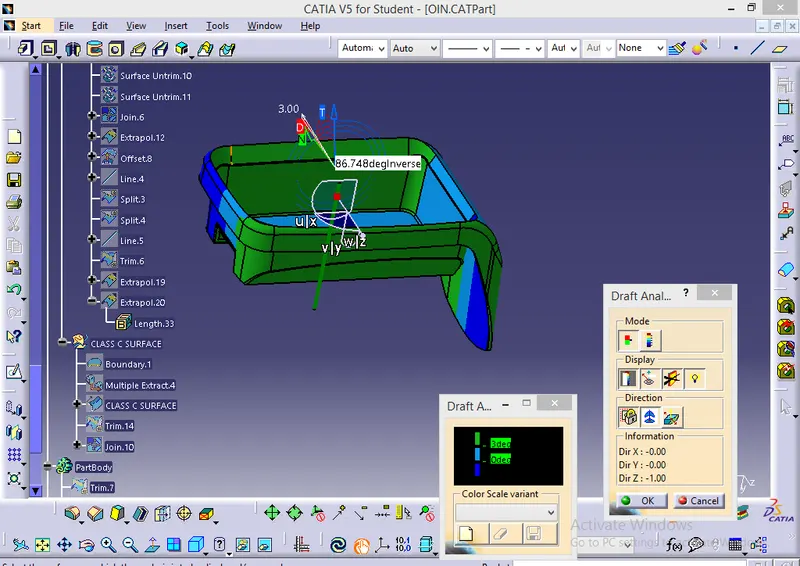

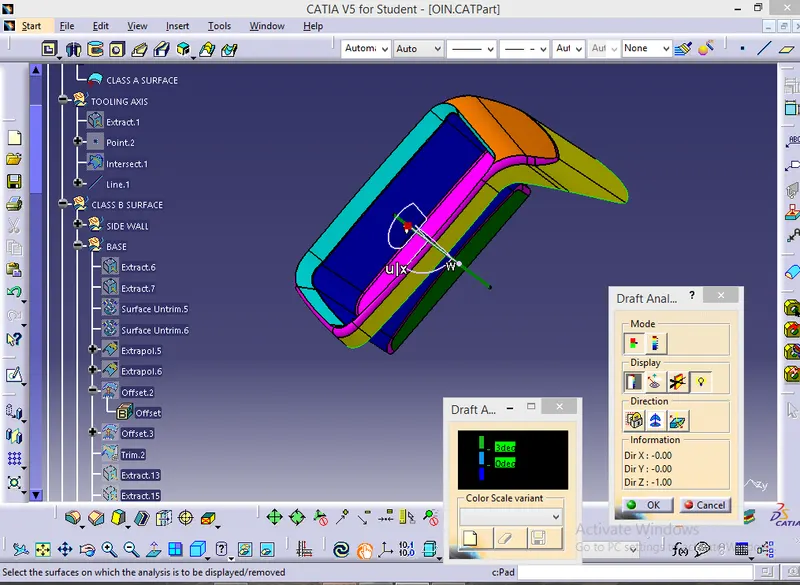

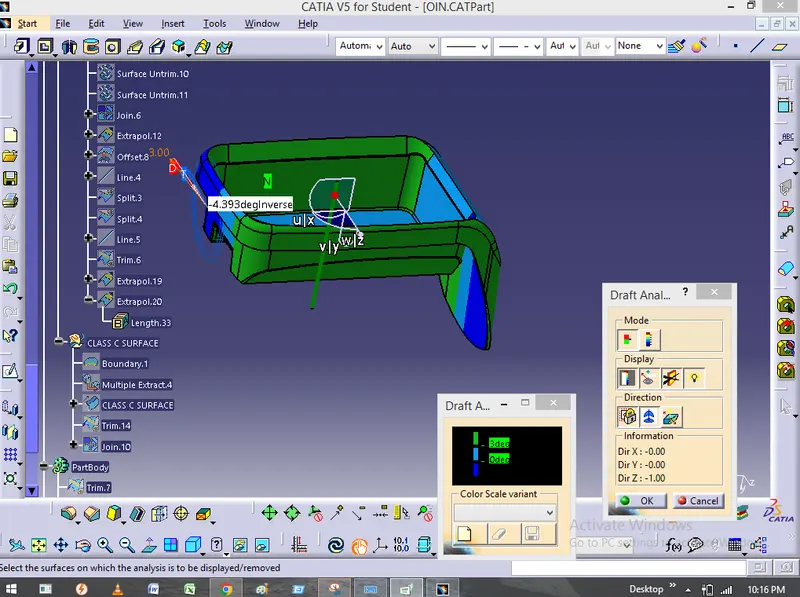

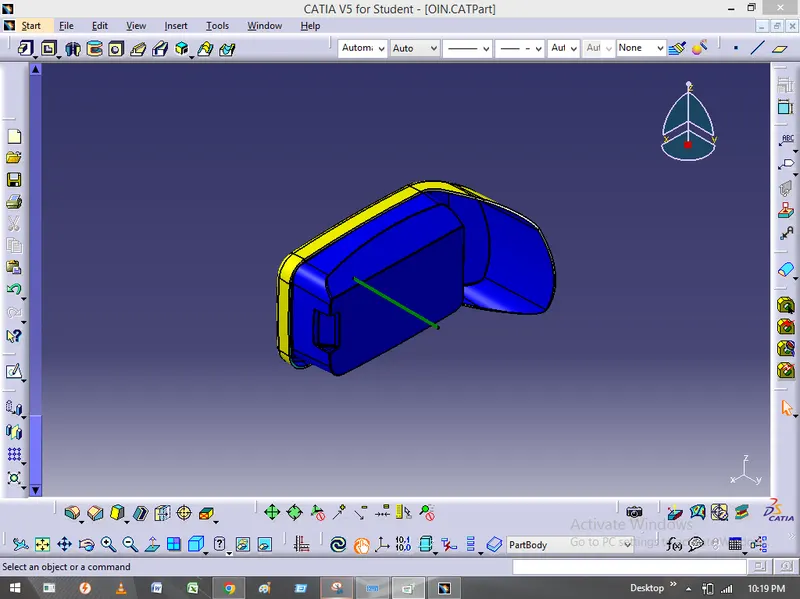

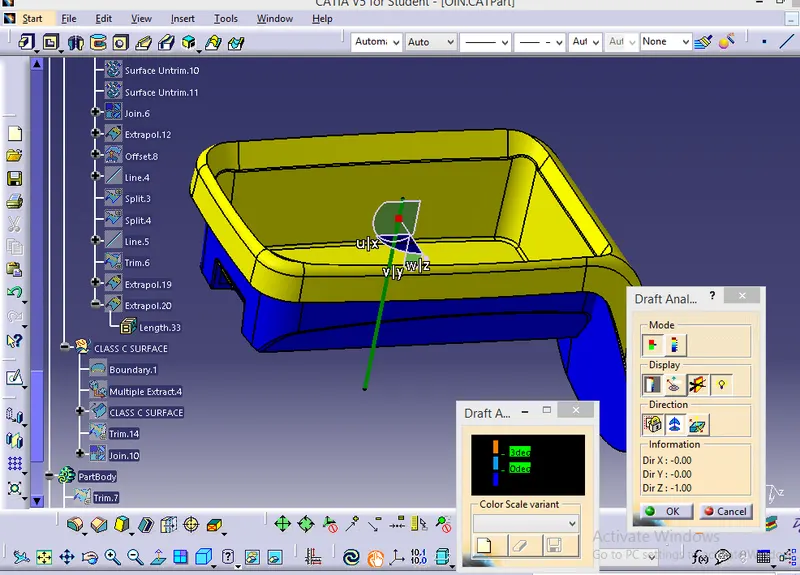

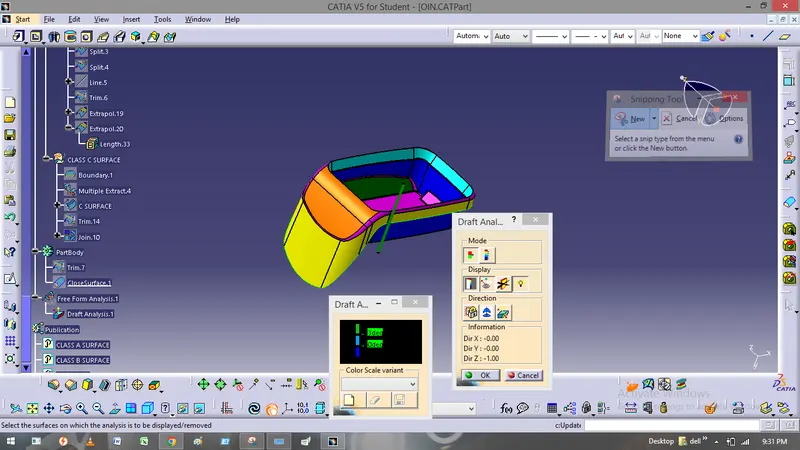

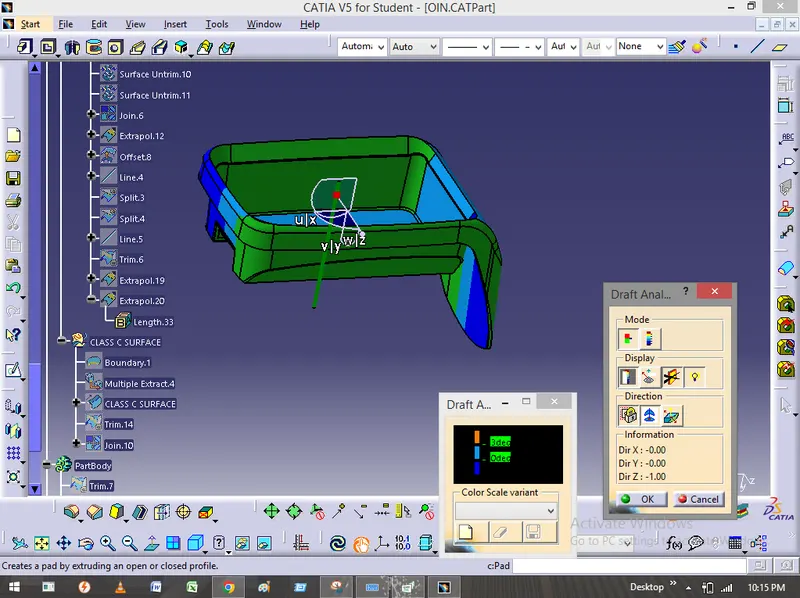

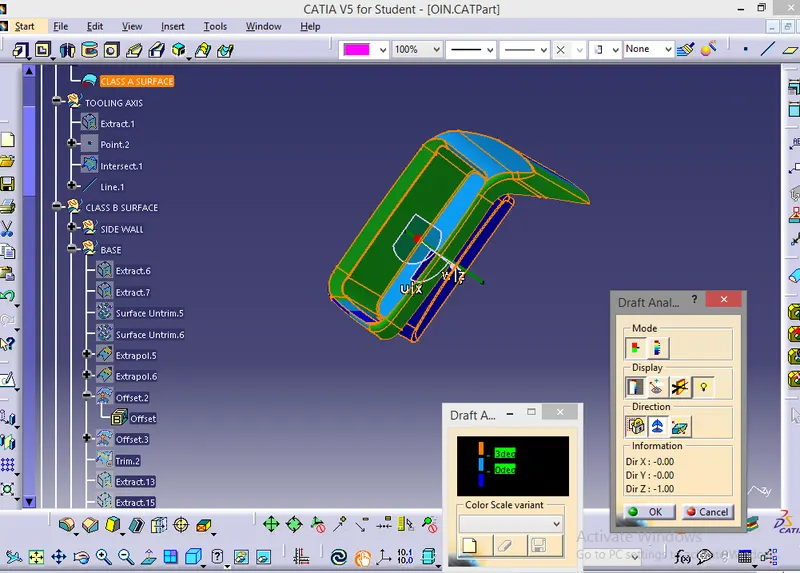

Draft analysis can now be done on Class A.

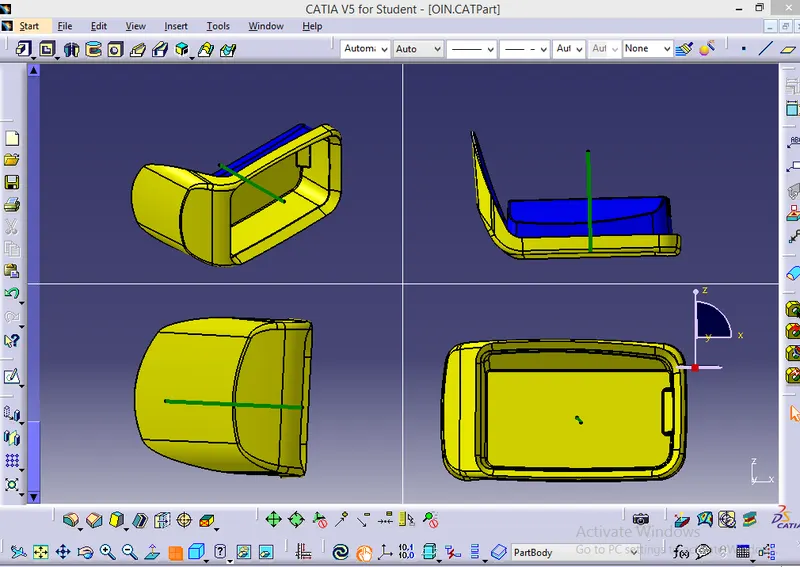

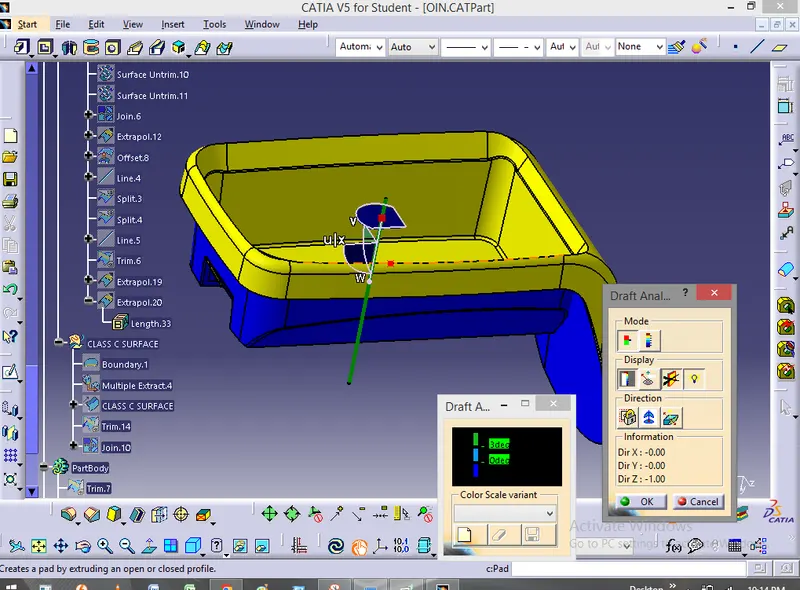

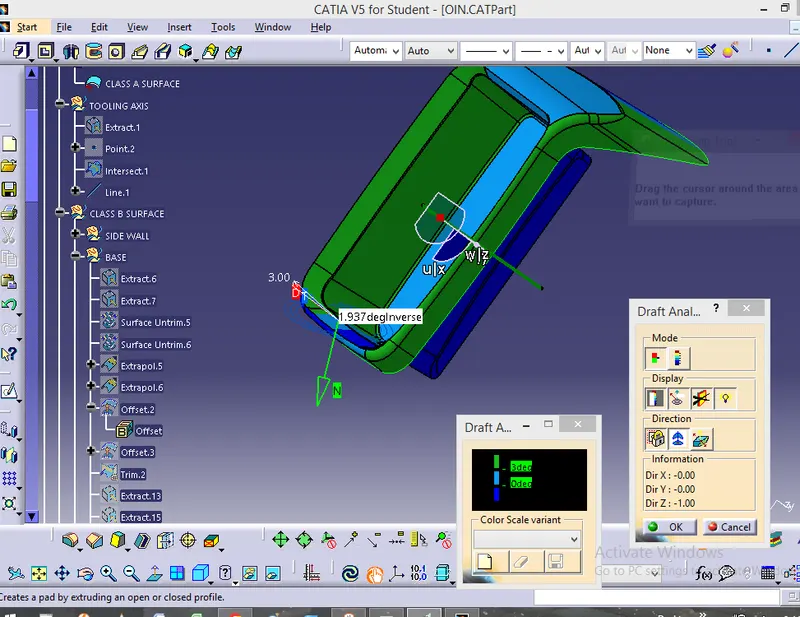

Sine the part isnt drafted some of the surfaces of the part are not geen in draft analysis.
