Week 8 - Challenge 6 - Core & Cavity Design

CORE AND CAVITY DESIGN

Core & Cavity Design in Switch bezel

TOOLING AXIS CREATION

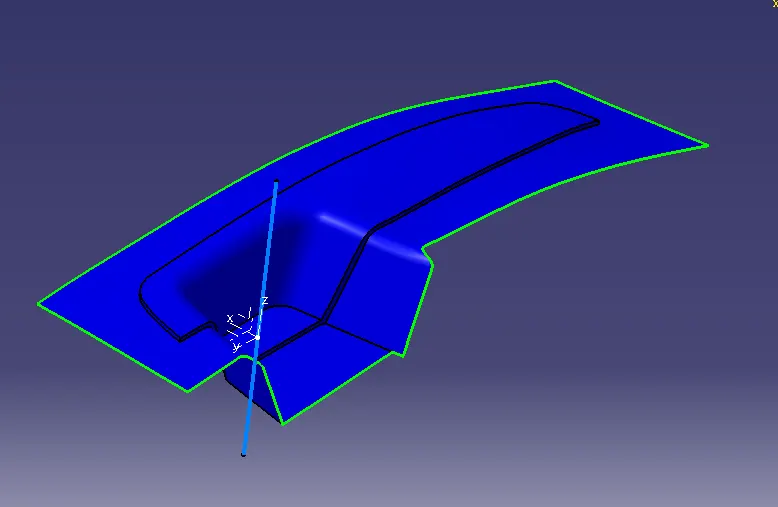

1.) A line normal towards the top view was created as a reference axis.An intersection was created along the front face to get the surface profile.With the help of two lines on the profile we created a bisecting line.

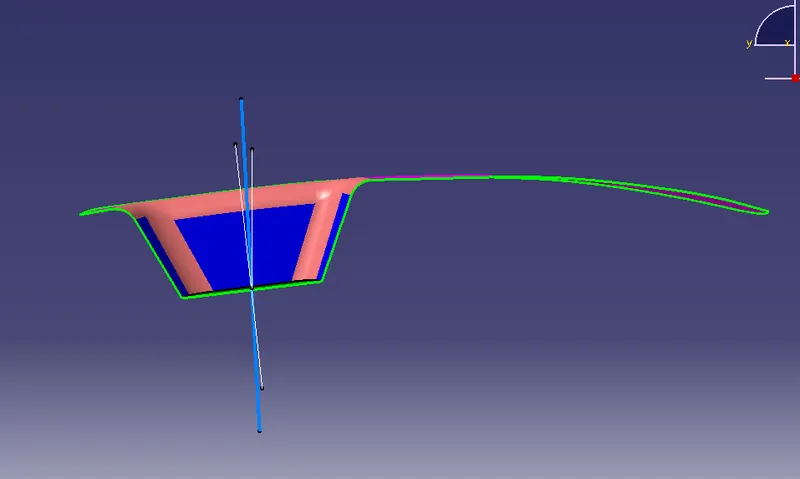

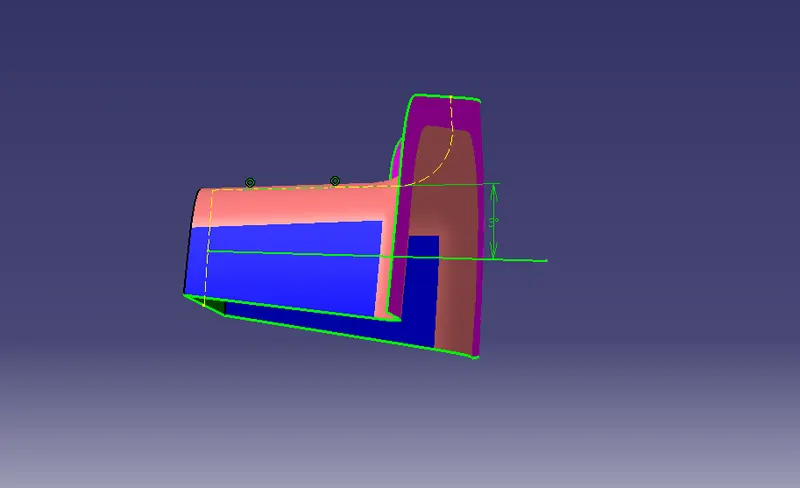

2.) Create an intersection along the front face to get the surface profile and using them we will make an angled line as another reference tooling axis.

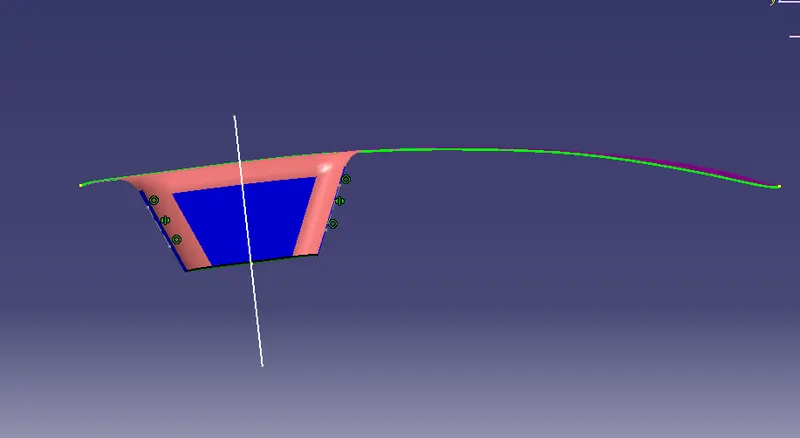

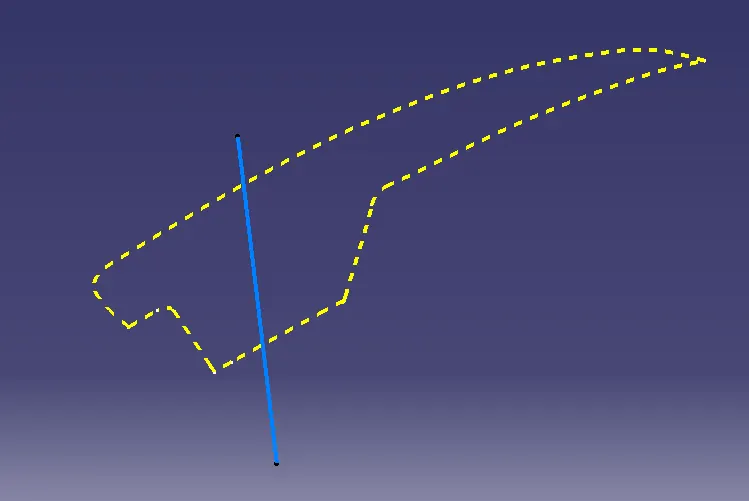

3.)From the two reference axis which we have created, we will create a common bisecting line which will be our main tooling axis.

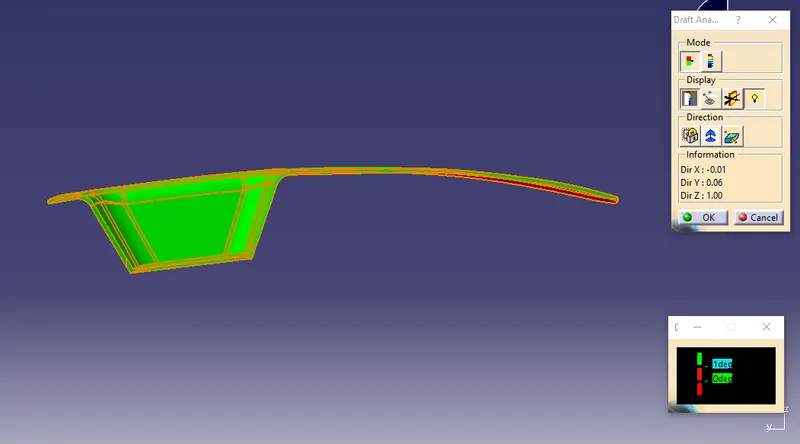

DRAFT ANALYSIS IS DONE IN THE SOLID CLOSED SURFACE

The draft angle of 1 degree is given and the surfaces are cleared in the provided draft angle.

PARTING SURFACE WITH COMPONENT AREA

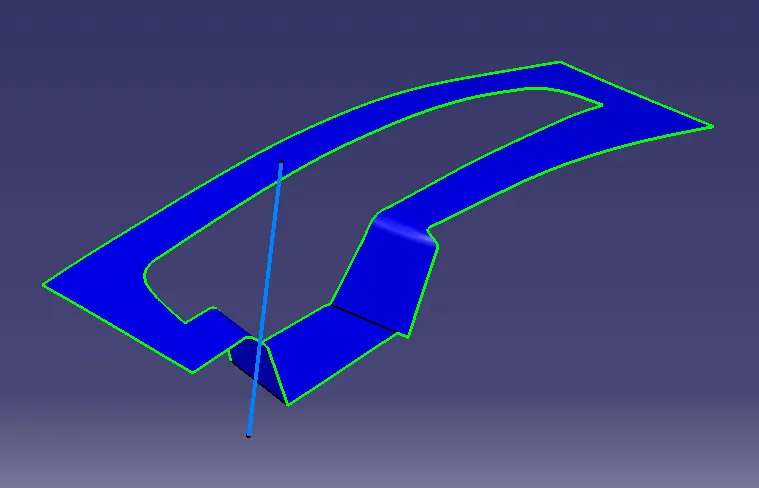

PARTING SURFACE

PARTING LINE

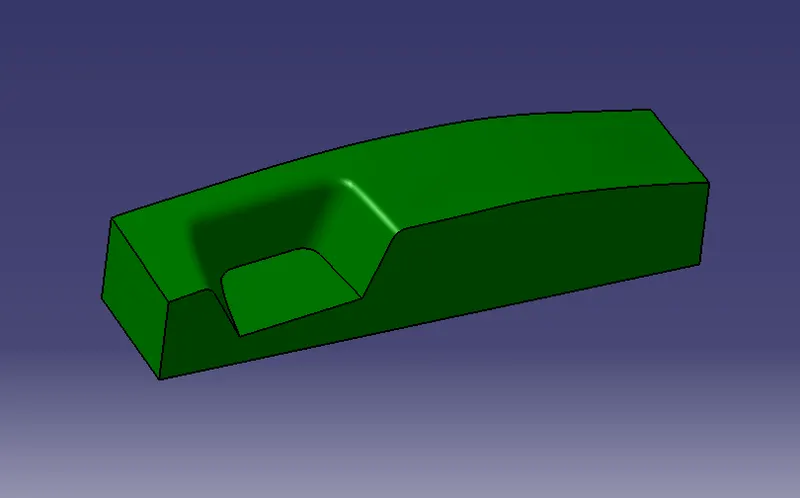

CORE

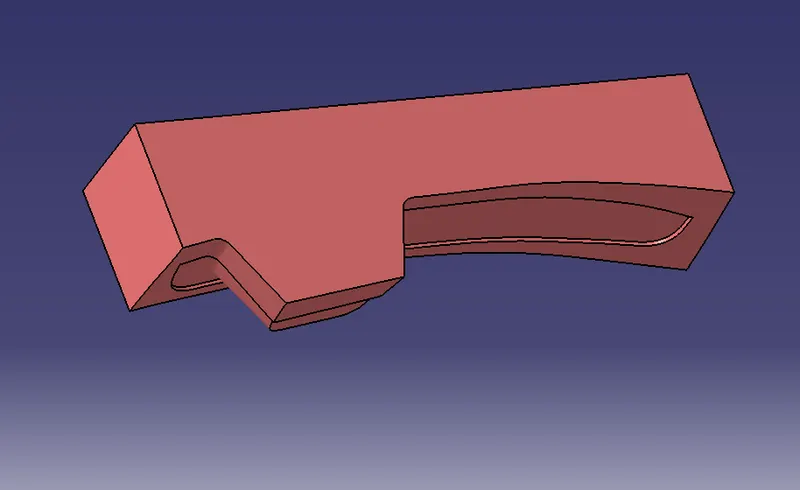

CAVITY

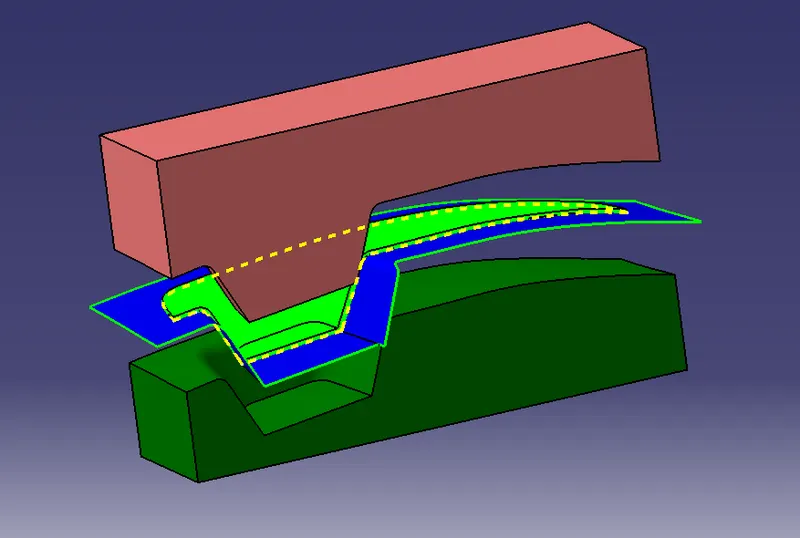

MOULDING COMPONENTS
