Week 8 - Challenge 2 - Switch Bezel Design

SWITCH BEZEL DESIGN

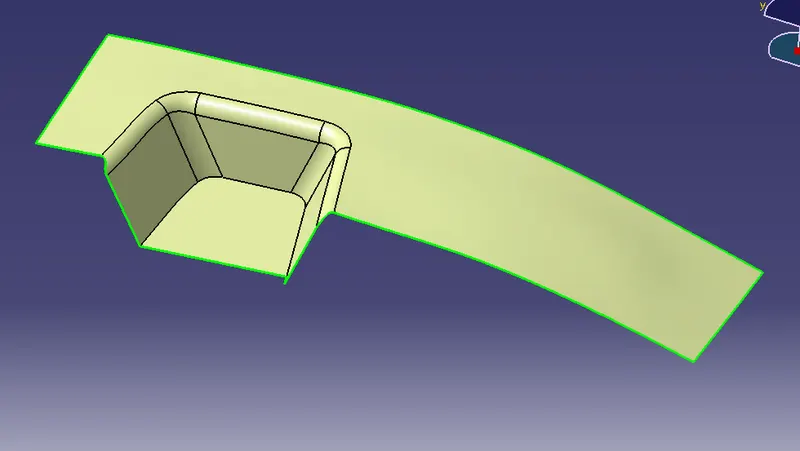

CLASS A SURFACE OF THE SWITCH BEZEL

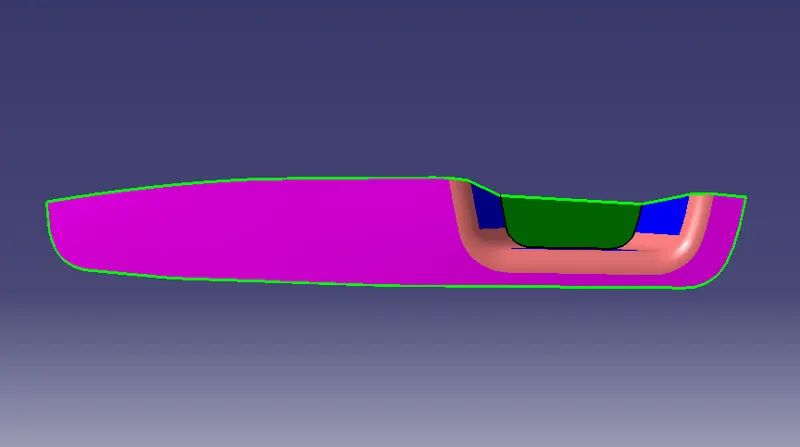

Class A surface Front view, top view and side view

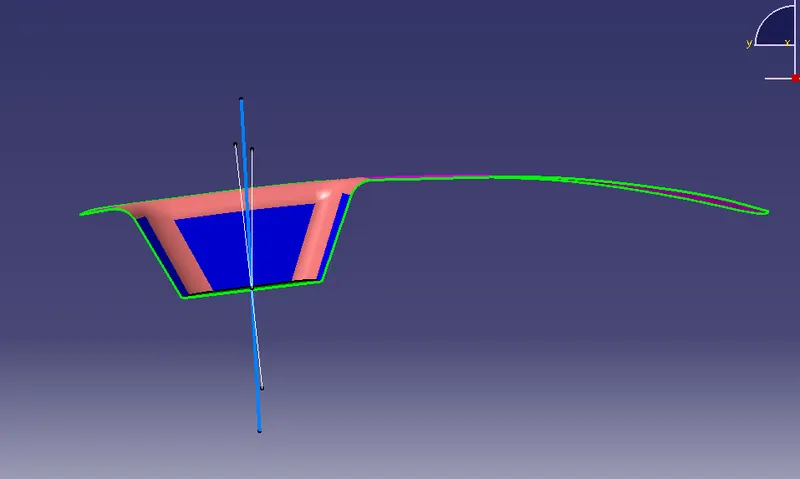

TOOLING AXIS CREATION

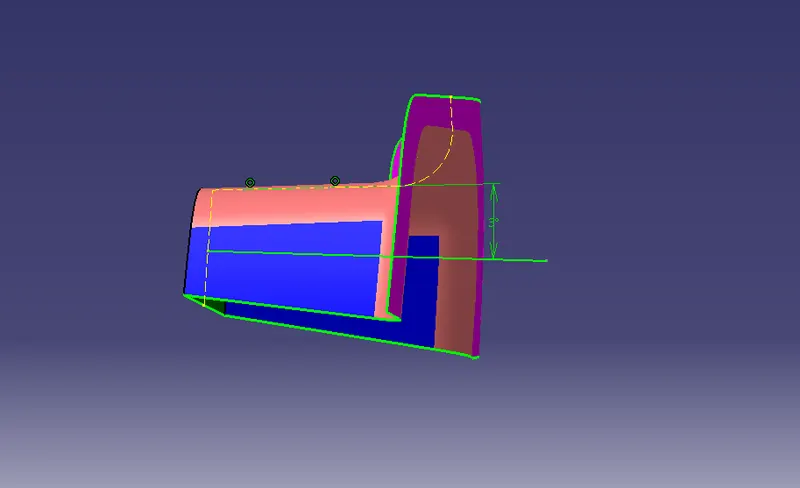

1.) A line normal towards the top view was created as a reference axis.An intersection was created along the front face to get the surface profile.With the help of two lines on the profile we created a bisecting line.

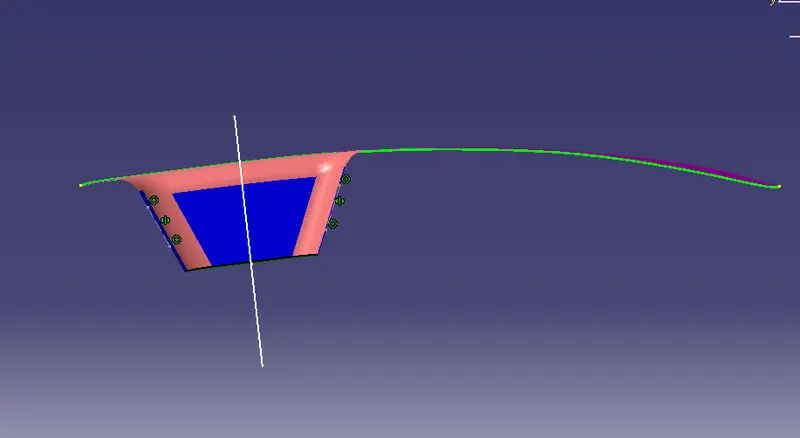

2.) Create an intersection along the front face to get the surface profile and using them we will make an angled line as another reference tooling axis.

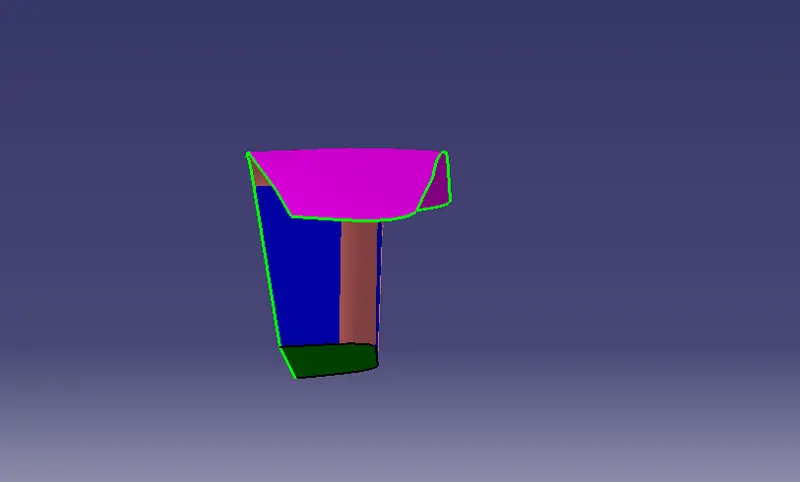

3.)From the two reference axis which we have created, we will create a common bisecting line which will be our main tooling axis.

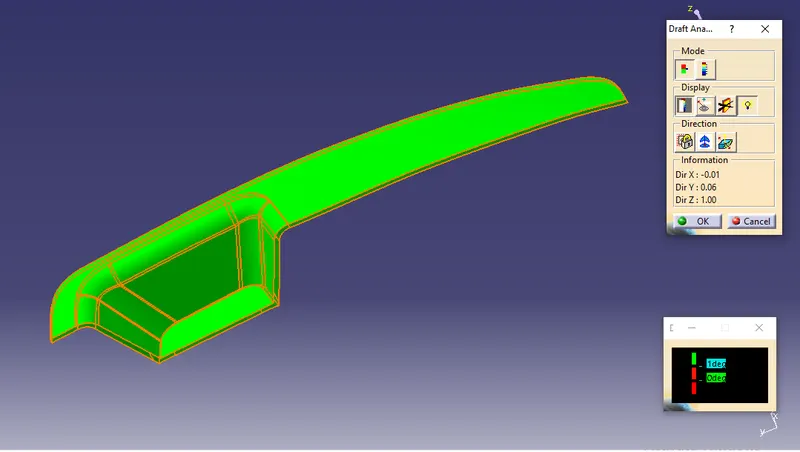

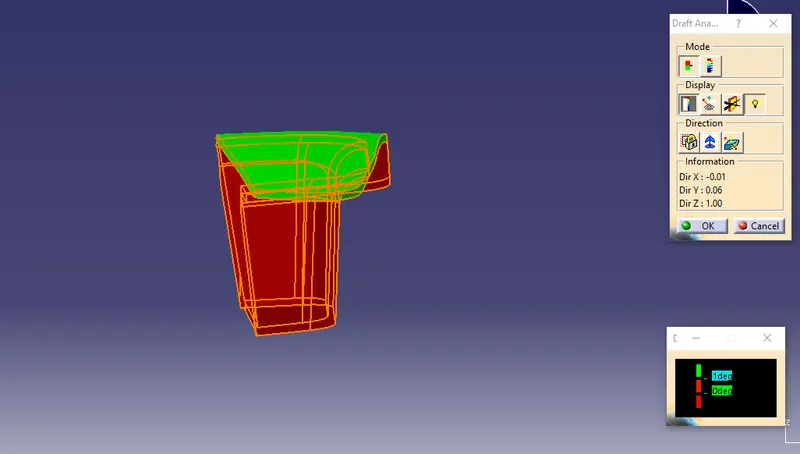

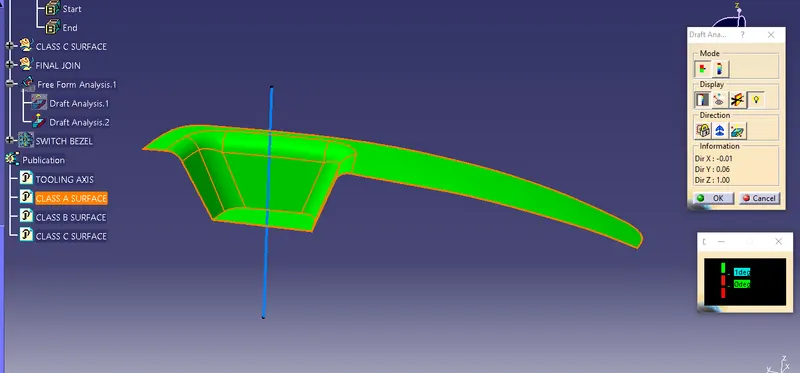

Draft Analysis was done in the Class A surface using the tooling axis with a draft angle of 1 degree.its found that all the faces are clearing the drafting angle of tooling axis.

Creation of Class B and C Surfaces

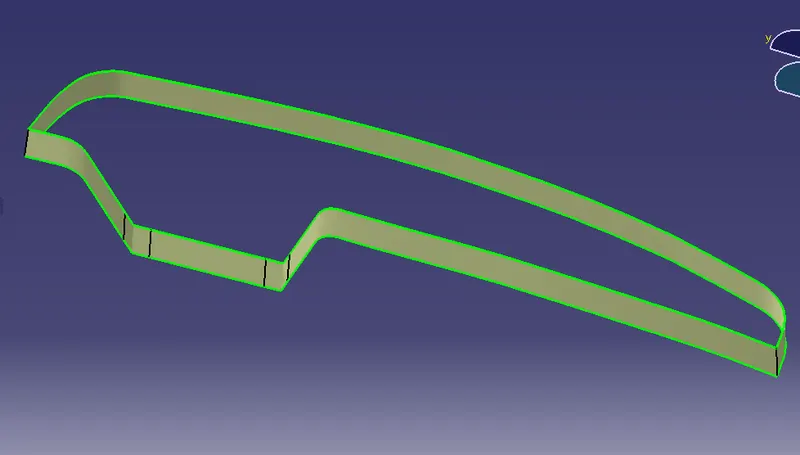

CLASS B SURFACE

CLASS C SURFACE

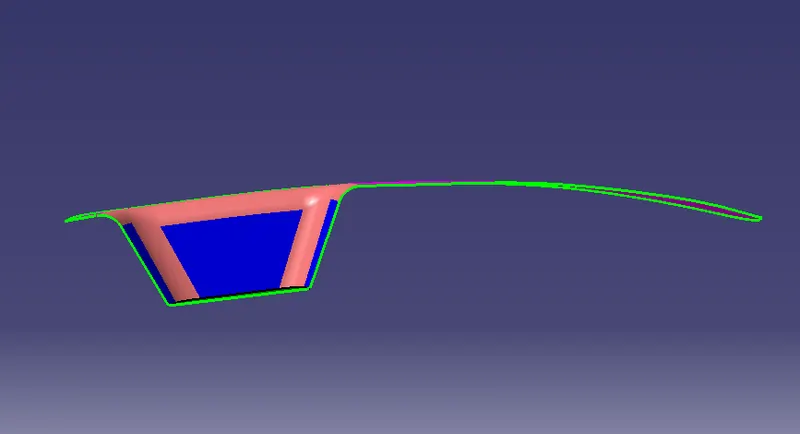

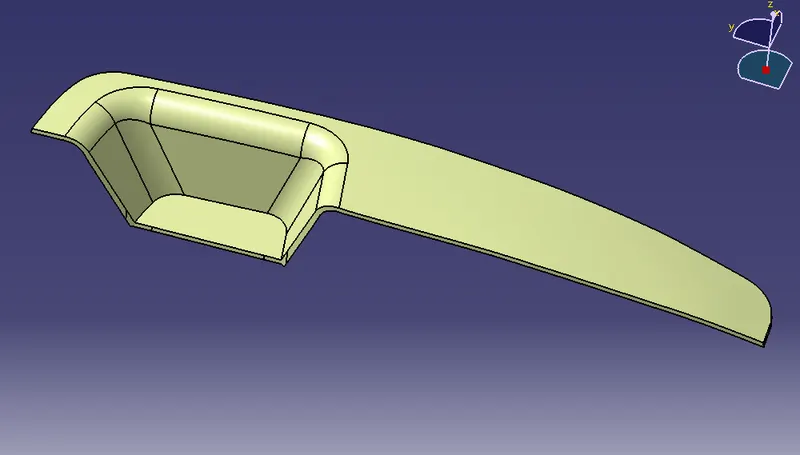

Final surface after Trim Operation

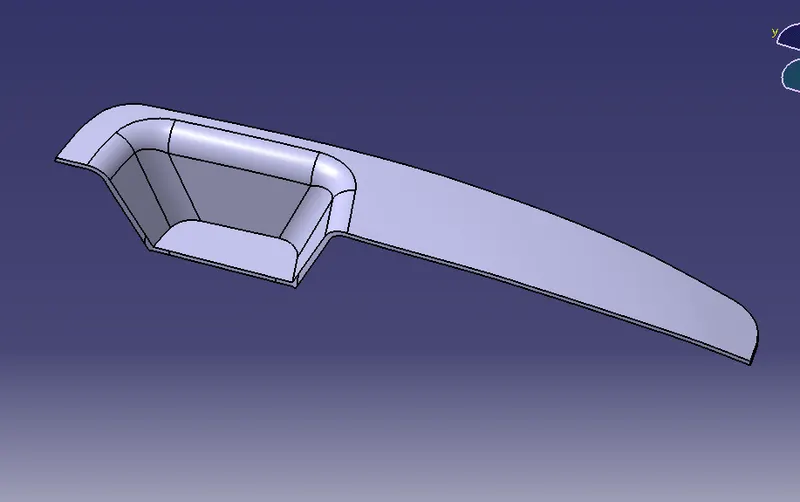

SOLID CLOSED SURFACE

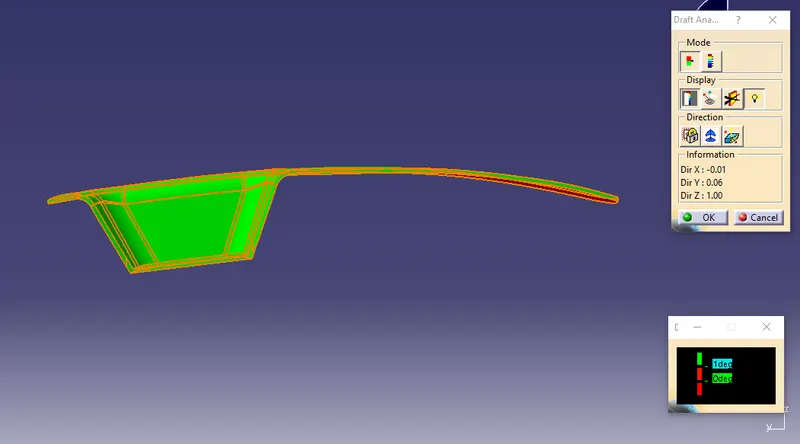

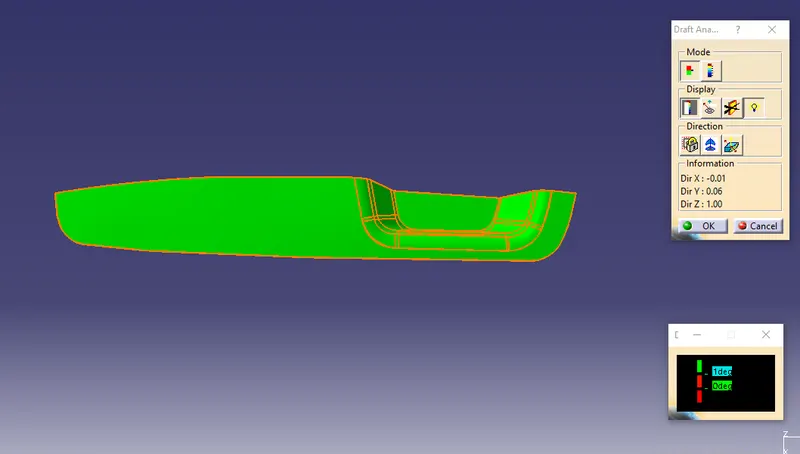

DRAFT ANALYSIS IS DONE IN THE SOLID CLOSED SURFACE

The draft angle of 1 degree is given and the surfaces are cleared in the provided draft angle.
