Week 8 - Challenge 6 - Core & Cavity Design

Draft analysis:- Draft analysis is required to check if a part has required draft or not. The draft analysis refers to a Tool that allows us to deteermine if we can remove the part we are designing.Here I used Analysis option, change the mode into material view first and then I could perform Draft analysis regarding Tooling Axis.Here I have given Draft angle 3 degree.

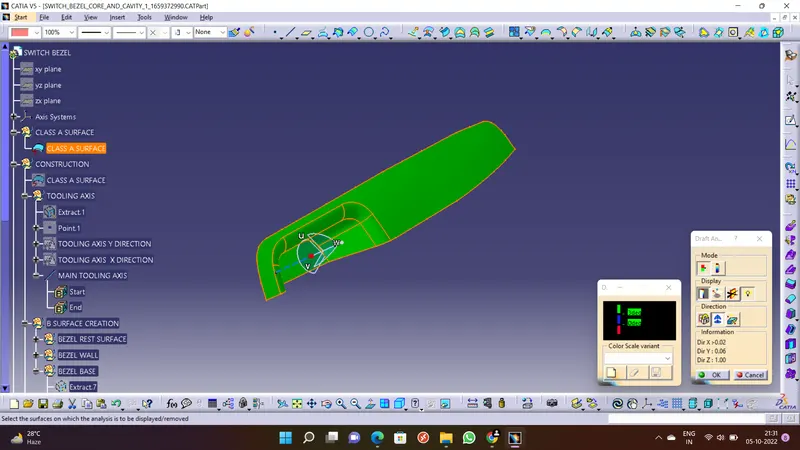

Draft analysis of Class A surface.

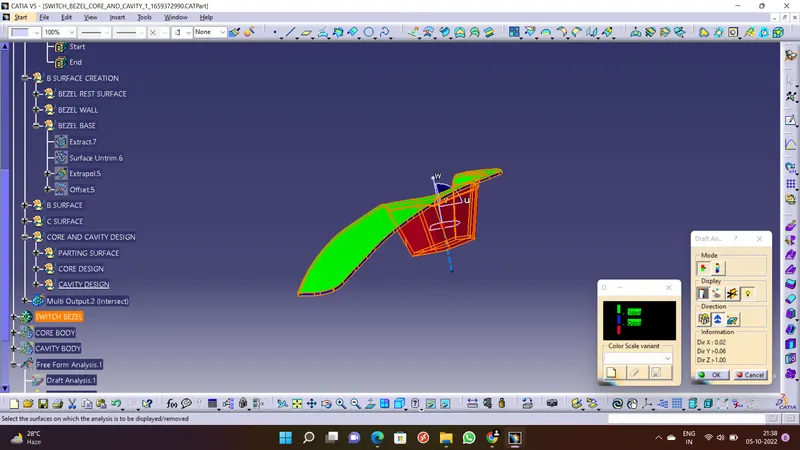

Draft analysis of complete switch bezel.

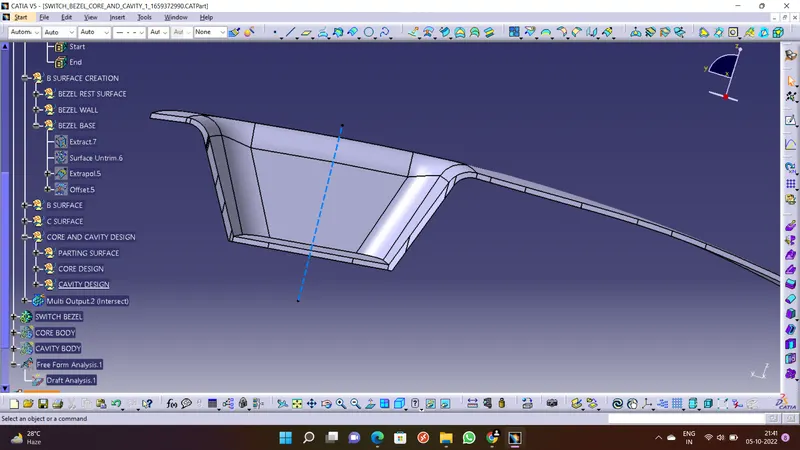

Tooling axis:-The Tooling Direction is basically the direction that the mold pulls apart.The mold is built in twoseperate pieces, basically we have a Cavity and Core side.The Core pulls apart from the cavity.

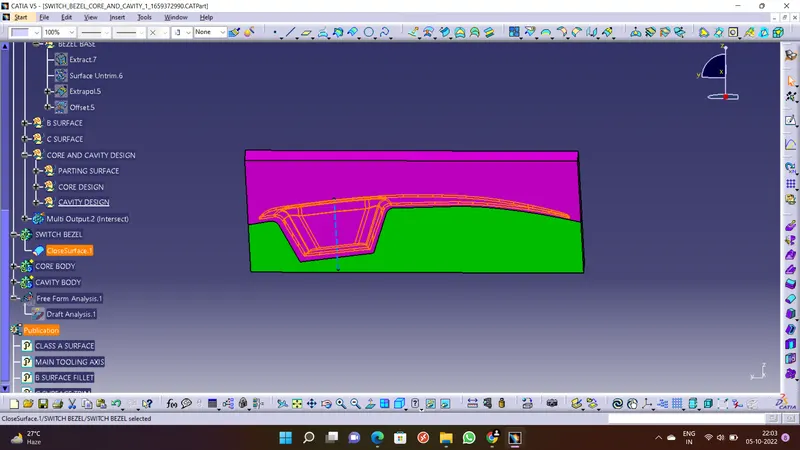

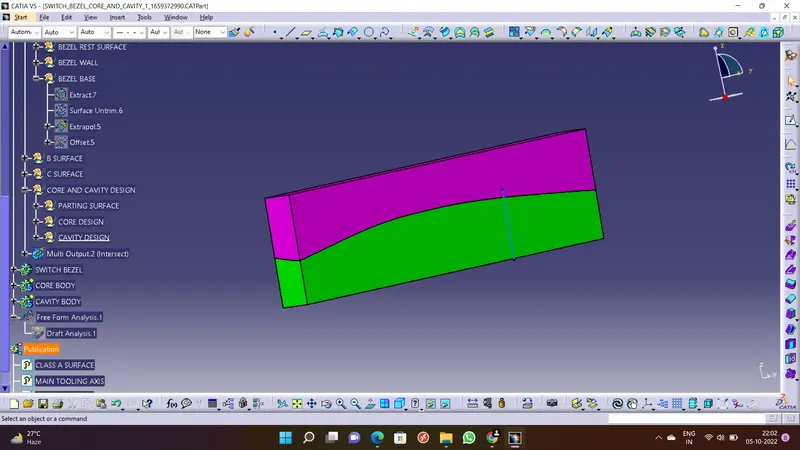

In this challenge I have created CORE BLOCK & CAVITY BLOCK along with Parting line & Parting surface.

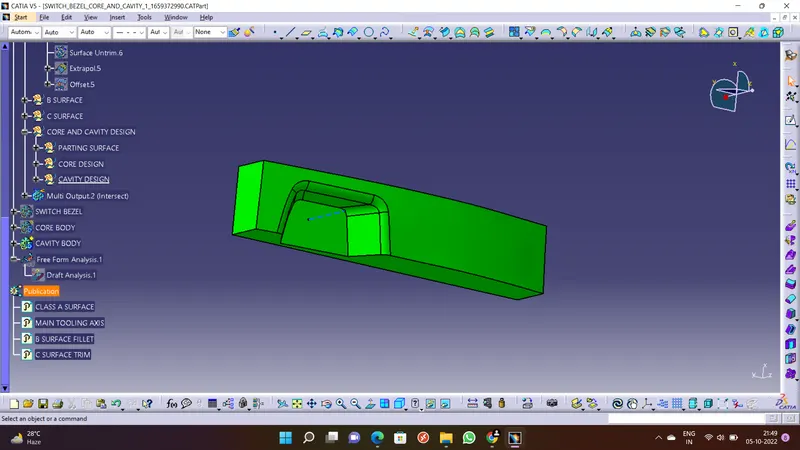

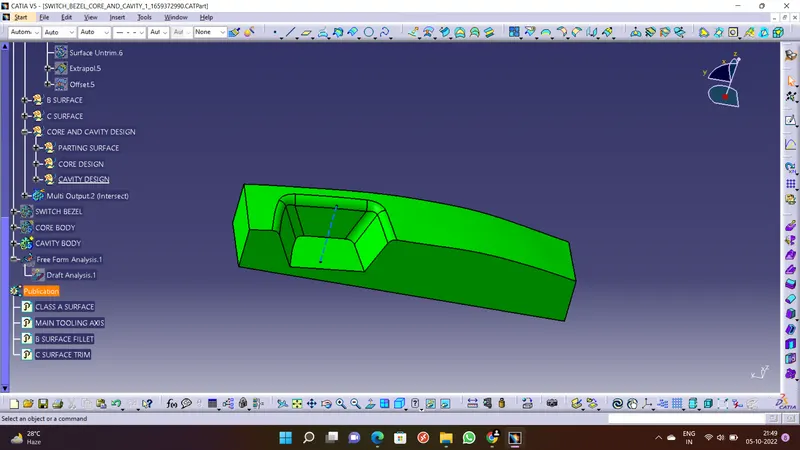

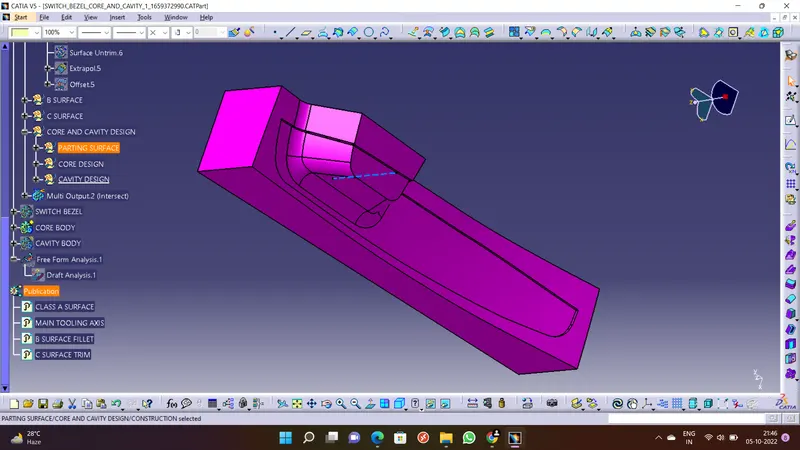

Core Block

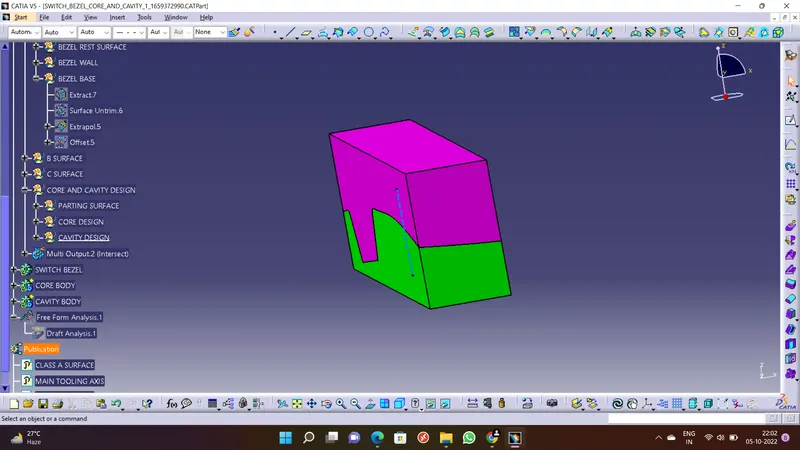

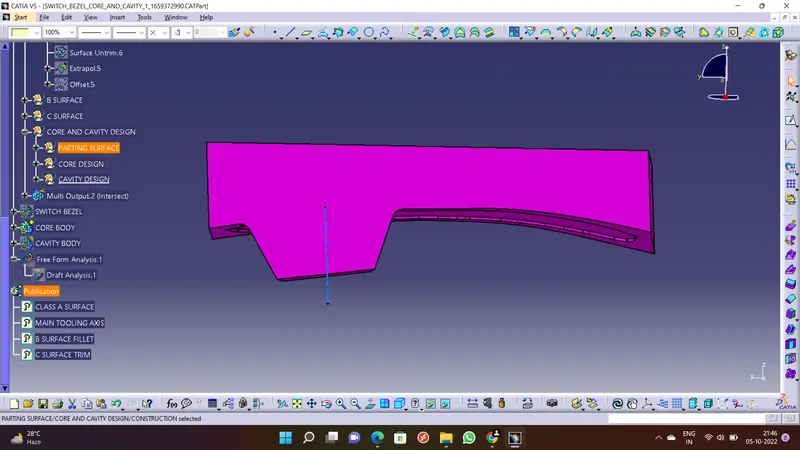

Cavity Block

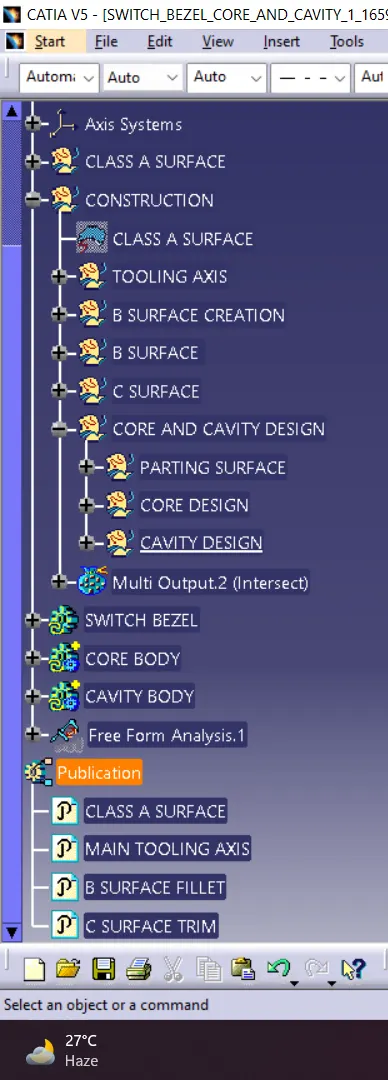

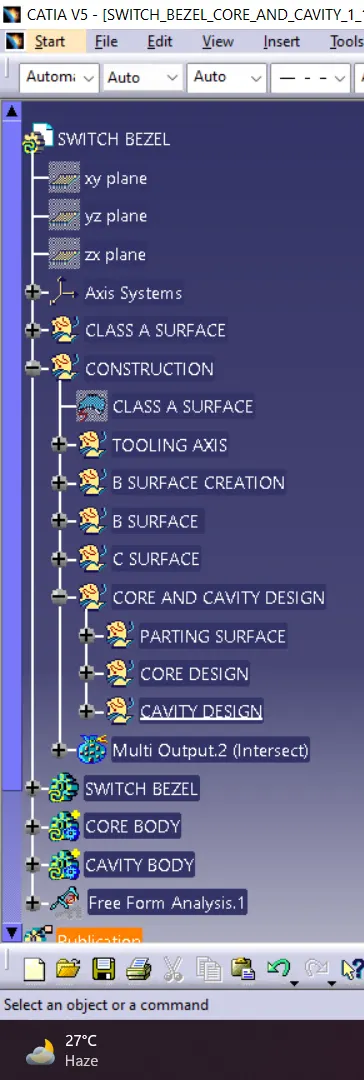

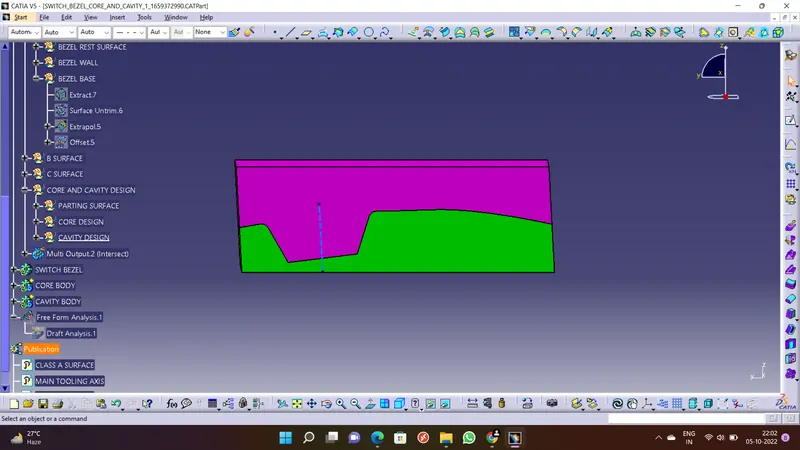

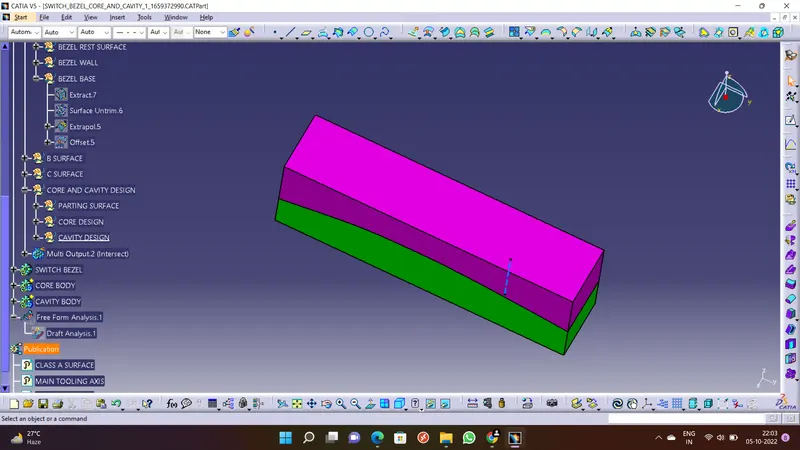

• ALL VIEWS AND FEATURE TREE ARE AS FOLLOW:

.
