Week 8 - Challenge 6 - Core & Cavity Design

Week 8 - Challenge 6 - Core & Cavity Design

Aim – To create the core and cavity Design for the switch bezel

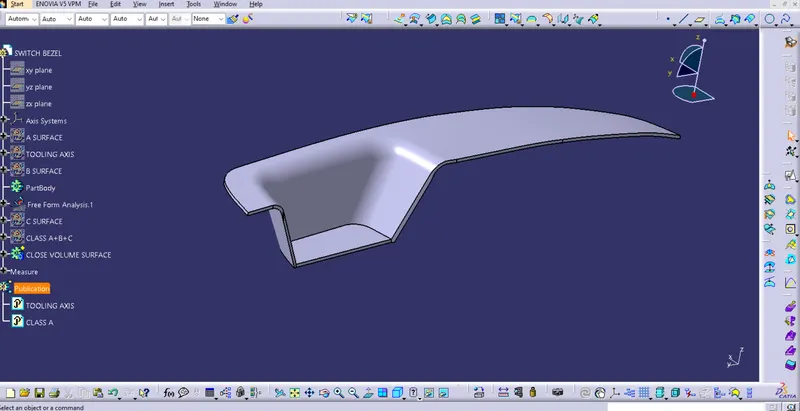

Solid part model of switch bezel created by joining class A+B+C surface

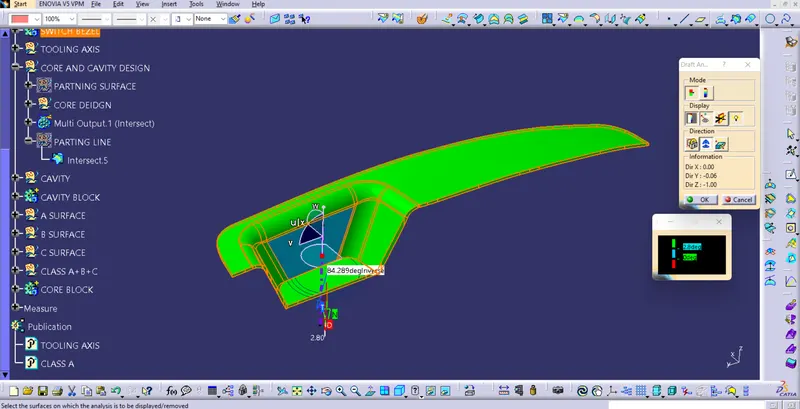

Draft analysis of the Class A model

Partning surface

Injection molding have two major components the movable halve and the fixed halve, this two halve are pressed tightly and formed sealed hollow to avoid the melt flow leakage and maintain holding pressure, the pressed surface are called parting surface

Partning surface affects the product quality

Ease of construction

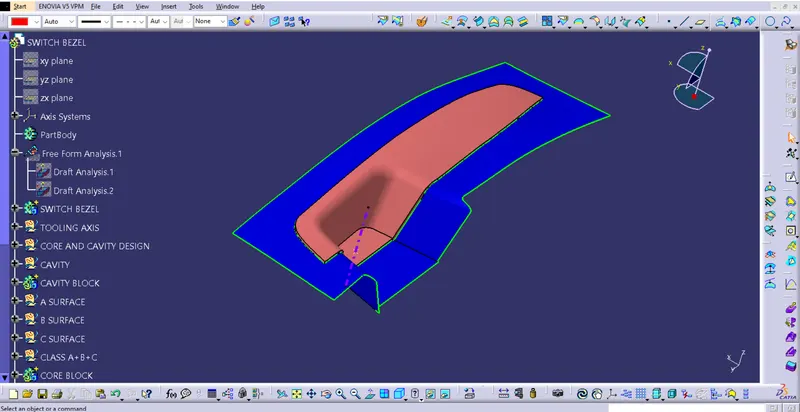

Mold design is one of the key factor for sucess.The blue surface showing the parting surface.

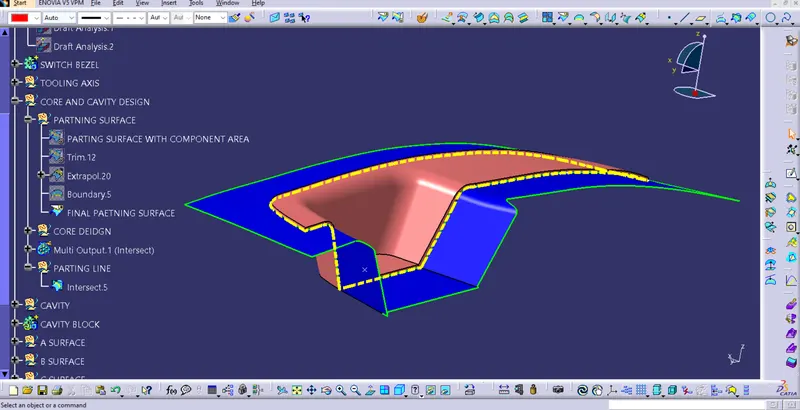

Parting line - Internsection between the parting surface and the component where the core and cavity halve split is called parting line. the yellow dotted line showing the parting line

Core block- core is the projection part

cavity block- cavity is the depression part

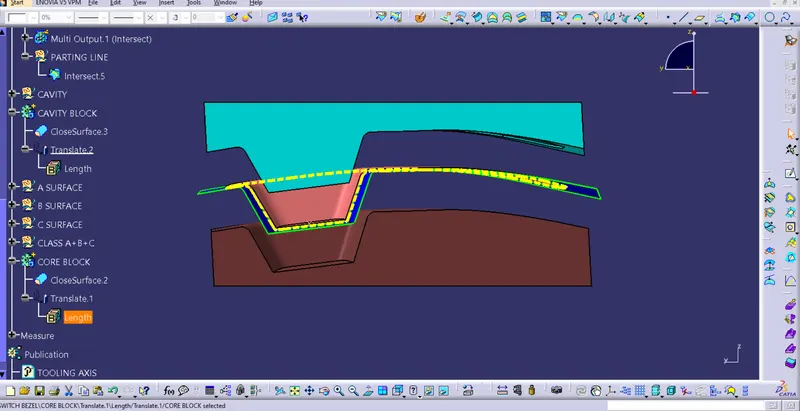

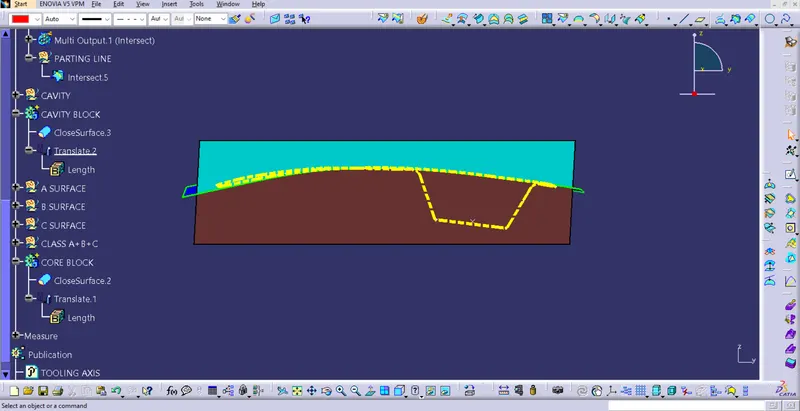

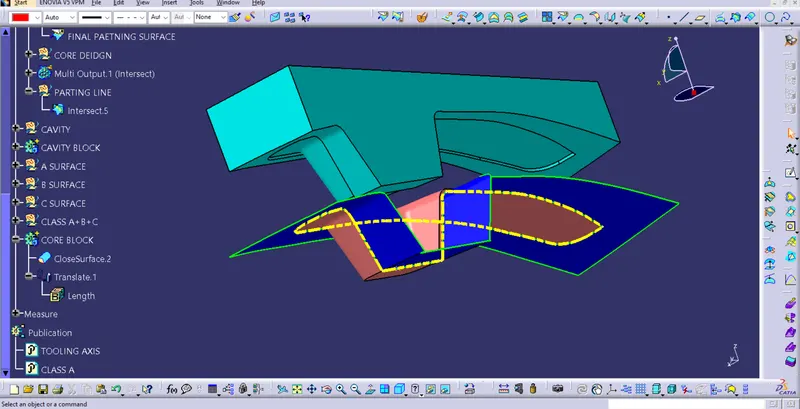

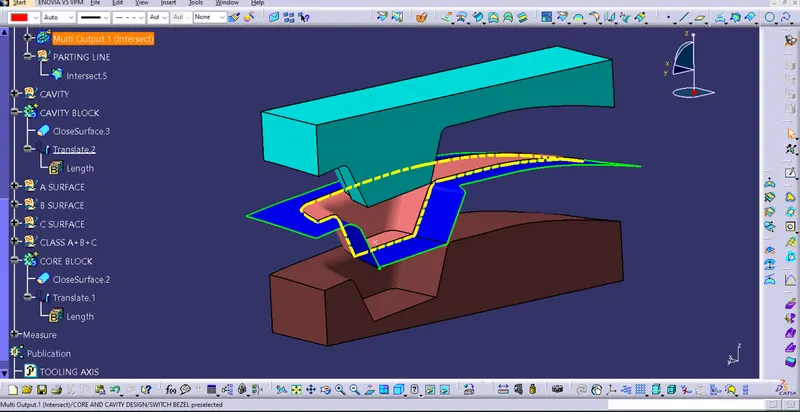

Core and Cavity
