Week 8 - Challenge 5 - Core & Cavity Design

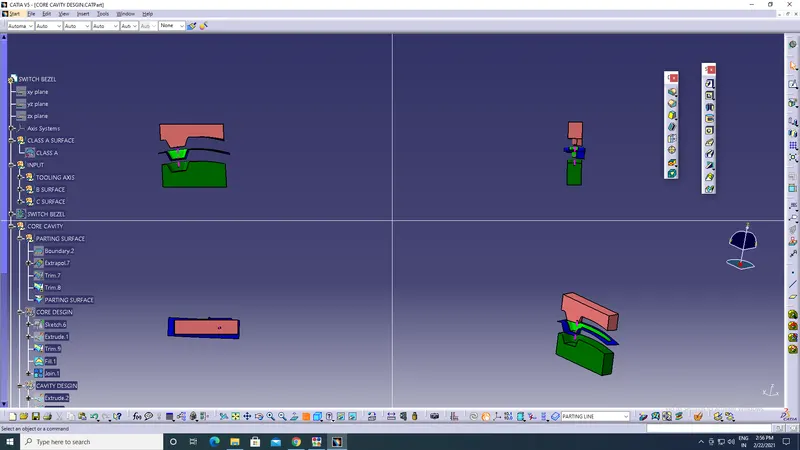

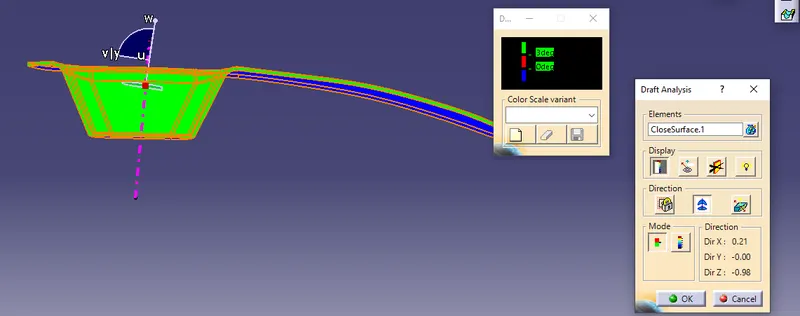

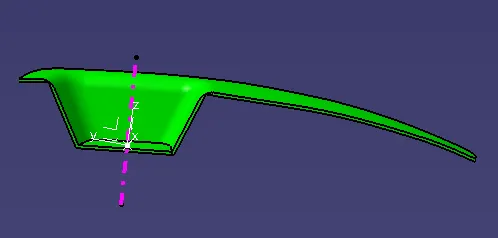

Core and cavity design

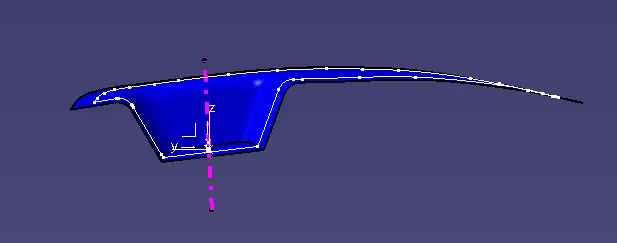

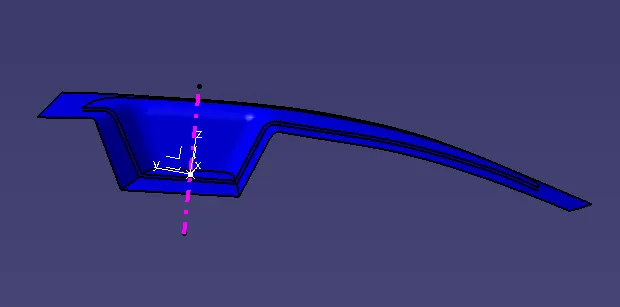

Parting surface:

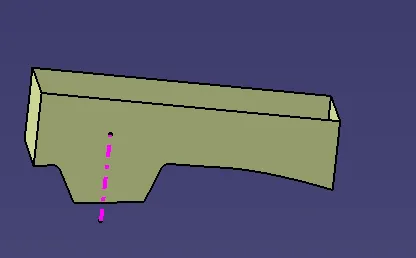

Take a boundary from class A surface and extrapolate it.

make trim with the C surface.

Now trim with the B surface to get the parting surface with the component.

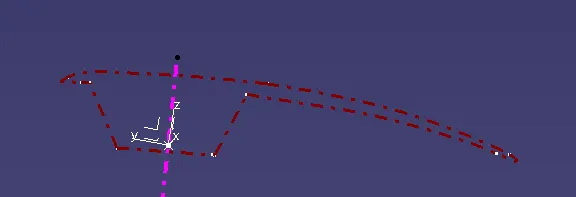

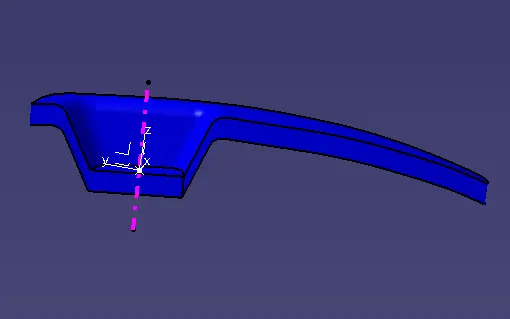

Making an intersection with the B surface and C surface to get the parting line.

split the parting line and parting surface with the component to get the parting surface.

Core design:

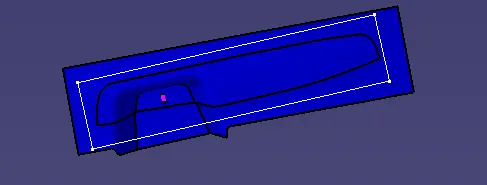

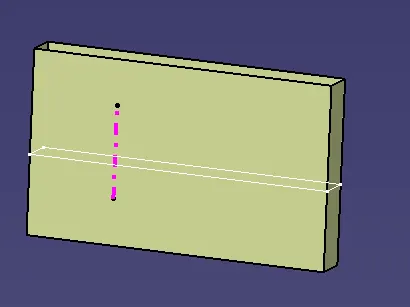

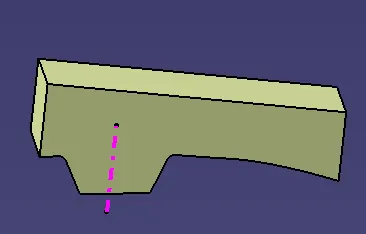

Draw a sketch and make extrude.

make sure that the sketch does not cross the parting surface.

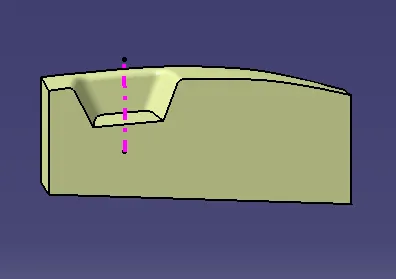

trim with extruding surface and parting surface.

Make a fill and join them.

Cavity design:

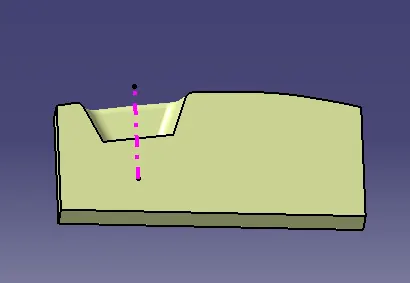

Similarly make trim with the extrude and B surface.

Make a fill and join them.

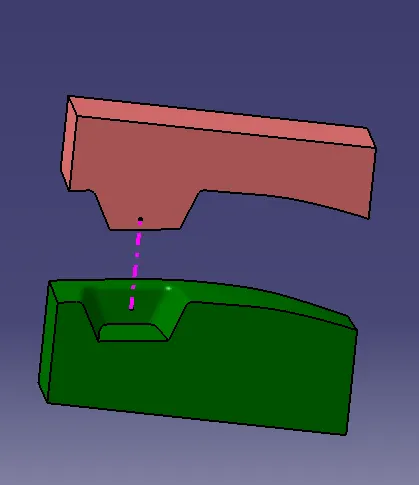

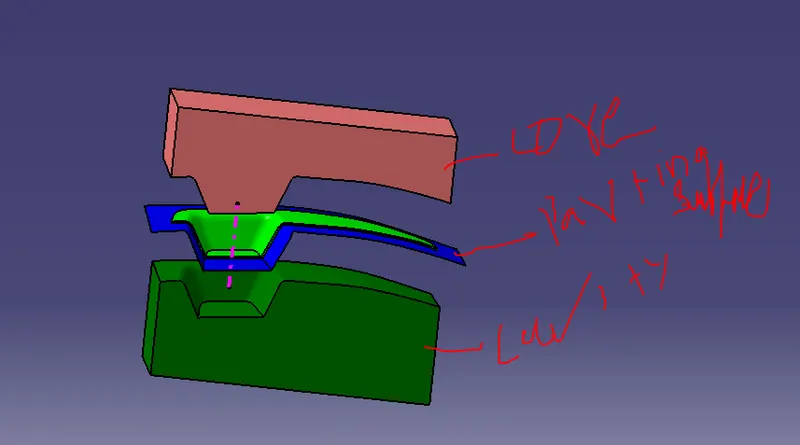

Make both of the core and cavity into solid bodies.
