Week 8 - Challenge 5 - Core & Cavity Design

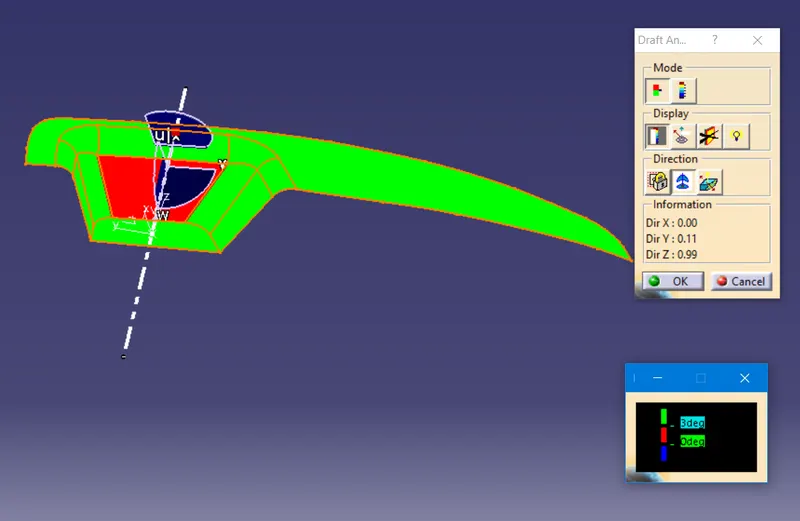

1. DRAFT ANALSYIS FOR SWICH BEZEL COMPONENT

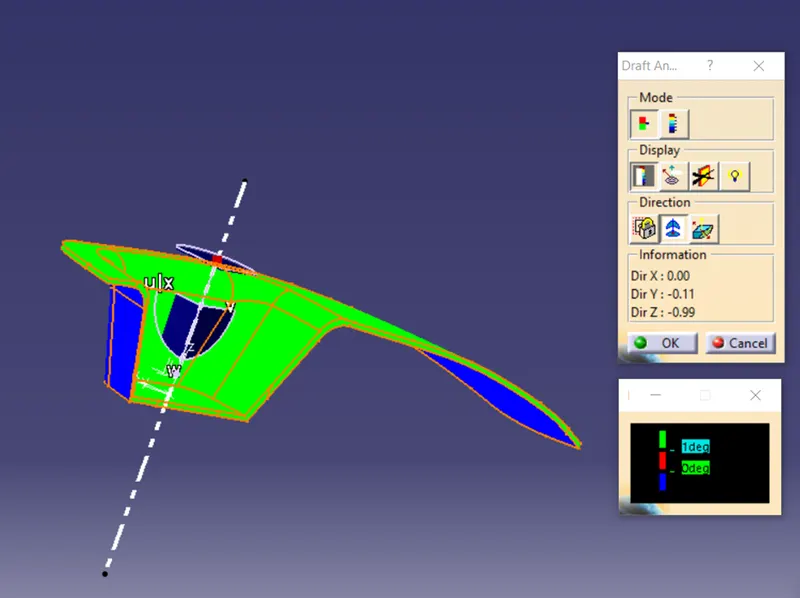

CONSIDERING THE DRAFT ANSLYSIS STANDARD MAX 3DEG ANGLE IS ACCEPTABLE AND THOSE RED PLACES HAVE LESS THAN 0 DEG ANGLE SO WILL WILL TAKE MIN VALUE AS 1 DEG TO PASS THE DRAFT ANGLE FOR THIS CLASS A SURFACE

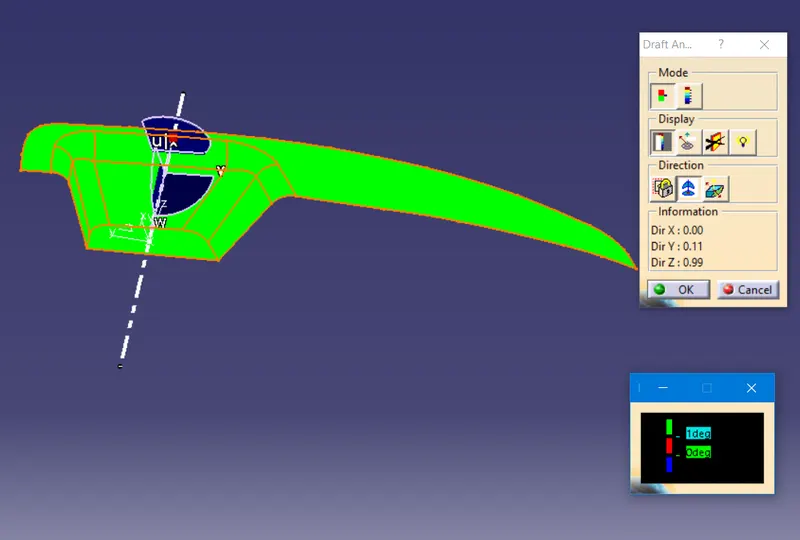

SO, WEHN WE CONSIDERD AS A MIN VALUE IS 1DEG THE CLASS A SURFACE GETS PASS OVER ALL PLACES.

2. CORE

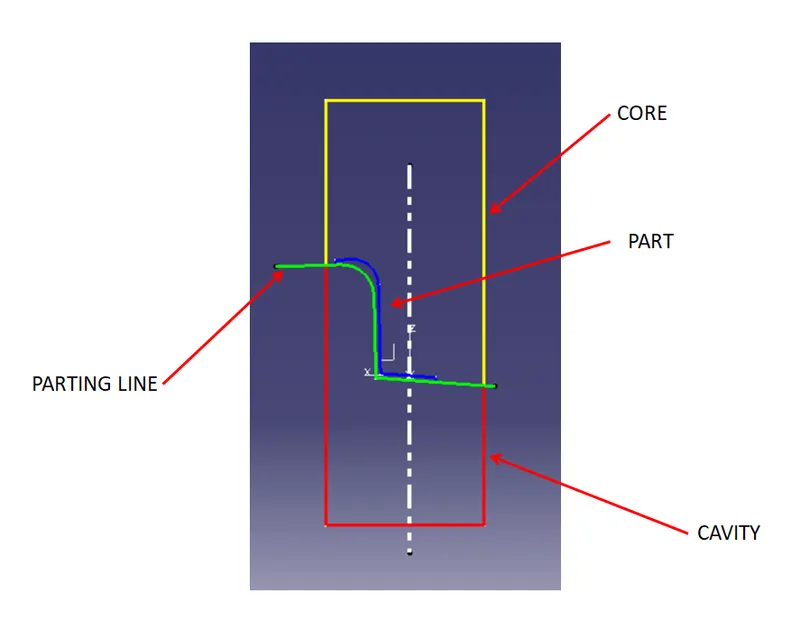

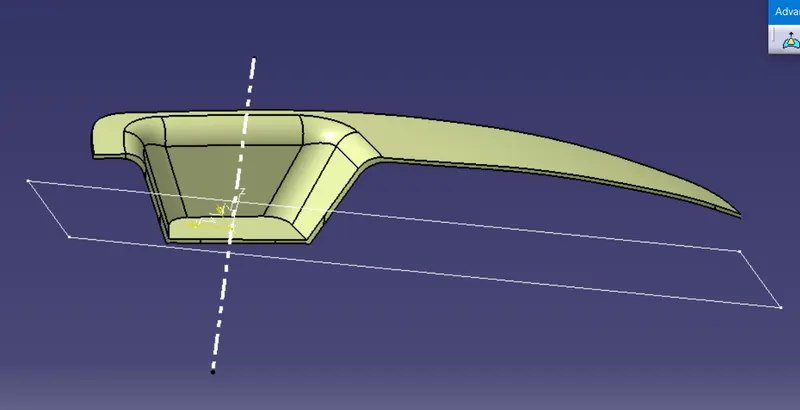

ACCORING TO THE CRATING OF TOOLING AXIS WE HAVE CREATED A CO-ORDINATE AXIS AND TAKING THE ZX PLANE TO CREATE THE EXTURDE SURFACE TO CREATING THE CORE AND CAVITY

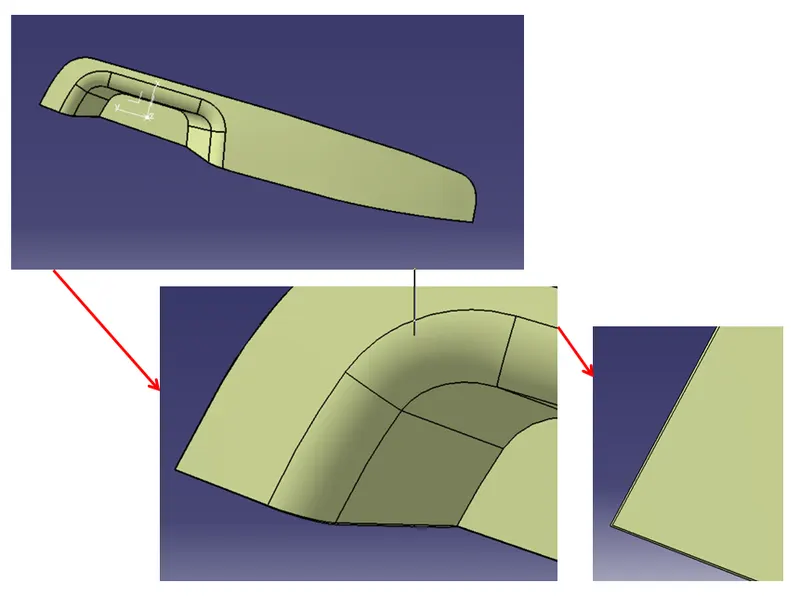

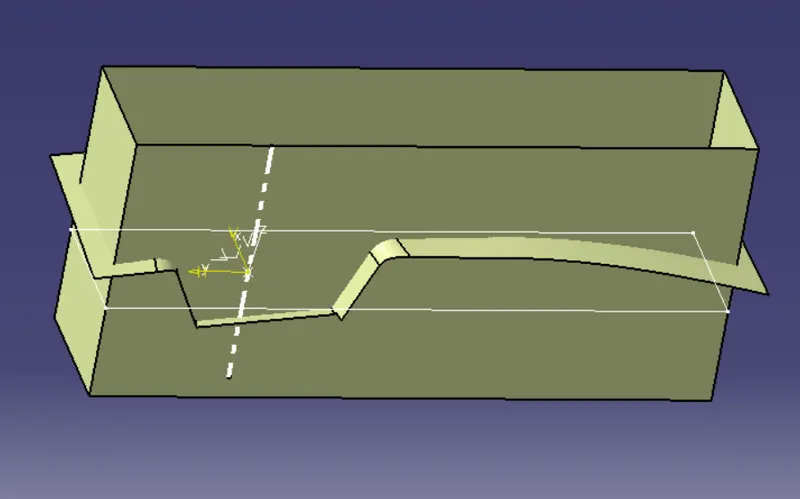

CREATE AS EXTURDE BOTH THE ENDS AND MAKE SURE THAT ALL THE SURFACE ARE IN TO THE CLASS B SURFACE TO TRIM CLASS B AND SEPREATION OF CORE AND CAVITY EXTURDE

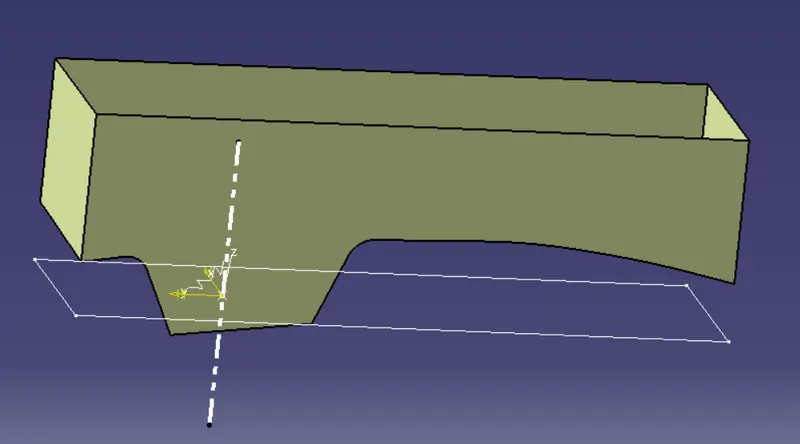

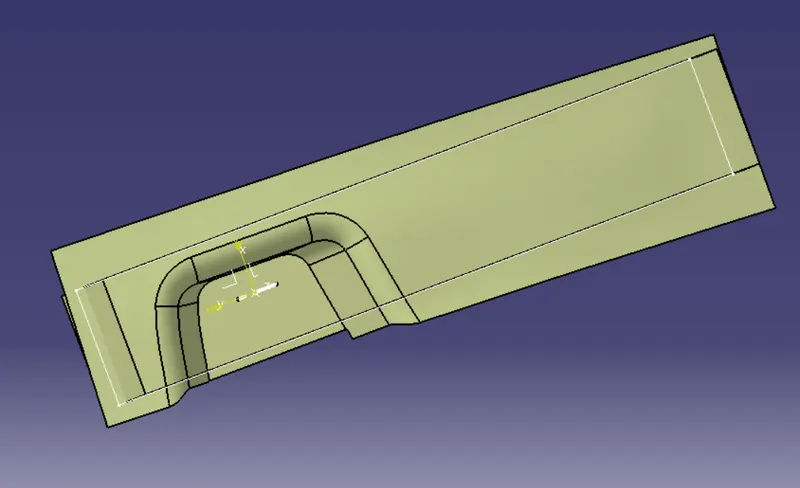

NOW TRIM THE CLASS B WITH THE EXTURDE FOR CORE PART AND USE THE FILL COMMAND TO FILL THE TOP PORTION OF IT.

3. CAVITY

ACCORING TO THE CRATING OF TOOLING AXIS WE HAVE CREATED A CO-ORDINATE AXIS AND TAKING THE ZX PLANE TO CREATE THE EXTURDE SURFACE TO CREATING THE CORE AND CAVITY

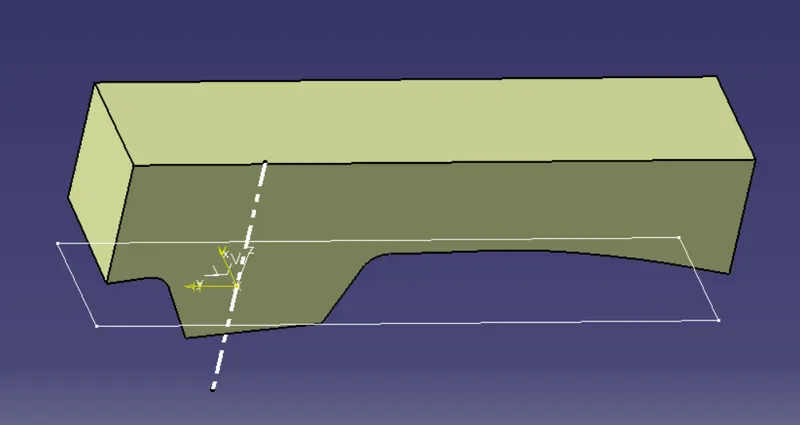

TRIM THE CLASS B AND EXTRUDE TO FORM CAVITY PART

ACCODING TO THE TOOLIN AXIS THE EJECTION FACE IS VISIBLE SO THAT WE CAN CONCLUDE THAT EJECTION WILL BE SAFE

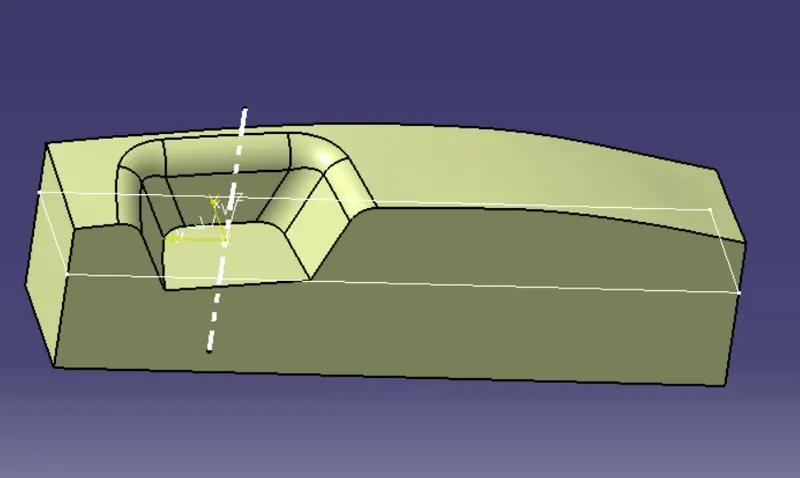

NOW CAVITY BLOCK IS FORMED NOW INTERSECT THE COMPONET TO SEE THE CORE AND CAVITY SEPERATION

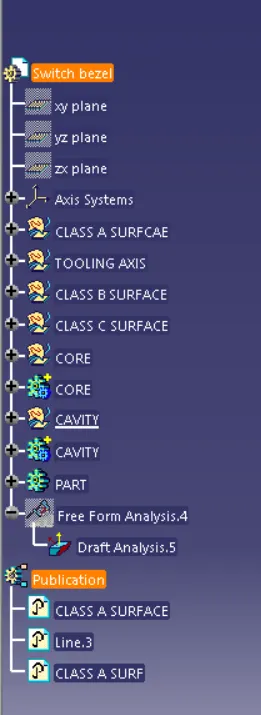

TREE STRUCTURE
