Week 8 - Challenge 4 - Coin Holder Design

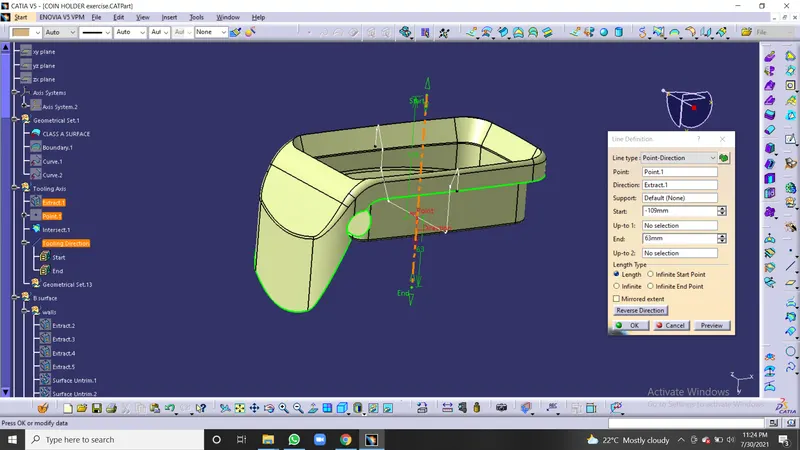

Tooling Axis-

- Check the Connectivity of class A Surface: these can be done by creating boundaries or by joining command if there are any gaps or openings they will be easily visualized.

-Visually analyse the best possible tooling axis.

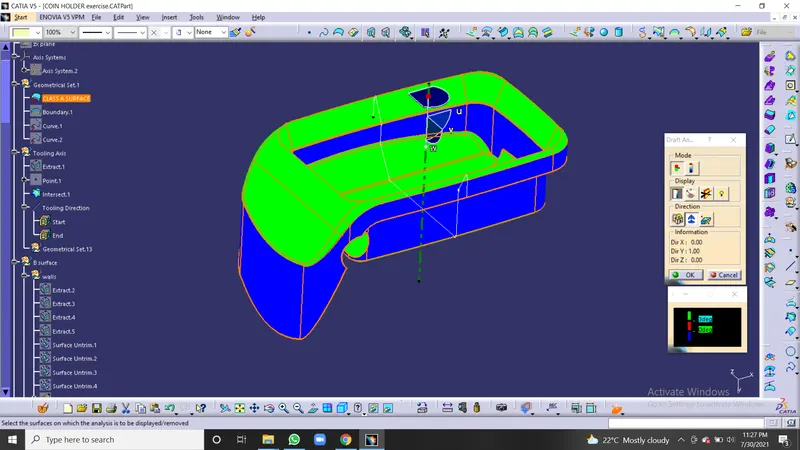

-the clearance checking along all the axis on the plane with the model and constructing two lines contact with the walls, the line bisecting the two lines and passing through the point will be the tooling Axis.

For This, we have to use the intersection command to get the intersection of the class a

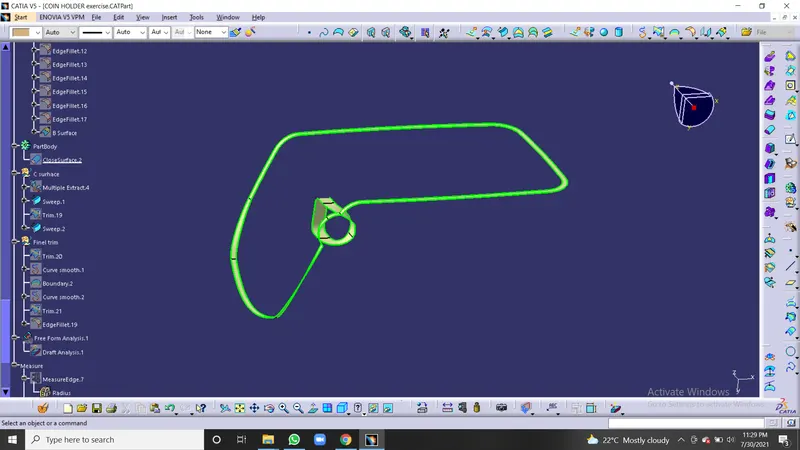

Intersection-

To create an intersection line we have to extract the plane surface and create the point on it and insert an axis system

by using the intersection command with the input of the plane along with the surface . as output, the single line will be visible along the surface with the line we can observe the draft of the lines easily.

in this cat part, none of the walls is having a draft, which means every wall is at 0deg, For components like this, we can simply draw the tooling axis normal to the surface.

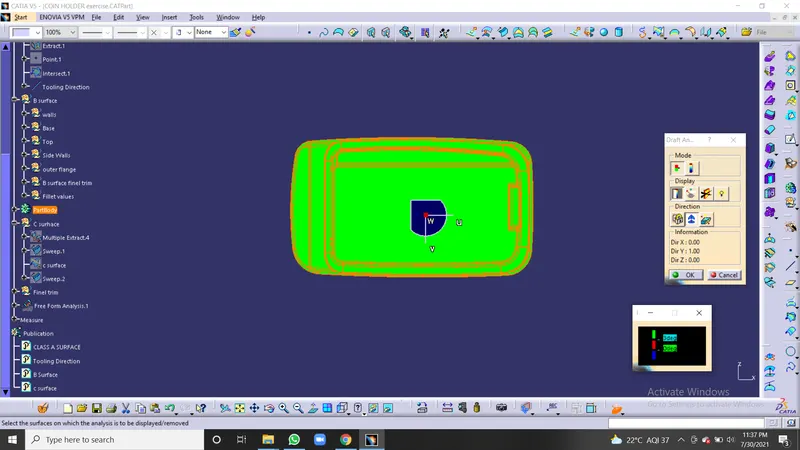

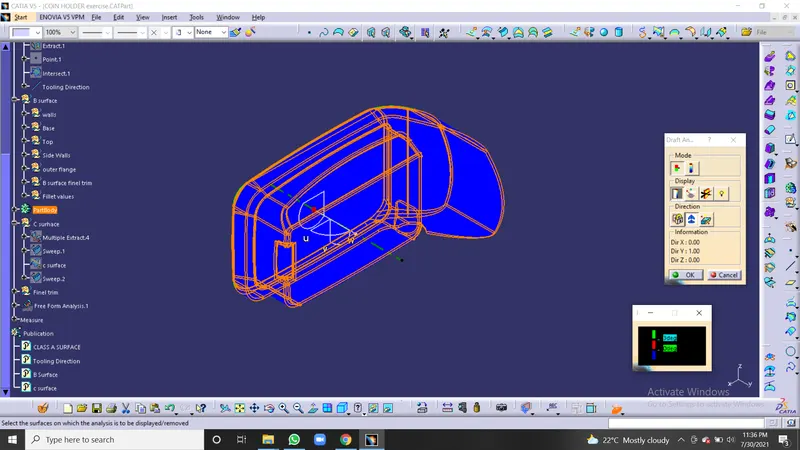

Draft analysis on Class A surface-

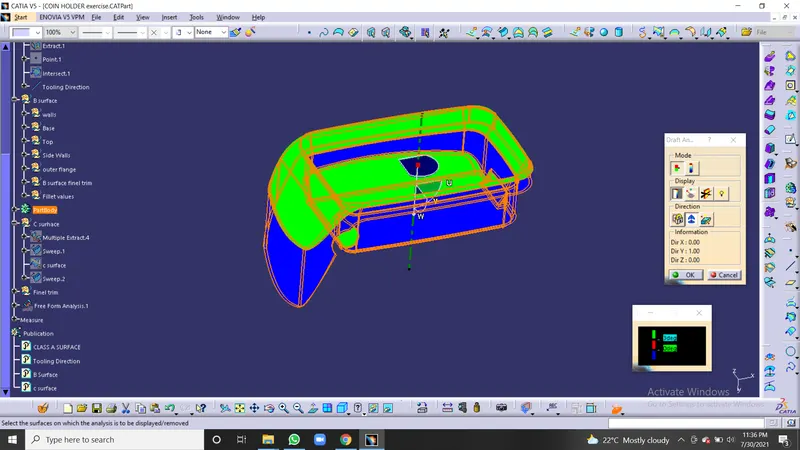

Draft analysis compass is used to define the draft direction.

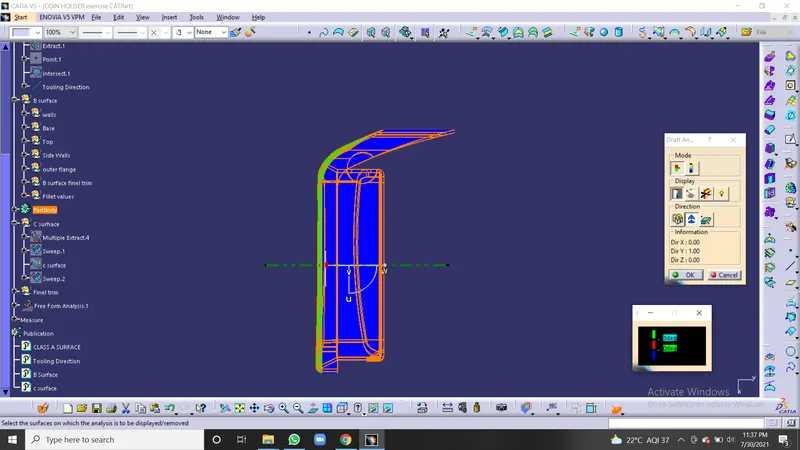

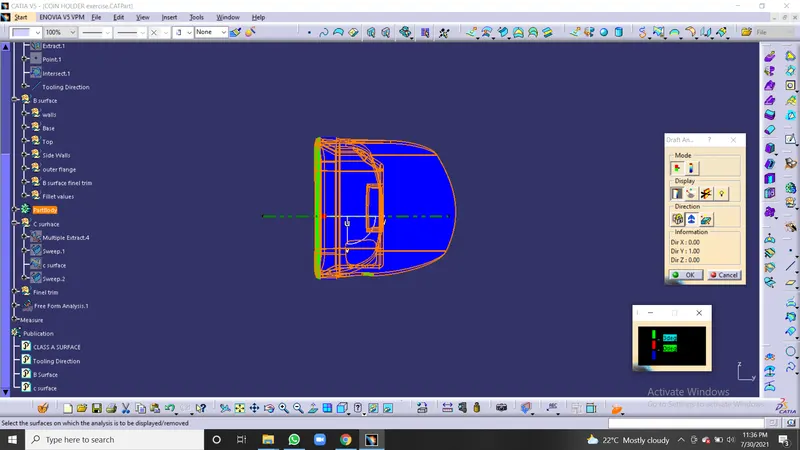

check whether the minimum draft of 3deg is assumed or not. the minimum draft of 3 deg is provided with the whole component changes into green colour.

B Surface-

C Surface-

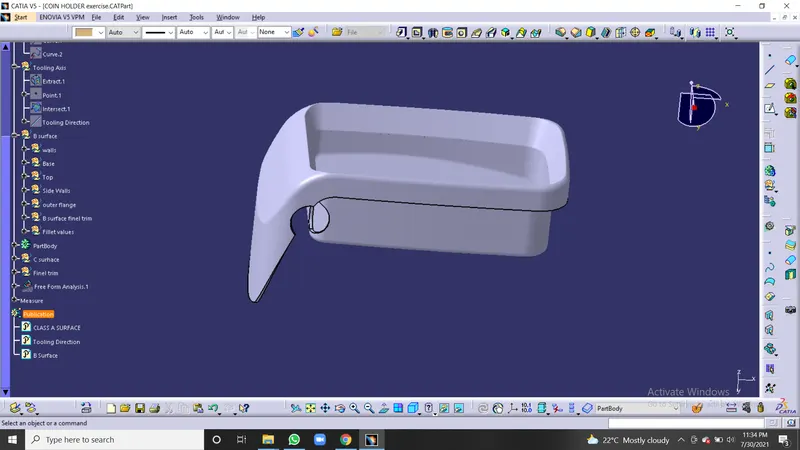

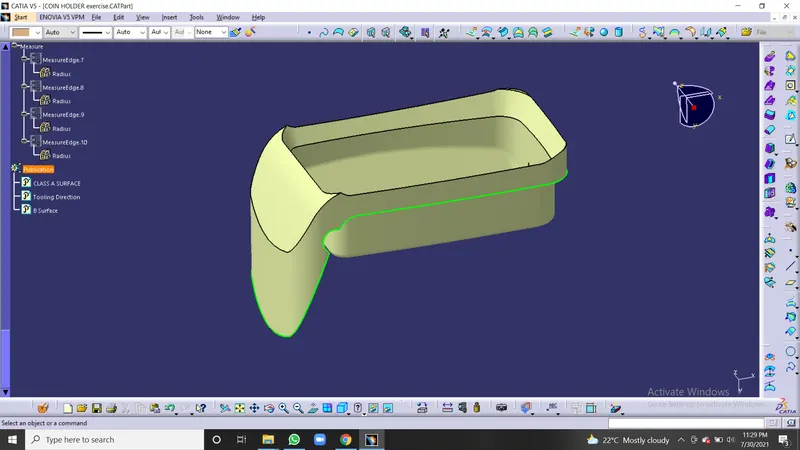

The Final Surface of Class A, B,C-

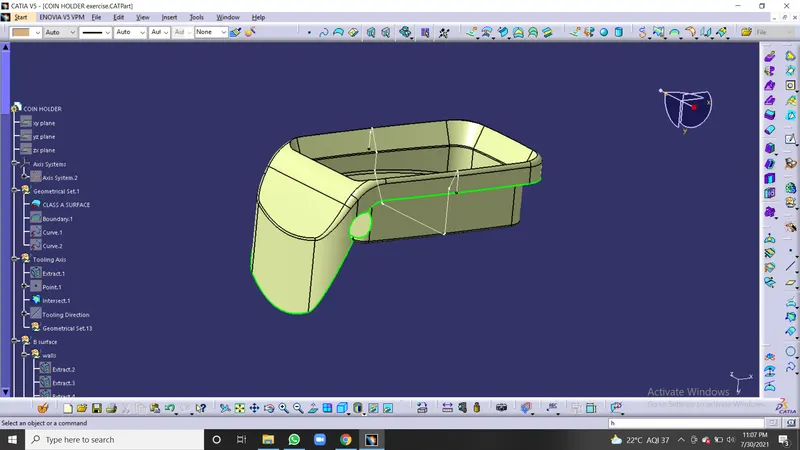

Closed Surface -

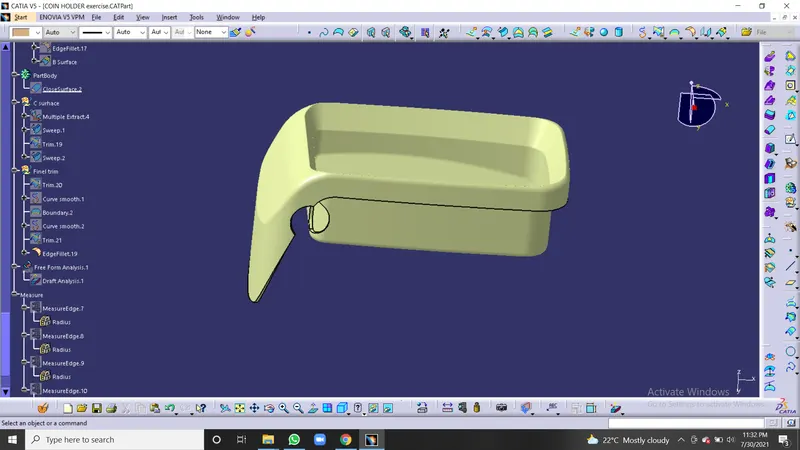

Draft analysis on the solid body-

Isometric view-

Front View-

Side View-

Top View-
