Week 8 - Challenge 4 - Bumper

Week 8 - Challenge 4 - Bumper

Q. Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Take the Thickness of the component to be 3 mm.

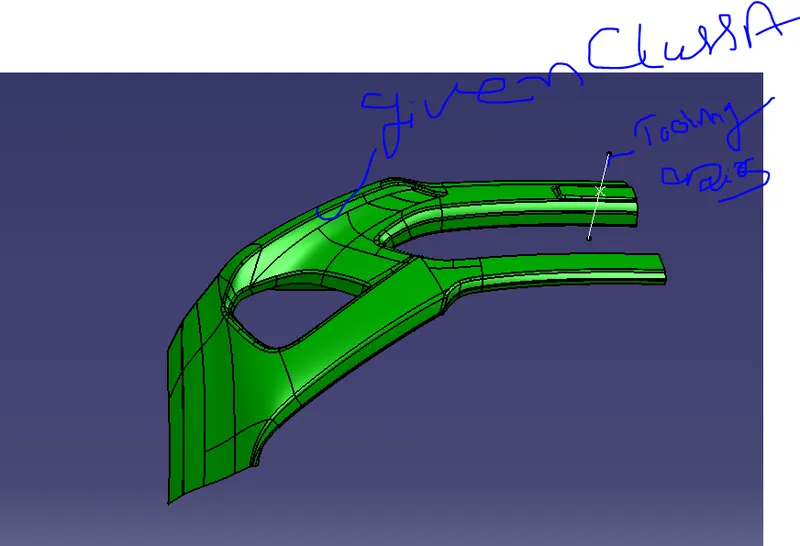

Given Class A surface and tooling direction

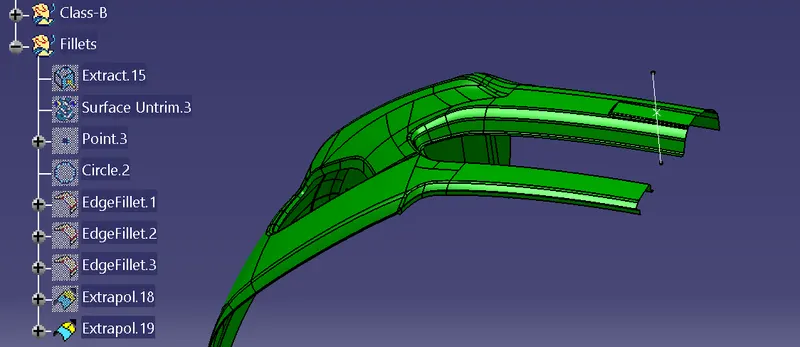

Designed Class B surface based on the given Class A surface.

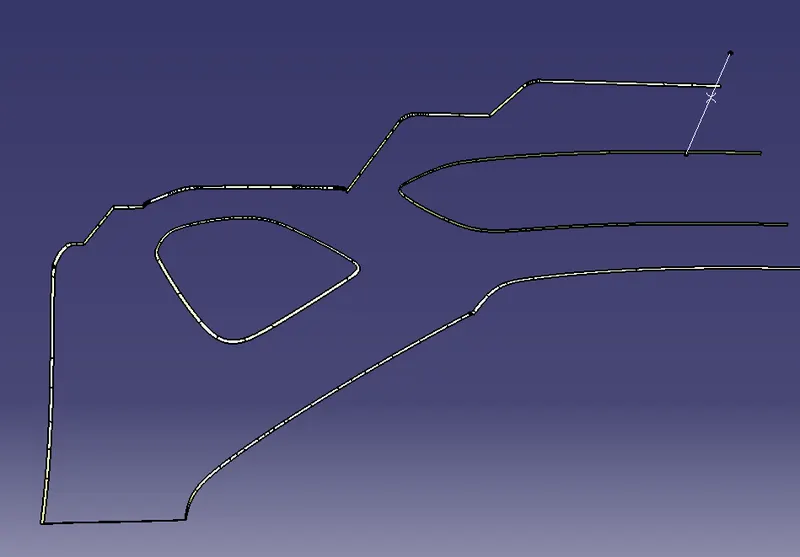

Designed Class C surface based on the given Class A surface.

Final closed Body.

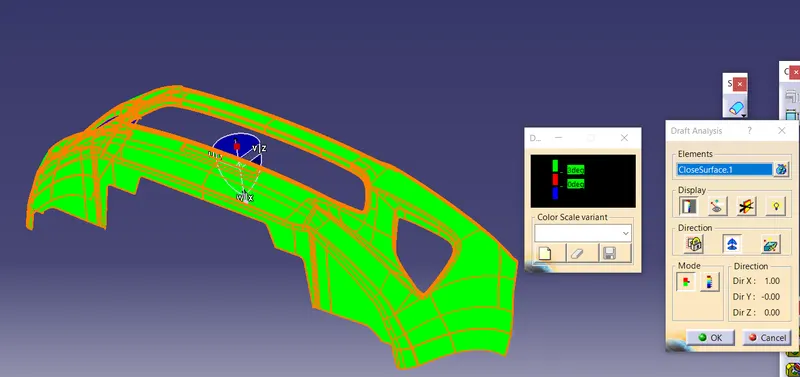

Draft analysis of Finalysis of the final closed surface.
