Week 8 - Challenge 4 - Bumper

AIM:-

            Create the Bumper plastic component's class B and class C surface to the given class A surface.

OBJECTIVES:-

1. To create  tooling axis of the class A surface.
2. To create the class B& class c surface to the given class A surface.
3. to check out define  the craft analysis of the finel plastic component.

METHODE:-

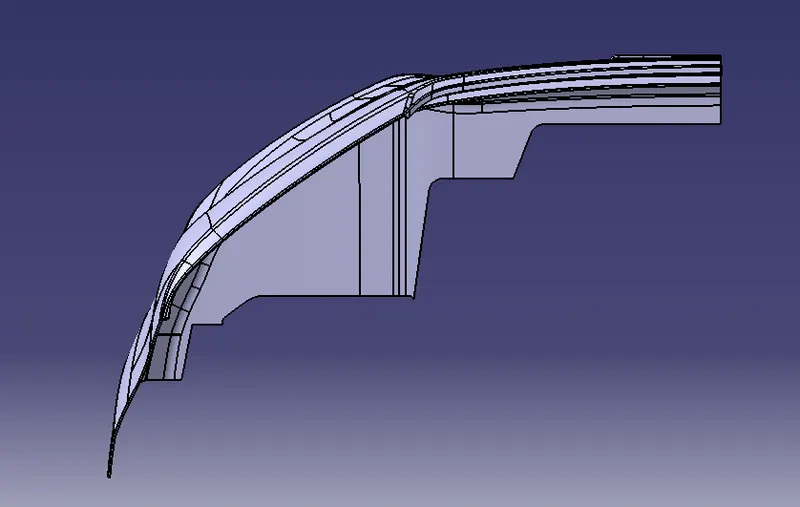

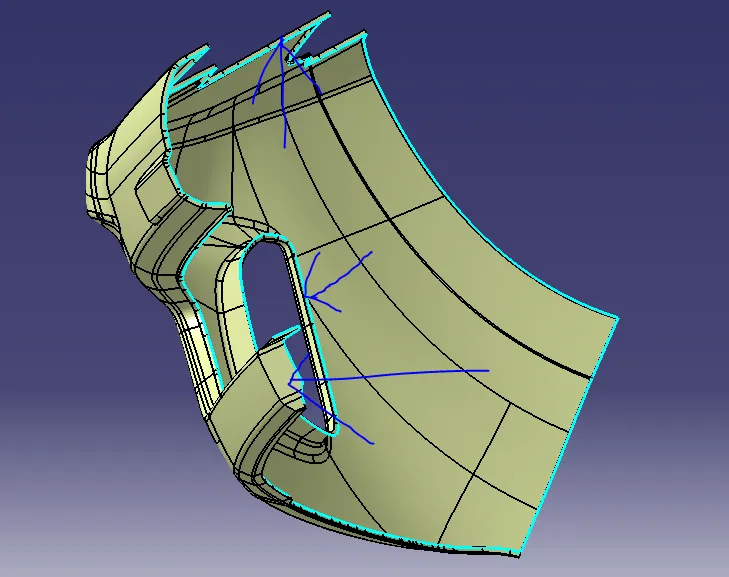

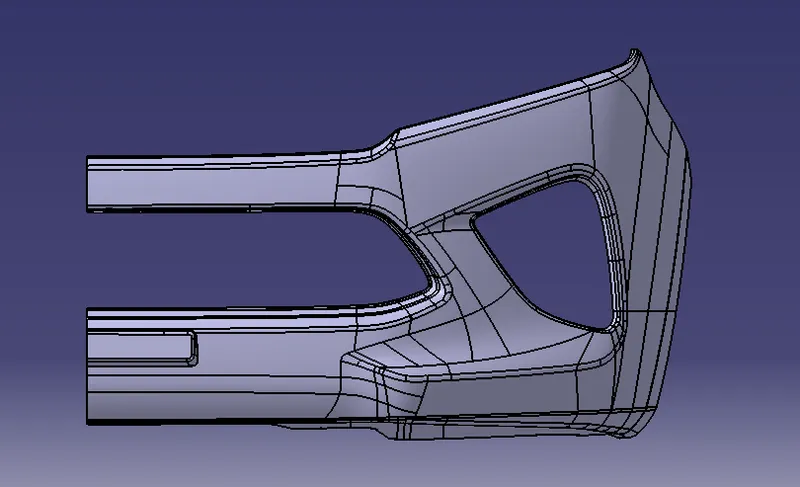

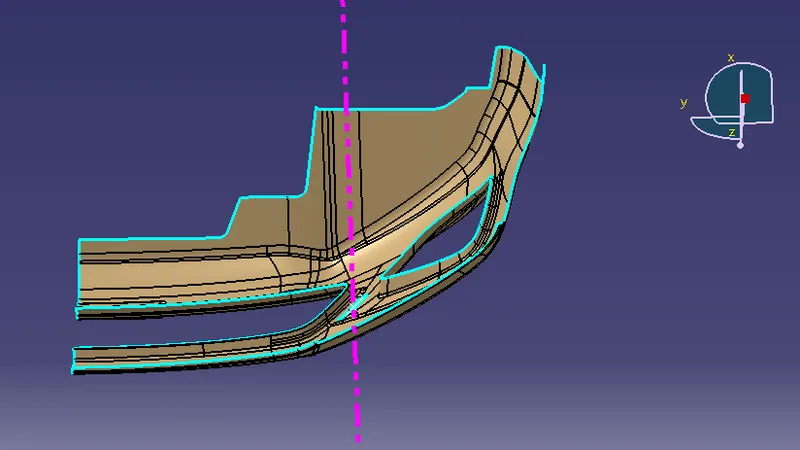

TOOLING AXIS

• The given class A surface is the comple cate to find the tooling axis .
• so chose to the poind and direction methord and find out the tooling axis.
• select the most viewable surface and extract and pic the point to surface. And pic the line of point direction.

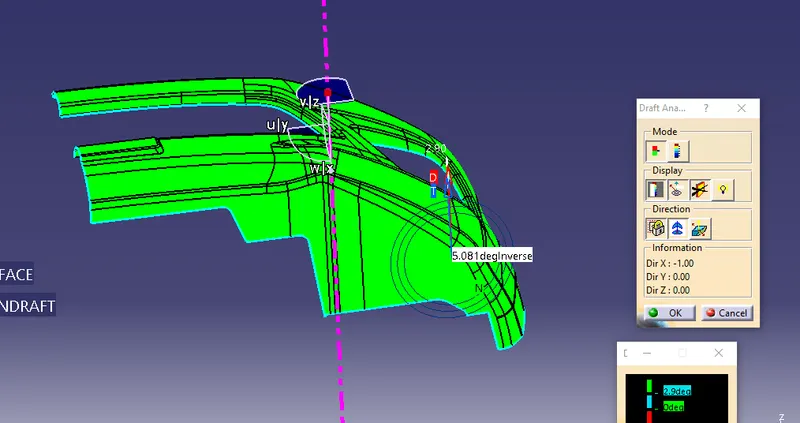

A SURFACE DRAFT ANALYSIS

                                       Once Get the class A surface and tooling Axis to define the draft analysing . its help to worck on perfact component macking.



CLASS B SURFACE

• Class A surface is more deficult to create every single part extract method. So another method off creating to this class A surface.
• Offset the full Class A surface to 3mm and get in the class B surface.
• The offset is getting meny missing fillets and surfaces.
• The offset get the 3 missed surface.
• This surfaces is use to the new method to fill the gaps.
• Use the multiple extract command and use the another way off remoove the surfacces in to the main body.
• And the two multiple extracts is the seperacte surfaces. so create the boundry off both off them to get extrablatethem.
• The surfaces is extrablated and trim the two surfaces to get the follesd surface in the first missing surface.
• The same way use to get the all missing surfaces is fill to this Class B surface.

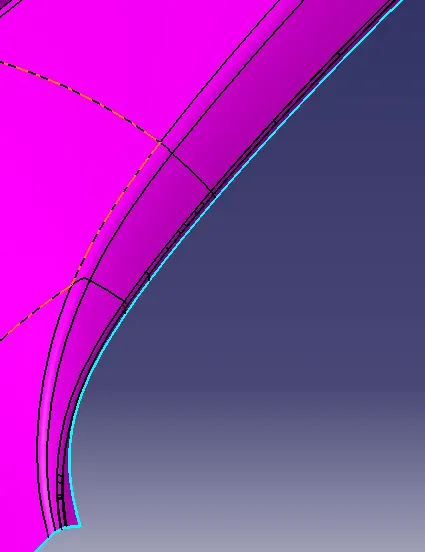

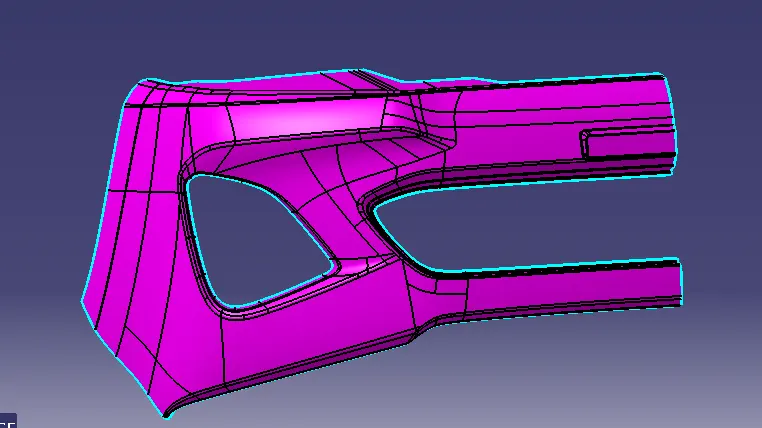

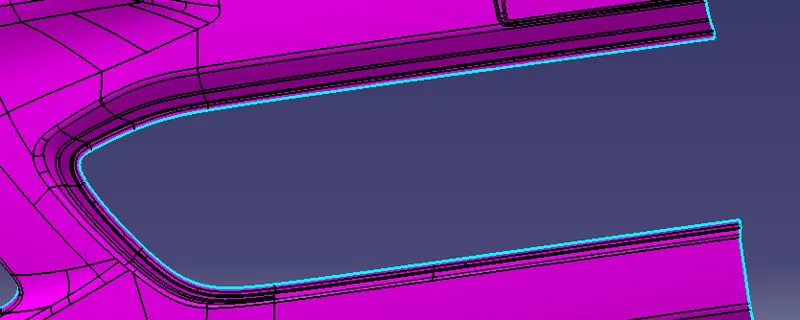

CLASS A OFFSET



EXTRACT

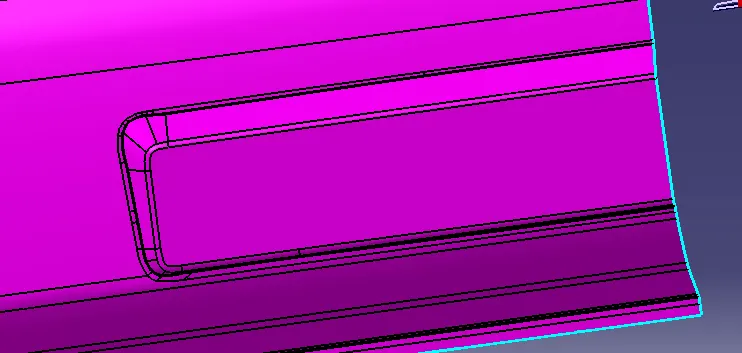

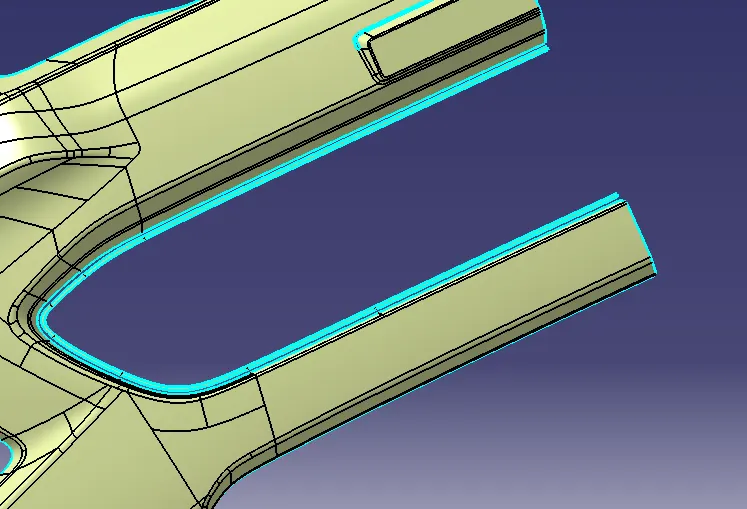

 FILLED SURFACE

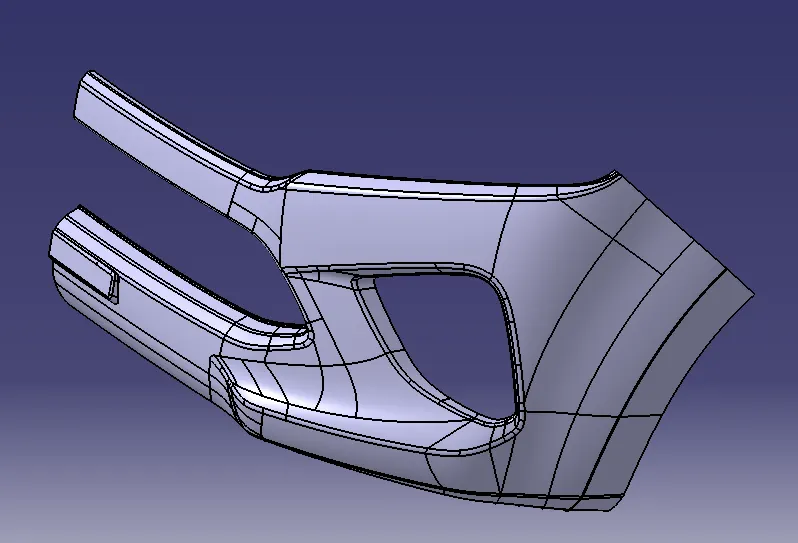

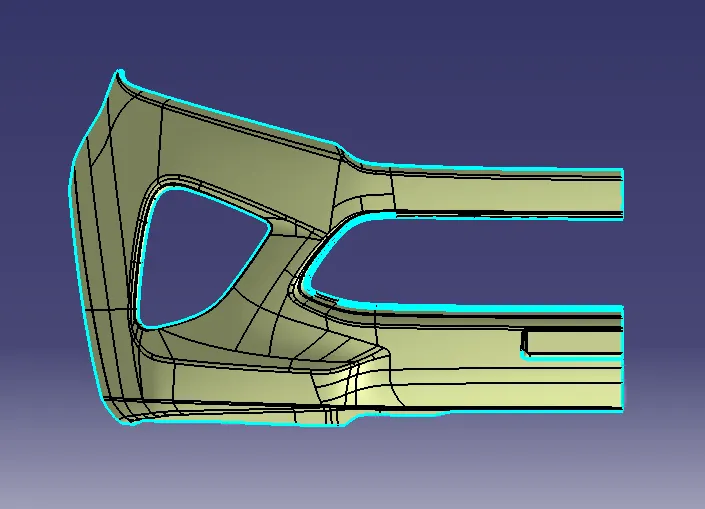

 FINAL CLASS B SURFACE

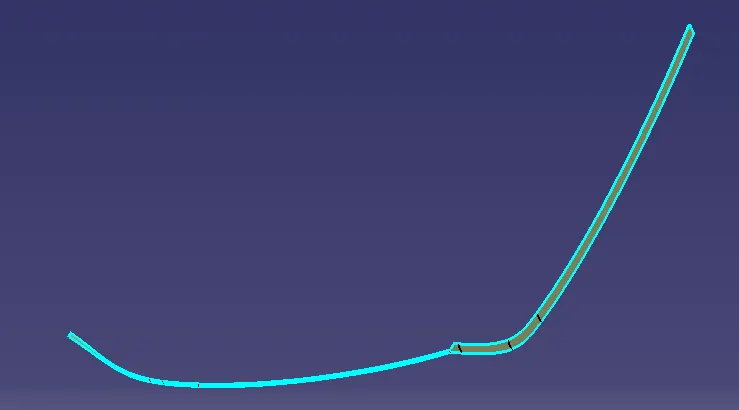

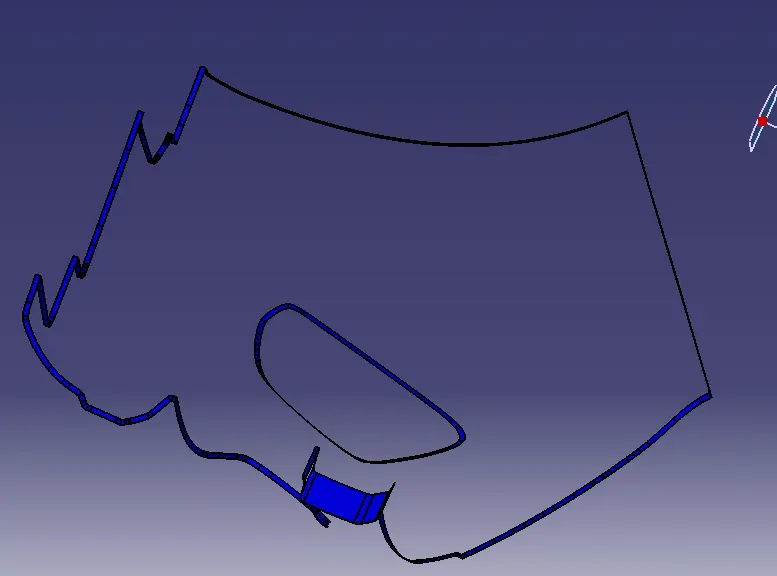

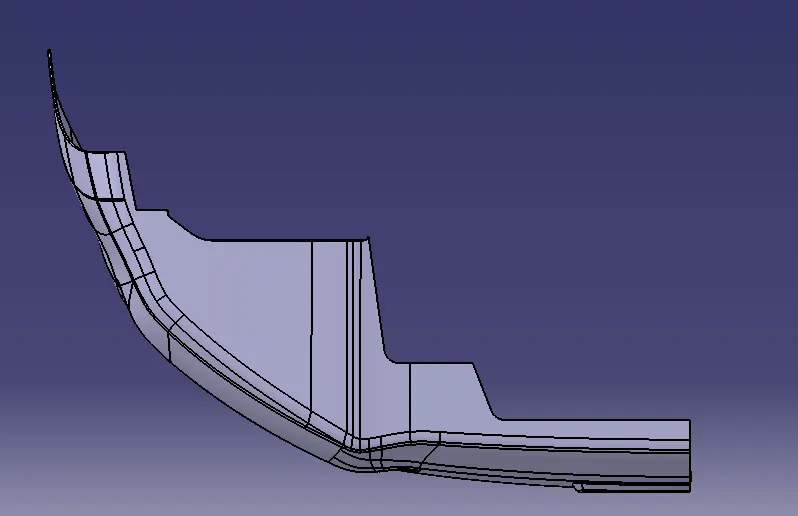

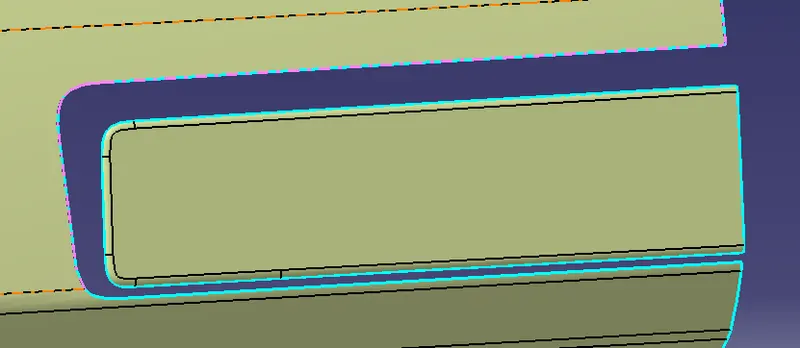

 CLASS C SURFACE

                           The class A surface is more criticle to use sweep to get all outer boundry is get the sweep surface. So give the a every single parts to give the seperate limits to use sweep command to get the C surface. and the sweep surface off surface direction option to get the c surface off every boundrys.

                           Join the all surfacess to get the class C surface.

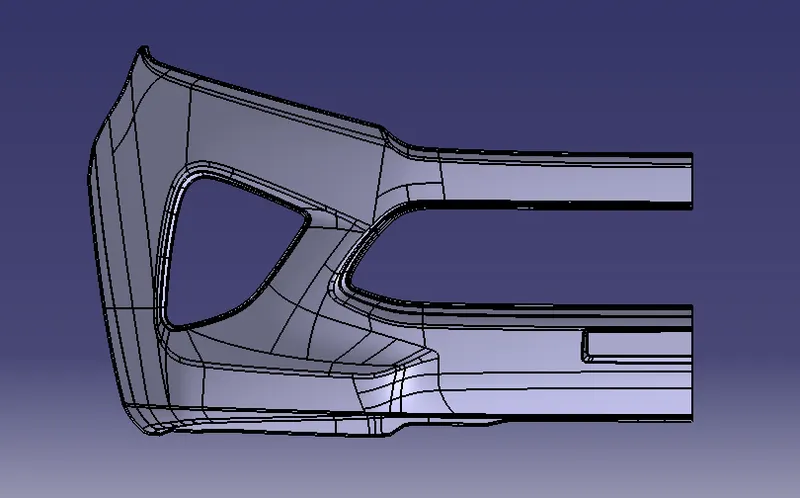

FINEL JOIN

          Join the class A and class C surface and trim the class B surface to get the final closed surface.

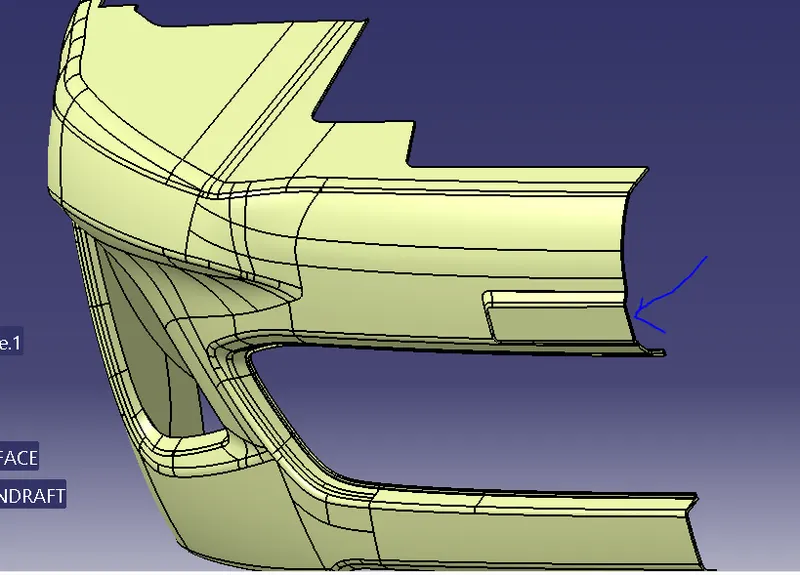

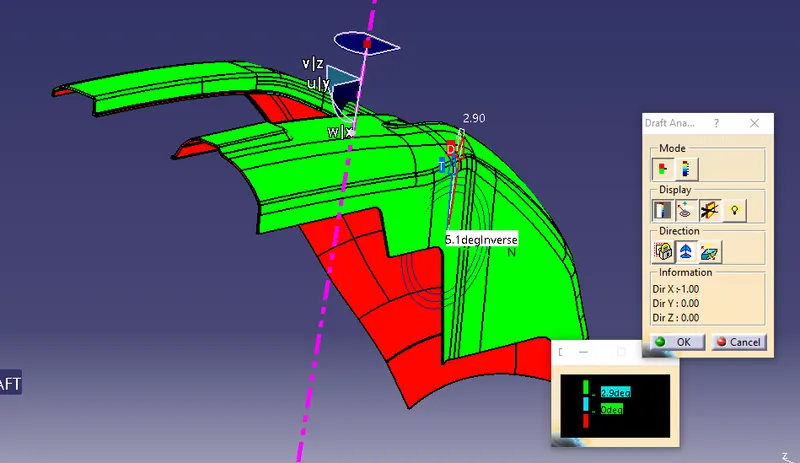

FINEL DRAFT ANALYSIS

      Created the closed curface of the Bumper once finally check the the draft analysis to find out the surface finish.

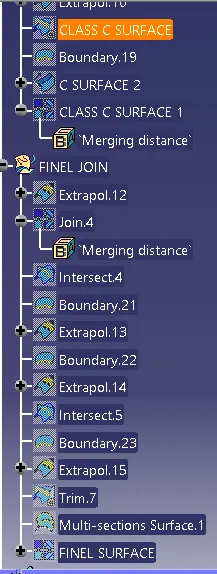

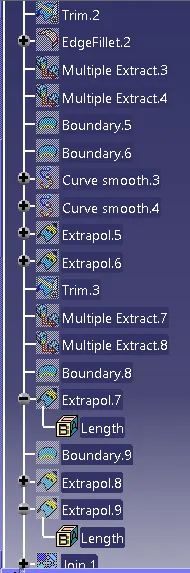

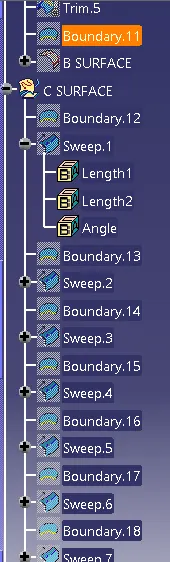

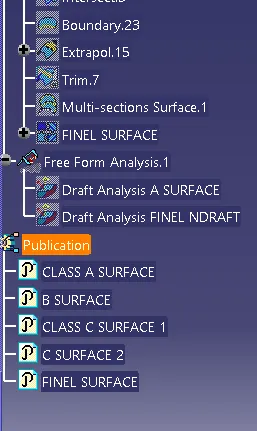

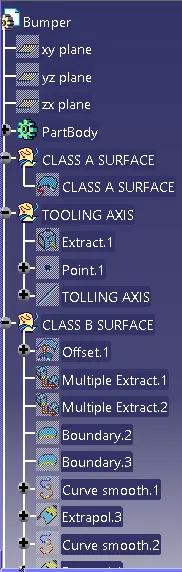

TREE STRUCTURE











DRAFT VIEWS

FRONT VIEW



BACK VIEW



TOP VIEW



BOTTOM VIEW



ISOMATERIC VIEW



CONCLUTION

                      Created Bumper plastic component class B and class C surface to the given class A surface.
