Week 8 - Challenge 2 - Switch Bezel Design

AIM:-

CREATE SWITCH BEZEL PLASTIC COMPONENT OF THE GIVEN CLASS A SURFACE.

OBJECTIVES:-

1. To create the tooling axis of the class A surface.
2. To create the class B& class c surface to the given class A surface.
3. to check out define the craft analysis of the finel plastic component.

METHODS:-

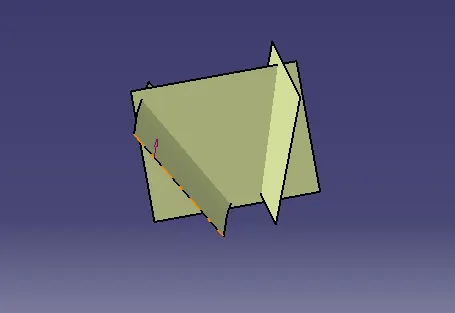

Tooling axis:

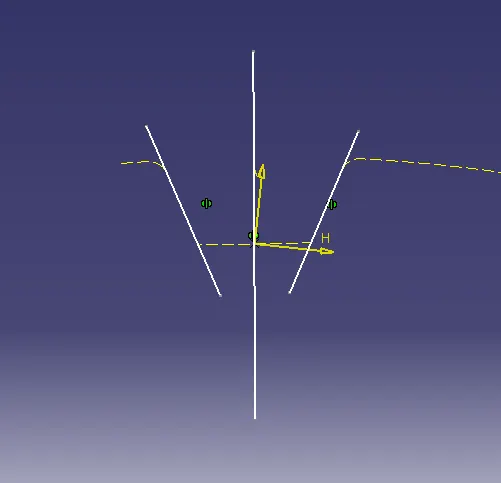

• Create the tooling axis of the class A surface. Its help to making mold core and cavity direction.
• to creat the center point of the class A surface. And its have only three facess so make a sketch its help to draw the side wall lines to first inder section of the surface.

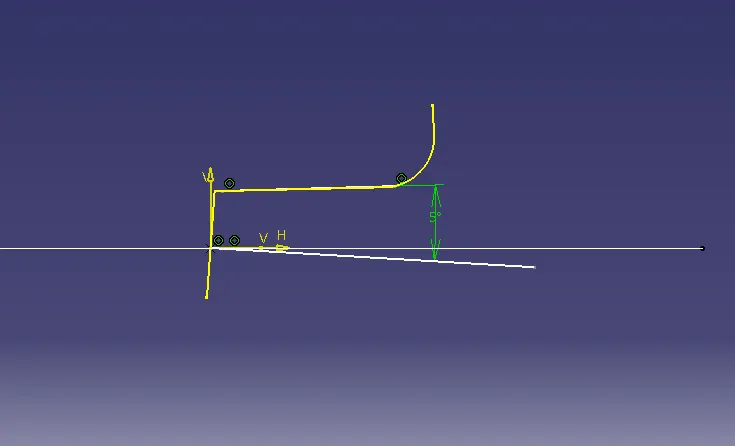

• Next to draw other side wall. To creat the other sketch and this side is have only one face. So create the one side wall line and create the own line in to the poit and get in to the 3degree of side wall.
• The two axis help to get the bisecting line and create the tooling axis.

CLASS B SURFACE:

WRIST

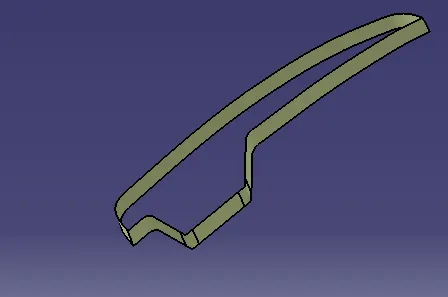

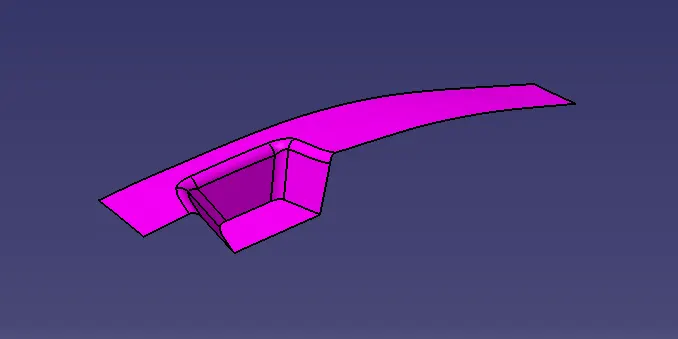

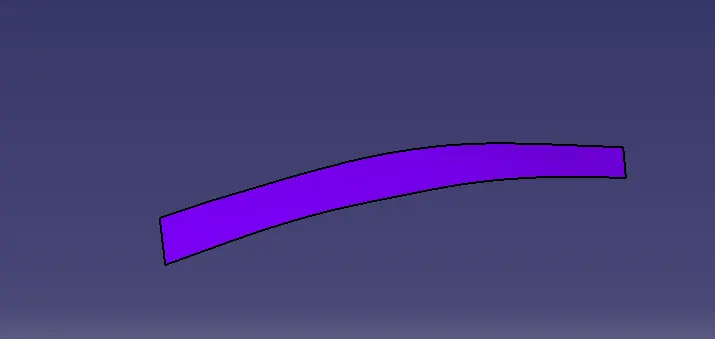

Extract the wrist and untrim to the class A surface. And its extrablate its help to trim in the B surface.

SIDE WALL

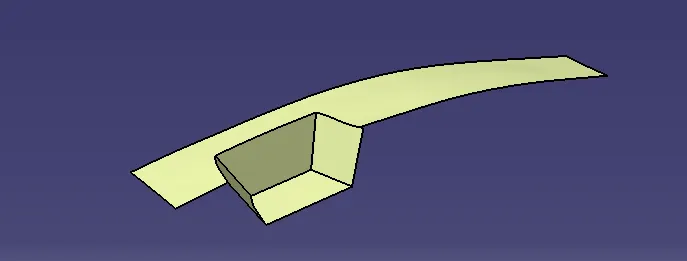

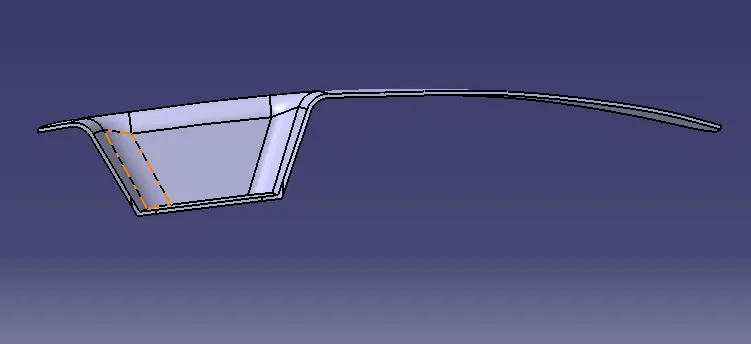

Side walls also extract into the class A surface and untrimmerd. Next exablate the side wals and trim in three faces to get the side wall.

The wrist, base and side walls all of the bodys are trim to get the joined surface. Creat the fillets to the surface of same of the class A surface. the fillets are created to get the class B surface.

CLASS C SURFACE:

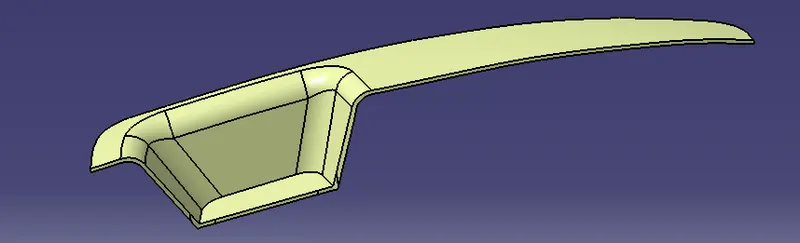

get the class A surface and use mulipile extract to creat the extract lines.use the sweep command to creat the surface.The surfaces is get more batches so use the smooth curve option to get its smoother. But the smooth curves change to get the closed surface. The class C surface is created.

JOIN:

Class A and Class C sufaces has join is help to trim the Class B.

FINEL TRIM:

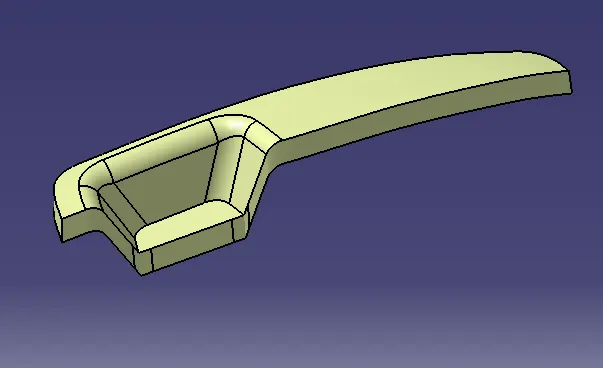

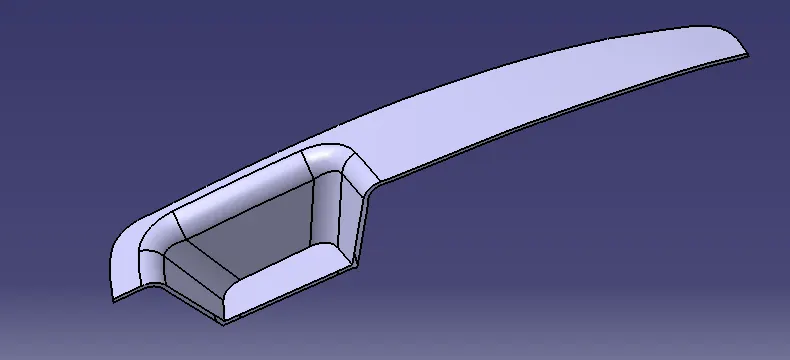

The joined surface is trim in to the class B surface to get the finel closed plastic component.

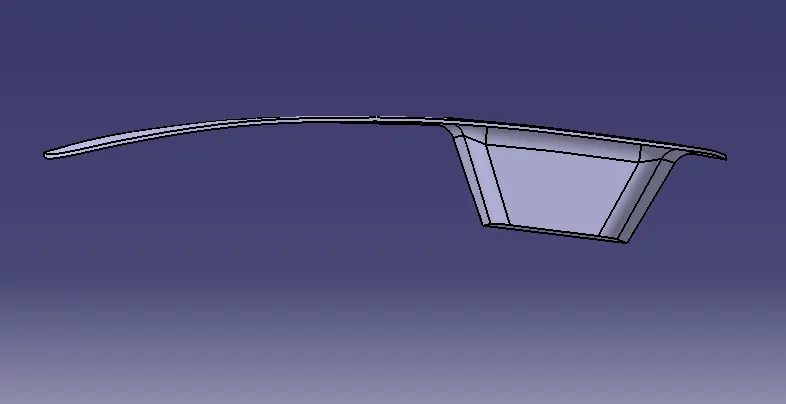

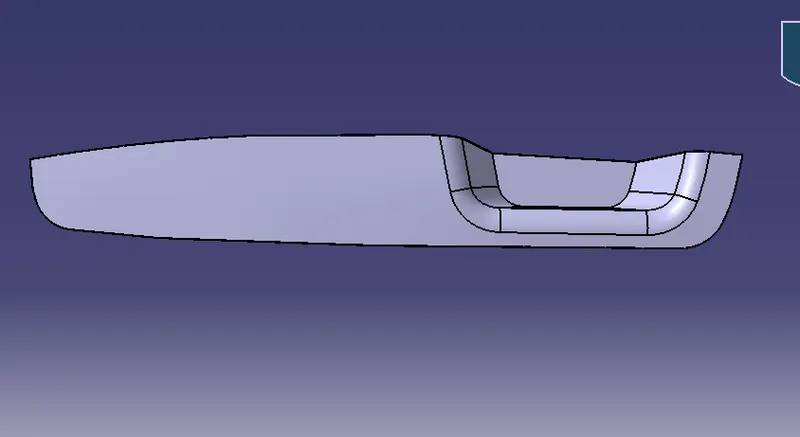

DRAFT VIEWS

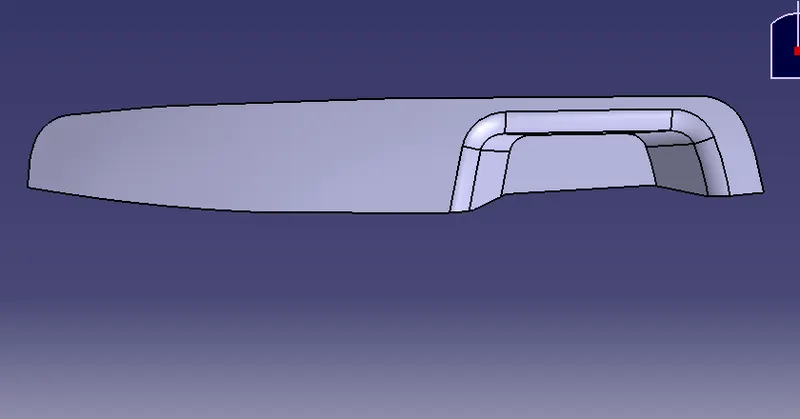

FRONT VIEW

BACK VIEW

TOP VEW

BOTTOM VEW

ISOMETRIC VIEW

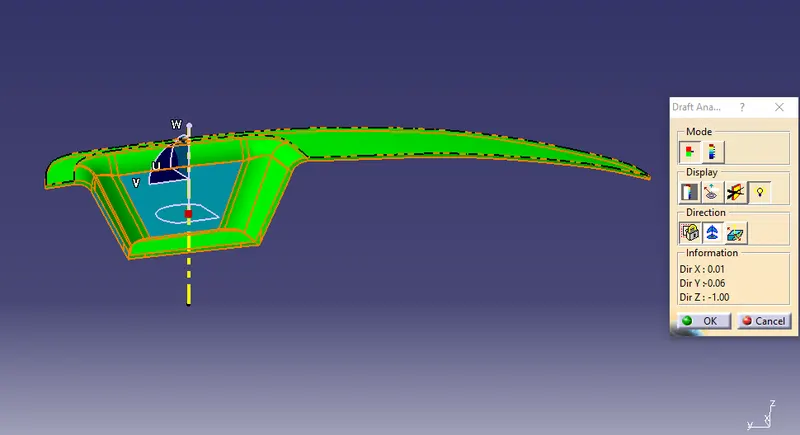

DRAFT ANALYSING:

GET THE FINEL PART ANF ITS GO TO THE DRAFT ANALYDING. TO CHECK OUT THE DRAFT ANALYSING IS HELP TO PLASTIC COMPONENT IS NEXT GO ON THE MOULDING PROCES .

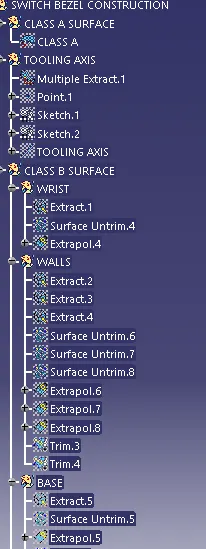

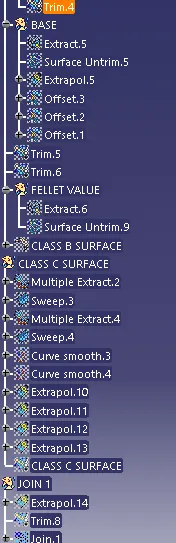

TREE STRUCTURE:

CONCLUTION:-

SWITCH BEZEL COMPONENT CLASS B AND CLASS C IS DESIGNED IN TO THE GIVEN CLASS A SURFACE.
