Week 8 - Challenge 4 - Bumper

The given class-A surface

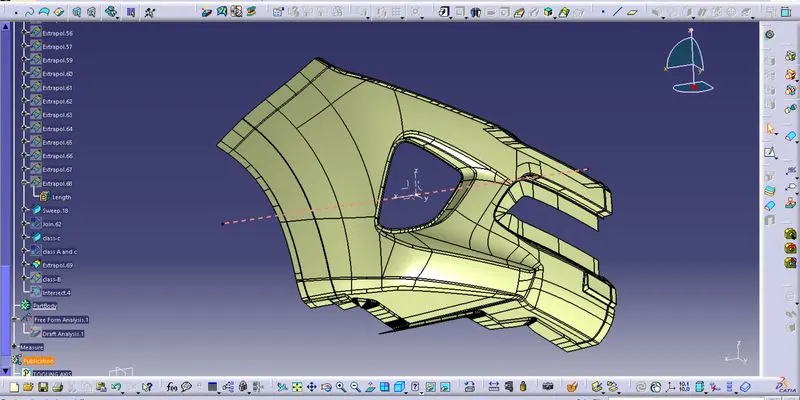

The draft analysis of class-A surface:

The tooling axis is created using the fog lamp housing curvature. By inserting a point selecting the boundary of the surface. using the reference line, with point and direction tooling axis is created.

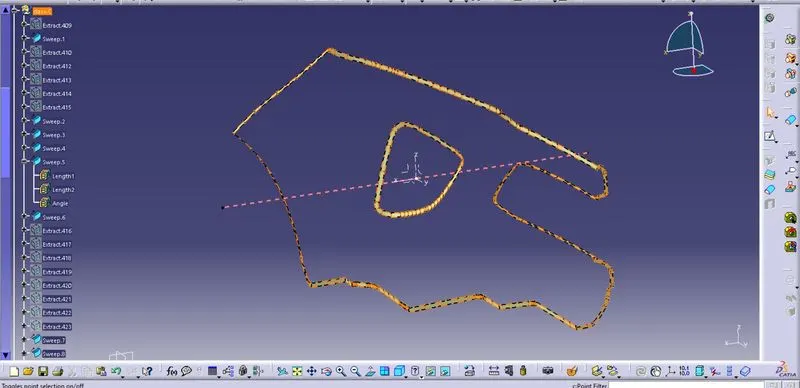

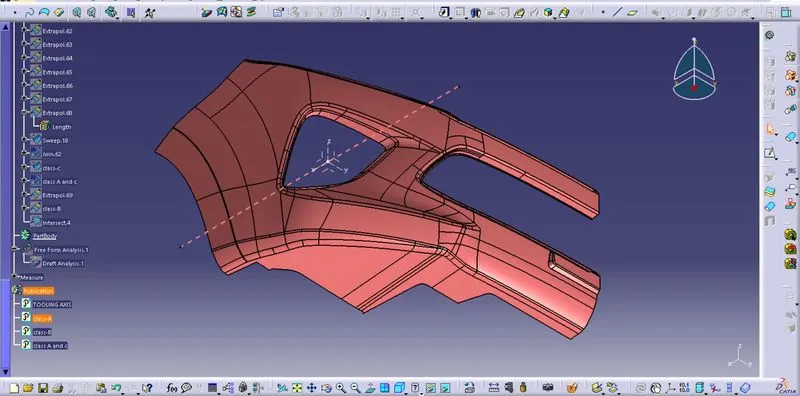

The class-B is created using extract, extrapolate and trim options.

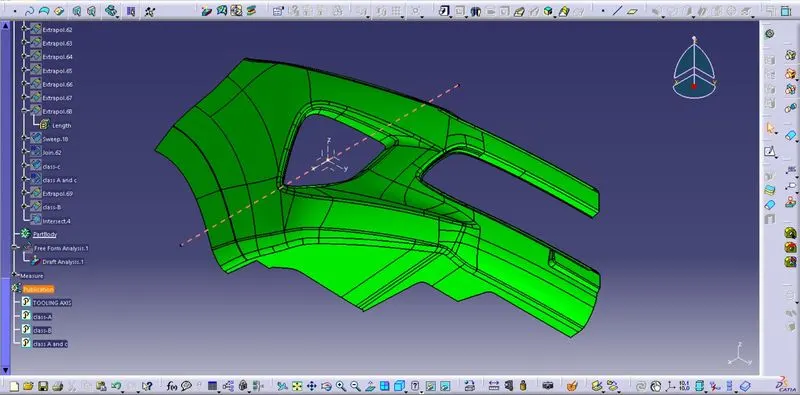

The class-C surface is created using the sweep option with the reference surface as class-A. From class-A surface using the angle as 90 degree we create the class-C surface.

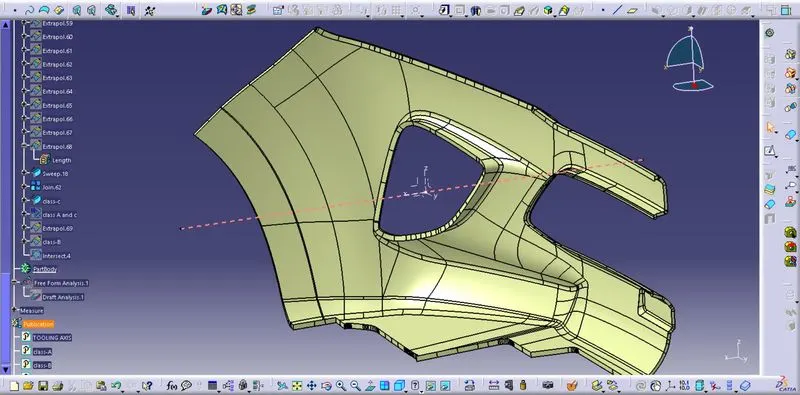

Using the join command we join both the class-A and class-C surfaces.
