Week 8 - Challenge 4 - Bumper

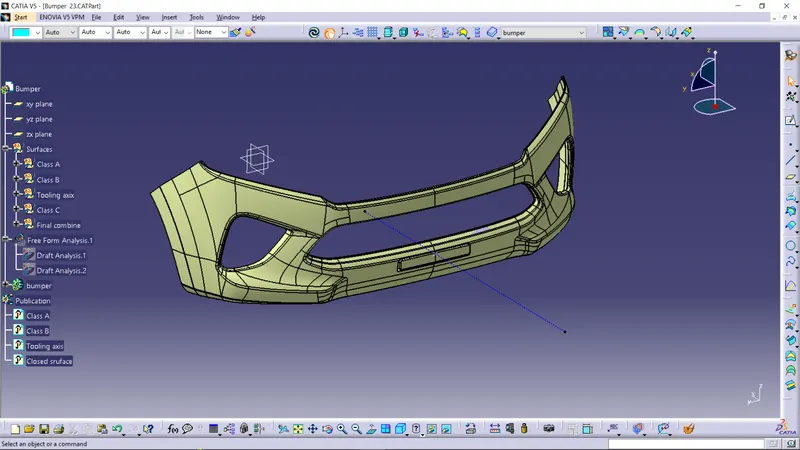

Creation of tooling axis:

• As the bumoer is symentrical, create a point on the middle line of the bumper.
• Create aline from the ponit which is normal to the surface.
• Check the draft analysis of the bumper surface with the created line as tooling axis.

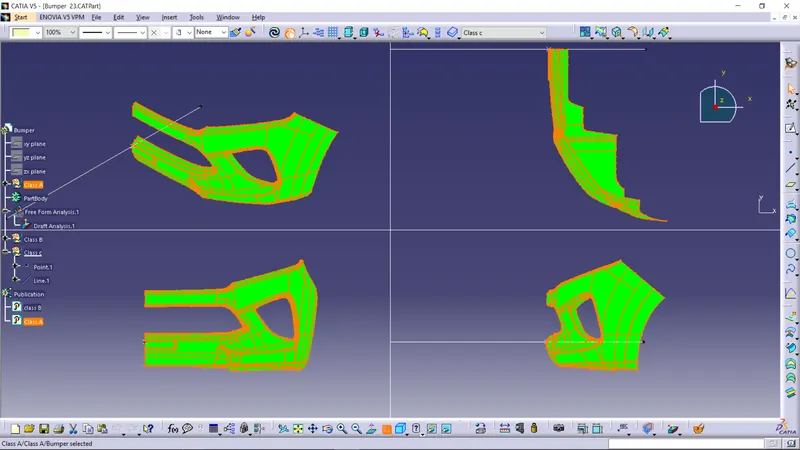

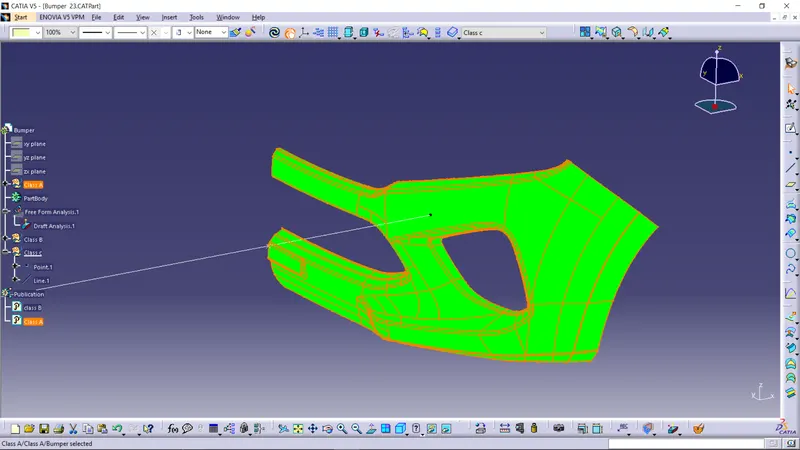

Draft analysis of the Class A surface:

The green region have draft angle above 3.0

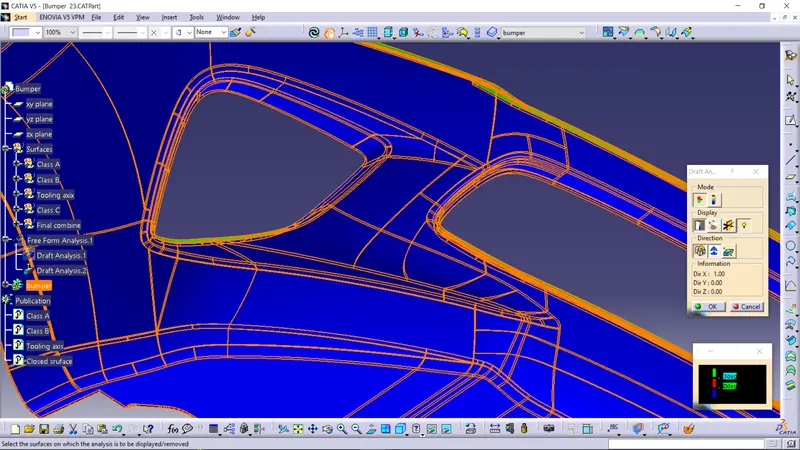

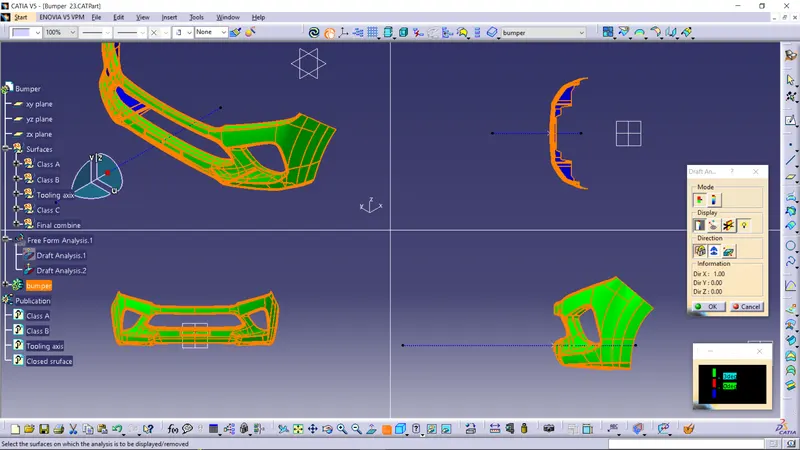

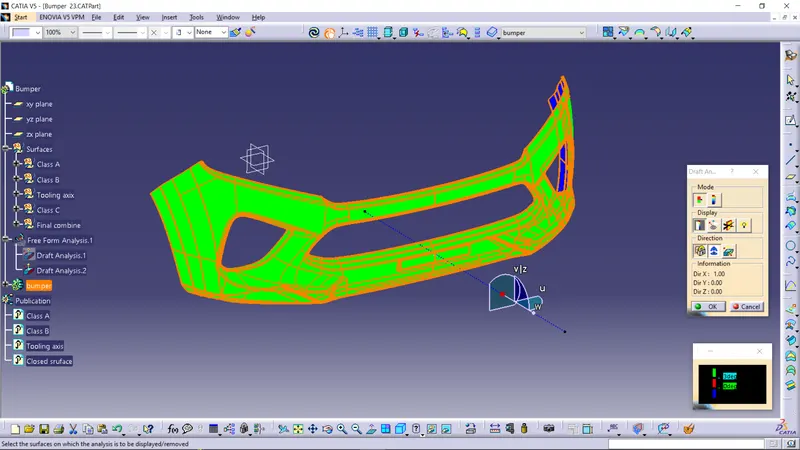

Draft analysis of the Solid bumper:

The green region have draft angle above 3.0
