Week 8 - Challenge 4 - Bumper
tooling axis;-
By extracting the flat and from that surface entaire part should be visible. Place the point on the the center of the surface and dr draw the line from that point and normal to the surafce. From tha line etaire part should be visible fro thr draft angle purpose. that resulent line is the tooling axis.
draft angle:-
for creating the draft angle, goto insert-analysis-feture and draft analysis- choose draft angle for the easy to remove the core and cavity. pick the campas and drag it on to the tooling axis and tunr on the tooling lock. chech the darft angle correct or wrong by the no highlight reprasentation and make sure that correct.

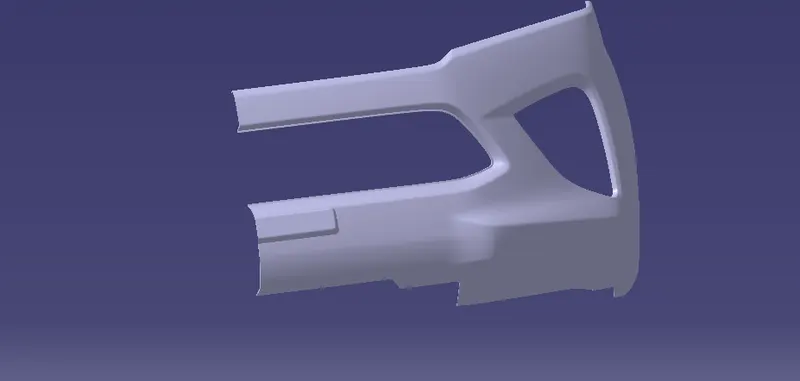

Isomatric view

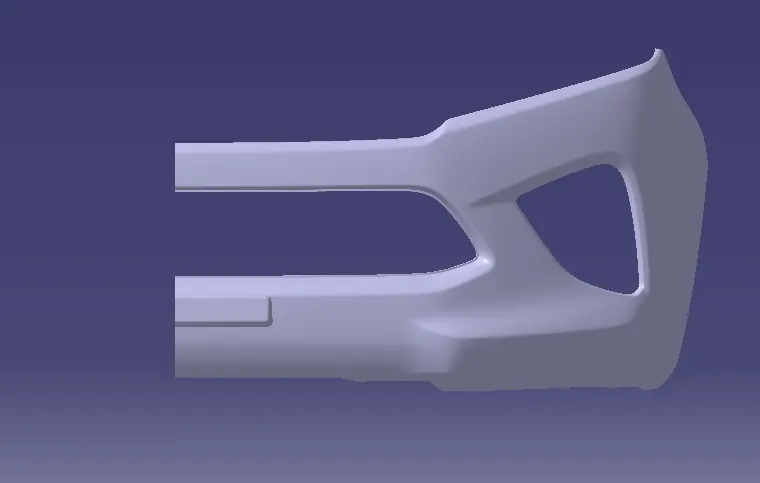

front view

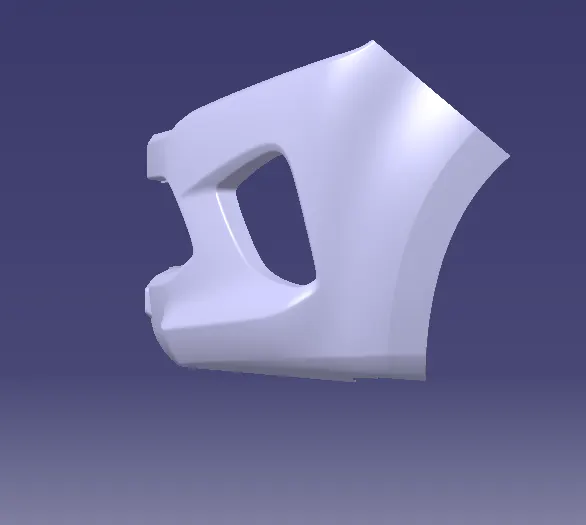

side view

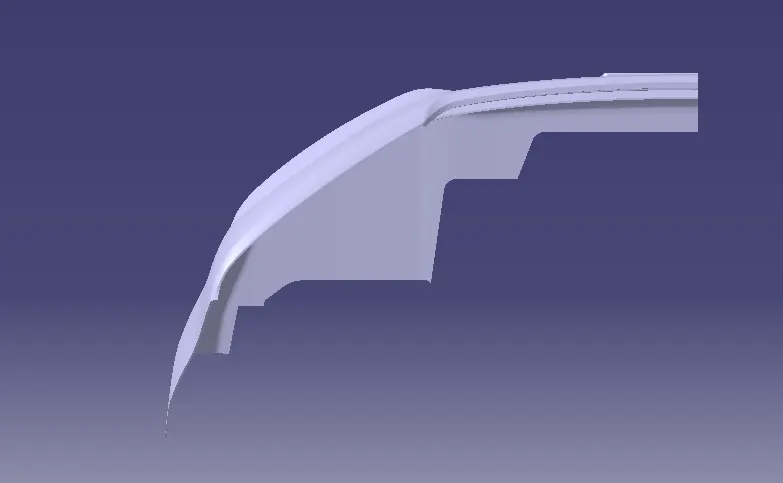

top view

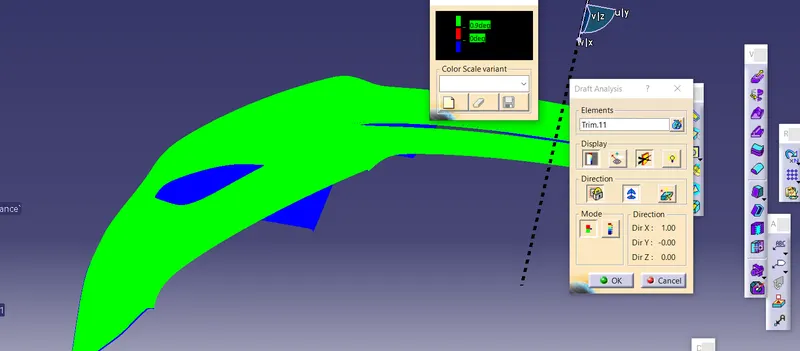

draft analysis

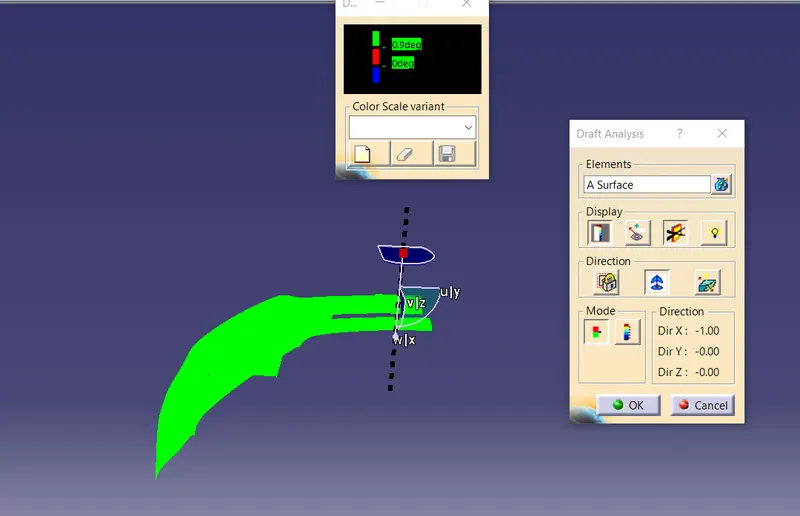

A surface
Final body

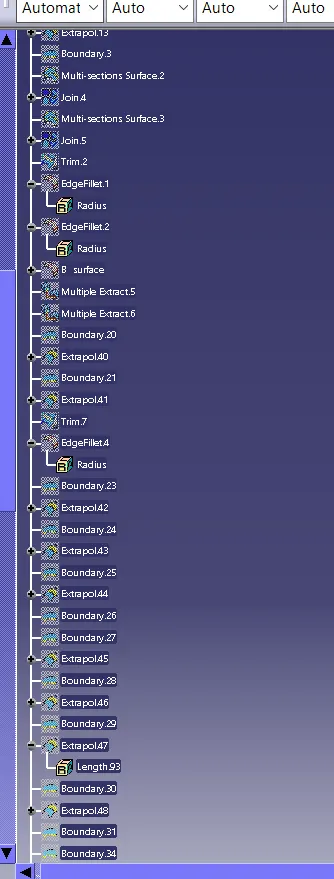

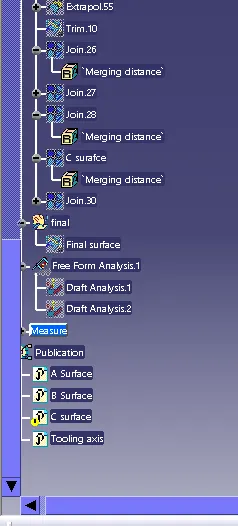

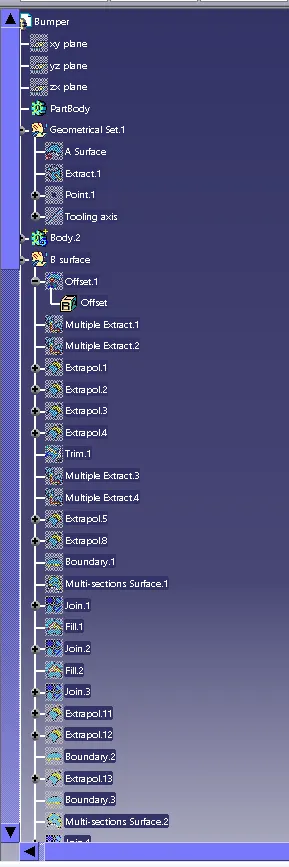

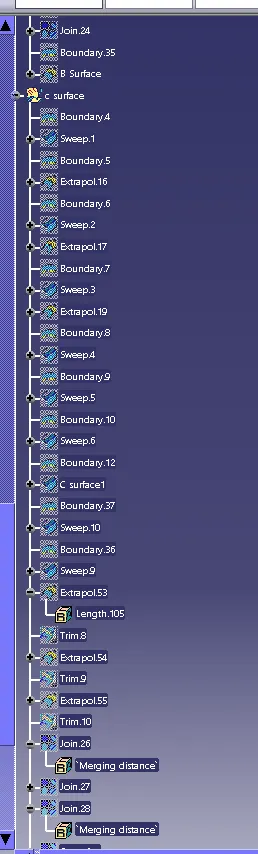

Tree structure
