Project 1 - Parsing NASA thermodynamic data

NNachiketha Gummalampati26 Apr 2022

clear all- used for clear all the data stored in previous workspace

close all- used for colse the all the figures and plots of before program

clc-use for clear the command window

R-is Unevarcel gas comstant 8.314

fopen-command is used for open the file and 'r' stands for read the file

fgetl-is used for Read line from file, removing newline characters

strsplit- Split string or character vector at specified delimiter

str2double- used for Convert strings to double precision values

strfind-used for Find strings within other strings

mkdir-used for Make new folder

cd-used for Change current folder

imwrite-command used for Write image to graphics file

getframe-used for figure as movie frame

gcf-used for get current frame

fprintf-command is used for Format data into string or character vector

These are the commands used in the Program

Fomule:-

specific heat=

a1+a2*T+a3*T.^2+a4*T.^3+a5*T.^4).*R

Enthalpy=

(a1*T+(a2*T.^2)/2+(a3*T.^3)/2+(a4*T.^4)/2+(a5*T.^5)/2+a6).*T.*R

Entropy=

(a8*log(T)+a9*T+(a10*T.^2)/2+(a11*T.^3)/3+(a12*T.^4)/4+a14).*R

Code:-

close all
clear all
clc

f1=fopen('THERMO.dat','r');
tline1=fgetl(f1);
tline2=fgetl(f1);
temp=strsplit(tline2,' ');
global_low_temp=str2double(temp(2));
global_mid_temp=str2double(temp(3));
global_hig_temp=str2double(temp(4));

for i=1:3
    skippedlines=fgetl(f1);
end

for i=1:53
    tline3=fgetl(f1);
    S=strsplit(tline3,' ');
    species_name = S{1};
    B=strfind(tline3,'G ');
    temp_values=tline3(B+4:length(tline3));
    C=strsplit(temp_values,' ');

    local_low_temp=str2double(C{1});
    local_mid_temp=str2double(C{2});
    local_high_temp=str2double(C{3});

    tline4=fgetl(f1);
    f=strfind(tline4,'E');
    a1=str2double(tline4(1:(f(1)+3)));
    a2=str2double(tline4(f(1)+4:(f(2)+3)));
    a3=str2double(tline4(f(2)+4:(f(3)+3)));
    a4=str2double(tline4(f(3)+4:(f(4)+3)));
    a5=str2double(tline4(f(4)+4:(f(5)+3)));

    tline5=fgetl(f1);
    a6=str2double(tline5(1:(f(1)+3)));
    a7=str2double(tline5(f(1)+4:(f(2)+3)));
    a8=str2double(tline5(f(2)+4:(f(3)+3)));
    a9=str2double(tline5(f(3)+4:(f(4)+3)));
    a10=str2double(tline5(f(4)+4:(f(5)+3)));

    tline6=fgetl(f1);
    a11=str2double(tline6(1:(f(1)+3)));
    a12=str2double(tline6(f(1)+4:(f(2)+3)));
    a13=str2double(tline6(f(2)+4:(f(3)+3)));
    a14=str2double(tline6(f(3)+4:(f(4)+3)));
    R=8.314;
    T=linspace(local_low_temp,local_high_temp,100);
    c_p=specific_heat(a1,a2,a3,a4,a5,a6,a7,a8,a9,a10,a11,a12,a13,a14,local_low_temp,local_mid_temp,local_high_temp,T,R);
    s=entropy(a1,a2,a3,a4,a5,a6,a7,a8,a9,a10,a11,a12,a13,a14,local_low_temp,local_mid_temp,local_high_temp,T,R);
    h=enthalpy(a1,a2,a3,a4,a5,a6,a7,a8,a9,a10,a11,a12,a13,a14,local_low_temp,local_mid_temp,local_high_temp,T,R);


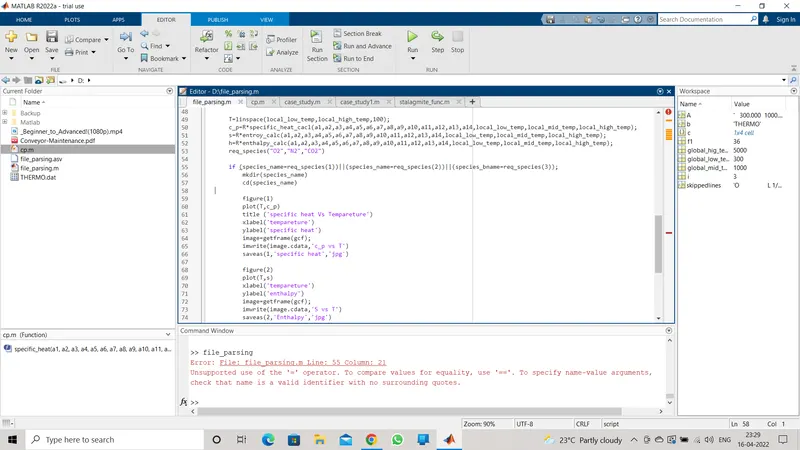

        mkdir(species_name)
        cd(species_name)

        figure(1)
        plot(T,c_p,'LineWidth',5,'color','r')
        title ('specific heat Vs Tempareture')
        xlabel('tempareture')

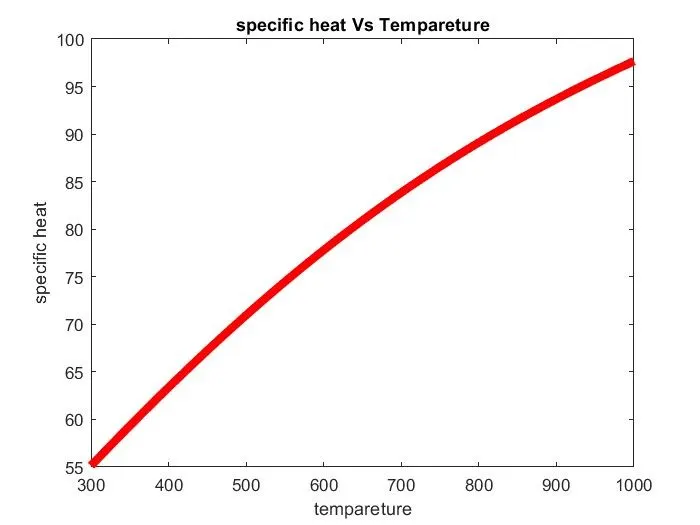

        ylabel('specific heat')
        image=getframe(gcf);
        imwrite(image.cdata,'T vs c_p ','jpg')
        saveas(1,'specific heat','jpg')

        figure(2)
        plot(T,s)
        title('enthalpy Vs Tempareture')
        xlabel('tempareture')

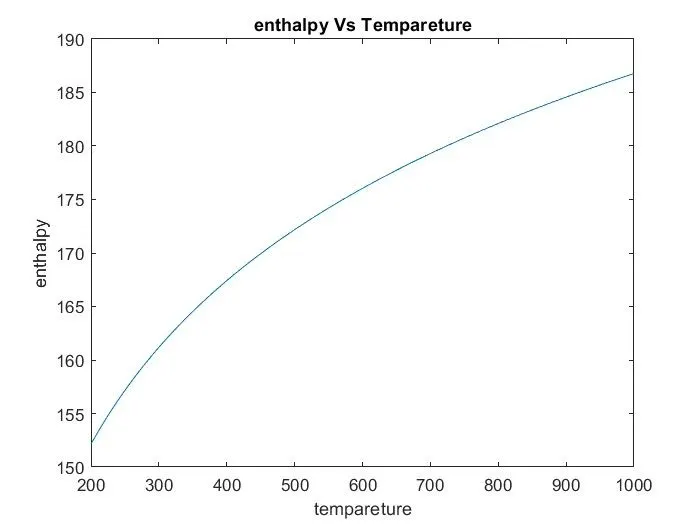

        ylabel('enthalpy')

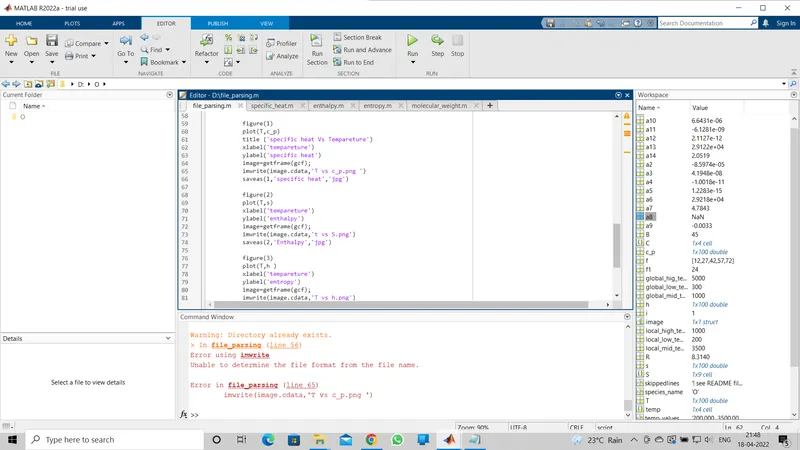

        image=getframe(gcf);
        imwrite(image.cdata,'t vs S','jpg')
        saveas(2,'Enthalpy','jpg')

        figure(3)
        plot(T,h )
        title('entropy Vs Tempareture')
        xlabel('tempareture')

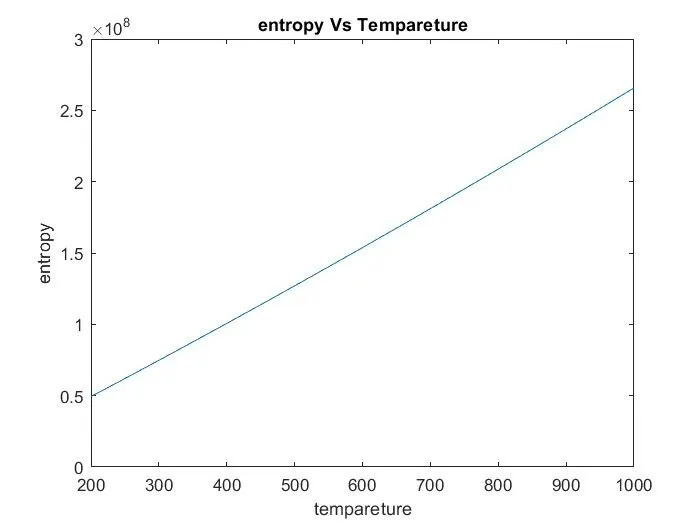

        ylabel('entropy')
        image=getframe(gcf);
        imwrite(image.cdata,'T vs h','jpg')
        saveas(3,'enytropy','jpg')

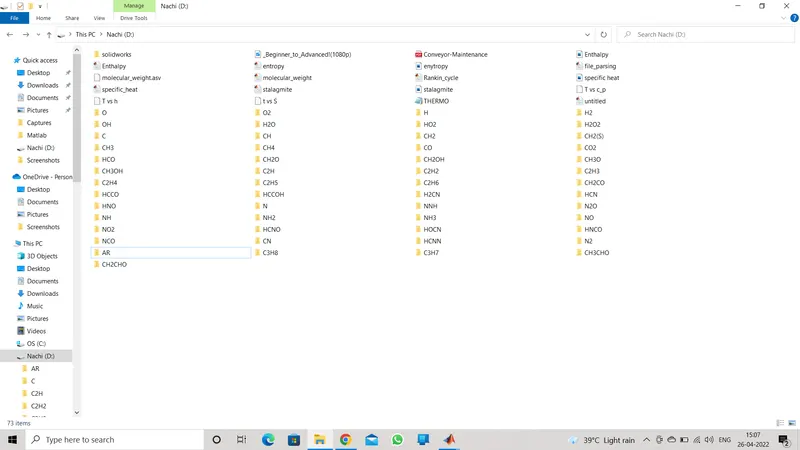

        cd ..
molecular_wt=molecular_weight(species_name);



    end

functional code:-

enthalpy

function [h] = enthalpy(a1,a2,a3,a4,a5,a6,a7,a8,a9,a10,a11,a12,a13,a14,local_low_temp,local_mid_temp,local_high_temp,T,R)
T=linspace(local_low_temp,local_high_temp,100)
if ( T>local_mid_temp)
    h=(a1*T+(a2*T.^2)/2+(a3*T.^3)/2+(a4*T.^4)/2+(a5*T.^5)/2+a6).*T.*R;
else
    h=(a8*T+(a9*T.^2)/2+(a10*T.^3)/2+(a11*T.^4)/2+(a12*T.^5)/2+a13).*T.*R;

end
end

entropy

function[s]=entropy(a1,a2,a3,a4,a5,a6,a7,a8,a9,a10,a11,a12,a13,a14,local_low_temp,local_mid_temp,local_high_temp,T,R)
T=linspace(local_low_temp,local_high_temp,100);
if ( T>local_mid_temp)
    s=(a1*log(T)+a2*T+(a3*T.^2)/2+(a4*T.^3)/3+(a5*T.^4)/4+a7);
else
    s=(a8*log(T)+a9*T+(a10*T.^2)/2+(a11*T.^3)/3+(a12*T.^4)/4+a14).*R;

end

end

molecular weights

function [M]=molecular_weight(species_name)
        atomic_mass=[15.999 1.008 12.011 14.007,39.948];
        elements=[ 'O', 'H', 'C', 'N', 'A'];
         Mol_wt = 0;
         for  i=1:length(species_name)
          for  j=1:length(elements)
              if strcmpi(species_name(i),elements(j))
                  Mol_wt=Mol_wt+atomic_mass(j);
                  z=j;
              end
          end
          var=str2double(species_name(i));
          if (var>1)
              Mol_wt=Mol_wt+(atomic_mass(z)*(var-1));
          end
         end
         M=Mol_wt;
         K=sprintf('%s Mol_wt= %f',species_name,M);

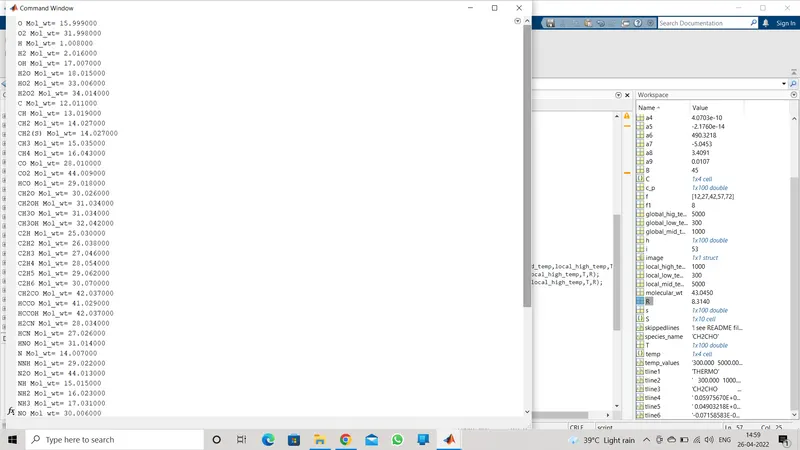

disp(K)

    end
