Week 8 - Challenge 4 - Bumper

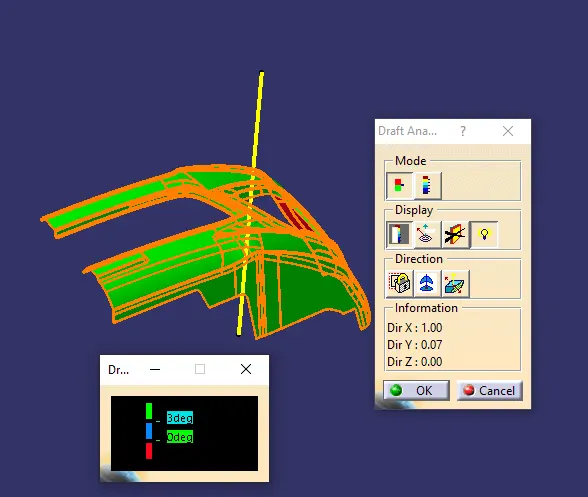

DRAFT ANALYSIS FOR THE GIVEN CLASS A SURFACE:

Conclusion:

From the draft analysis, it is evident that the given class A surface draft is more than 3 degree to the selected tooling axis. Hence it is feasible to manufacture.

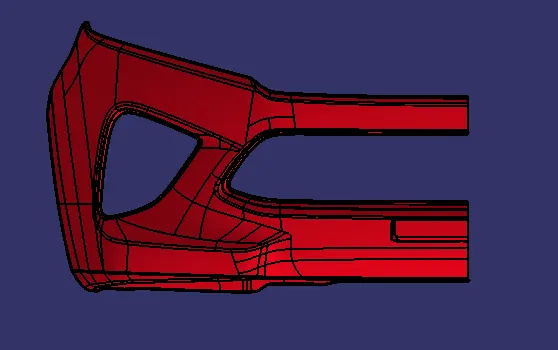

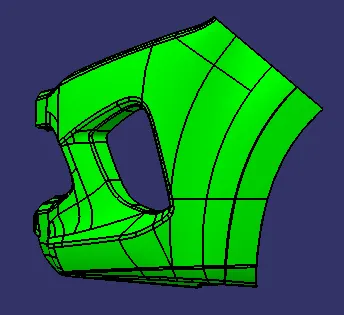

DRAFT ANALYSIS FOR THE GIVEN CLASS A SURFACE_NORMAL TO TOOLING AXIS:

Same draft analysis image of class A surface normal to tooling axis.

It is all green(draft more than 3 degree).

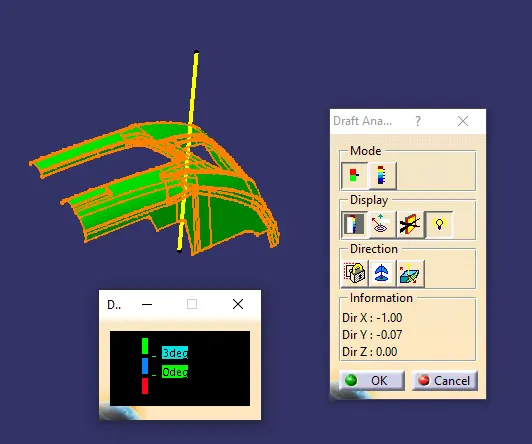

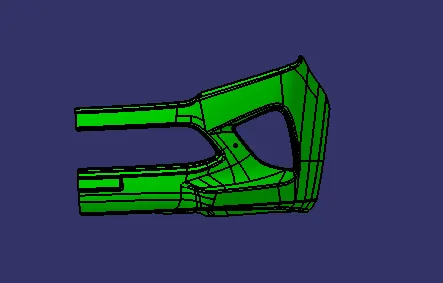

DRAFT ANALYSIS FOR THE FINAL PLASTIC COMPONENT (Image 1):

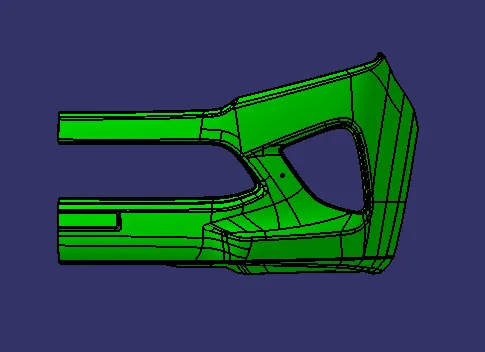

Final Part Normal to Tooling Axis:

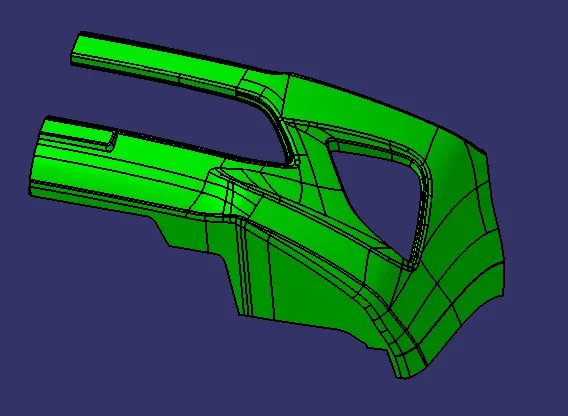

Final Part Isometric View:

Final Part Left Side View:

Final Part Front:

Conclusion for Draft Analysis on final plastic part:

From the draft analysis, it is evident that the final plastic components draft is more than 3 degree to the selected tooling axis. Hence it is feasible to manufacture.

2) TOOLING AXIS:

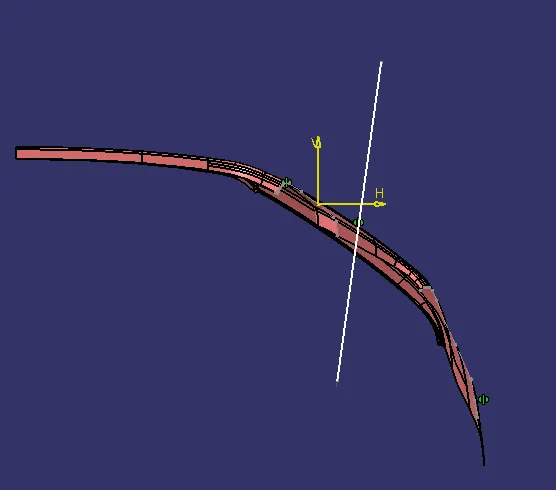

Initially for XZ surface, i created a dummy tooling axis.

I used the walls to create a bisecting line ( Dummy Axis 1)

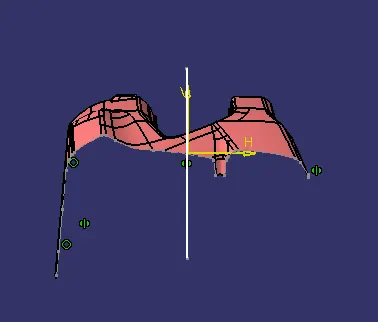

Then for XY surface, i created a dummy tooling axis.

I used the walls to create a bisecting line ( Dummy Axis 2)

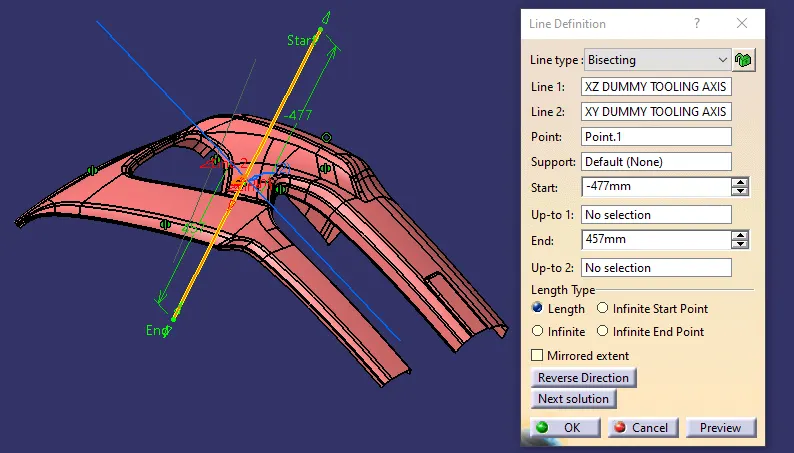

Using the above two dummy axis i create, main tooling axis by bisecting the two dummy axis, which i create initially.
