Week 8 - Challenge 4 - Bumper

AIM-

Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

OBJECTIVES-

• Submission in challenge box
• Below images/screenshots should be inserted into the challenge box
• Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component
• Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

• Submission as an attachment
  • CATpart should be submitted as an attachment using the below Browse option.

SOLUTION-

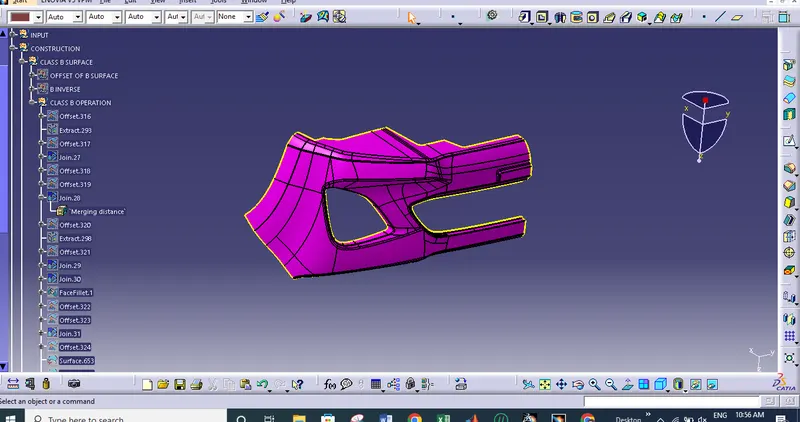

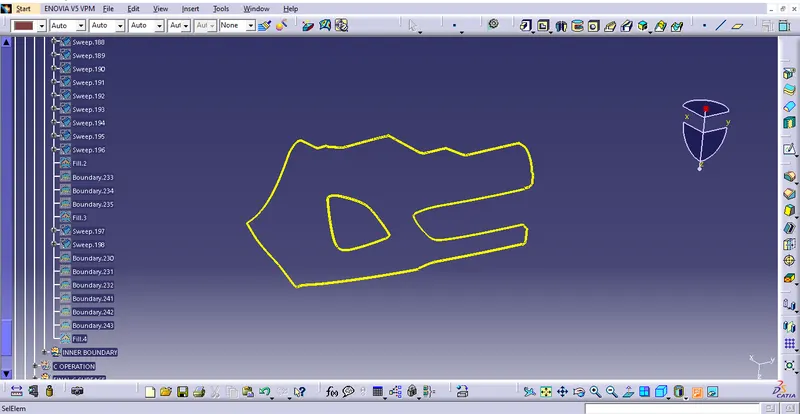

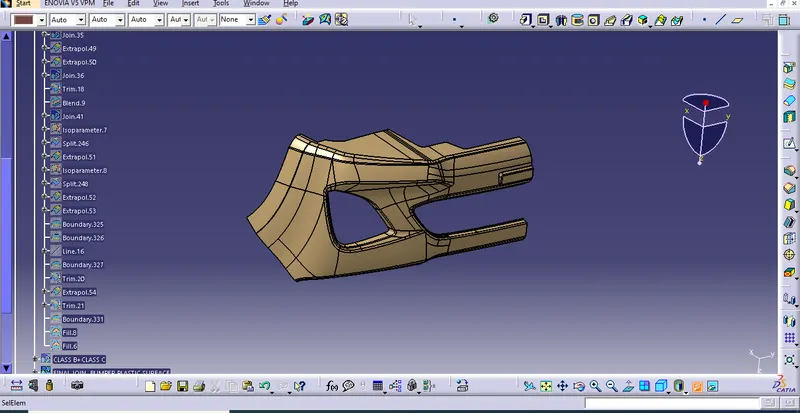

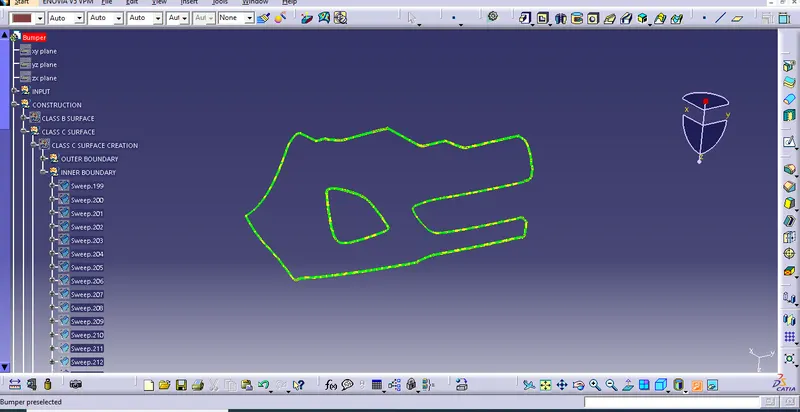

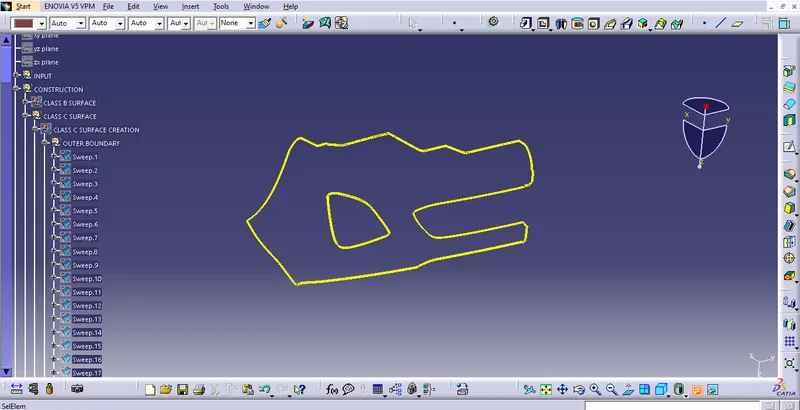

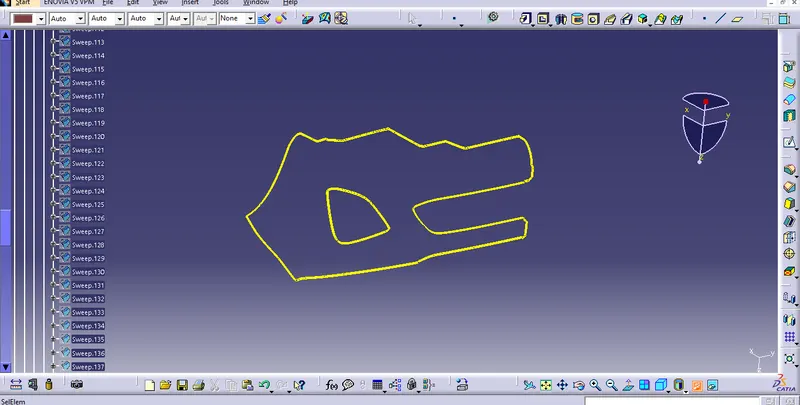

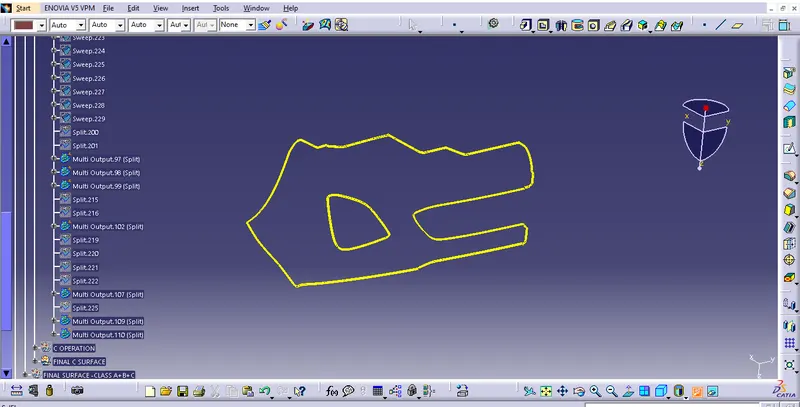

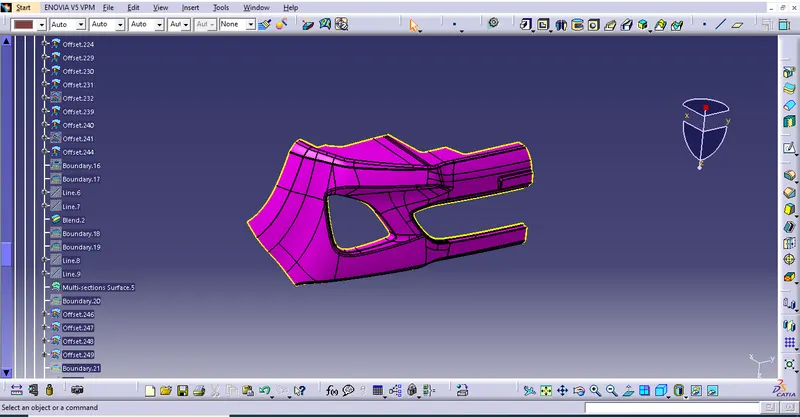

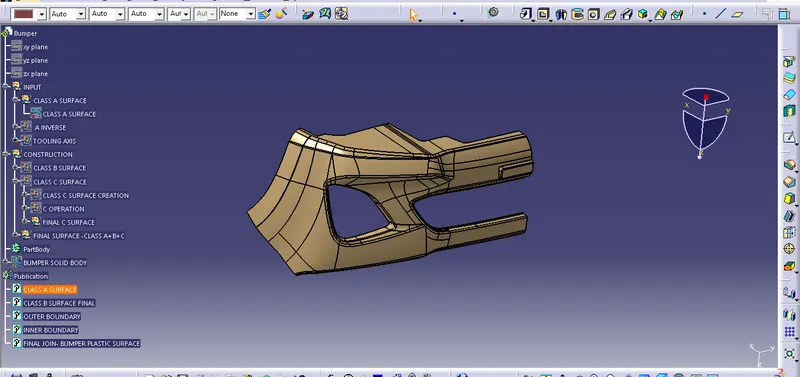

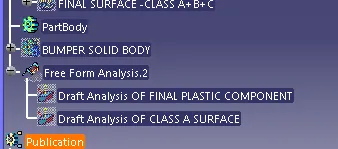

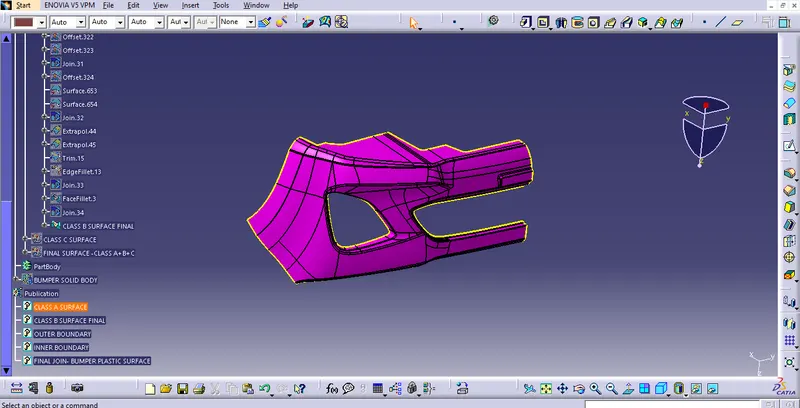

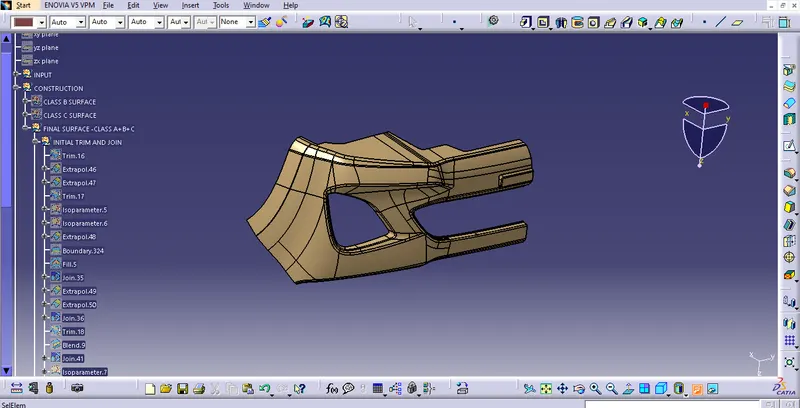

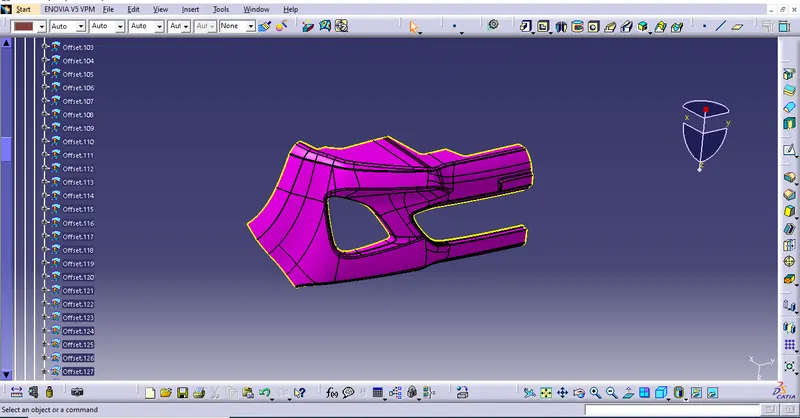

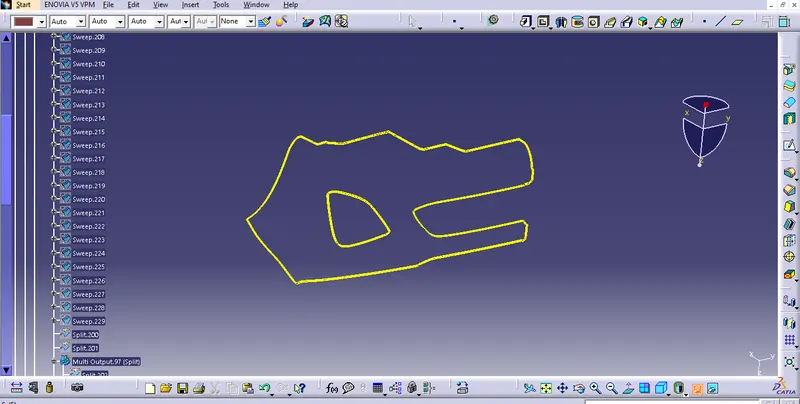

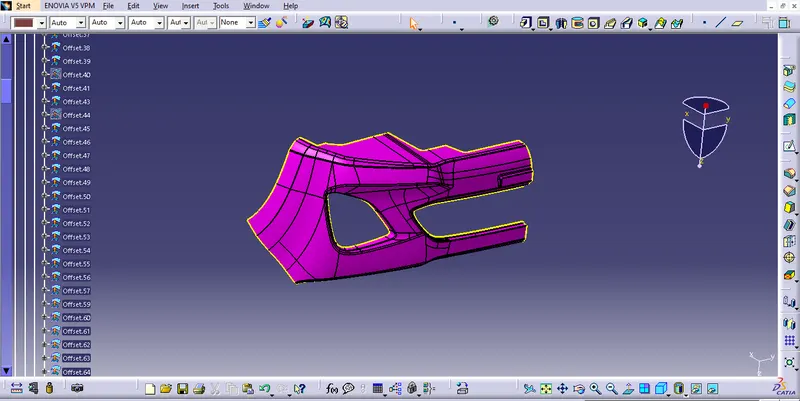

• Tree Structure

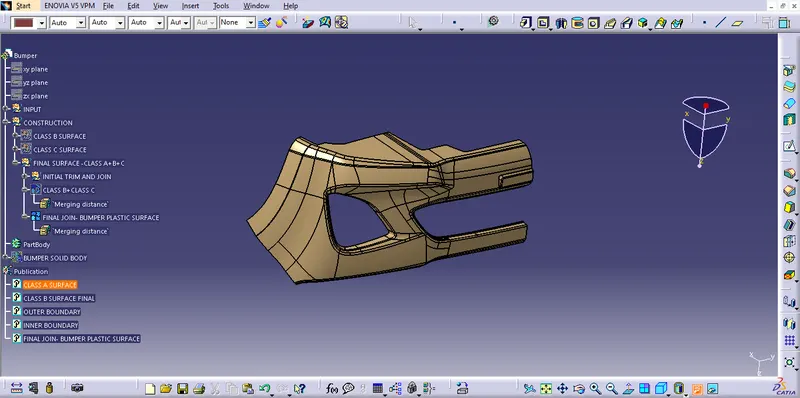

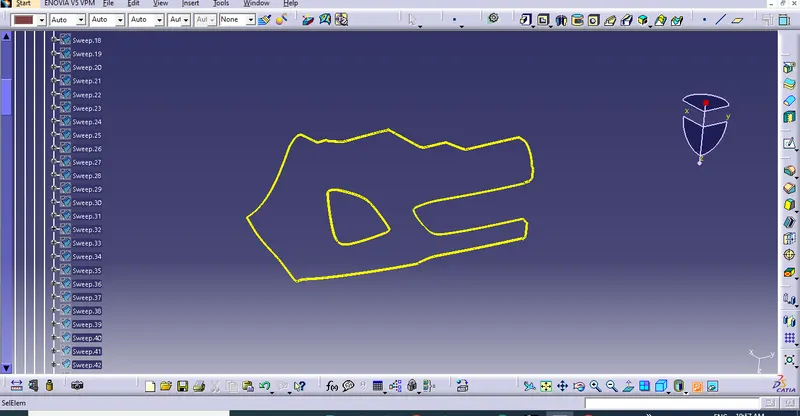

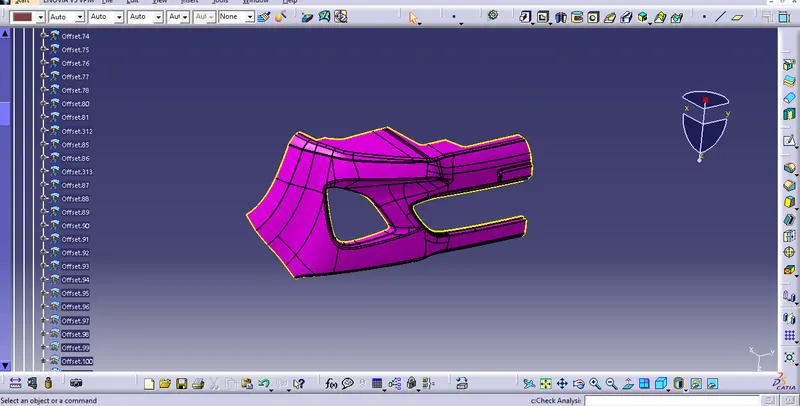

Close Surface feature to make a solid body from the surface-

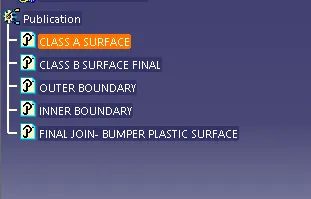

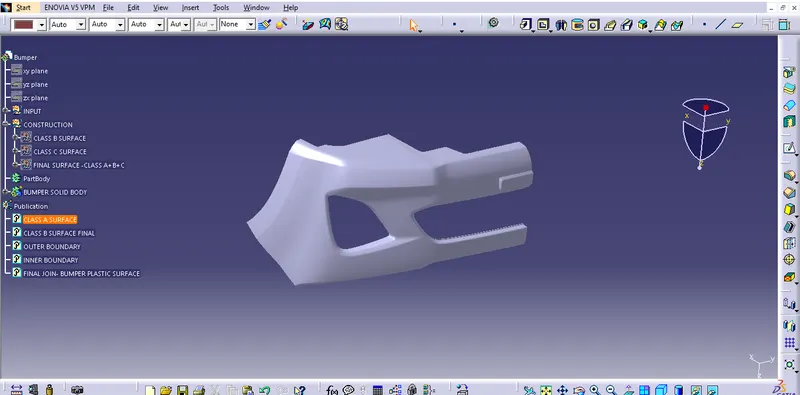

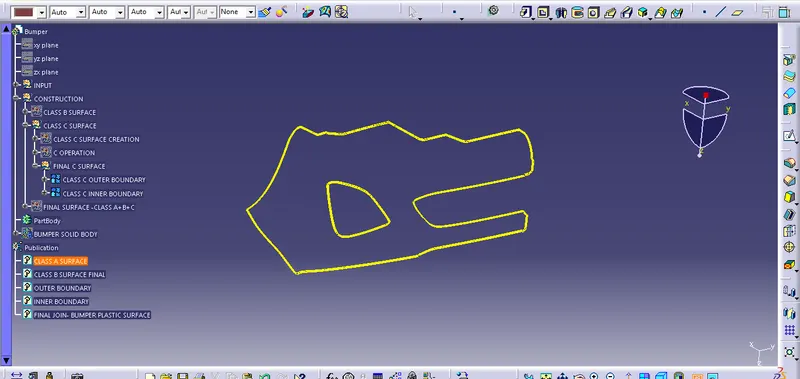

Publications: Use the publication option and publish the below

• Tooling Axis
• Class A, B, and C surface

A detailed report should be done explaining the draft analysis and the tooling axis creation-

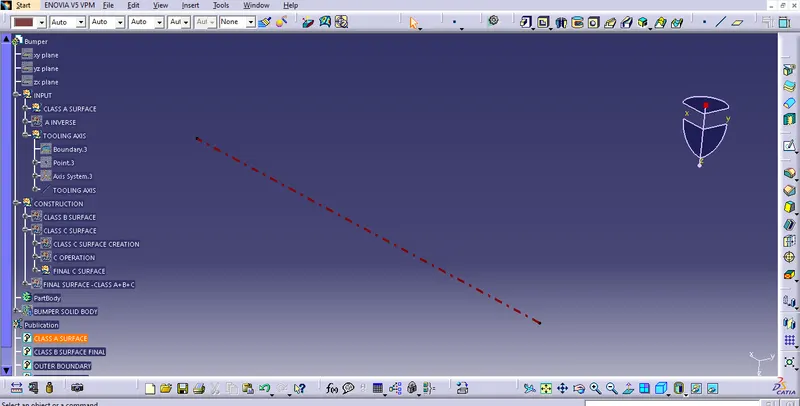

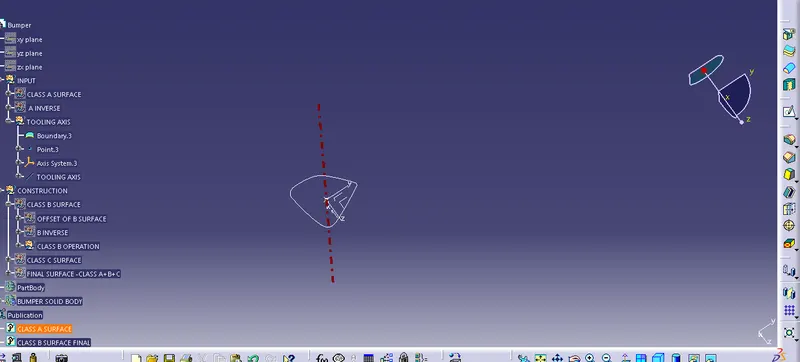

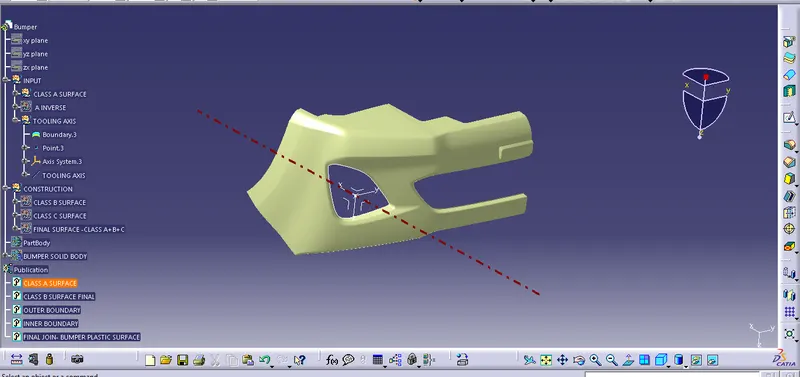

Tooling axis creation-

1) By observing part or component we have to choose direction of drafting. while doing this we have to consider geomety of component. All holes, fillets, chamfer etc have to take in our consideration and we have to choose direction of drafting.

2) To start working on drafting process we have to choose middle portion of the component or if there is hole in component, we have to start from there.

3) Our first step is to create dummy axis. Now here we have created dummy axis with help of middle hole.

4) Now by observing component geometry, we have to choose direction or plane to create axis for bisecting the component. Here we have to consider geometry and also way in which drafting is become easy & it cover all parts of component.

5) By considering all above, we have to generate axis system or plan to bisect our component. After this we have to intersect plane or axis system with component. It will provide you one shape of geometry. Now we have to draw two lines from extreme outer two points of bisecting line or from extreme outer line.

6) By using line option, we have to create bisecting lines from those two final lines.Here in bisecting line option we have to choose correct line from horizantal or vertical line according to our drafting direction line.

7) This line will provide you final tooling axis line.

8) In above case, where drafting angle is zero as its vertical straight line. Here we have extracted base surface and by using axis system we have generated tooling axis.

Draft analysis-

1) It is a tool that allows the user to ‘see’ whether the part they are designing can be removed from the tool being used to make it.

2)In the case of plastic injection molded parts it also allows the designer to see if there is enough draft on the part to ensure that it can be correctly grained.

3) we always use the tool with the axis direction method. Put the main axis on the draft direction line with Z being parallel to it. Select the tool then select the part body. You may need to reposition the axis again.

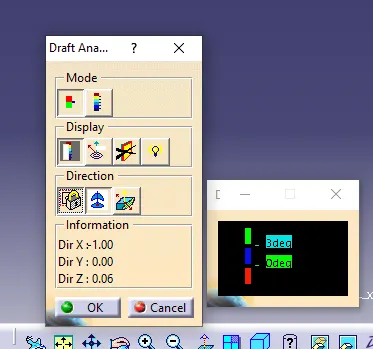

4) The results window has 2 options 1 with just 3 colour variants and the other with many variants. They can be edited by double clicking on them to give you the result you desire. The colours show the different draft angles.

5) We have to use following path for drafting anaylsis

Tools- Anaylsis- Feature draft anaylsis

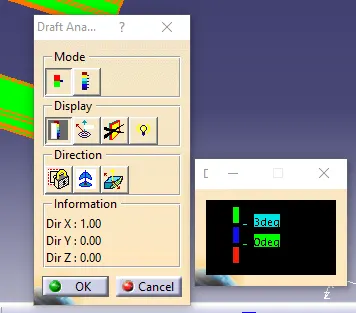

6) At starting of drafting anaylsis we have to set compus which is show in direction row (2nd number option). During this w of compus is set towards the drafting angle.

7)After this we have to click on component. Now component become green as shown in below image and also if it become blue then flip direction of compus using flip option in direction row.

• An explanation should be given on the way of creating the tooling axis, particularly the Bisecting method.

1) By observing part or component we have to choose direction of drafting. while doing this we have to consider geomety of component. All holes, fillets, chamfer etc have to take in our consideration and we have to choose direction of drafting. In this case we have selected z axis for drafting direction.

2) we have selected base portion for create dummy axis. In this extracted surface we have add one point at center of base and from this point we have create axis system and then intersect this axis system along zx axis.

3) As our outer boundary of surface is vertical and straight, we cant generate another axis alog with other direction. so for this case we have consider central line as tooling axis and tooling direction along z axis.

• Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

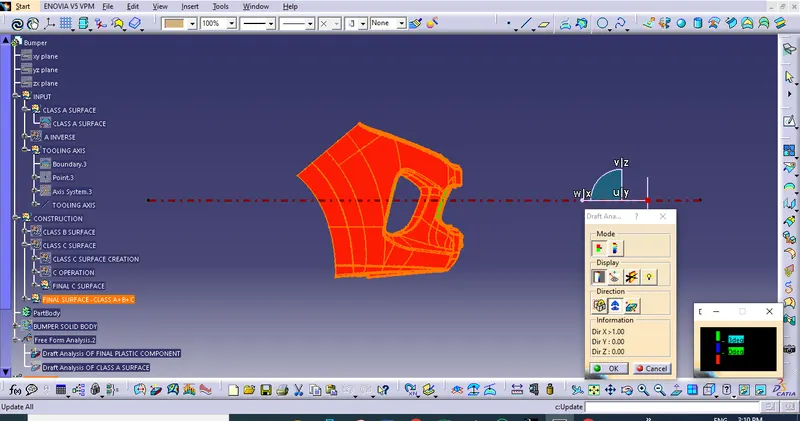

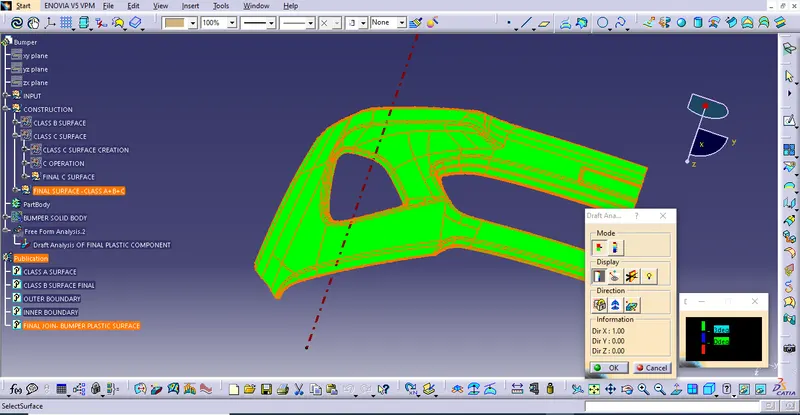

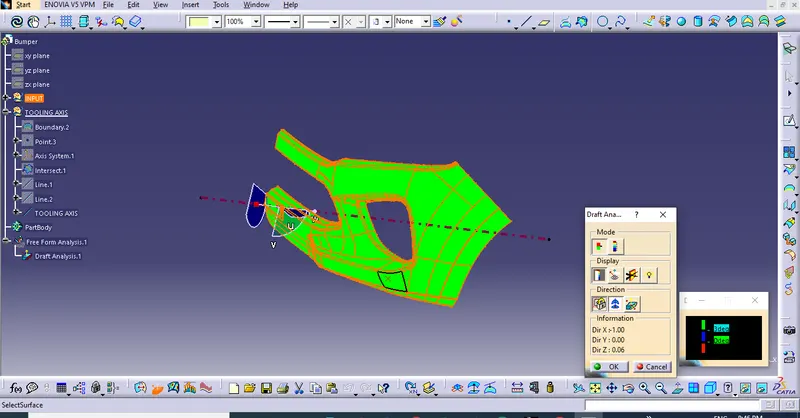

Class-A surface

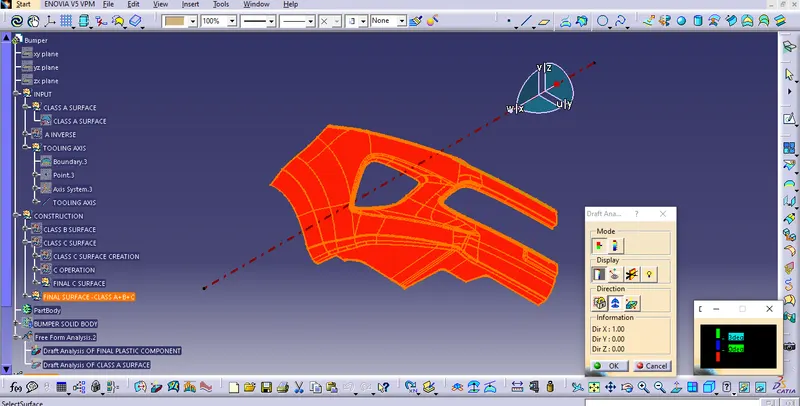

Final plastic component

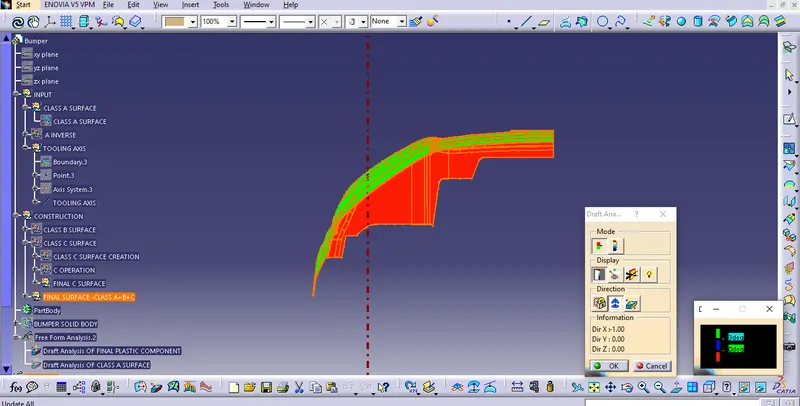

• Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

Isometric View

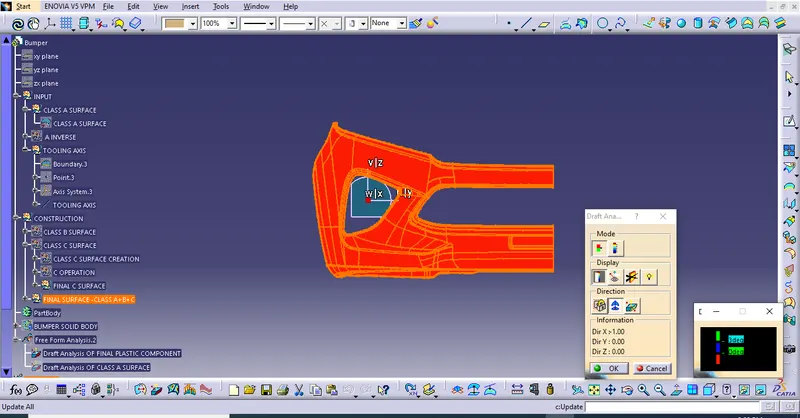

Front View

Side View

Top View

CONCLUSION-

As per given requirement we have draw sketch in catia and also drafting analysis is done.
