Week 8 - Challenge 4 - Bumper

DESIGN AND DRAFT ANALYSIS OF BUMPER

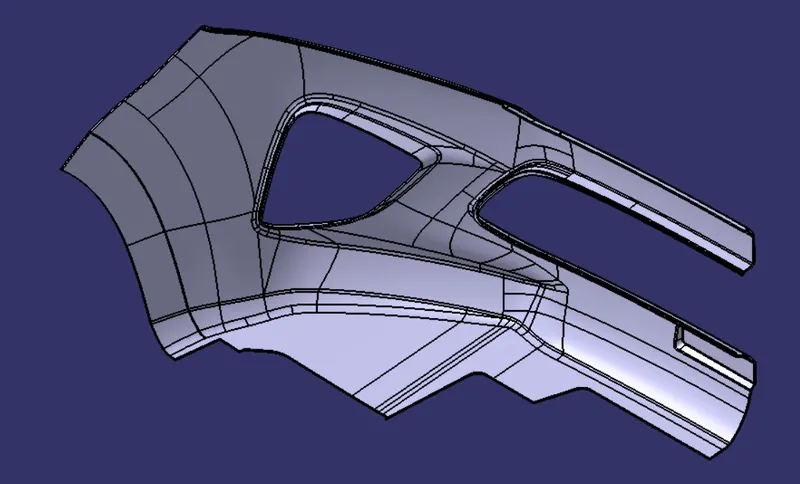

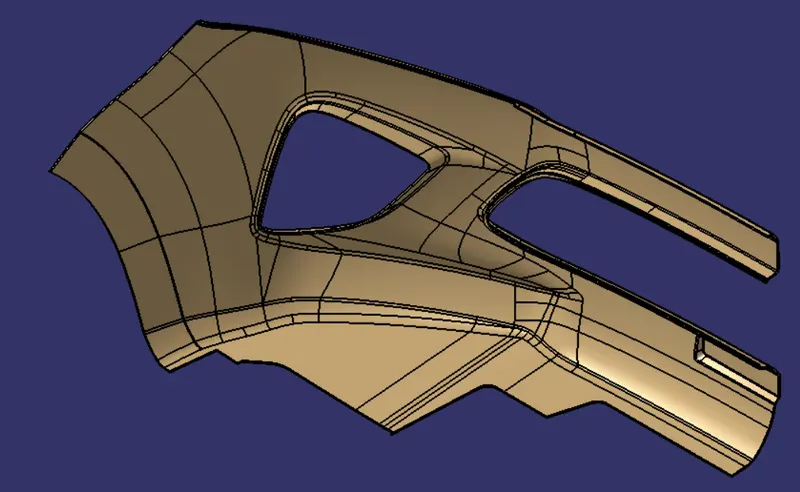

Class A surface

Draft analysis

Draft analysis is done to check plastic parts moldability for the ease of removal from the injection mold. A tooling direction is required to create the draft in the component, which acts as the drafting direction.

Tooling direction

• Considering the ejection from the cavity of the mould after manufacturing the interior trim must have the nominal 3-degree draft angle (minimum).
• Hence the tooling direction is created by considering the above factor.

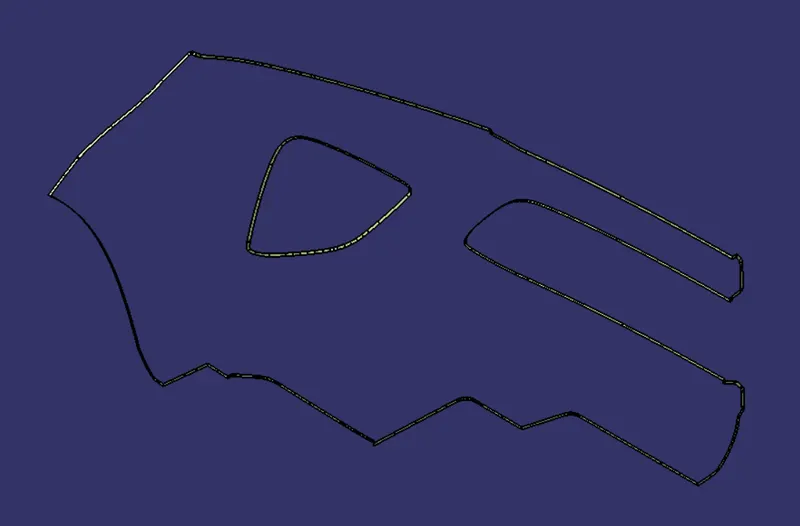

• The flat surface in the class-A which is the number plate holder was extracted and a point at the center is created.
• A normal line to the surface is created which is the tooling axis.

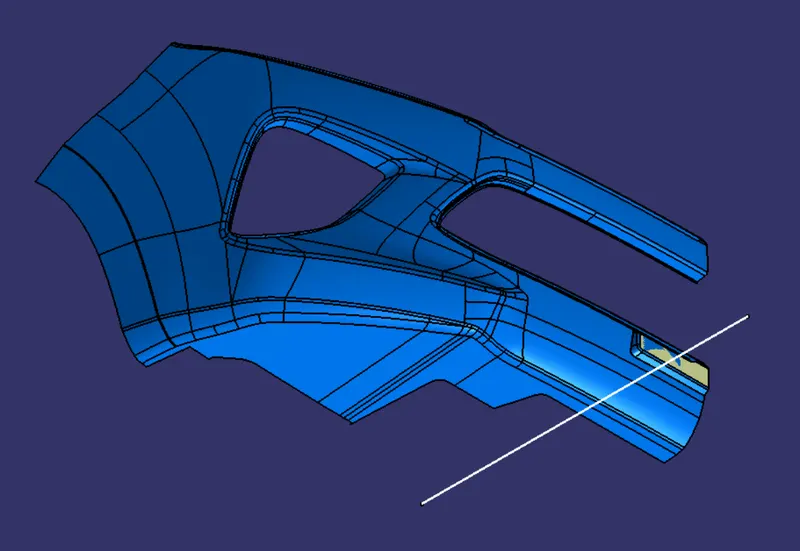

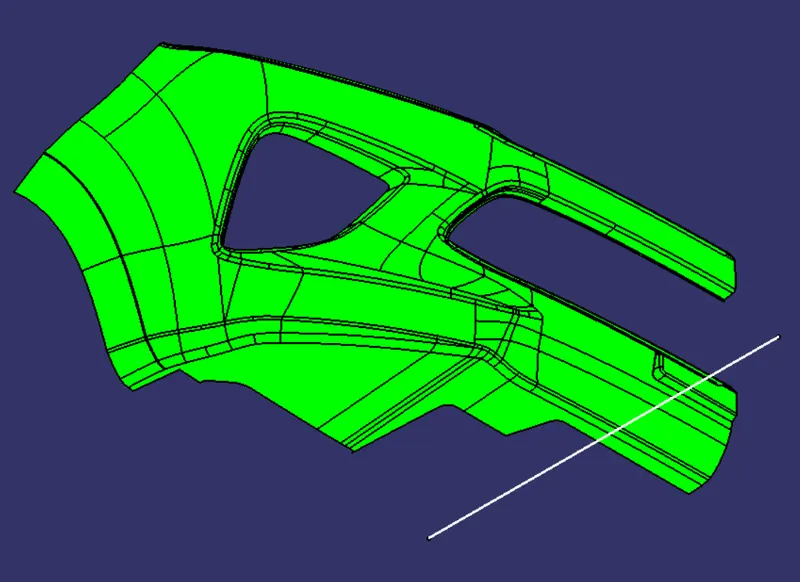

Tooling axis

Procedure for Draft Analysis

• The draft analysis tool is selected.
• Then by enabling compass the axis system is aligned in line with the tooling axis, to define the draft direction.
• Now the surface or part which should be subjected to draft analysis is selected.
• Lock Direction is applied that fixes the compass and then the mode dialog box is formed by snapping at any point on the part
• The Color Codes are classified and Draft Angles are applied
• Then the Running point analysis is used to hover around the part to analyze the permissible draft angles and the analysis is saved.
• This gives the result of the surfaces which have positive draft in green code.

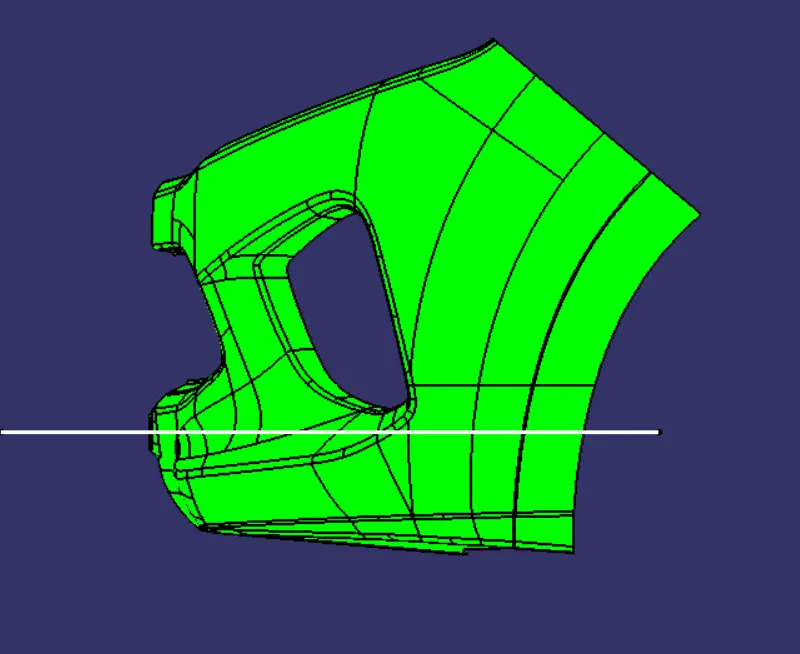

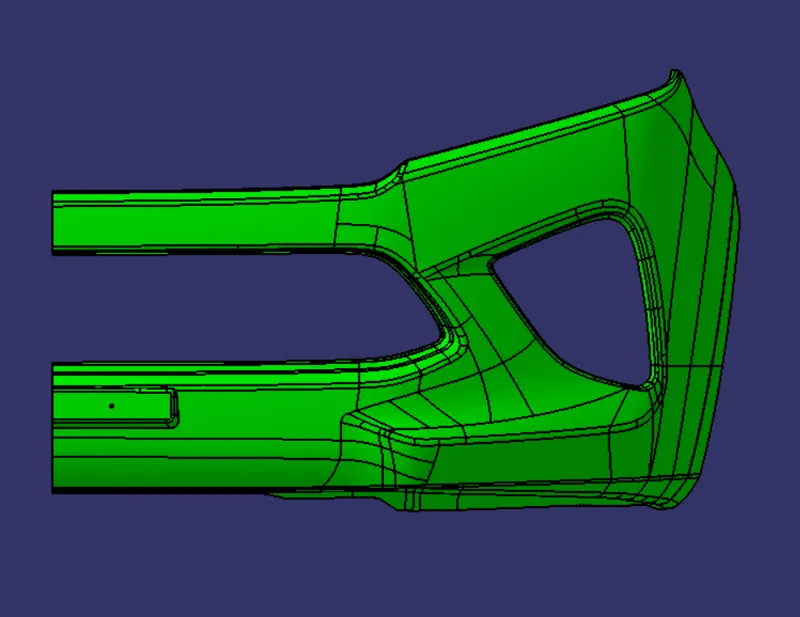

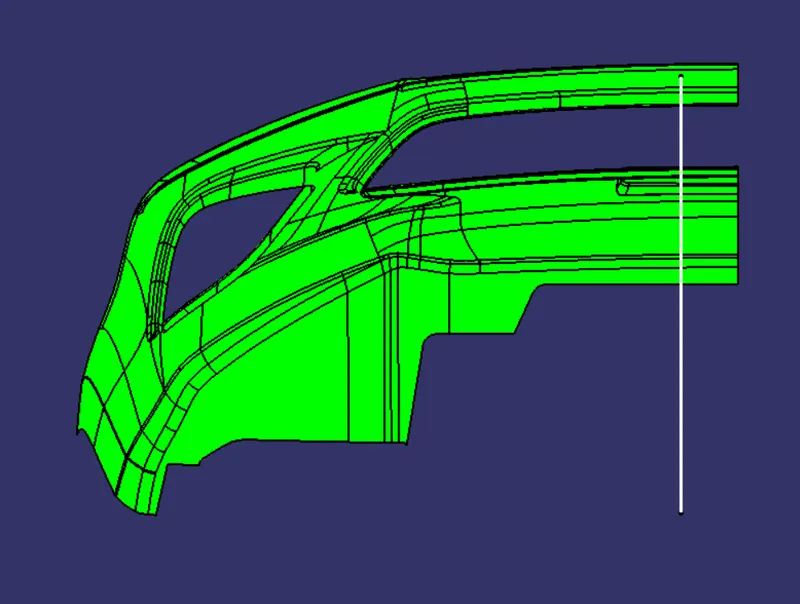

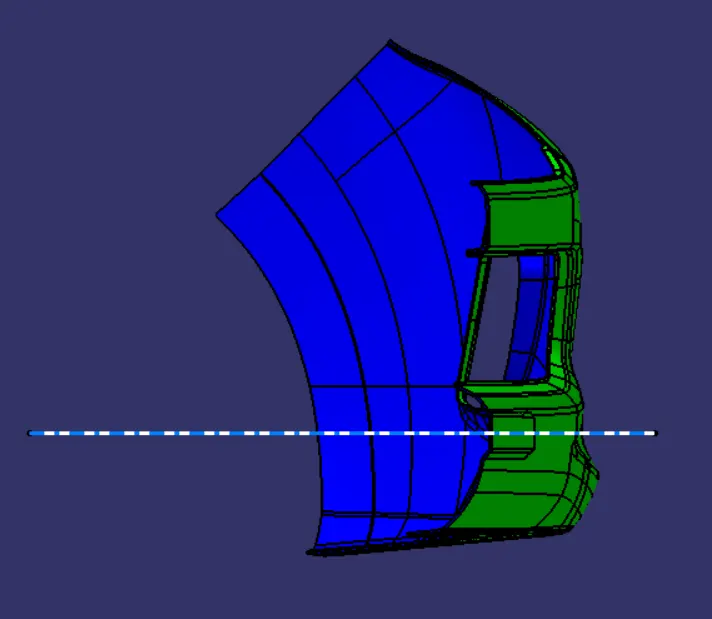

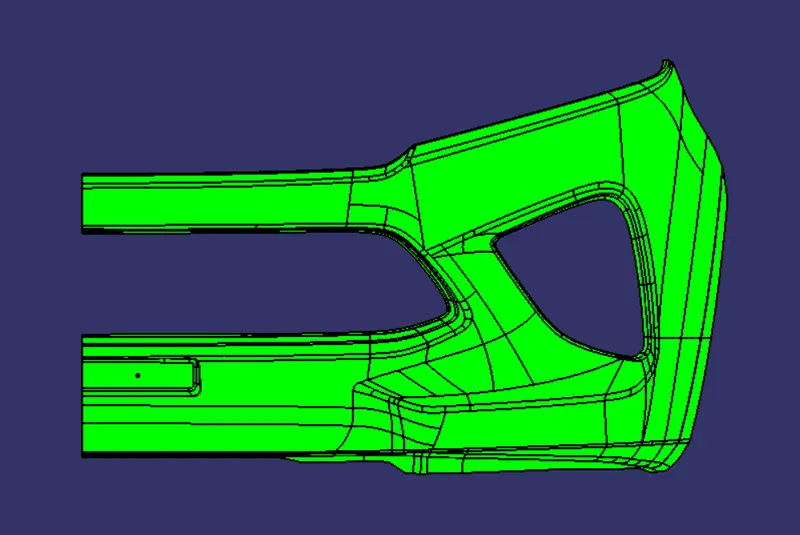

Draft Analysis of Class A

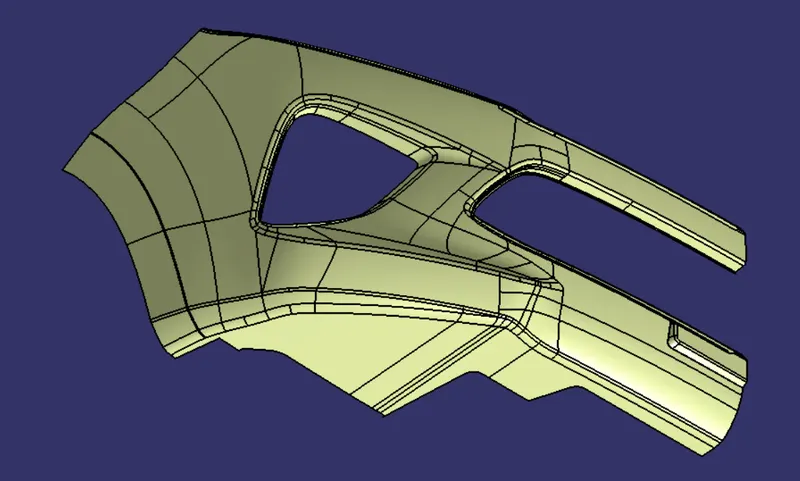

Class B surface

Class C surface

Final part

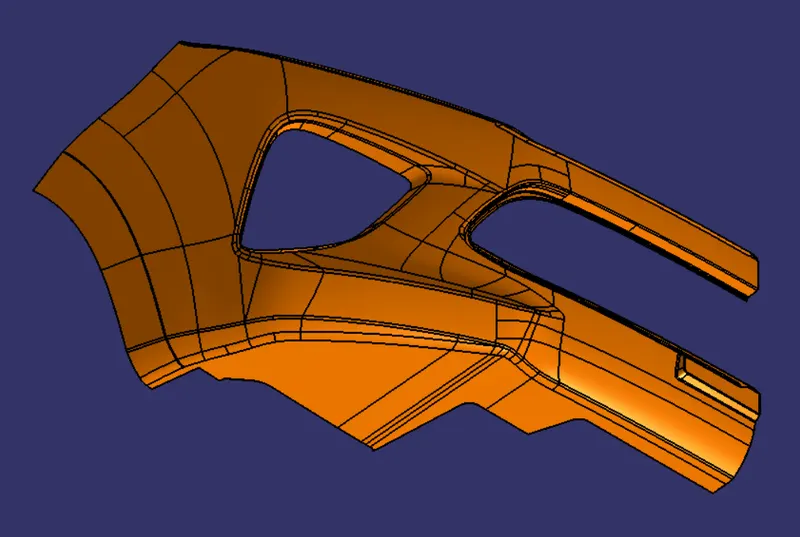

Closed Solid body

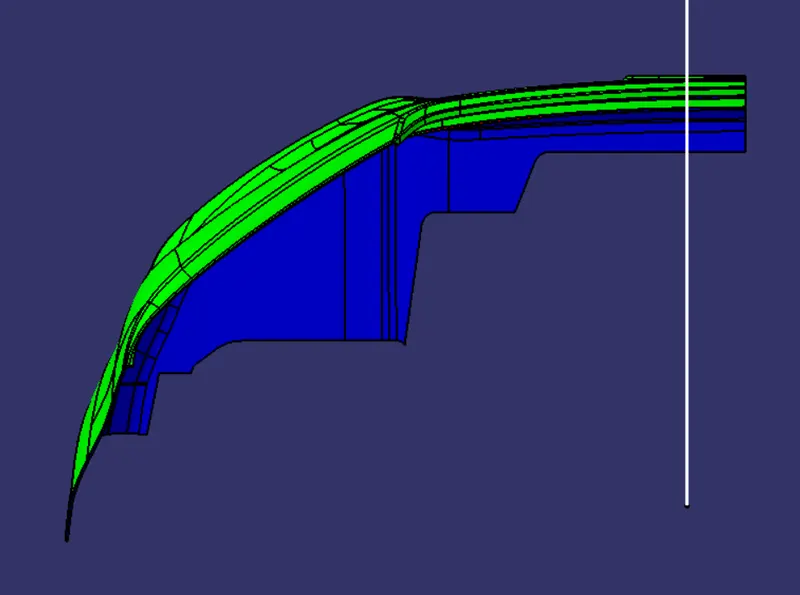

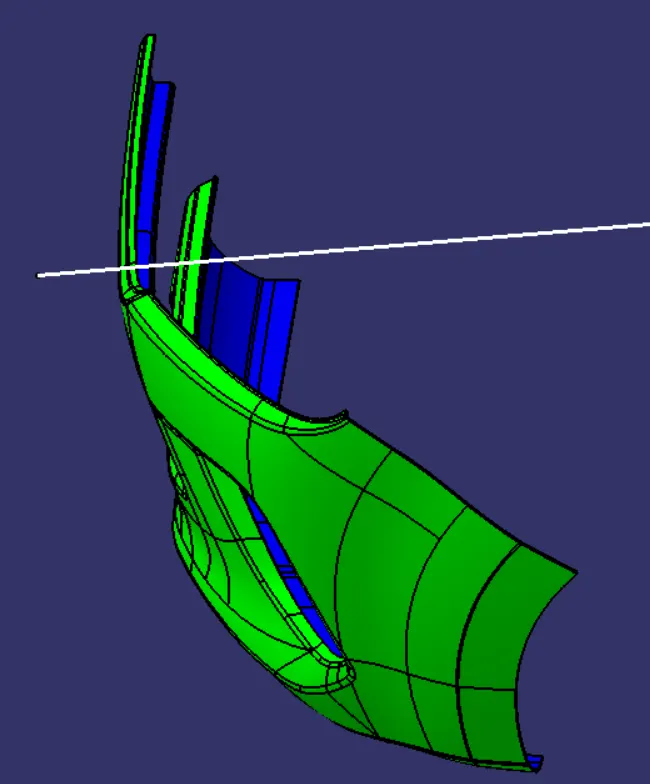

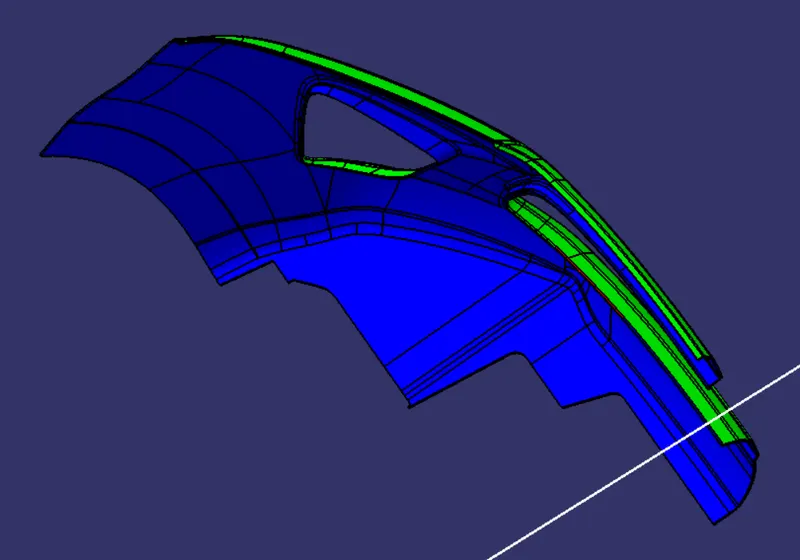

Draft Analysis of Bumper

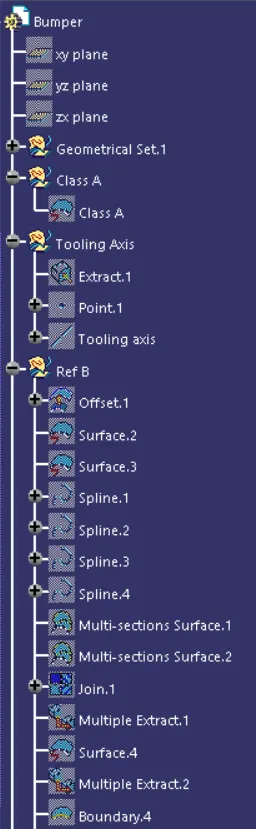

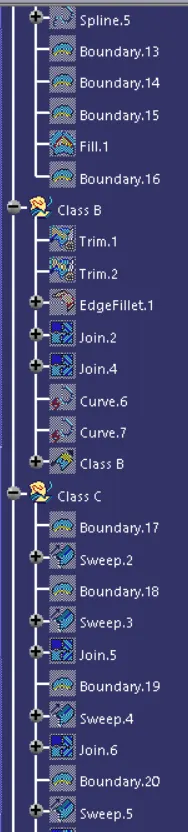

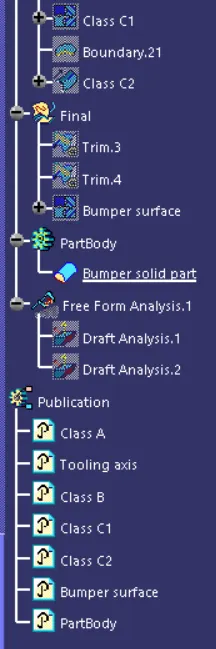

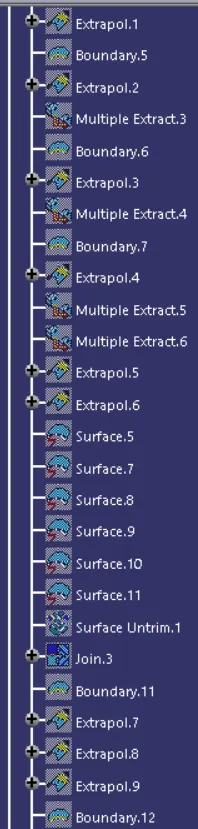

Feature Tree

Conclusion

The Class B & Class C surfaces and the Tooling Direction have been created and Published and the Bumper part body is developed. Both the Class A surface and the Solid body have been successfully passed the Draft Analysis.
