Week 8 - Challenge 4 - Bumper

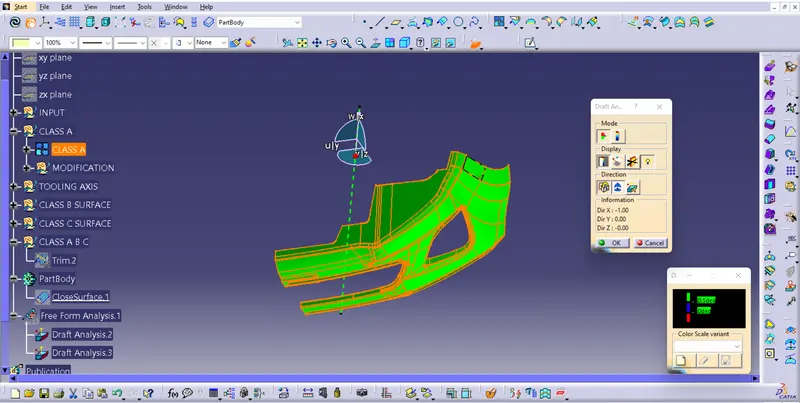

Draft Analysis of Given Class A Suraface:

• i give natural tooling direction for this component.
• 0.5 degree with respect to tooling axis.

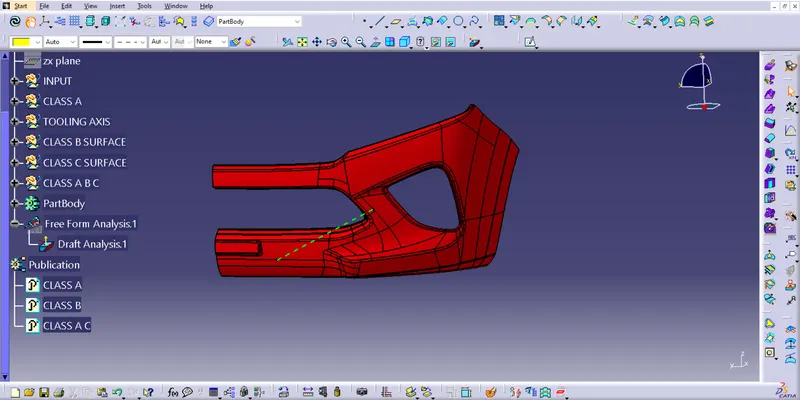

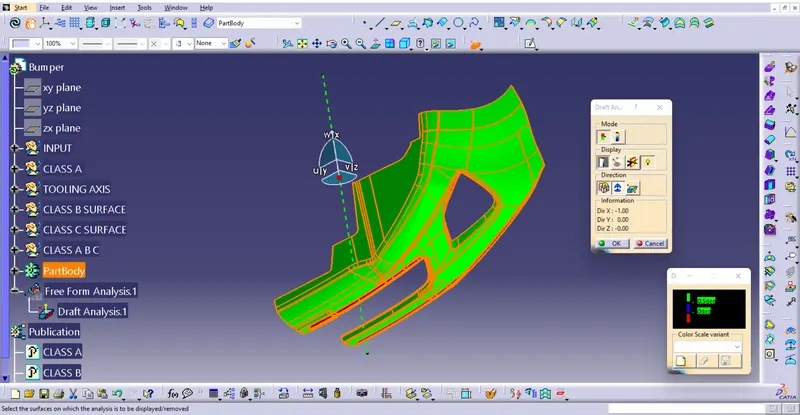

Draft Analysis of Final Component:

• same tooling axis and degree is give for final component
• at some point the sweep angle is 90, and becouse of this the colour shows blue.

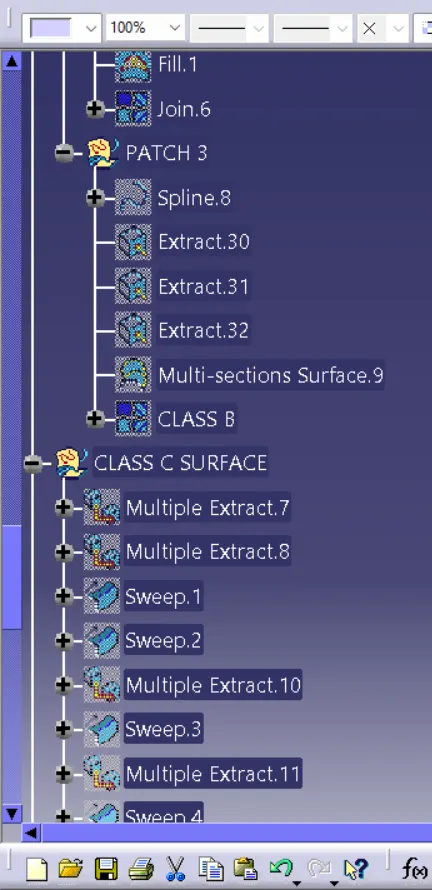

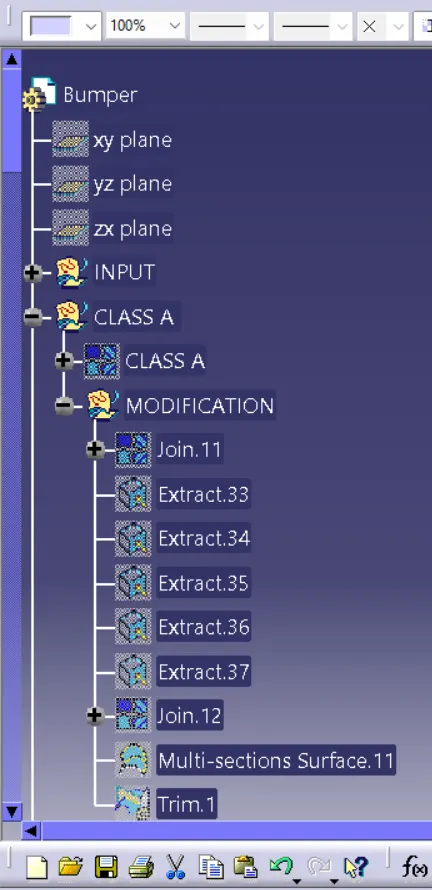

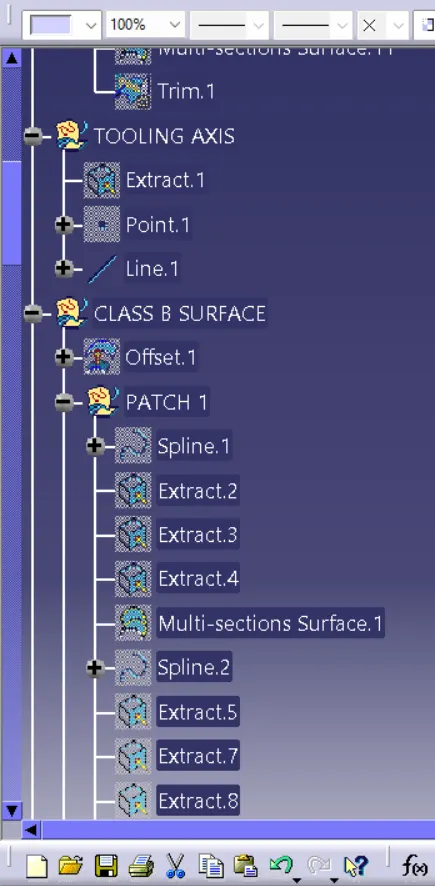

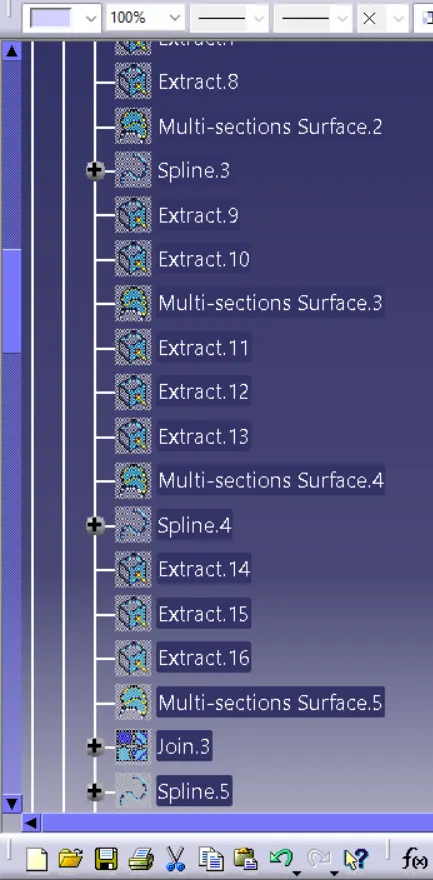

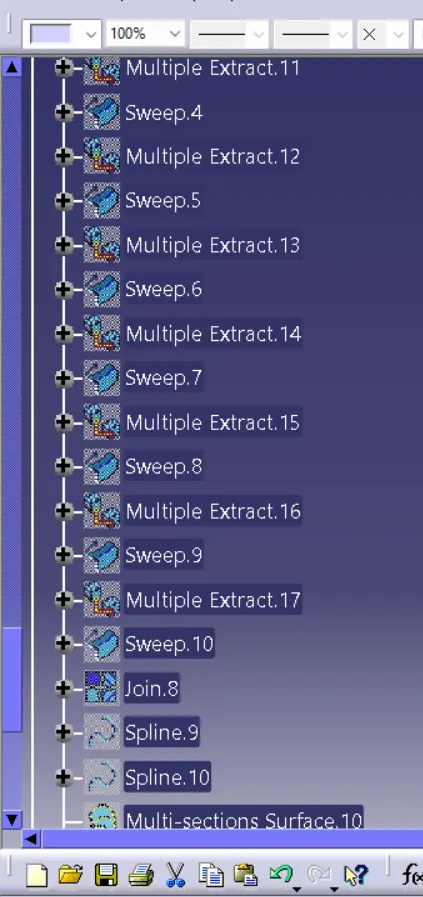

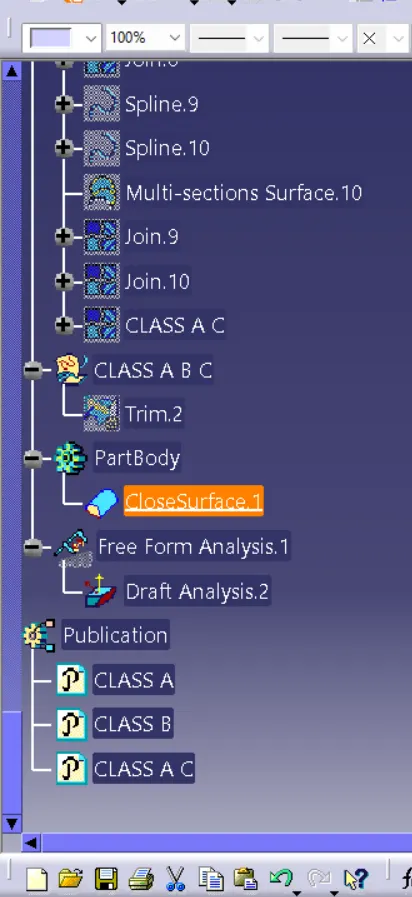

Tree Structure
