Switch Bezel Design – Automotive Plastic Component

This report demonstrates the design of an Automotive Plastic Component – Door Switch Bezel using industry principles such as Draft angles, Draft Analysis, Determining and implementing of Tooling Axis, Class A, Class B and Class C surfaces. The component is designed using Surface Design and Solid Design techniques in CAD package CATIA V5.

Figure1: Switch Bezel

The terms are briefly explained below:

Draft:

• Draft is an angular tapering given at the design stage to every Plastic Component that has to be manufactured.
• It is given in the direction of the Mold Movement.
• The Draft allows the parts to release easily from the mold without creating friction between the surface of component and the core and cavity plates.
• When a Plastic component cools down inside the mold, the natural tendency of it is to shrink and attach to the core or cavity half.
• The movement of mold opening causes friction on the walls of the component as well as the core/cavity blocks.
• This reduces the life of the mold as well as the component itself.
• The component may also have rough surface finish as well as weak structure due to this.
• This problem can be solved by giving draft to the component.
• Most applications require minimum draft angles of around 0.5º to 1º , however 3º draft angles are widely accepted for cost saving purpose.
• 7º Draft angles are given to textured surfaces like Instrument Panels.
• Minimum possible draft angles are given to screw bosses, ribs and stiffeners due to their critical nature.

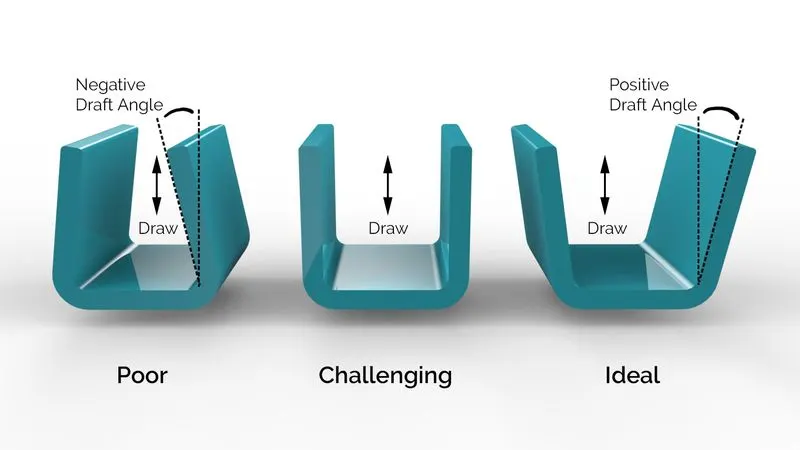

Figure2: Draft Angles

Tooling Axis:

• Tooling Axis is the direction in which the Mold opens and closes. Part Drafts are given along this axis.

Figure3: Tooling Axis

Draft Analysis:

• Draft Analysis is a tool in CATIA which identifies the zones which deviates from the specified values of angles along a defined draft direction using colour codes.
• It highlights the regions of draft using colours.
• Draft analysis is the first step performed after receiving the Class A of the component.
• Draft analysis should be passed in order to make the plastic component manufacturable.
• Acceptable draft angles are used as range for draft analysis.

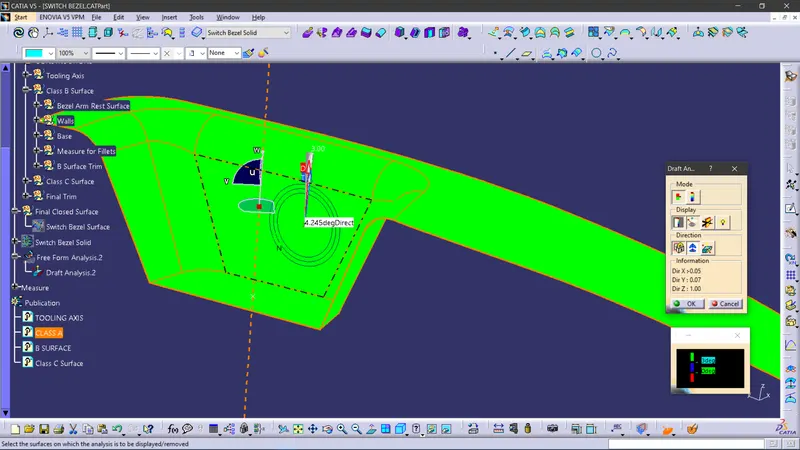

Figure4: Draft Analysis showing one of the faces having acceptable 4.2º draft angle

Class- A Surface:

• In automotive design, a class A surface is any of a set of freeform surfaces of high efficiency and quality.
• It is the visible aesthetic surface of any automotive component.
• Class A surface refers to those surfaces which are visible and abide to the physical meaning, in a product.
• This classification is primarily used in the automotive and increasingly in consumer goods industry.
• It is a requirement where aesthetics has a significant contribution.
• For this reason, the exterior of automobiles is deemed Class-A.

Class- B Surface:

• Class B surfaces are Engineering Surfaces which are invisible to the eyes or often on the back side of the Class A surfaces.
• It is mainly the thickness of the component or Class A.
• These surfaces need to be designed as per the Class A surface i.e., the continuity, thickness of the component, functionality etc should be maintained.
• These surfaces include the main engineering features such as Screw bosses, Ribs, Snaps, Stiffeners and fixations.
• B surfaces also do not contain any aesthetic styling content and textures since it is not visible to eyes.

Class- C Surface:

• Class C surfaces are connectors between Class A and B surfaces.
• This surface connects both A and B surfaces along the Tooling Axis.
• It contains the draft as per the design.
• It is basically the thickened surface between both A and B surface.
• Below Figure 5 shows class A,B and C surfaces: Blue surface is Class A, Purple surface is Class B and Red surfaces are Class C surfaces.

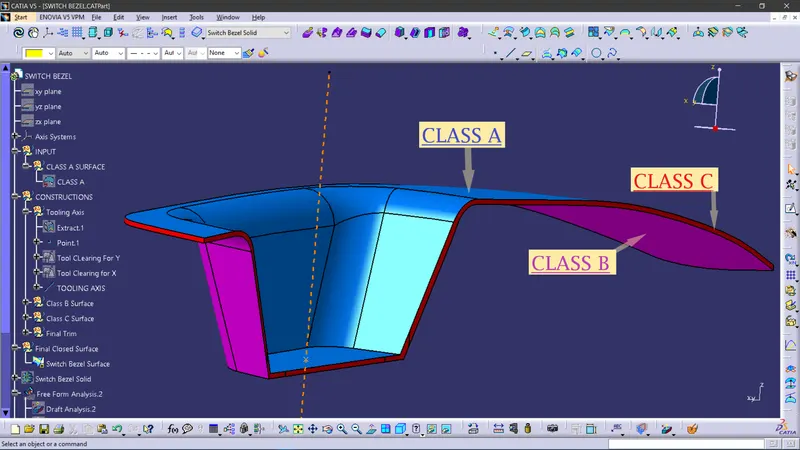

Figure5: Depiction of Class A, Class B and Class C surfaces

SWITCH BEZEL DESIGN:

Procedure to be followed:

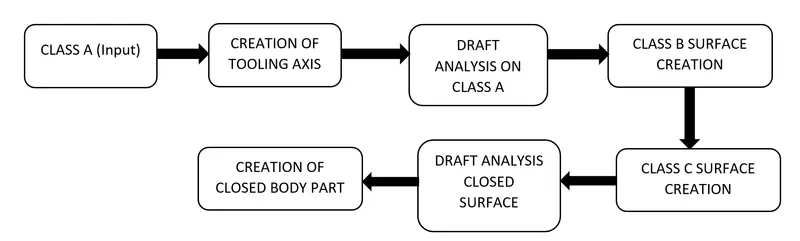

Figure6: Procedure in designing Switch Bezel

Step 1: Design Check on received Class A:

• After receiving the Class-A for the Switch Bezel check for the connectivity of the surfaces on it.
• Use Join operation, boundary operation and disassemble.
• The check is over if any discontinuities do not arise.
• Delete the operations after the check.

Step 2: Determine the Tooling Axis:

• Identify faces which can potentially create problems while manufacturing.
• Surfaces at angles along a desired Tooling Axis.
• Extract a plain surface and create a point on its center for Axis system creation.
• In this case Z axis can be a possible Tooling Axis Direction.
• The Blue and Cyan Faces can be a problem in terms of draft analysis Figure 7 demonstrates the steps.

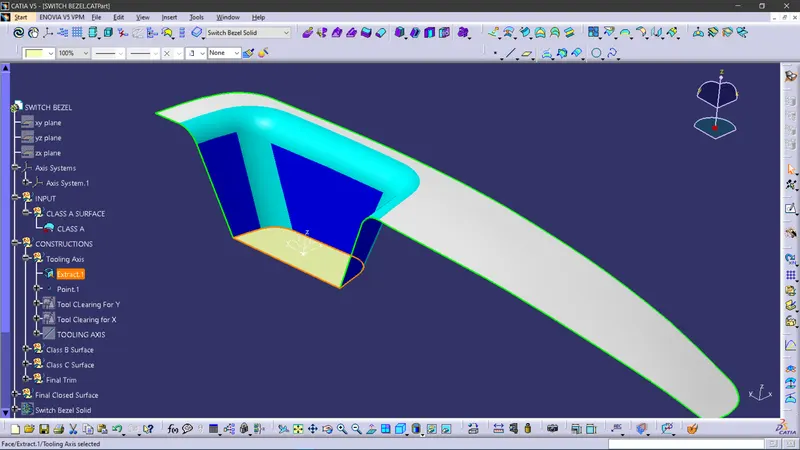

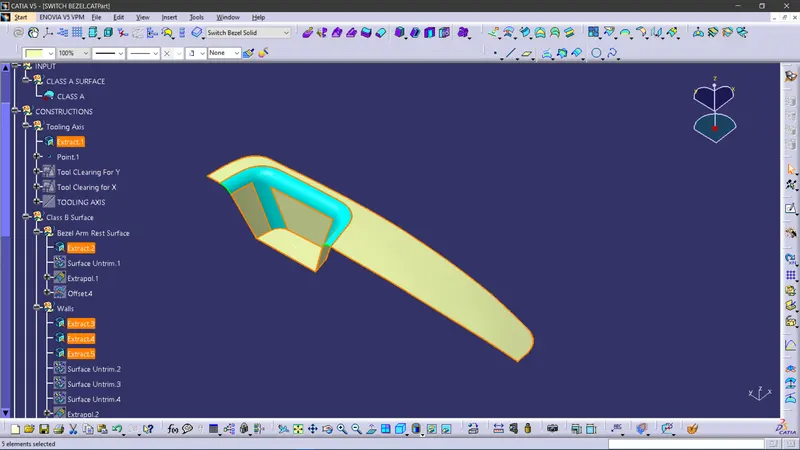

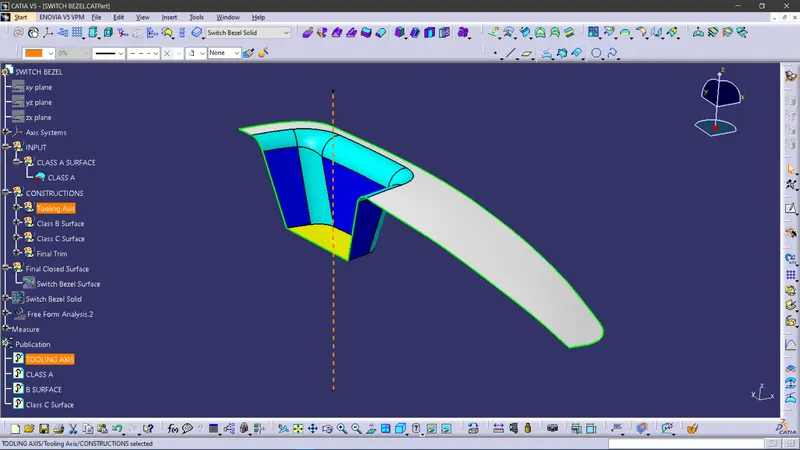

Figure7: Base Extract and Highlighted problematic Faces for Draft Analysis

• Create a sketch on YZ Plane creating Intersects for the 2 Faces.
• Create a Bisecting Line for the 2 intersects and it will be the Tool Clearing Axis for Y.
• It is shown in Figure 8.

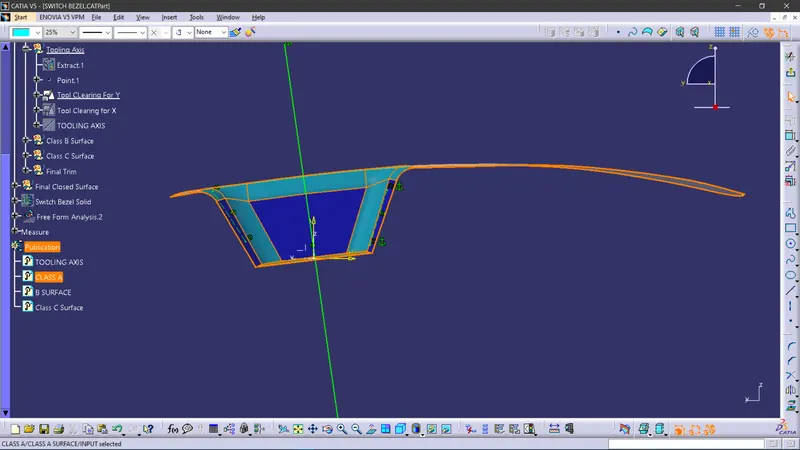

Figure8: YZ plane sketch for Tool Clearing for Y.

• Do the similar Sketch process in XZ plane.
• In this case there is only 1 wall for intersection with XZ Plane.
• For such cases, Sketch a Line at an angle greater than acceptable draft angle from the axis center origin on the same XZ plane.
• The angle chosen here is 7º.
• This Line itself is the Tool Clearing Axis for X, rename it with the same.
• It is shown in Figure 9.

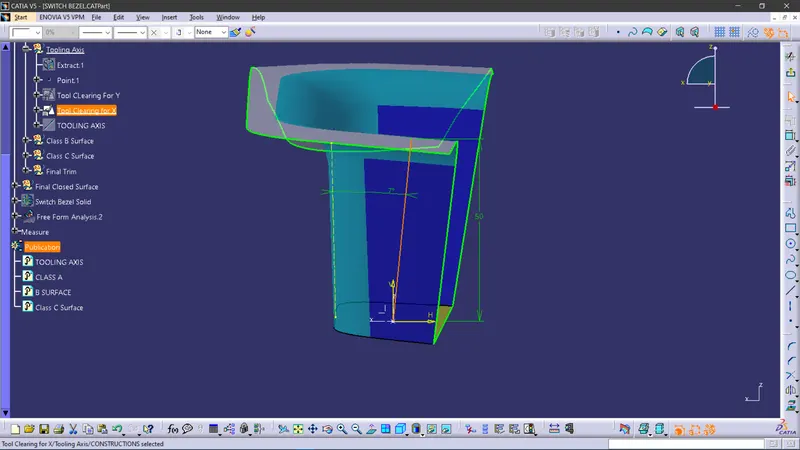

Figure9: XZ Plane sketch for Tool Clearing for X.

• Create a Bisecting Line for both Clearing Axes and name it as Tooling Axis. It is shown in Figure10.

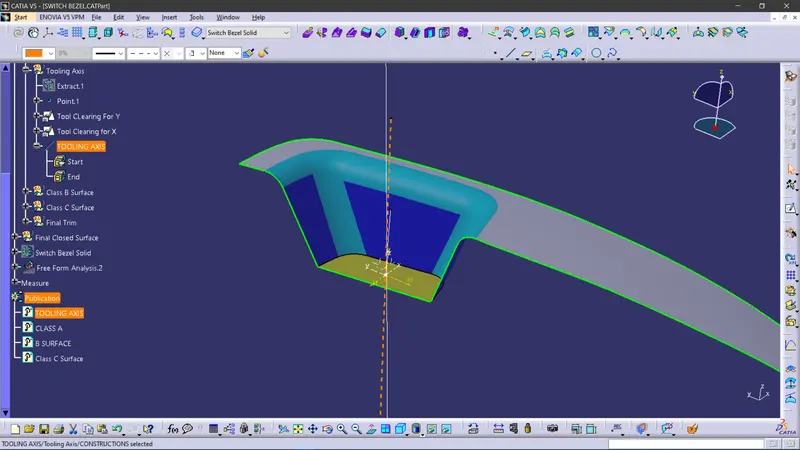

Figure10: Bisecting Line renamed as Tooling Axis.

• Publish the Tooling Axis as well as the Class A for easy access using Insert à Publication as shown in Figure 11.

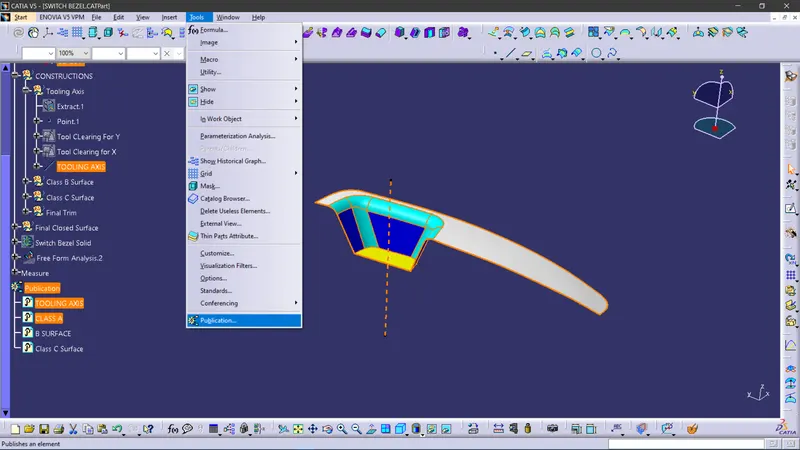

Figure11: Publication of Tooling Axis and Class A surface.

Step 3: Perform Draft Analysis on Class A Surface:

• Change View Mode Customization to Material mode
• Go to INSERT ---> ANALYSIS ---> FEATURE DRAFT ANALYSIS and move the compass to the Tooling Axis.
• Change the range to 3º. Apply the settings as Shown in Figure 12
• As shown the target area has 4.2º draft angle which was the concerned face.
• Thus, it passes the criteria of having suitable draft and the Class A can be further designed into a solid plastic component and manufactured.

Figure12: Draft Analysis on Class A of Switch Bezel.

Step 4:Class B Surface Creation:

• Extract the relevant surfaces from Class-A surface which excludes the Fillets and holes.
• Here the selected faces consist of Bezel Arm rest surface, Walls and the Base surface.
• Extract of these surfaces is shown in the Figure 13.

Figure13: Extract of surfaces from Class A of Switch bezel.

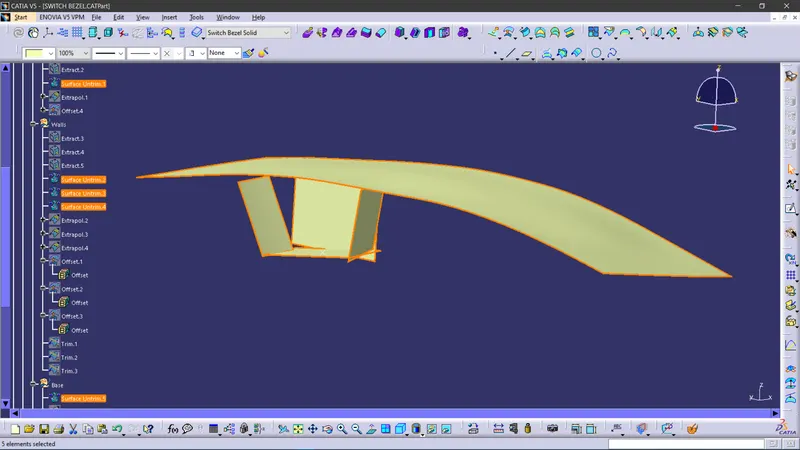

• Use Untrim Command to untrim the extracted surfaces and create a natural extend.
• It is shown in Figure 14.

Figure14: Untrim of Extracted Surfaces.

• Extrapolate the untrimmed surfaces so that each of them intersects clearly and pass way forward than the Class A which will help in its trimming in further operations.
• The operation is shown in Figure 15.

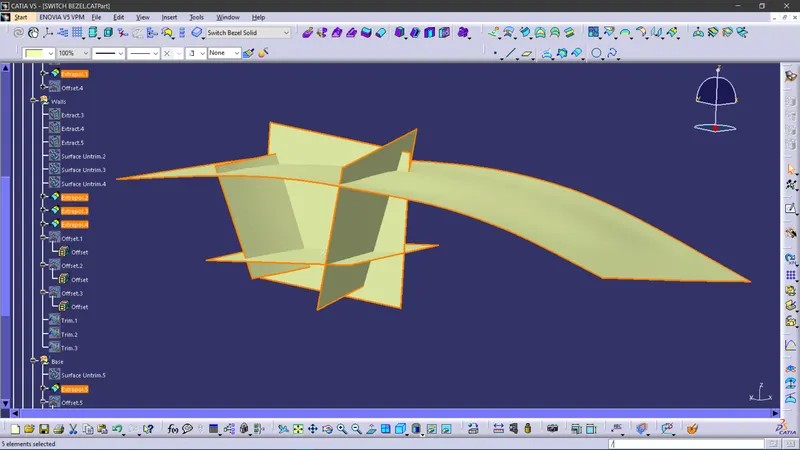

Figure15: Extrapolated Surfaces created from Untrimmed Surfaces.

• Offset the extrapolated surfaces to the value of required Thickness of the Part.
• In this case of Switch Bezel, the thickness value is 2.5 mm.
• The offset faces are the part of B-Surface.
• The operation is shown in Figure 16.

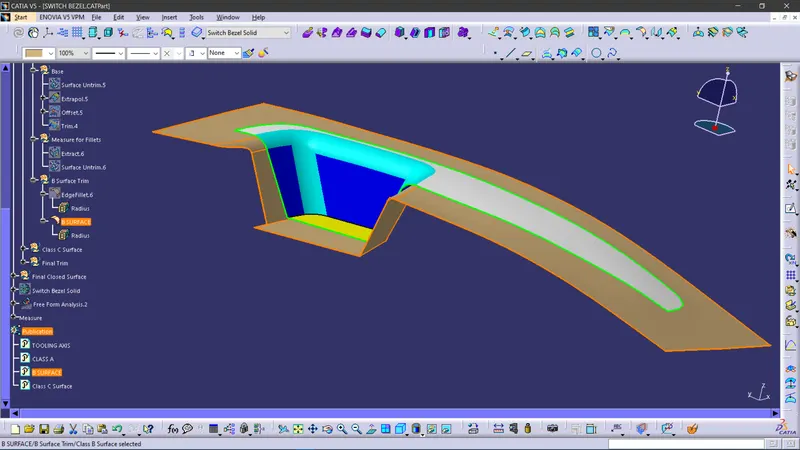

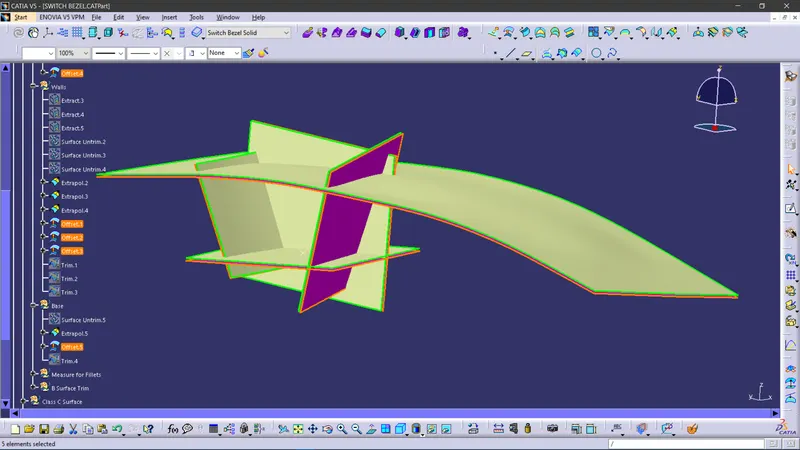

Figure16: Offset highlighted in Purple.

• Trim the extra surfaces to obtain similar extended surfaces as in Class A.
• The surface obtained after trim is shown in Figure 17.

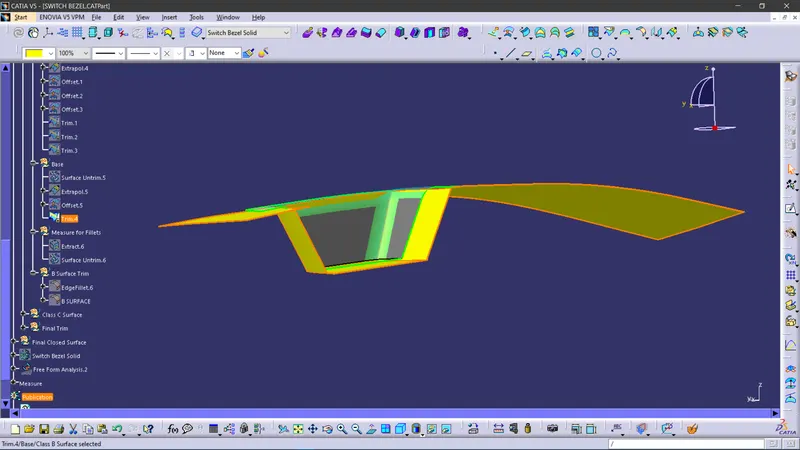

Figure17: Surface obtained on Trimming of Extrapolated Surfaces.

• Create Fillets while maintaining the part thickness between the Class A and Class B surfaces.
• The Value of Fillet is given by the equation (B surface fillet = A surface fillet ` Thickness of the Part).
• The sign + or – must be decided so as to maintain the part thickness which in this case is 2.5mm.
• The operation is shown in Figure 18.

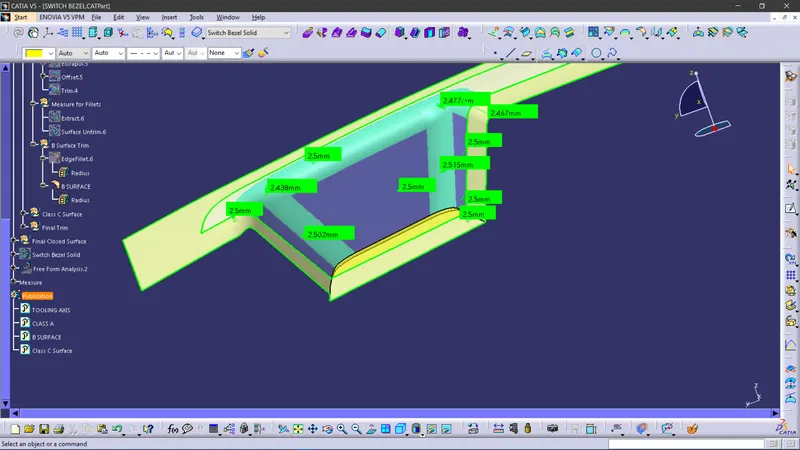

Figure18: Fillets to be created as per the Part Thickness (in this case 2.5mm).

• The obtained surface is the required Class B Surface highlighted in Light Brown as shown in Figure19.

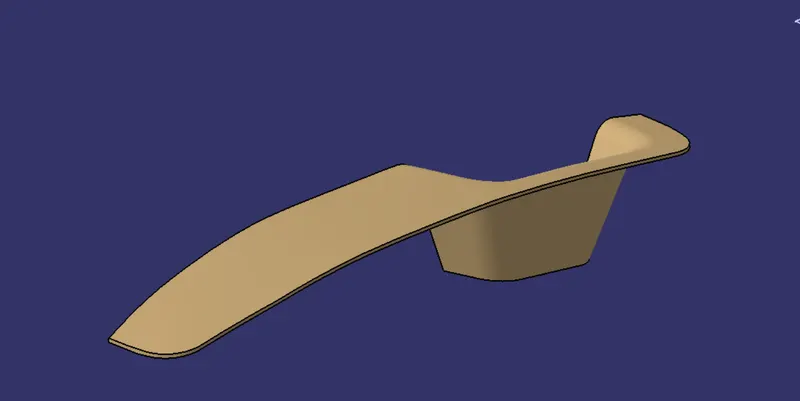

Figure19: Class B surface of Switch Bezel highlighted in Light Brown.

Step 5: Class C Surface Creation:

• Use Multiple Extract to extract the outer boundary of the Switch Bezel Class A surface.
• Use Smooth Curve since the multiple extract creates multiple sections as shown in Figure 20.

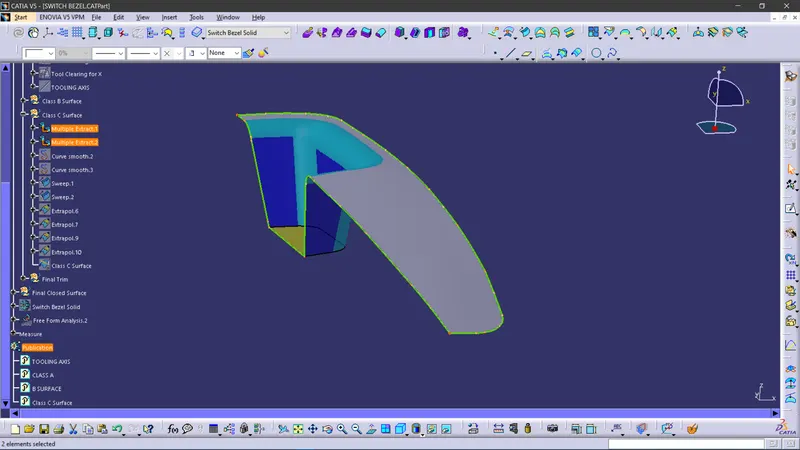

Figure20: Multiple Extract and Smooth Curve for Class A boundary.

• Use Sweep Operation to extrude the boundary using the Draft direction option and selecting the Tooling Axis as the direction.
• Use draft angle as 3º and select outward direction arrow.
• Sweep it well beyond the B surface as shown in Figure 21

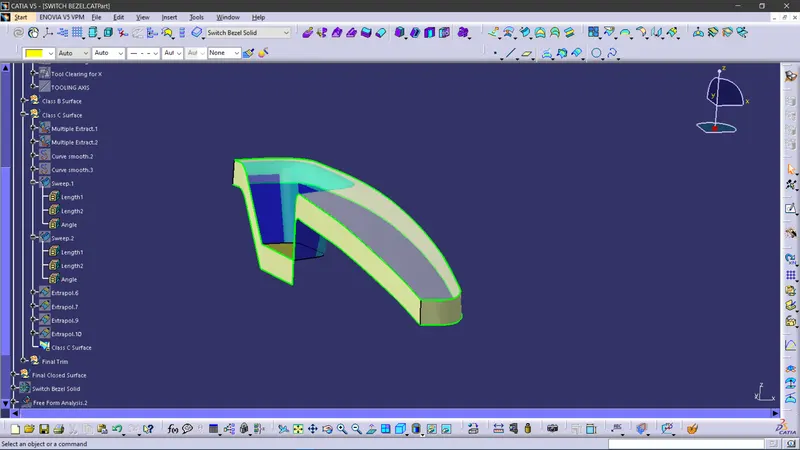

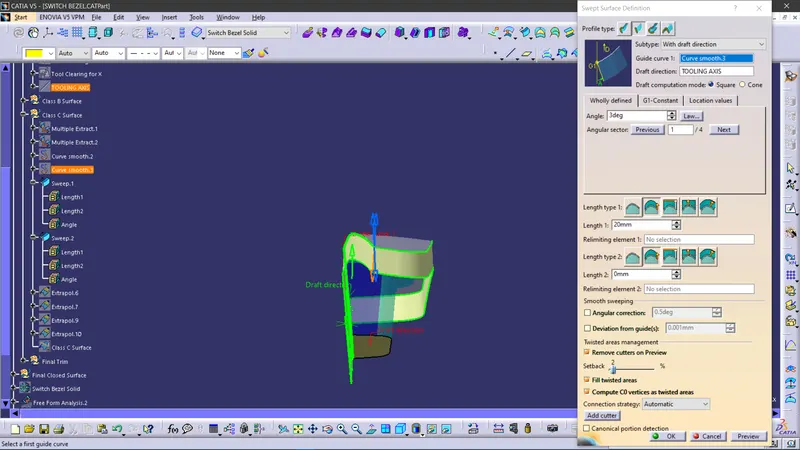

Figure21: Sweep operation with draft direction and draft angle.

• Use similar Sweep for other Smooth curve and if any gaps are found extrapolate and trim to make an enclosed surface.
• The C surface is shown in Figure22

Figure22: Class C surface.

Step 6: Final Closed Surface Creation:

• Join all the Swept surfaces along with the Class A Surface. In this case gaps occur while joining so use 0.003mm.
• Even this method doesn’t fill up the gap so extrapolate Class A to about only 0.5mm and trim it off with C surface.
• The Final trim should be one single Surface Entity without any gaps as shown in Figure 23.

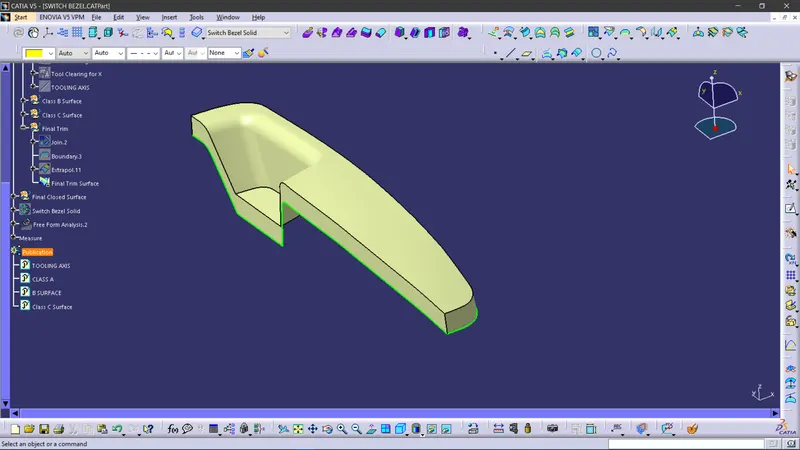

Figure23: Final trim of Class A and Class C surfaces.

• Trim the Final Trim Surface with the Class B surface to obtain the final enclosed Surface for the Switch Bezel as shown in Figure 24.

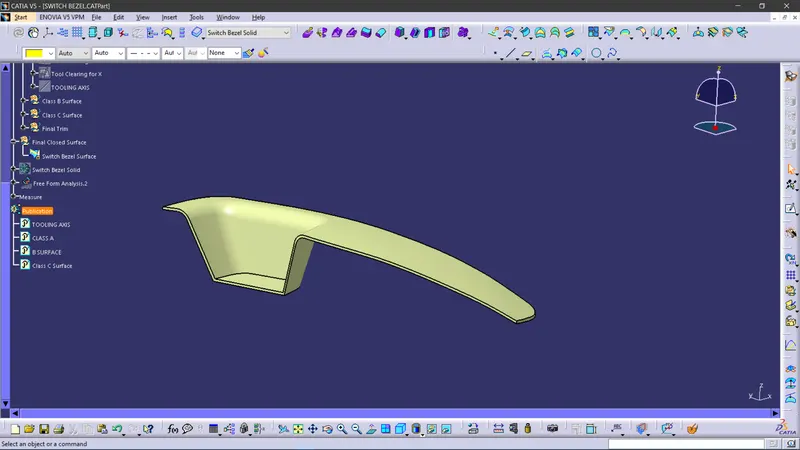

Figure24: Final Closed Surface.

Step 7: Perform Draft Analysis on the Final Closed Surface:

• Change View Mode Customization to Material mode
• Go to INSERT à ANALYSIS à FEATURE DRAFT ANALYSIS and move the compass to the Tooling Axis. Change the range to 2.9º. Apply the settings as Shown in Figure 25
• As shown the target area has 3º draft angle. Thus, it passes the criteria of having suitable draft and the Closed can be further designed into a solid plastic component and manufactured.

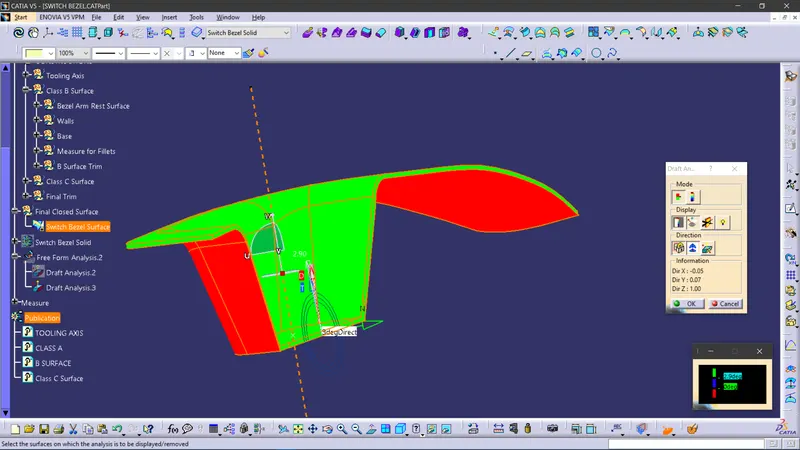

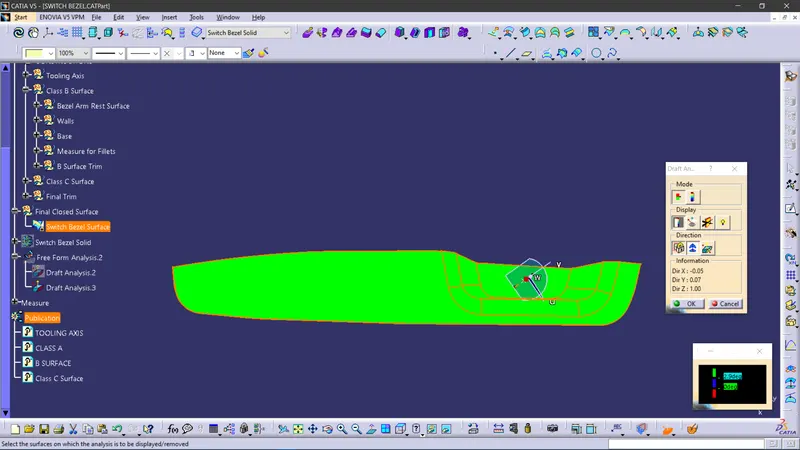

Figure25: Draft Analysis on Closed Surface of Switch Bezel.

• Other views of the Draft Analysis are shown below in Figure 26 to Figure 29

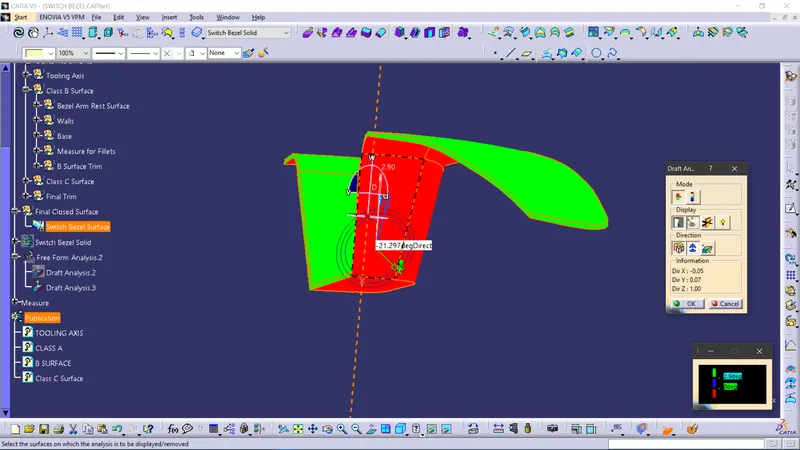

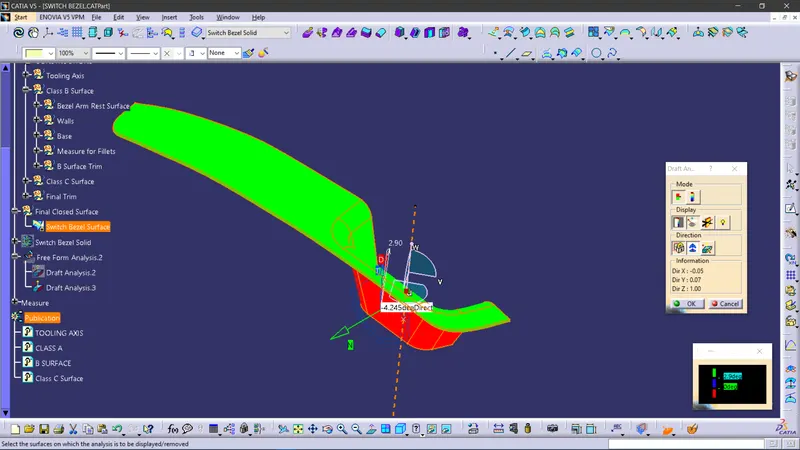

Figure26: Isometric View - Draft Analysis on Closed Surface of Switch Bezel.

Figure27: Front Side View - Draft Analysis on Closed Surface of Switch Bezel.

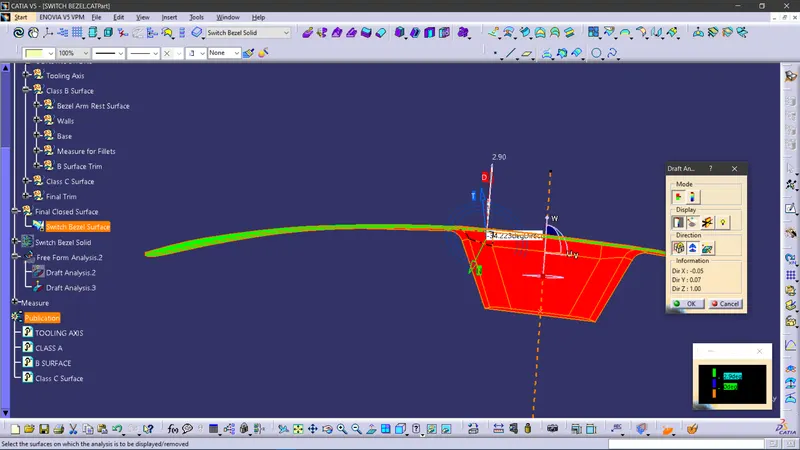

Figure28: Top View - Draft Analysis on Closed Surface of Switch Bezel.

Figure29: Left Hand Side View - Draft Analysis on Closed Surface of Switch Bezel.

Step 8: Create a Closed Body Part from Final Closed Surface:

• Switch to Part Design Workbench and use Closed Surface option to create a Solid Part from the final obtained surfaces.
• The part created is the required Switch Bezel designed from a Class A.
• The obtained solid Part is shown in Figure 30.

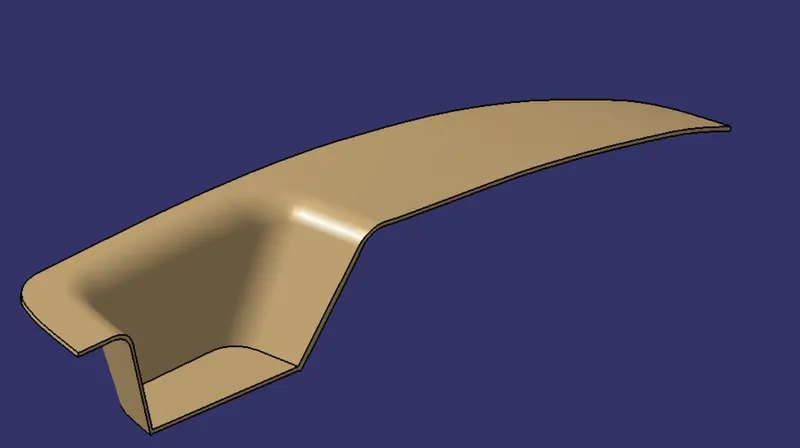

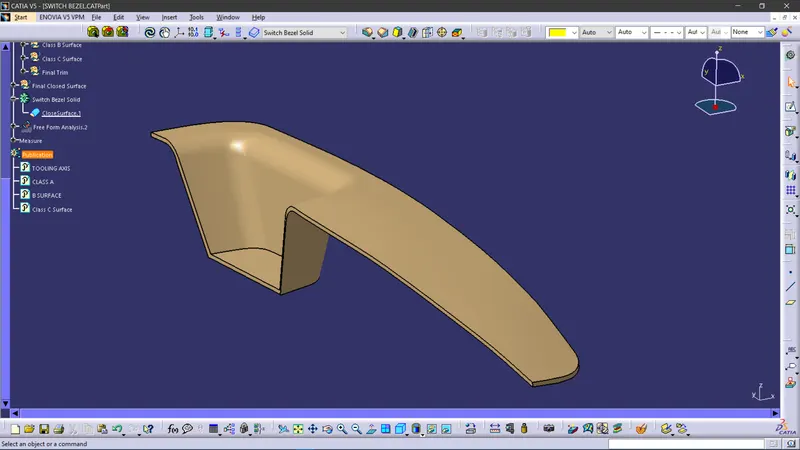

Figure30: Final Closed Surface Part of Switch Bezel.

Conclusion:

The Design of Automotive Plastic Component – Door Switch Bezel from Class A is completed using concepts of Draft angle, Draft Analysis for Class A and Final enclosed surface, Tooling Axis creation and implementation, Class B and Class C creation and conversion to a solid part.
